Upgrade basic to Smart MS Kit with Smart Pan tilt controller Order: 239082685

MS Kit with Smart Pan tilt controller

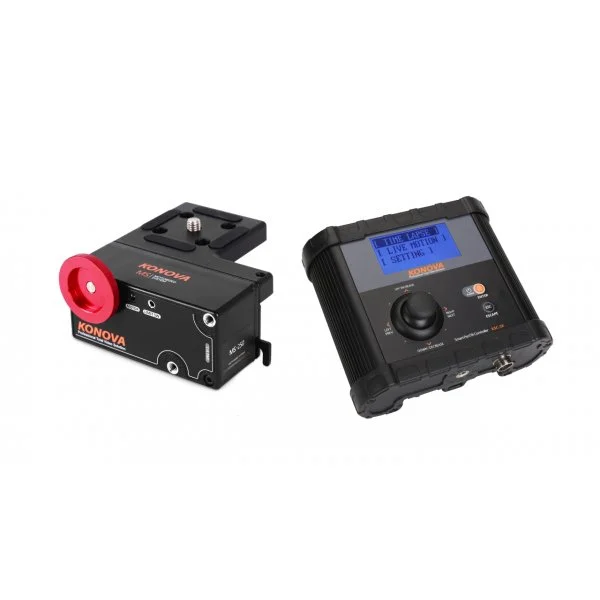

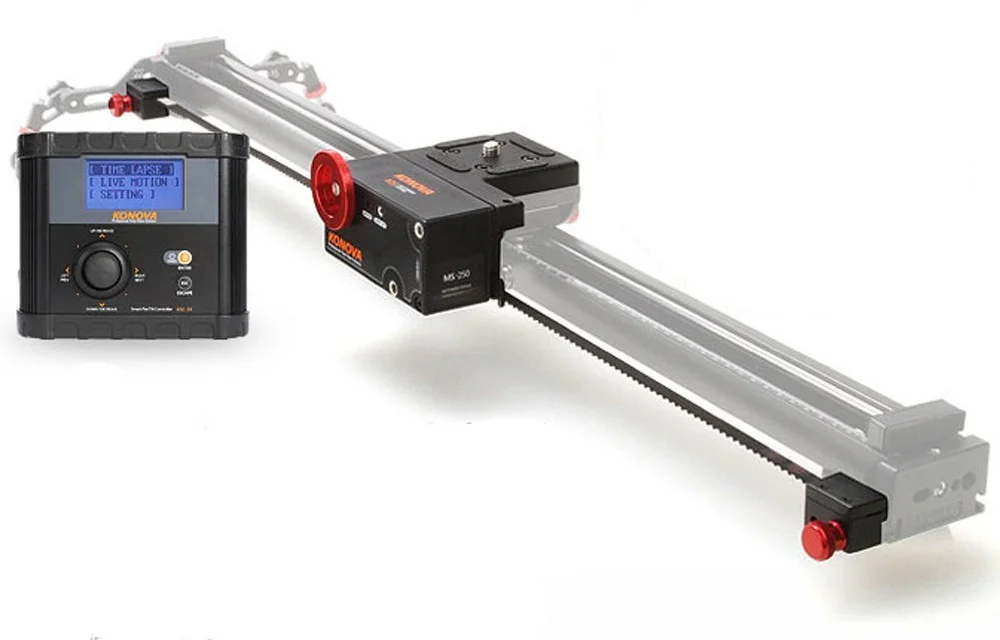

Konova MSS-250 Smart motion controller Kit 250
Smart Motorized System - Time Lapse & Live Motion
Kan bruges på alle K3, K5 og K7 Sliders

Inkluderet:

Smart Motion controller
ac adapter
Slip kabel + Udvidet kabel
Tilslut boks Ksd-CB
Kabel Ksc-10b
Ms-motor 1/250
Bælte og bælte
Motor & Limitswitch Kabel.

• Specs:

  Motor
  Load Capacity	Horizontal: 44 lb (20 kg) Vertical: 13 lb (6 kg)
  Gear Ratio	1500:1, 250:1, 50:1(choose one motor)
  Horizontal Moving Speed	89.3 to 223.7 sec / ft (293 to 734 sec / m) Tested with 9 lb (4 kg) weight and Basic Pan-Tilt Controller (Ramp: 0%)
  Vertical Moving Speed	Rise: 96.9 to 254.5 sec / ft (318 to 835 sec / m) Descend: 93.6 to 139 sec / ft (307 to 456 sec / m) Test with 13 lb (6 kg) weight and Basic Pan-Tilt Controller (Ramp: 0%)
  Mount Type	3/8"-16
  Accessory Mounting Threads	3 x 1/4"-20
  Power Requirements	12 VDC / 3.5 A
  Dimensions	4.6 x 1.7 x 2.1" (11.9 x 4.5 x 5.5 cm)
  Weight	1.14 lb (0.52 kg)

• KSPC-502 Smart Pan-Tilt Controller

  Packaging Info
  Box Dimensions (LxWxH)	10.7 x 7.2 x 4.3"

• AC Adapter for MSS Bundle

  Packaging Info
  Box Dimensions (LxWxH)	6.1 x 4.4 x 3.0"

3/8"-163 x 1/4"-20
