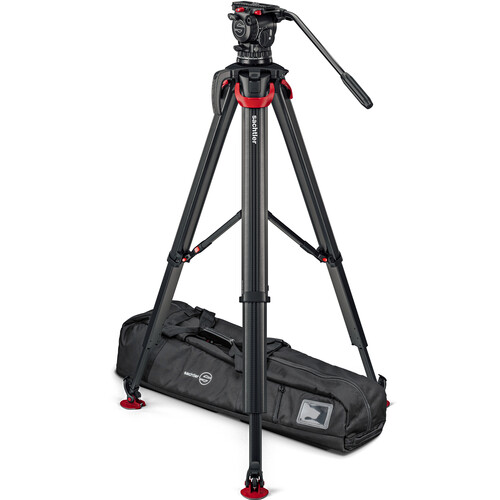

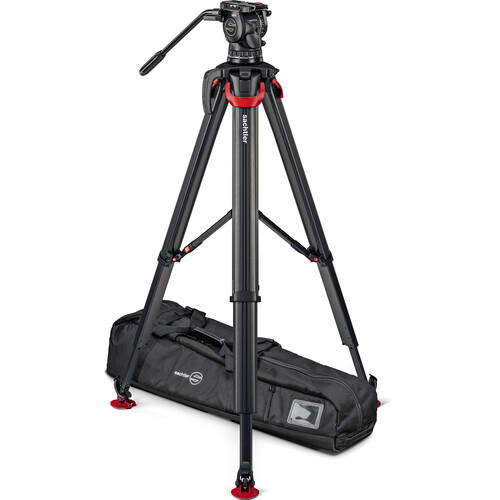

Sachtler System aktiv10 flowtech100 with sideload and mid-level spreader

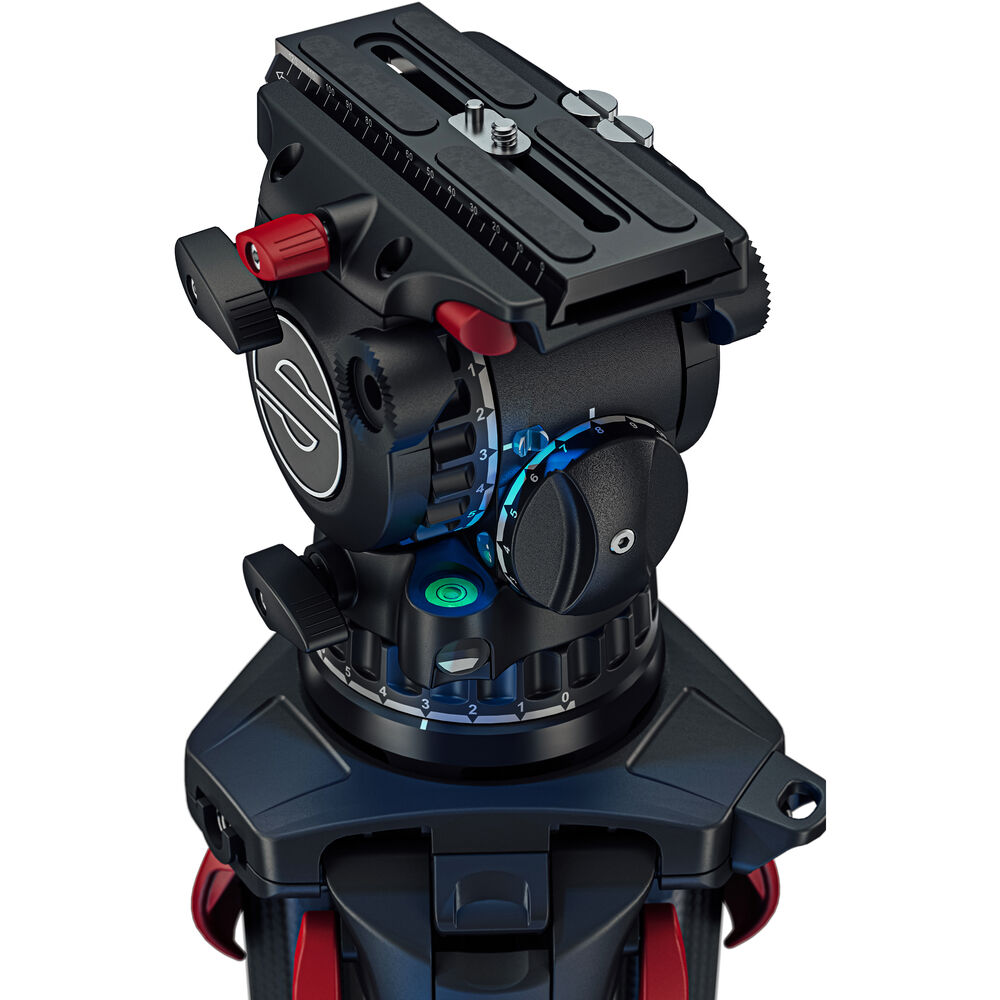

Weighing only 6.9 kg (15.2 lbs.) the aktiv10 flowtech100 system is both lightweight and durable, designed to be a long-serving and high-performing part of your kit. This system is the perfect choice for professional medium-sized camcorders and digital Cine camera set ups of up to 12 kg (26.5 lbs.). 15 counterbalance steps allow for fast and precise balancing of your camera. Its sideload mechanism with a long sliding range of 120 mm make loading and positioning the camera quick and easy. Seven drag settings provide smooth and fast to adjust drag performance without jolts or vibrations. The illuminated PrismBubble with top or side view makes levelling easy from any height.

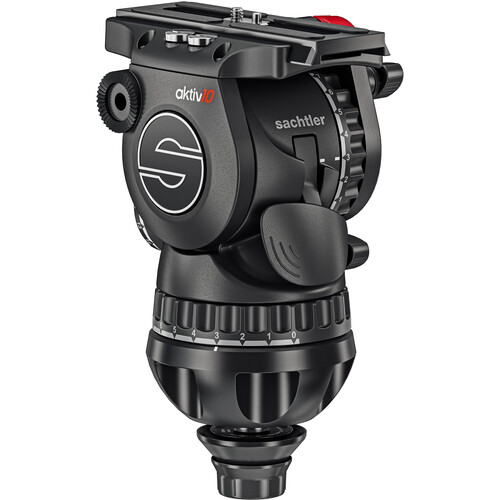

Fluid Head

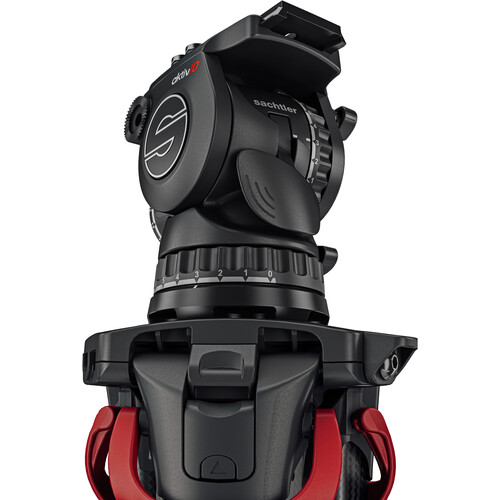

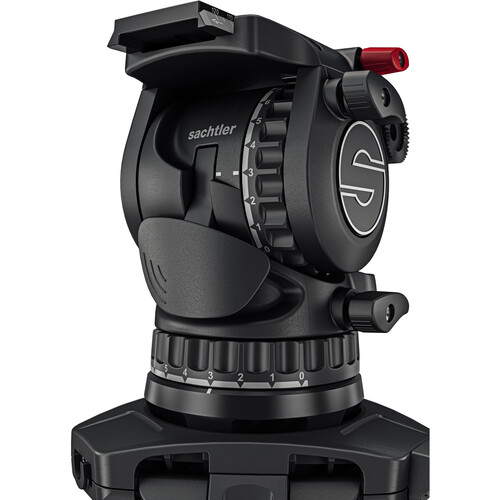

The aktiv10 fluid head with unique SpeedLevel™ technology can be levelled in seconds giving you time to get the perfect shot in documentary, corporate, news or wildlife applications. The SpeedSwap™ system delivers the fastest way to switch between tripod and slider in seconds giving you ultimate flexibility.
Tripod Flowtech

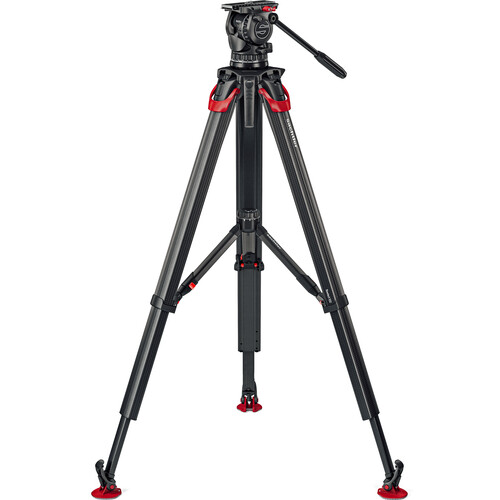

Capture the widest range of shots in the shortest time with aktiv10 combined with flowtech100. With no bowl clamp required, flowtech can go flat to the ground for extreme low-angle shots – using the versatile hinge lock mechanism of flowtech. The system delivers the widest height range. The 2-stage carbon fibre flowtech tripod with high torsional stiffness has unique quick release brakes which can be deployed and adjusted in an instant. Its ergonomic design makes the tripod comfortable to carry, on shoulder or carry handle, no matter where your creativity takes you. flowtech comes with a quick attach rubber foot mechanism and an adjustable mid-level spreader. When you are ready to move on, the legs are hold together by a magnetic lock for transportation.
Sachtler Aktiv10 Sideload Fluid Head With SpeedLevel & 7-Step Drag For Sachtler Tripods (100mm) Specs

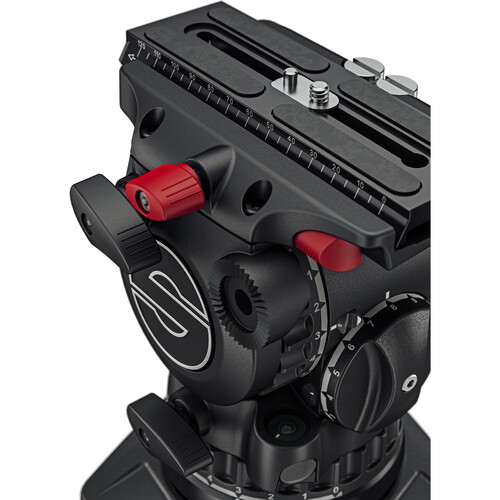

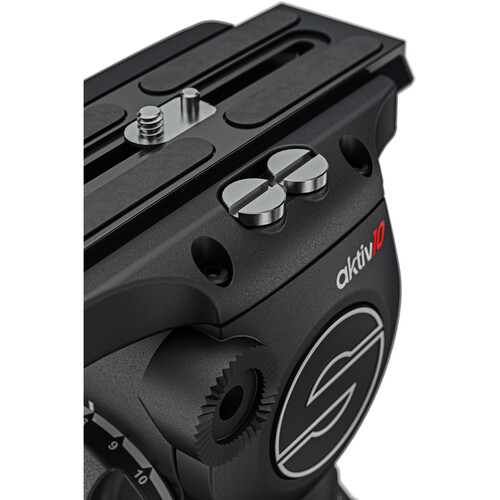

Camera Plate
| Camera Plate Features | Sideload, Sliding Balance Plate |
| Camera Plate Type | Sideload Plate S |
| Camera Mounting Screw | 1 x 1/4"-20 Male with Locating Pin |
| Balance Plate Sliding Range | 4.7" / 120 mm |
| Safety Lock | Yes |
| Plate Dimensions | 5.5 x 2" / 140 x 50 mm |
Head
| Base Mount | 100 mm Half Ball Sachtler SpeedSwap |

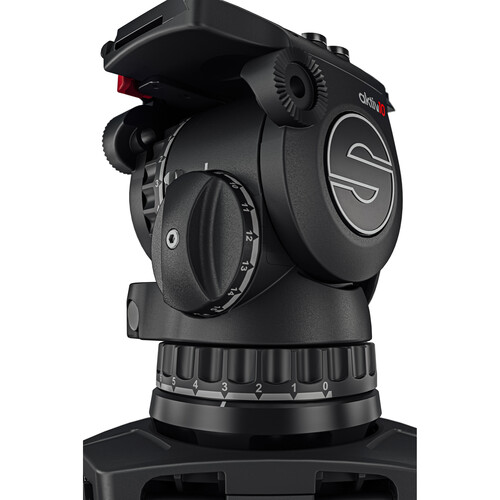

| Counter Balance | Continuous 15-Step Plus 0 |
| Pan Handle Fittings | 2 x Rosette |
| Included Pan Handle Length | 16.9" / 430 mm |

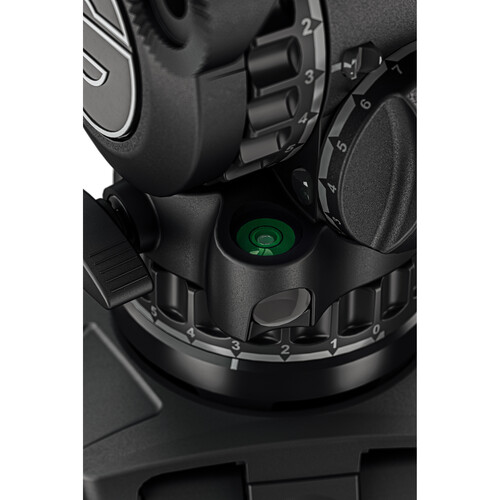

| Bubble Level | 1 x Illuminated |
Pan & Tilt
| Drag Control | Pan: Stepped 7-Step Plus 0 Tilt: Stepped 7-Step Plus 0 |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -70° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
General
| Load Capacity | 0 to 26.5 lb / 0 to 12 kg |
| Operating Temperature | -8 to 92°F / -40 to 60°C |
| Weight | 6.4 lb / 2.9 kg |
Packaging Info
| Package Weight | 9.5 lb |
| Box Dimensions (LxWxH) | 18 x 14.5 x 14" |
Sachtler Flowtech 100 MS Carbon Fiber Tripod With Mid-Level Spreader & Rubber Feet Specs
General
| Head Mount Type | 100 mm Bowl |
| Maximum Working Height | 61.02" / 155 cm (with Spreader) 60.24" / 153 cm (without Spreader) |
| Minimum Working Height | 20.47" / 52 cm (with Spreader) 10.24" / 26 cm (without Spreader) |
| Closed Length | 26.8" / 68 cm |
| Materials | Carbon Fiber |
| Weight | 9.04 lb / 4.1 kg |
Legs
| Leg Lock Type | Flip Lock |
| Leg Positions | Locking 3 Positions and Continuously Adjustable |
| Independent Leg Spread | Yes |
| Leg Sections | 3 |
| Feet Features | Rubber, Removable, Dual Spiked |
| Spreader | Mid-Level |
Packaging Info
| Package Weight | 13.5 lb |
| Box Dimensions (LxWxH) | 28.5 x 7.4 x 7.1" |
Sachtler ENG 2 Padded Bag Specs
| Carrying/Transport Options | Connecting Handles, Shoulder Strap |
| Type of Closure | Zipper |
| Exterior Material | Cordura, Nylon |
| Padded | Yes |
| Interior Dimensions | H: 7.9 x W: 8.5 x L: 35.4" / H: 20.1 x W: 21.6 x L: 89.9 cm |
| Weight | 3.6 lb / 1.6 kg |
Packaging Info
| Package Weight | 5.6 lb |
| Box Dimensions (LxWxH) | 39 x 12 x 5" |
