DZOFILM Vespid Prime Cine 10-Lens Kit-- 12/16mm T2.8+21/25/35/40/50/75/100/125mm T2.1 PL+EF mount

DZOFILM Vespid Prime Cine 10-Lens Kit-- 12/16mm T2.8+21/25/35/40/50/75/100/125mm T2.1 PL+EF mount

Gorgeous Bokeh, Aesthetic Appeal

Vespid lenses excel in optical precision, effectively controlling aberrations for remarkable resolution and true-to-life colors. They create soft and natural bokeh for organic and emotional images with smooth focus transitions, while their internal design minimizes focus breathing.

Precise Mechanism, Smooth Operation

The lenses are fully manual with 270° of focus rotation, giving you smooth and accurate focus control. The shared position of the focus and iris gears across the lens set allows for fast lens changes with minimal adjustment of lens accessories. The focus and iris rings are smooth to operate, allowing for precise adjustments to focus and exposure.

Cine-standard Design for Versatile Applications

The Vespid series covers a range of 11 focal lengths, from ultra-wide-angle to standard and telephoto, catering to diverse shooting scenarios. A comprehensive design adhering to industry standards ensures a consistent visual style.
Compatible with Vista Vision large-format sensors, these lenses meet the varied demands of independent filmmaking and large-scale productions.

Compact and Solid Build

The lens housing is crafted from a durable aluminum alloy, making it robust and reliable in various environments. The lenses' compact and lightweight designs make them ideal for handheld, gimbal, and drone work.

Inclusive Compatibility, Unlocking Potential

Vespid Prime lenses come with a versatile interchangeable mounting system that
accommodates both PL and EF mounts. They can also be used with other mounts compatible
with Octopus adapters. Additionally, the lenses have a filter thread size of 77mm, which enables
effortless use with a wide range of filters.

Included:

12mm Vespid PL Lens
16mm Vespid PL Lens
21mm Vespid PL Lens
25mm Vespid PL Lens
35mm Vespid PL Lens
40mm Vespid PL Lens
50mm Vespid PL Lens
75mm Vespid PL Lens
100mm Vespid PL Lens
125mm Vespid PL Lens

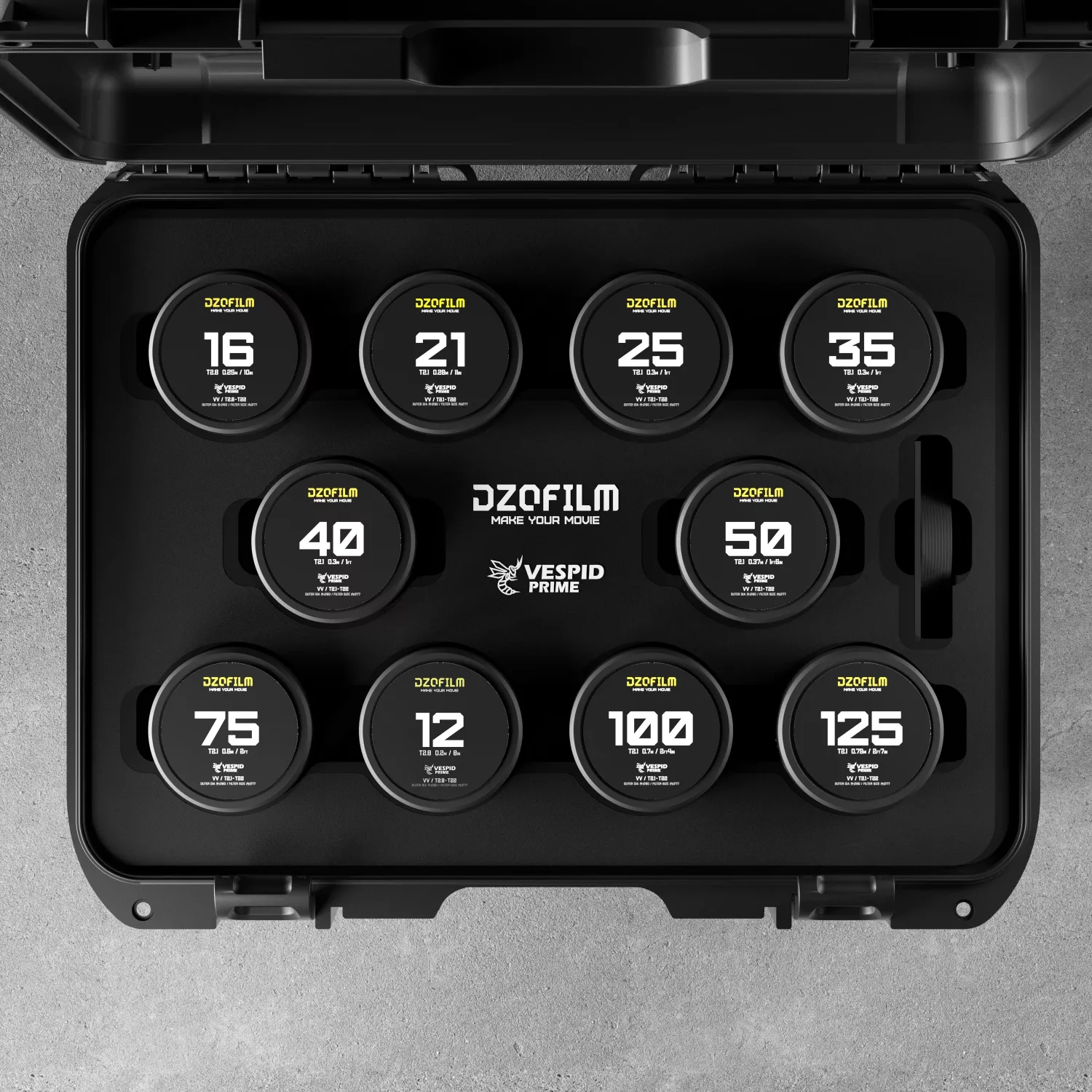

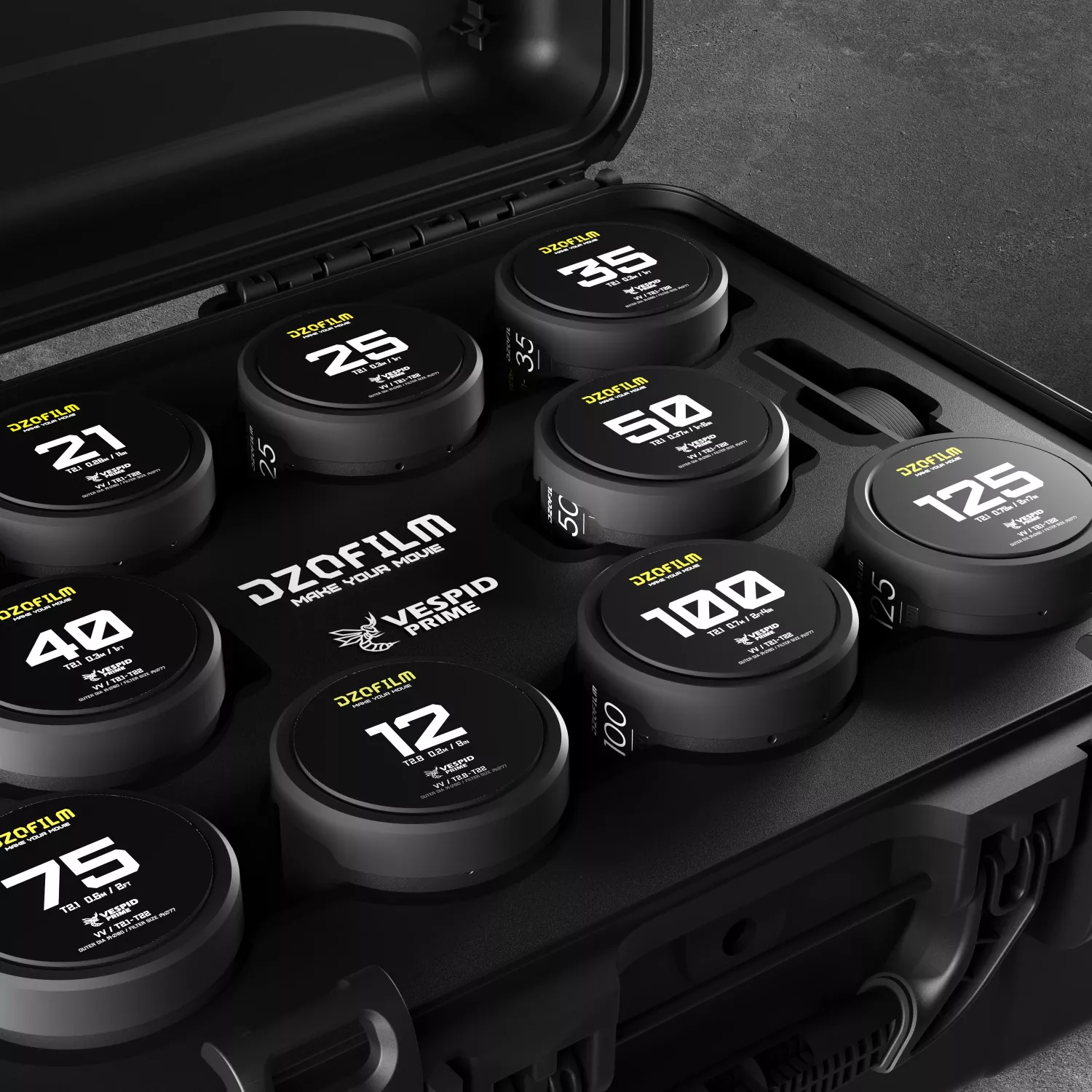

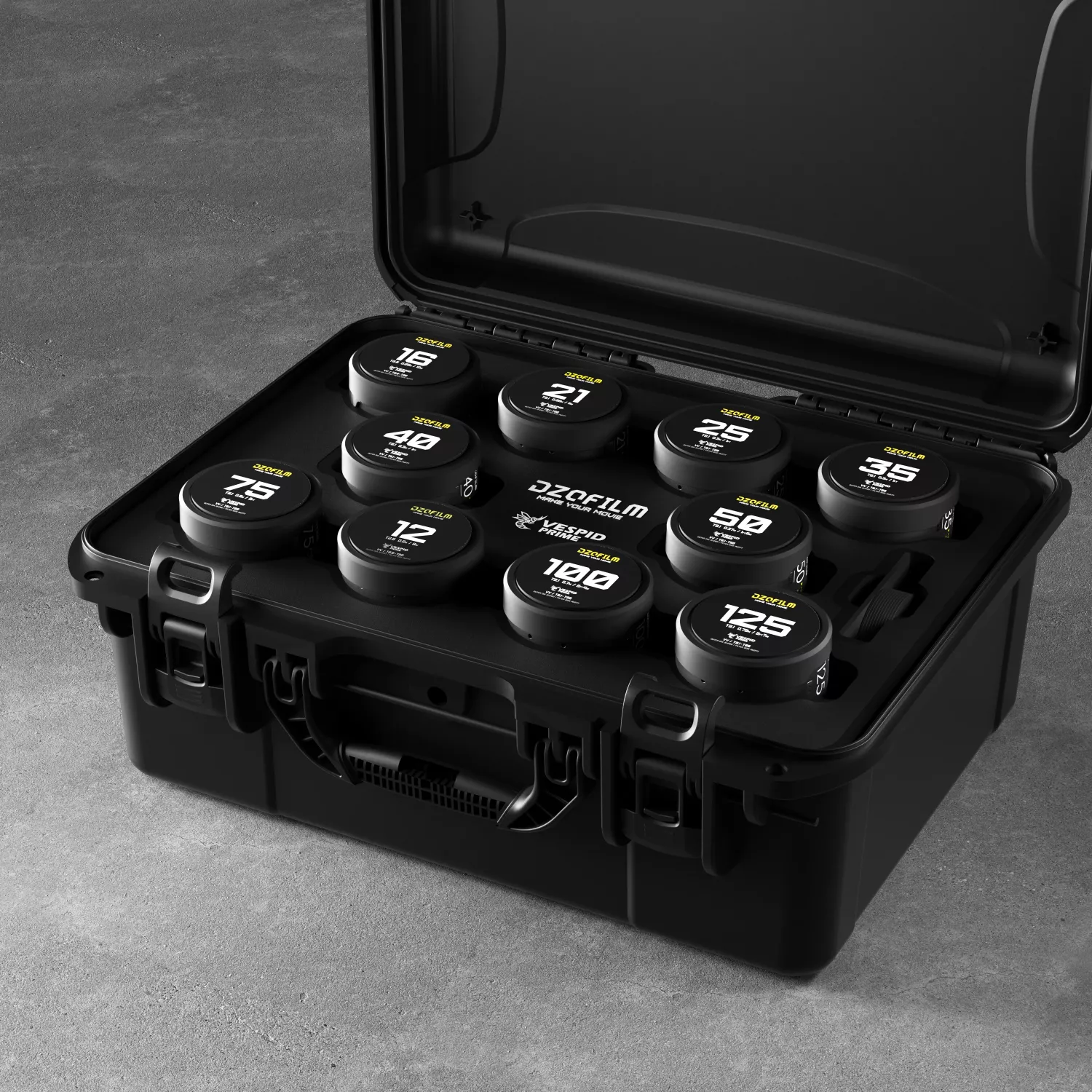

1x DZOFilm 10-Lens Hard Case for VESPID Primes
10x DZOFilm EF-Mount Tool Kit or Pictor Zoom  and Vespid Lens

PARAMETER

Focal Length	12 mm	16 mm	21 mm	25 mm	35 mm	40 mm	50 mm	75 mm	90 mm	100 mm	125 mm
Colour	Black
Mount	PL / EF
Aperture	T2.8-T22		T2.1-T22						T2.8-T22	T2.1-T22
Image Circle	φ46.5mm(VV/FF)
Construction Of Optics	15 Elements in 10 Groups	14 Elements in 10 Groups	13 Elements in 9 Groups	12 Elements in 11 Groups	11 Elements in 9 Groups	10 Elements in 9 Groups	9 Elements in 7 Groups		11 Elements in 9 Groups	9 Elements in 7 Groups	10 Elements in 8 Groups
Flange Distance	52mm(PL)/44mm(EF)
Close Focus (From Sensor Plane)	0.2m/8in	0.25m/10in	0.28m/11in	0.3m/1ft			0.46m/1.6ft6in	0.6m/2ft	0.258m/10.2in	0.7m/2ft4in	0.79m/2ft7in
Max.Mag. Ratio	/								1.5X	/
Iris Control	Manual(75°)	Manual(50°)	Manual (68°)		Manual (63°)	Manual (68°)	Manual (58°)	Manual (68°)		Manual (83°)	Manual (84°)
Focus Control	Manual (270°)								Manual (300°)	Manual (270°)
Front Dia.	∮80mm/3.15""
