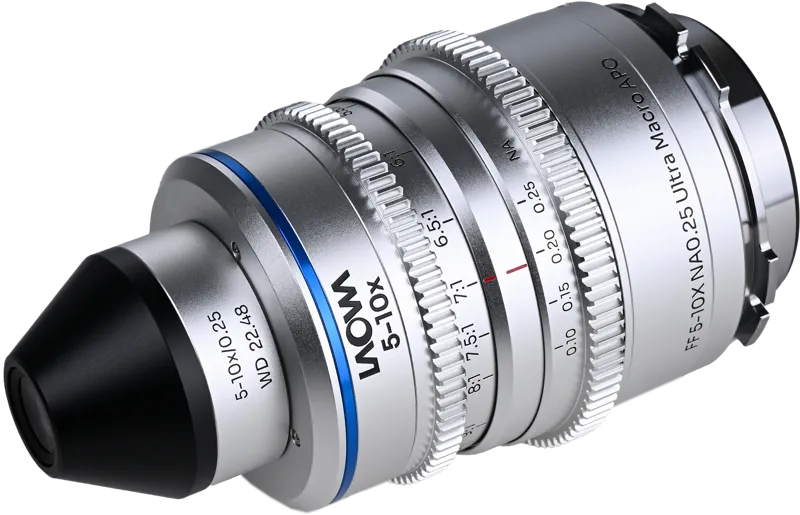

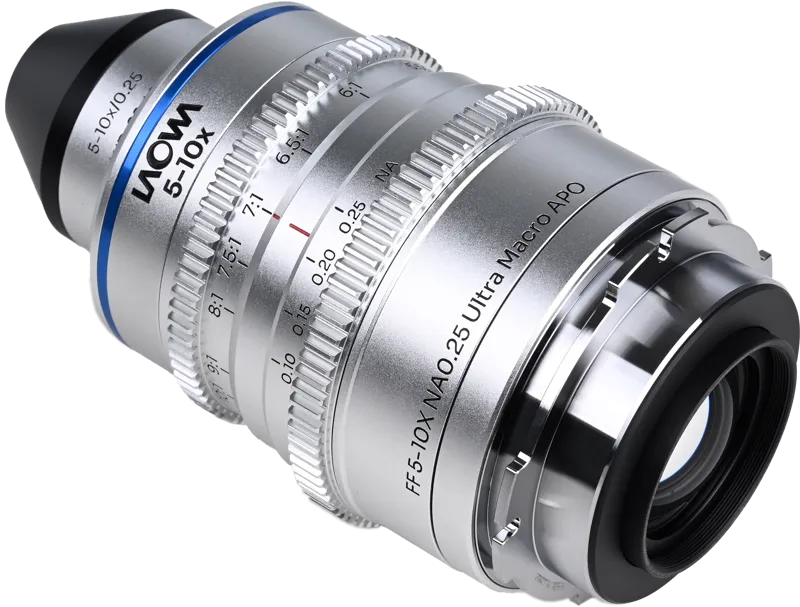

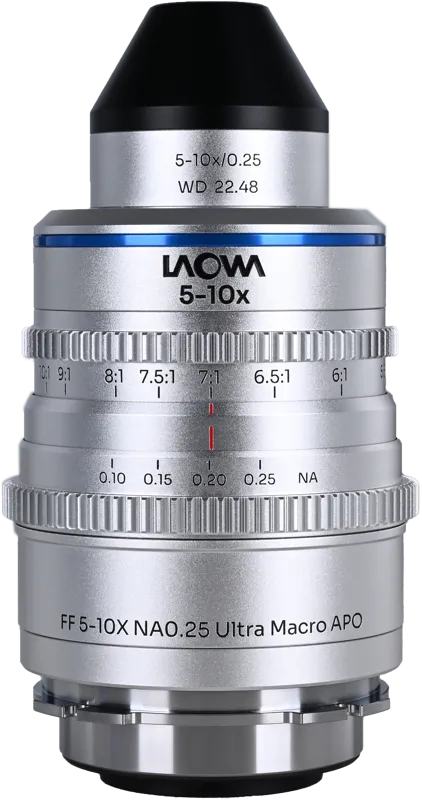

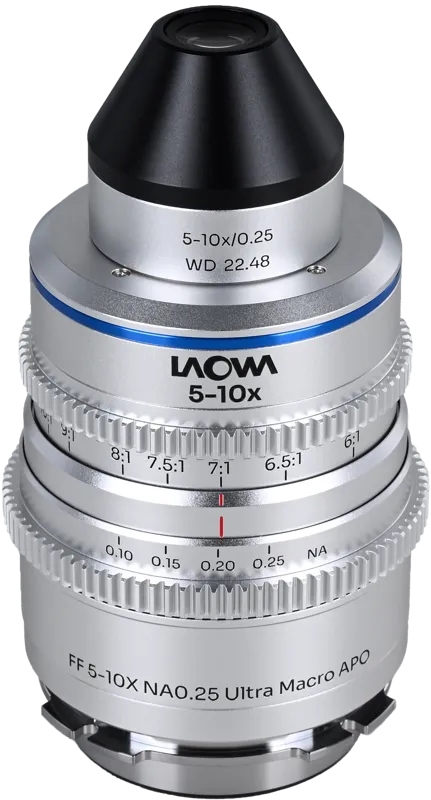

Laowa Aksen 17.5mm f/1.7 5-10X Ultra Macro APO Cine Arri PL

Laowa Aksen 17.5 mm f/1.7 5–10X Ultra Macro APO Cine Arri PL – Extreme magnification for professional filmmakers

The Laowa Aksen 17.5 mm f/1.7 5–10X Ultra Macro APO lens is designed for filmmakers seeking outstanding macro photography with unparalleled flexibility. With a magnification capability between 5 and 10 times, this lens offers a unique opportunity to capture details that would otherwise be invisible. It is perfect for documentaries, nature films, and creative projects where every detail matters.

Outstanding Zoom Functionality

This lens is the first commercially available zoom macro lens with an extreme magnification of 5–10X. The zoom ring can be smoothly rotated throughout the entire magnification range without requiring refocusing, allowing filmmakers to maintain focus on the subject even as the magnification changes. The fixed working distance of 22.48 mm ensures that the camera, subject, and lighting setup remain stable throughout the working process.

Optical Performance and Quality

Laowa's apochromatic (APO) design reduces chromatic aberration and color fringing, which is particularly important at extreme magnification. The advanced optical construction consists of 17 elements in 12 groups, providing outstanding image sharpness and quality. With an aperture consisting of 11 blades, the lens offers an aperture range from f/1.7 to f/5.6, allowing filmmakers to control light and depth of field precisely.

Compatibility and Use

The Laowa Aksen 17.5 mm f/1.7 5–10X is equipped with a built-in ARRI PL mount, making it compatible with all ARRI PL mount film cameras. The manual focusing allows precise control over sharpness, which is crucial for professional filming. This lens is an excellent choice for filmmakers looking to take their macro photographic skills to the next level.

Specifications

• Lens Type: Ultra Macro Cine
• Magnification Range: 5–10X
• Aperture: f/1.7–f/5.6, 11 blades
• Working Distance: 22.48 mm
• Optical Construction: 17 elements in 12 groups
• Focus: Manual
• Mount: ARRI PL
• Compatibility: ARRI PL mount film cameras

Frequently asked questions

What is the magnification range for the Laowa Aksen 17.5 mm f/1.7 5–10X?
The magnification range is 5–10X.

What type of mount does the lens have?
The lens has a built-in ARRI PL mount.

How many blades does the aperture have in this lens?
The aperture consists of 11 blades.

What is the fixed working distance for this lens?
The fixed working distance is 22.48 mm.
