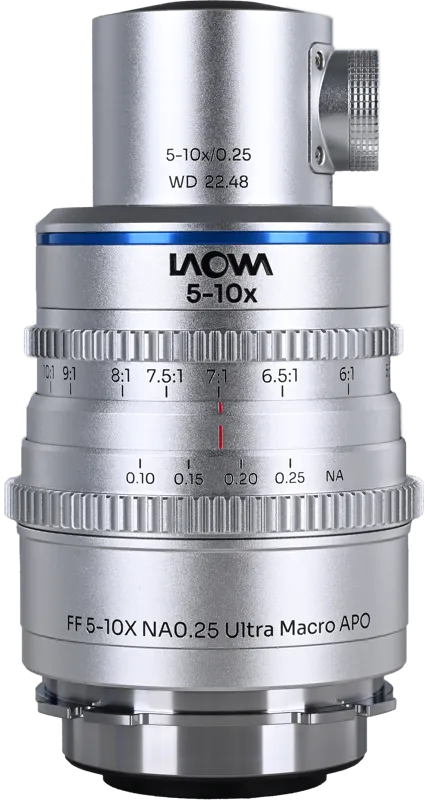

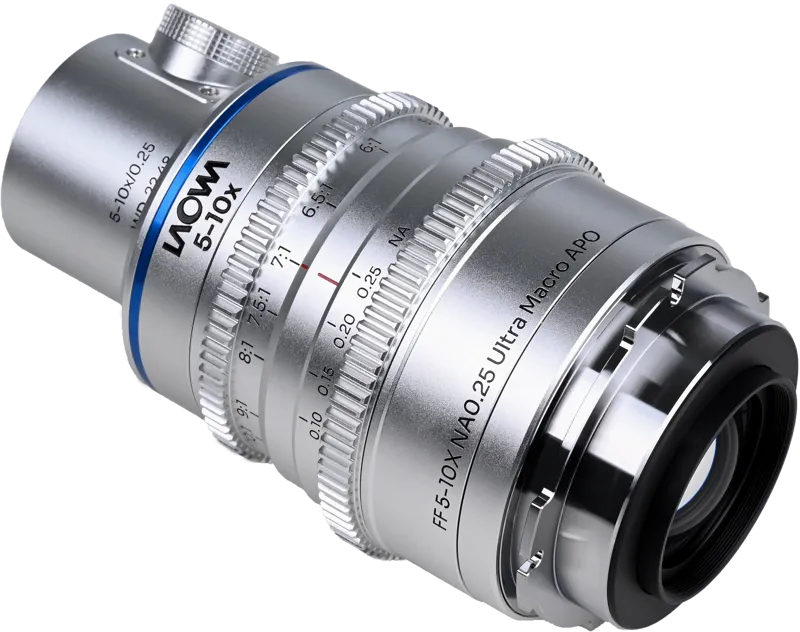

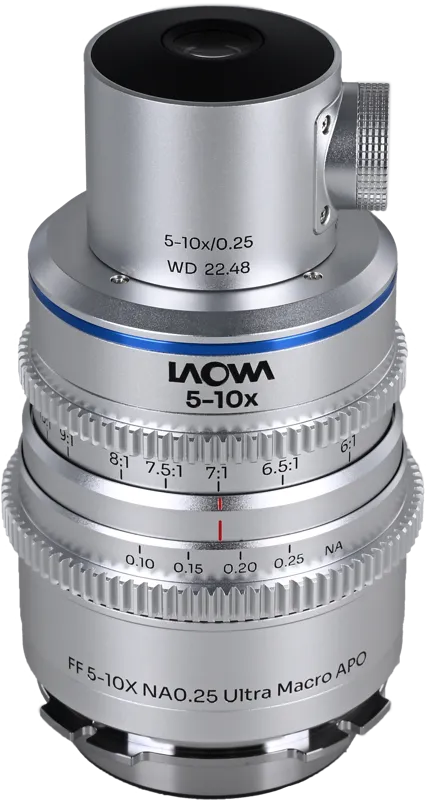

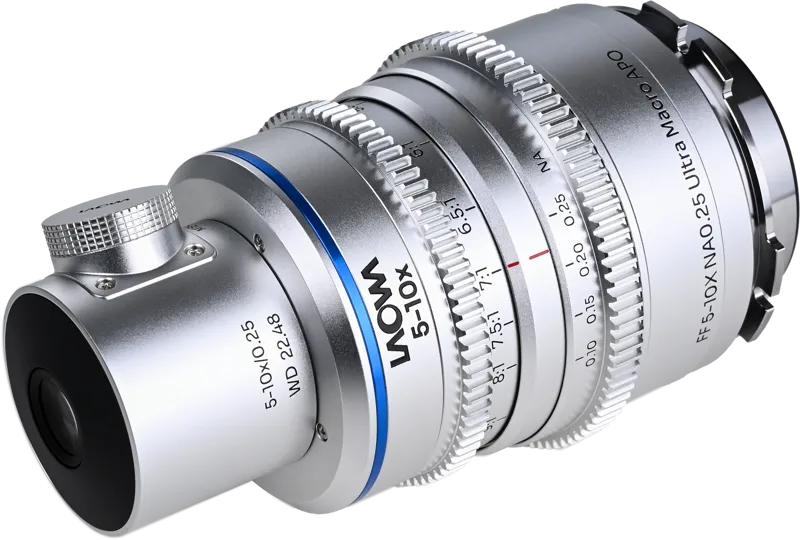

Laowa Aksen 17.5mm f/1.7 5-10X Ultra Macro APO Cine (Coaxial Illumination Version) Arri PL

Laowa Aksen 17.5 mm f/1.7 5–10X Ultra Macro APO Cine - Magnification without refocusing

Laowa Aksen 17.5 mm f/1.7 5–10X Ultra Macro APO Cine is a groundbreaking macro lens that offers an impressive magnification of between 5 and 10X, making it perfect for filmmakers and photographers who want to capture details in close-up with exceptional sharpness. This lens is specifically designed for professional film cameras with ARRI PL mount and is ideal for both macro photography and filming where precision and lighting are crucial.

Impressive magnification and stability

With a zoom ring that can be rotated throughout the magnification range of 5–10X, users can make adjustments without needing to refocus. This means that both the camera and the subject can be kept stable, which is a significant advantage when working with extremely small subjects. The fixed working distance of 22.48 mm ensures that the camera and lighting setup remain in a constant position, making it easier to create the perfect image.

Advanced optics for the best results

Laowa has integrated an apochromatic (APO) optical design in the Aksen 17.5 mm to minimize chromatic aberration and color fringing, which is particularly important at extreme magnification. This version also supports coaxial lighting, allowing you to use the optional Laowa USB coaxial light to achieve even lighting and minimize shadows, further enhancing image quality. The optical design consists of 17 lens elements in 12 groups, contributing to the overall performance of the lens.

Specifications

• Lens type: Macro
• Magnification: 5–10X
• Aperture: f/1.7–f/5.6
• Number of aperture blades: 11
• Optical construction: 17 elements in 12 groups
• Working distance: 22.48 mm
• Mount: ARRI PL
• Coaxial lighting: Support for coaxial lighting
• Focus: Manual focusing

Frequently asked questions

What type of lens is the Laowa Aksen 17.5 mm f/1.7?
It is a macro lens.

What is the magnification range for this lens?
The magnification range is between 5 and 10X.

What type of camera mount is this lens designed for?
It is designed for professional film cameras with ARRI PL mount.

Does the lens support coaxial lighting?
Yes, it supports coaxial lighting and can be used with the optional Laowa USB coaxial light.
