SmallRig 5489 Camera Battery Charger for NP-FZ100

SmallRig 5489 Camera Battery Charger for NP-FZ100 – Dual Slots with USB-C Input

SmallRig 5489 is an innovative and practical charger designed to support Sony NP-FZ100 batteries. It is perfect for both professional and hobby filmmakers who need reliable and fast charging for their batteries. With the ability to charge up to two batteries simultaneously, you can be sure that you always have enough power for your film projects, whether you are on location or in the studio.

Clear LED Indicators and Low Battery Warning

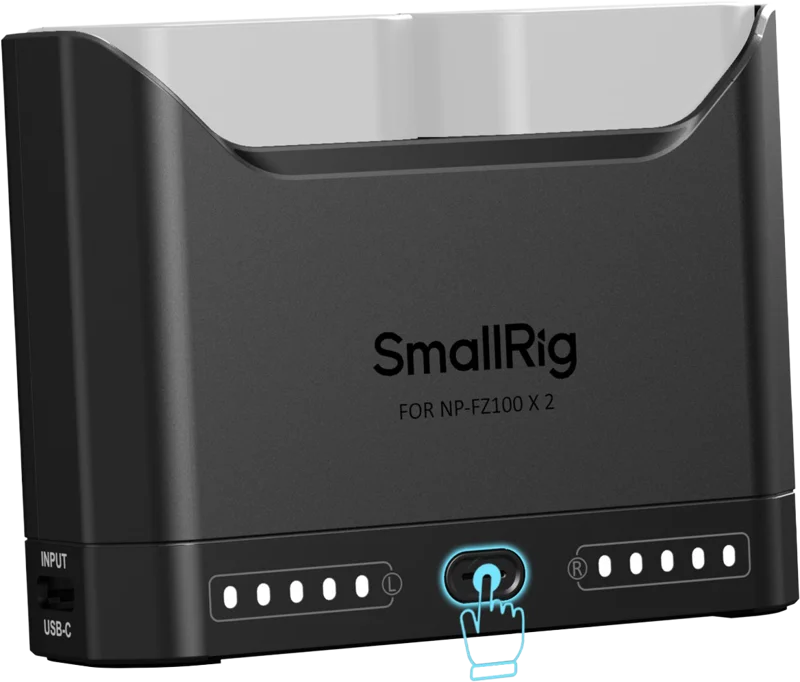

Each charging channel on this charger is equipped with five LED indicators that show the battery level in 20% increments. This provides you with a clear visual representation of how much power is left in the batteries. The LED lights also work when the charger is not connected to an external power source, making it easy to keep track of battery levels. A red warning light turns on when the battery level becomes critically low, allowing you to immediately charge the batteries and avoid interruptions in your work.

Flexible USB-C Input and Included Cable

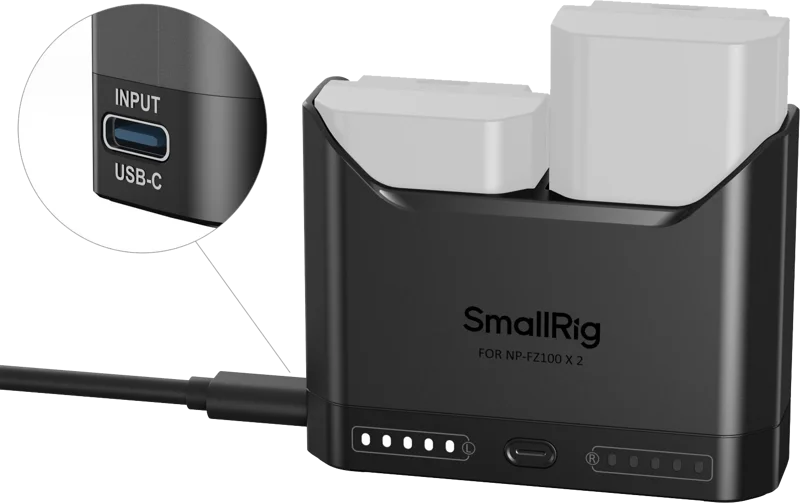

This charger features a universal USB-C input and comes with a fast-charging USB-C to USB-C cable (60W, 1 m). This makes the charger compatible with various power sources, including wall adapters, car chargers, and power banks, giving you the flexibility to charge your batteries wherever you are. You can rely on SmallRig 5489 to always be ready to power up your batteries when you need it most.

Intelligent Safety and Battery Care Features

The intelligent electronics in SmallRig 5489 offer several protective mechanisms to ensure safe and efficient charging. The charger carefully monitors temperature and voltage and automatically adjusts the charging process to protect both the batteries and the charger:

• Slows down charging if it detects overheating to prevent thermal damage.
• Cuts off power at over-voltage to protect the battery and charger.
• Uses trickle charging when the batteries approach full capacity to preserve battery health and lifespan.

Certifications

SmallRig 5489 charger is certified according to several standards, including FCC, CE, RoHS, ISED, and RCM, ensuring that it meets strict safety and quality requirements.

Important User Instructions

To ensure proper charging, the following is recommended:

• Use a power adapter with at least 22.5W output for optimal charging.
• Avoid using 5V / 1A power adapters, as these are not compatible.
• If you use a 5V / 2.4A adapter, the charger will operate in slow-charging mode and prioritize charging the battery in Channel 1 before switching to Channel 2 when Channel 1 is fully charged.

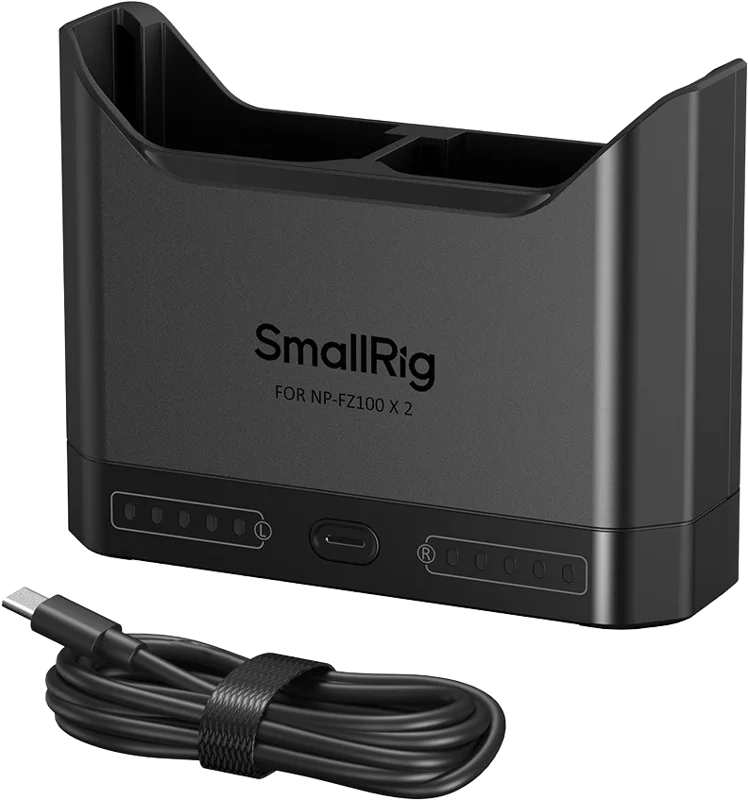

Compatibility and Included Items

SmallRig 5489 is compatible with Sony NP-FZ100 batteries and can charge both OEM and third-party batteries, making it an excellent choice for anyone working with these batteries. The package includes:

• Camera Battery Charger for NP-FZ100
• 60W USB-C to USB-C Cable (1 m)

Technical Specifications

Frequently asked questions

Can the SmallRig 5489 charge two batteries at the same time?
Yes, the SmallRig 5489 can charge up to two NP-FZ100 batteries simultaneously.

How does the charger display the battery level?
Each charging channel has five LED indicators that show the battery level in 20% increments.

What type of input does the SmallRig 5489 have?
The charger has a universal USB-C input.

What safety features does the charger have?
The charger has intelligent safety features such as temperature and voltage monitoring, as well as protection against overheating and over-voltage.

What type of power adapter is recommended for optimal charging?
It is recommended to use a power adapter with at least 22.5W output for optimal charging.
