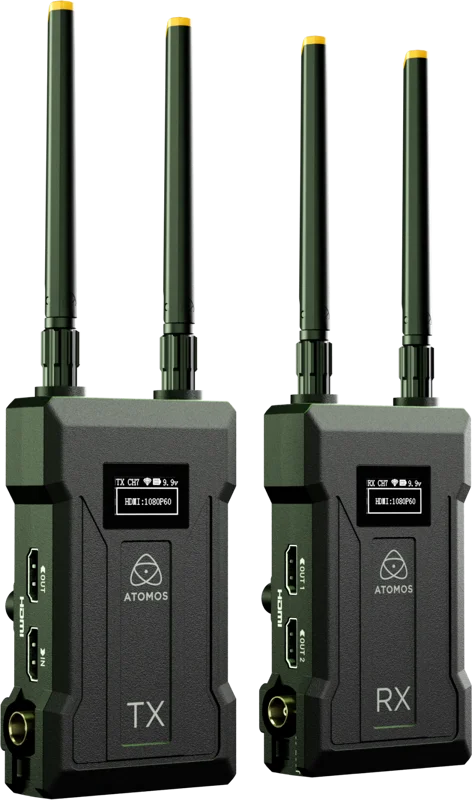

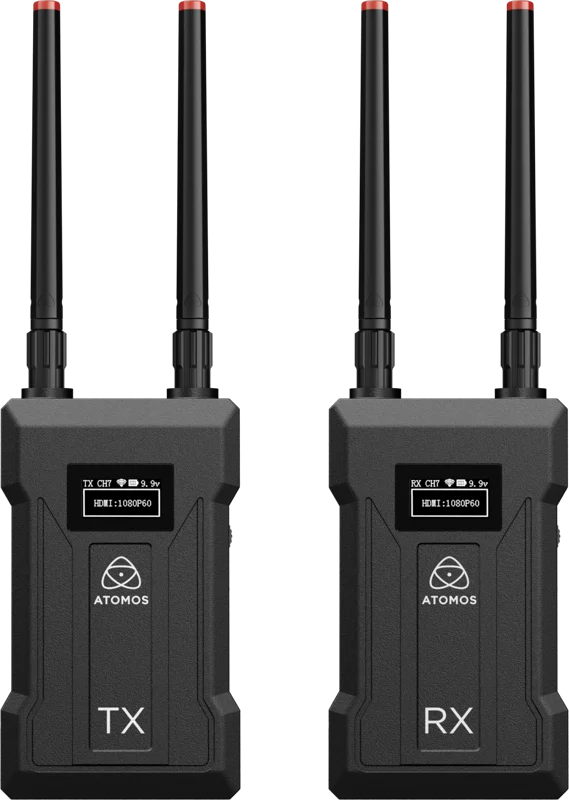

Atomos TX-RX 4K/HD Wireless Video Monitoring Transmitter & Receiver Set

Atomos TX-RX 4K/HD Wireless Transmitter & Receiver – Long Range, Low Latency for Monitoring

Atomos TX-RX is an advanced wireless transmitter and receiver system for 4K/HD video, designed to optimize video monitoring and production workflows, whether on set, on location, or in the studio. This system offers wireless HDMI and SDI transmission, eliminating the need for long cable runs between cameras and monitors, providing complete mobility and flexibility for the film crew.

Designed for Flexible Monitoring on Set

TX-RX is constructed with creative professionals in mind, making it easy to use and highly mobile. The system supports both camera-mounted and monitor-placed setups, allowing for low-latency transfers of HD-SDI and 4K HDMI. This means that directors and clients can monitor video streams in real-time while switching camera angles, using handheld rigs or gimbals, or relocating equipment, significantly enhancing workflow during recordings.

Key Features at a Glance

• Wireless 4K Video Transmission: The system transmits up to 4Kp30 via HDMI and up to 1080p60 via SDI, ensuring high-quality wireless monitoring for all types of productions.
• Compatibility with Mobile Devices: TX-RX can also transmit to both iOS and Android devices, providing additional flexible monitoring options on phones and tablets.
• Long Range and Low Latency: With a range of up to 300 meters (985 feet) and latency as low as 0.06 seconds, this system enables real-time monitoring without delays.

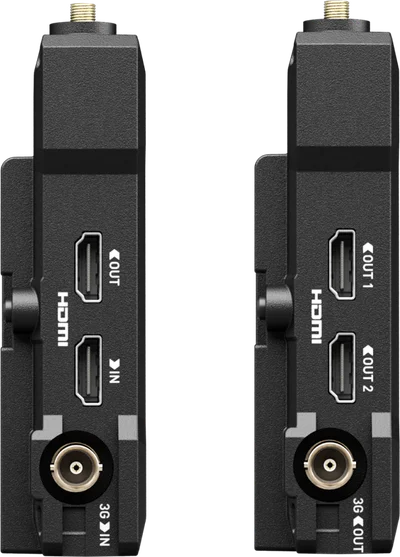

• Support for Multiple Monitors: TX-RX includes both SDI and HDMI outputs and can support up to four receivers per transmitter, making it perfect for multi-camera or client monitor workflows.
• Compact and Durable: The lightweight and robust design makes it ideal for use on set, in the studio, or on location, without adding bulk weight.
• Flexible Power Options: The system is compatible with DC input (9–16V), USB-C (5V/2A), and NP-F batteries, allowing it to adapt to various power setups.

Supported Resolutions and Frame Rates

TX-RX handles a wide range of common broadcast and production formats over both HDMI and 3G-SDI, allowing the system to match most typical camera and monitor outputs.

Frequently asked questions

Does Atomos TX-RX 4K/HD support wireless transmission of 4K video?
Yes, the system transmits up to 4Kp30 via HDMI.

What is the range of Atomos TX-RX 4K/HD?
The range is up to 300 meters (985 feet).

What power options does Atomos TX-RX 4K/HD support?
The system is compatible with DC input (9–16V), USB-C (5V/2A), and NP-F batteries.

How many receivers can be connected to one transmitter with Atomos TX-RX 4K/HD?
The system can support up to four receivers per transmitter.
