Marshall 10X Zoom 3GSDI/HDMI (HD60) camera. Compatible for use with lens adapters and close up lens.

Marshall 10X Zoom 3GSDI/HDMI Camera – Flexible and Powerful

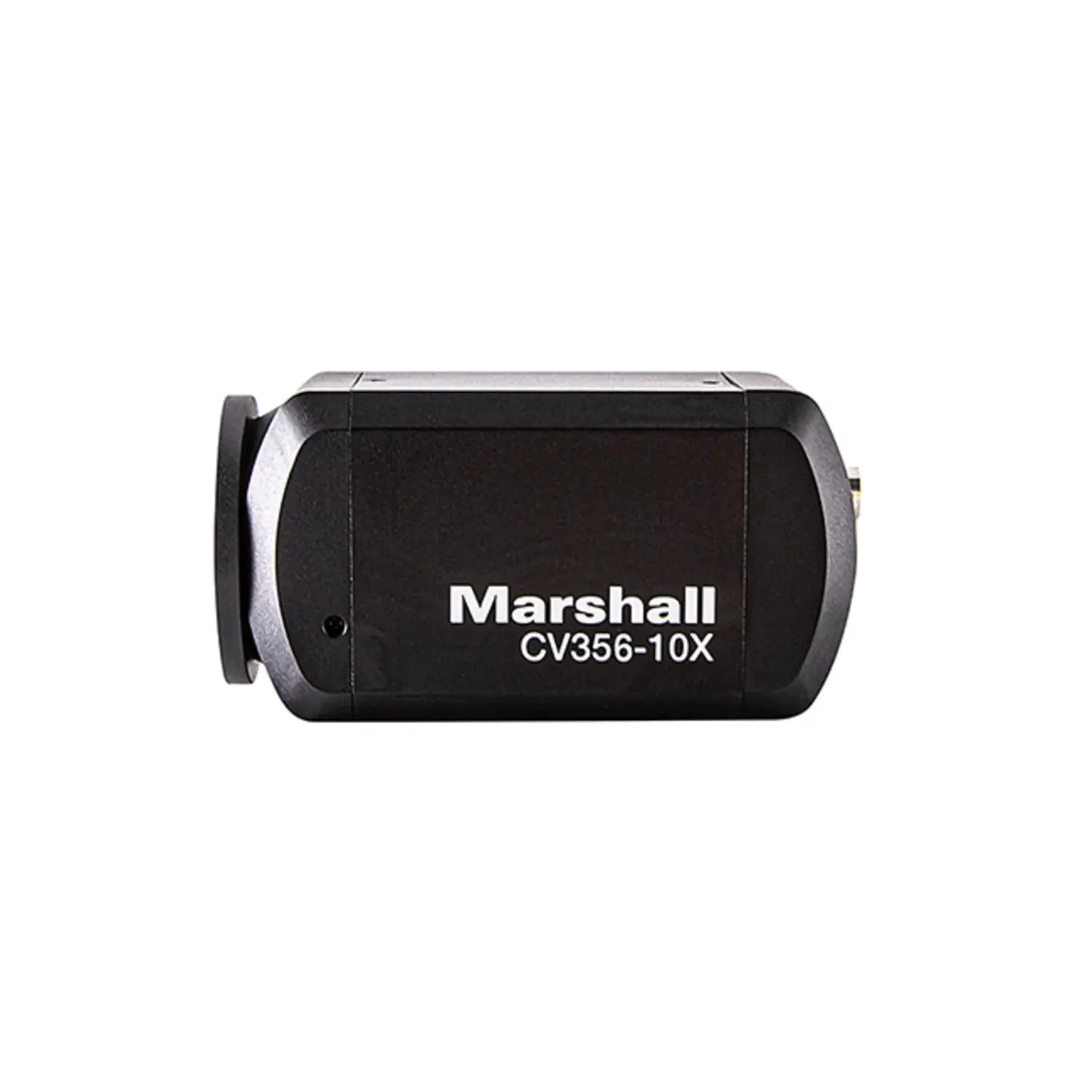

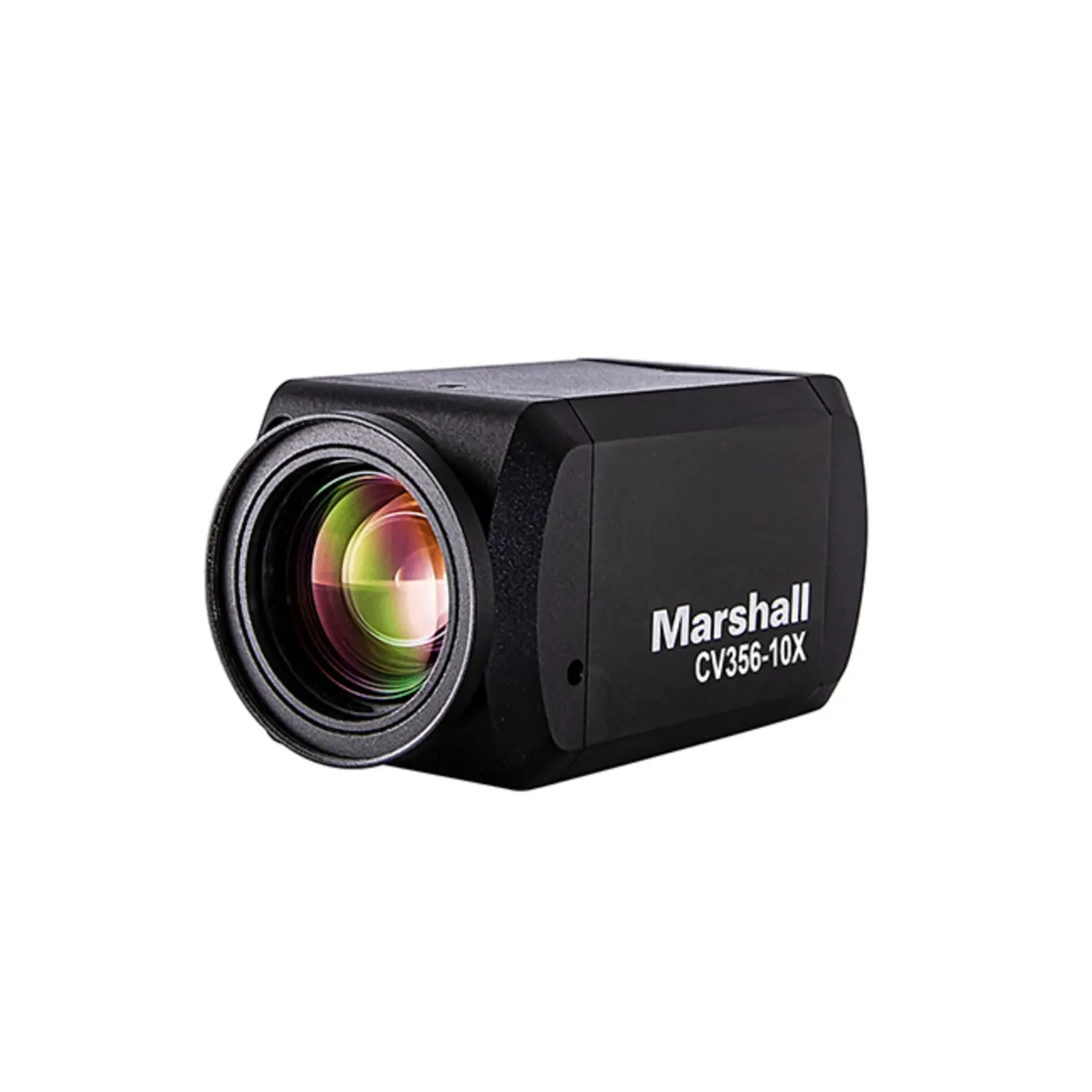

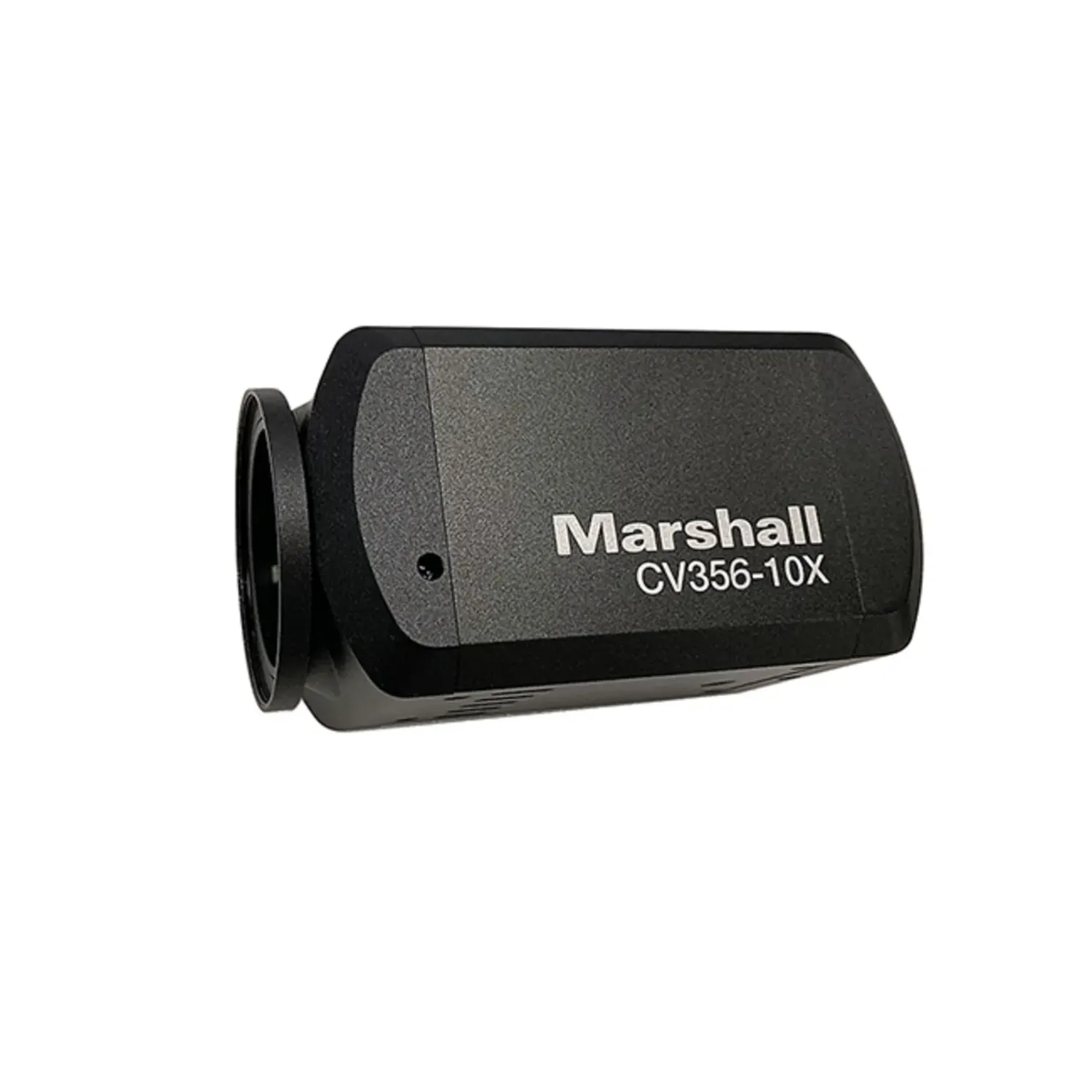

The Marshall CV356-10X is a versatile camera that offers an impressive 10x optical zoom, complemented by a 12x digital zoom. It is designed to meet the needs of professional filmmakers and broadcast producers, making it perfect for use at sporting events, live broadcasts, and in religious contexts. With simultaneous 3G-SDI and HDMI outputs, you can capture sharp Full HD images with resolutions up to 1920×1080 and frame rates up to 60 fps.

Impressive Features

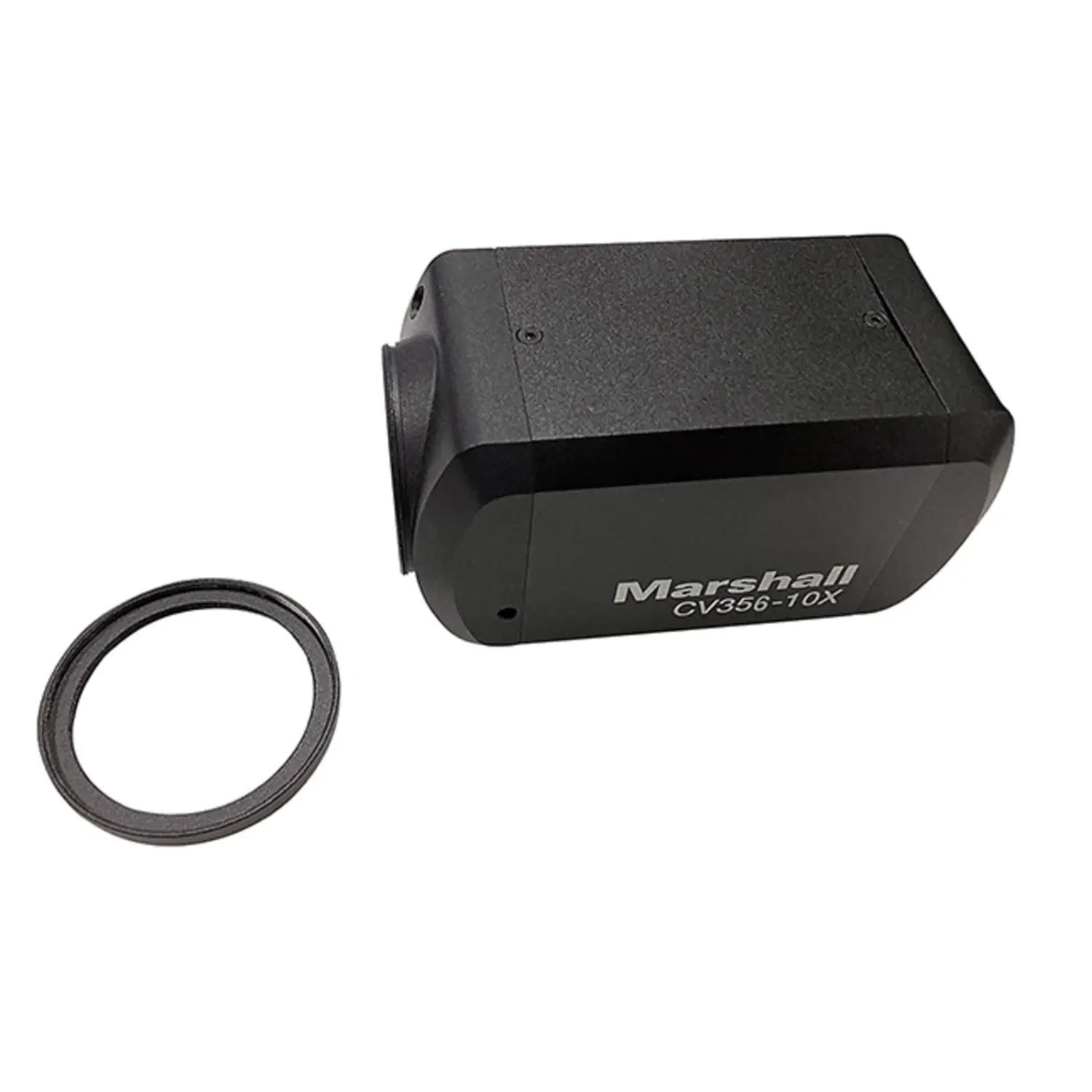

The Marshall CV356-10X comes with a 2.13 Megapixel 1/2.8″ Full HD sensor that ensures your video recordings are of the highest quality. The flexible zoom function allows you to customize images to capture details even from a distance. The camera supports neutral close-up adapter and ND filters, giving you creative opportunities to capture close-ups in various and challenging environments, including bright outdoor light. Along with an audio input for embedding sound and VISCA control via RS485, this camera is an excellent solution for professional use.

Robust Build Quality

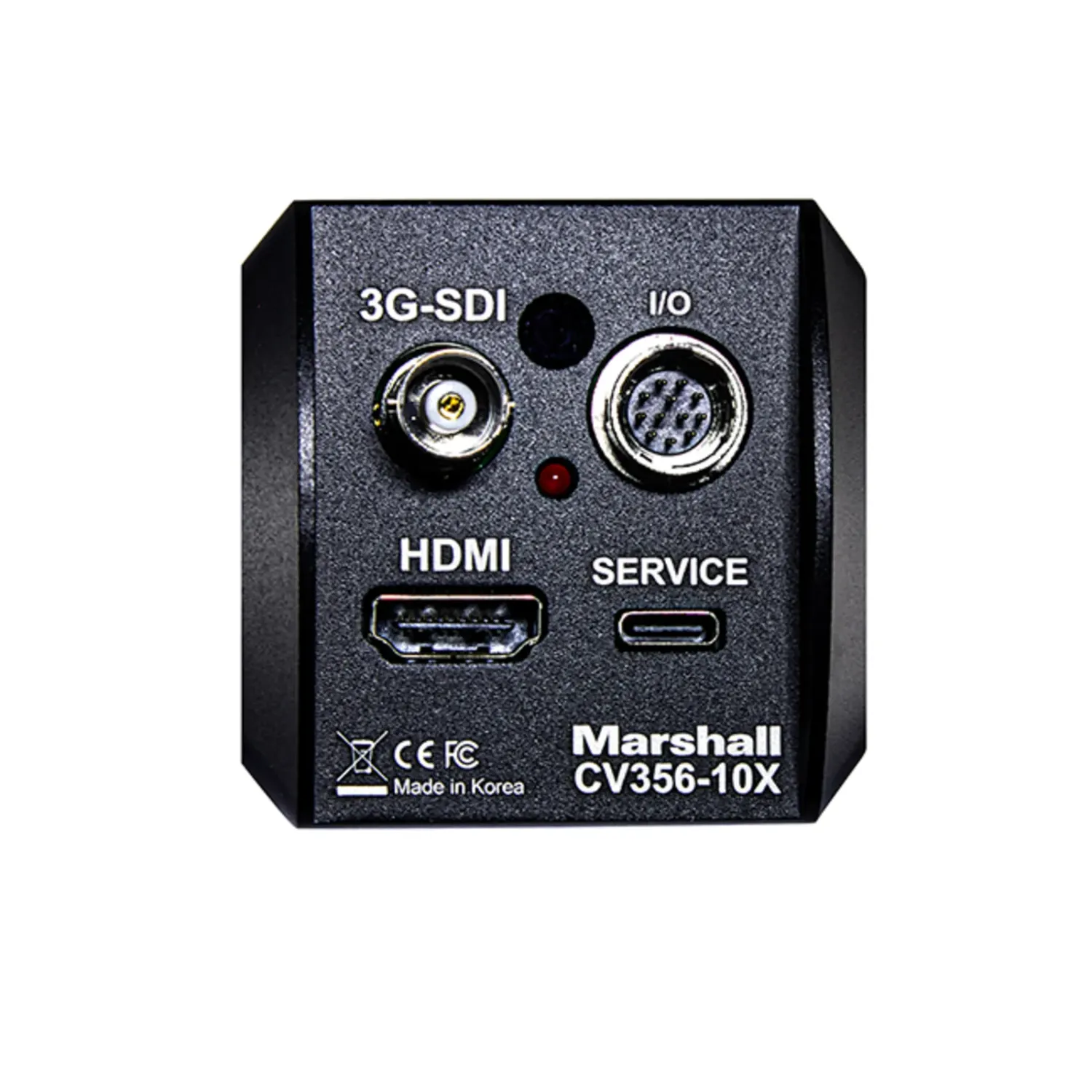

Built with a durable aluminum alloy, the Marshall CV356-10X offers reliable 3G-SDI and HDMI connections. It also features locking cable connections for RS485, audio, and power, as well as side panels that protect the cable connections from impacts. This makes the camera robust enough to withstand demanding production environments.

Specifications

• Sensor: 1/2.8″ Progressive CMOS (approx. 2.1 Megapixels)
• Effective Pixel: 1920(H) x 1080(V)
• Pixel Size: 2.9(μm) x 2.9(μm)
• Min. Illumination: 0.1Lux (day), 0.01Lux (night), 0.001Lux (DSS on)
• Lens: 10x optical zoom, f=4.7~47 mm, F1.6 ~ F3.0
• Zoom: 10x optical zoom / 12x digital zoom
• Viewing Angle (H): 57.7 degrees (wide), 6.4 degrees (tele)
• Min. Working Distance: 100 mm (wide), 900 mm (tele)
• Focus: Automatic / Manual
• Exposure: Automatic / Shutter priority / Aperture priority / AGC priority / Manual / Light
• White Balance: AWB (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / INDOOR / OUTDOOR / ONE PUSH / Manual
• Day & Night System: DAY, NIGHT, AUTO
• Electronic Shutter: NTSC: 1/30~1/10000, PAL: 1/25~1/10000

Frequently asked questions

Does the camera have 10x optical zoom?
Yes, it has a 10x optical zoom.

What types of outputs does the camera support?
The camera has simultaneous 3G-SDI and HDMI outputs.

What type of sensor does the camera have?
The camera has a 1/2.8″ Progressive CMOS sensor with approximately 2.1 Megapixels.

Can the camera be used in bright outdoor light?
Yes, the camera supports a neutral close-up adapter and ND filter, making it suitable for bright outdoor lighting conditions.
