Marshall 4K30p Compact Broadcast Camera with CS Lens Mount - 6G-SDI & HDMI 1.4 Outputs

Marshall 4K30p Compact Broadcast Camera with CS Lens Mount - 6G-SDI & HDMI 1.4 Outputs

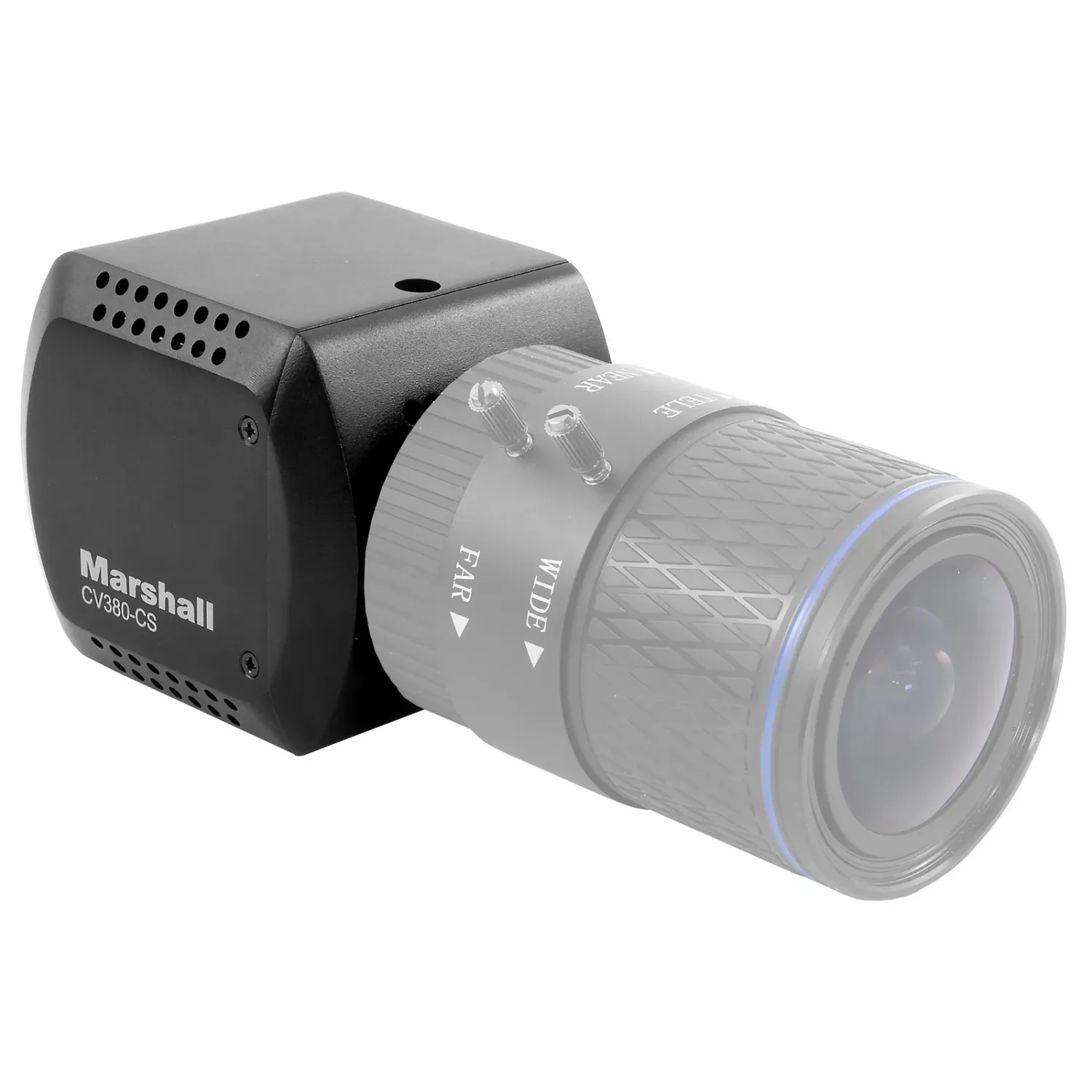

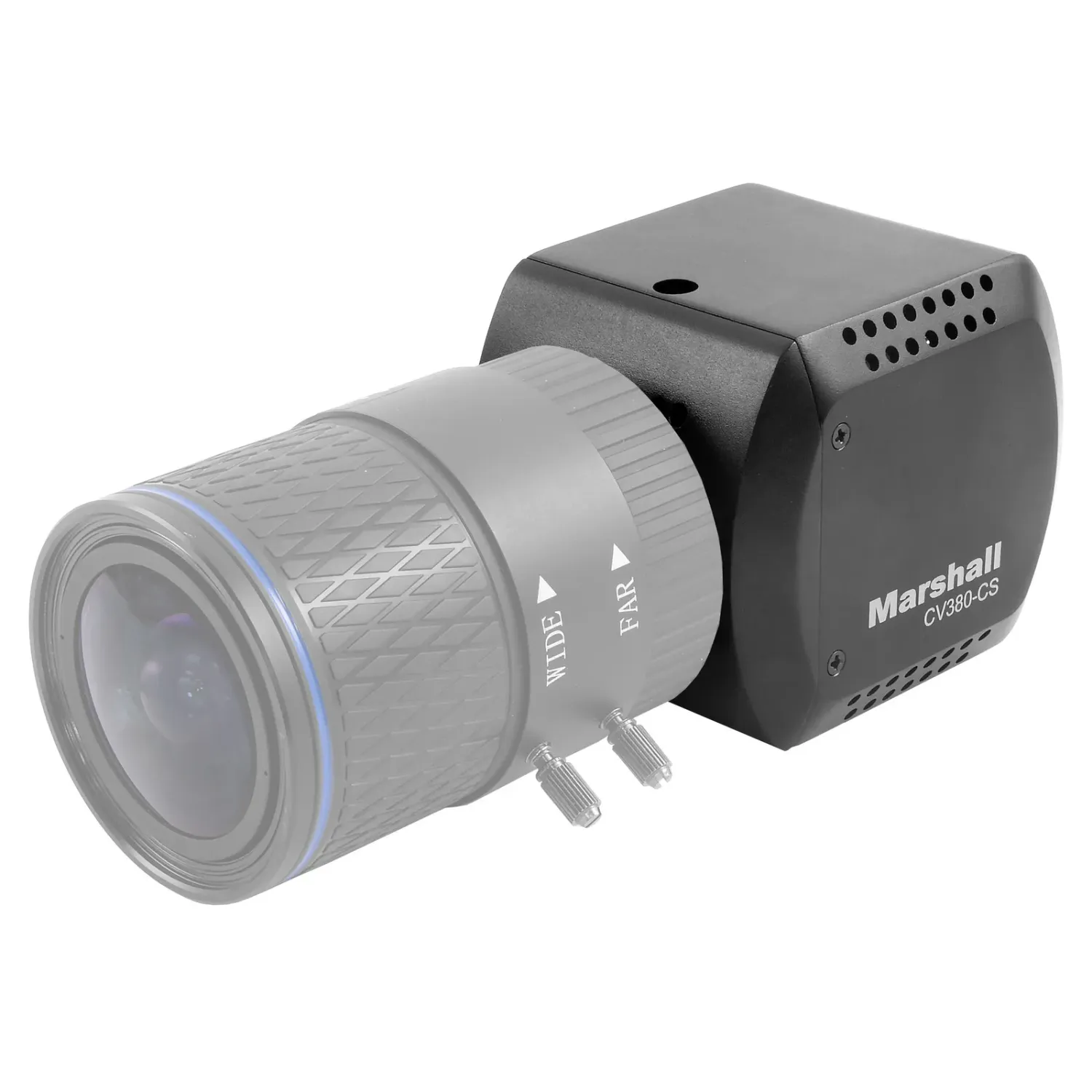

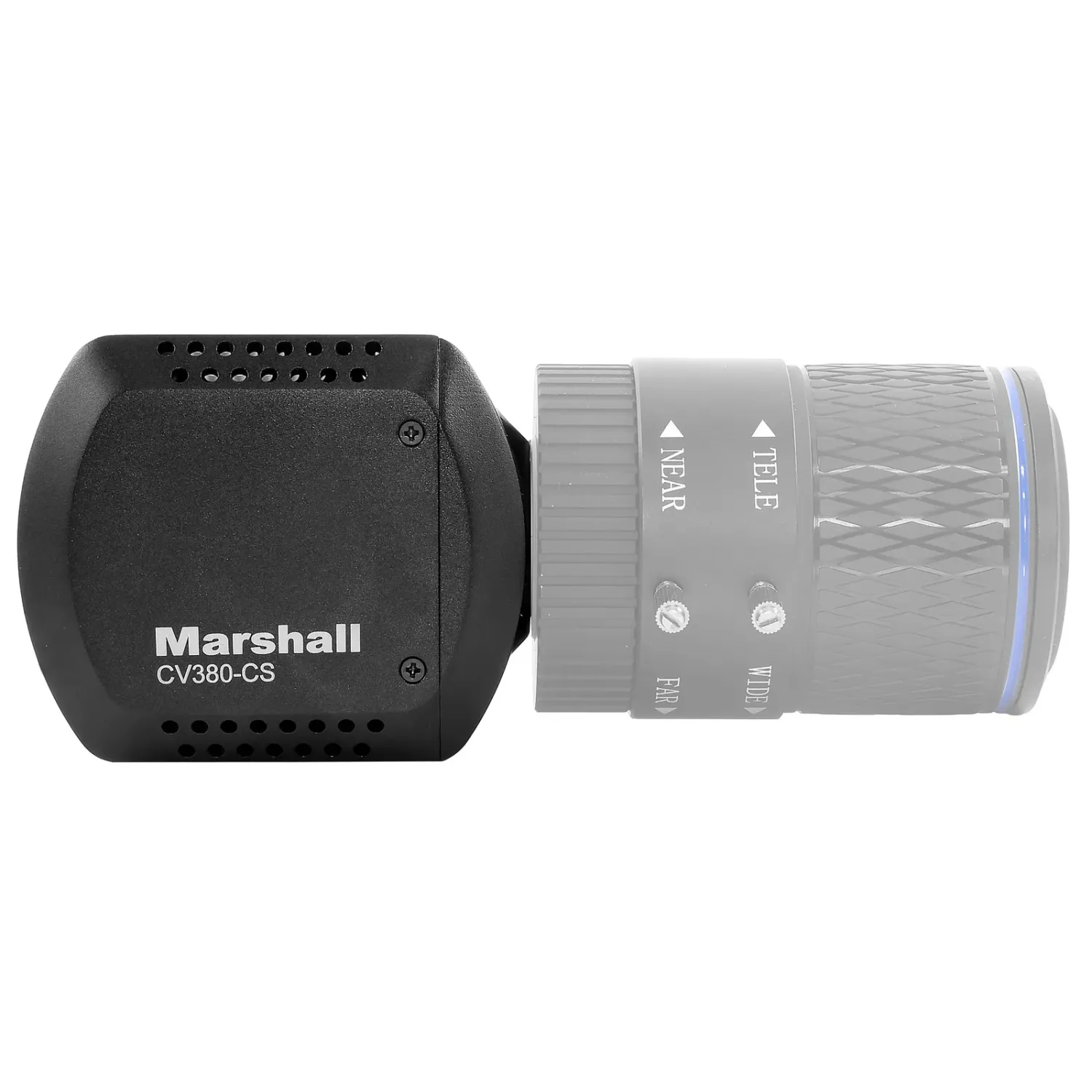

The Marshall CV380-CS is a compact, true 4K camera that is perfect for filmmakers and broadcast professionals seeking high-resolution image quality in an easy-to-use design. This camera is built around an 8.5-megapixel 1/2.5-inch sensor that delivers ultra-clear 4K images with a resolution of 4096x2160p. With its versatile connections and interchangeable lens mount, the CV380-CS offers a range of features that make it ideal for both studio and field work.

Features and Benefits

The Marshall CV380-CS is equipped with several impressive features that make it an excellent choice for both beginners and experienced filmmakers. The camera supports DCI-4K and UHD resolutions at up to 30 frames per second, allowing you to capture every detail with exceptional clarity. With a 6G-SDI and an HDMI output, you can easily connect the camera to various devices for video capture and broadcasting.

The interchangeable CS lens mount provides the flexibility to use different lenses, allowing you to customize the camera to your specific needs. The camera also features an automatic iris function when used with compatible lenses, making exposure settings easier and ensuring that your images are always perfectly lit.

The CV380-CS also offers a range of adjustment settings for image quality, including color adjustments, white balance, gain control, and gamma, giving you full control over the final result. With a 3.5 mm audio input, you can also connect external microphones to enhance the audio quality of your productions. Additionally, the RS-485 protocol for remote control allows you to adjust camera settings from a distance, which is a significant advantage during live broadcasts.

Specifications

• Sensor Type: 1/2.5″ 8.5 Megapixel
• Resolution & Frame Rates: DCI-4K 4096x2160p (24, 25, 29.97 & 30), UHD 3840x2160p (24, 25, 29.97 & 30), HD 1920x1080p (24, 25, 29.97, 30, 50, 59.94 & 60), HD 1920x1080i (50, 59.94 & 60), HD 1280x720p (50, 59.94 & 60)

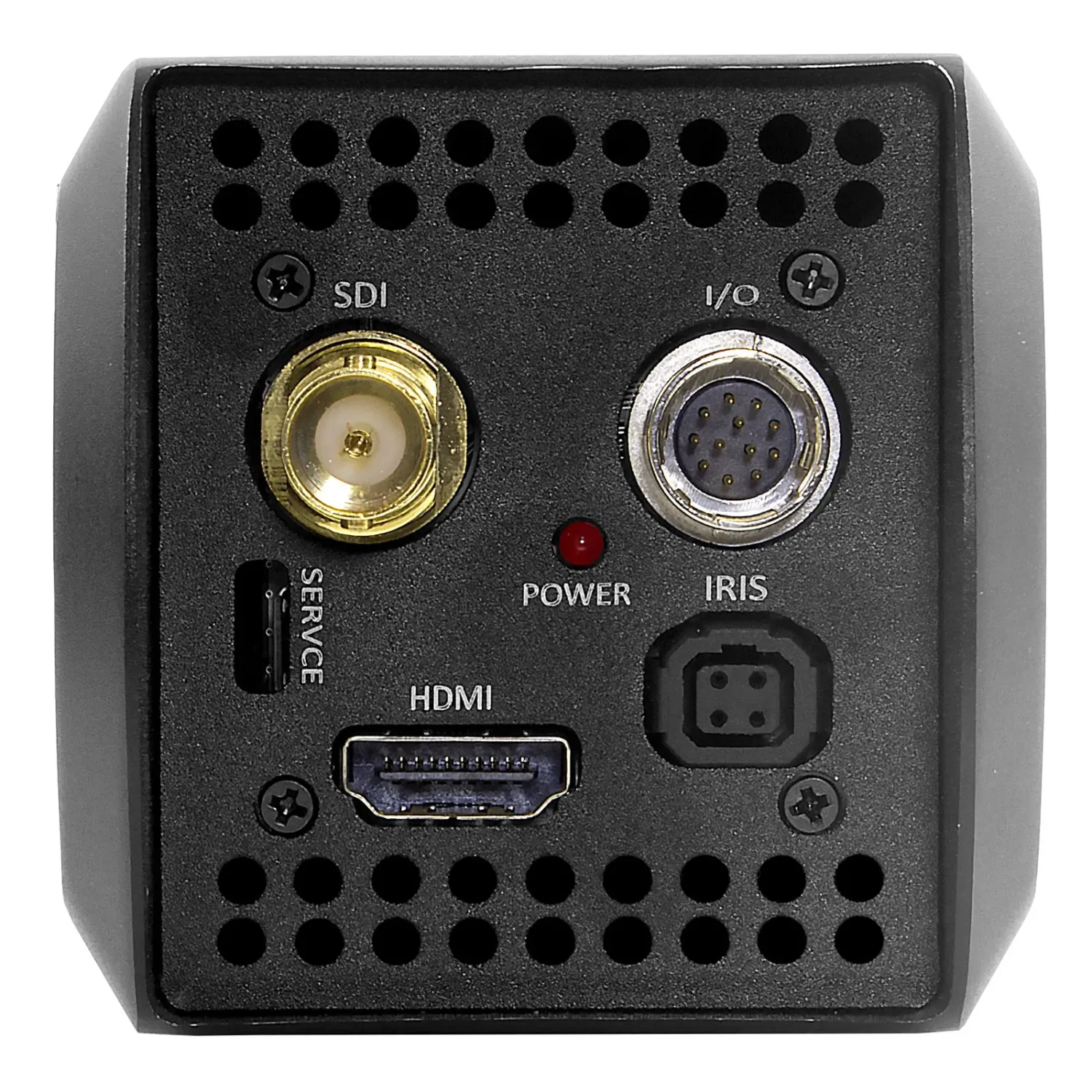

• Video Output: 1x 6G-SDI & 1x HDMI
• I/O Breakout Cable: 1x RS-485 Interface, 1x Lockable Barrel 12V DC Power Input, 1x 3.5mm Audio Input
• Iris Control: 1x 4-Pin DC Auto-Iris Control Connection
• Firmware & Service: 1x Micro-USB

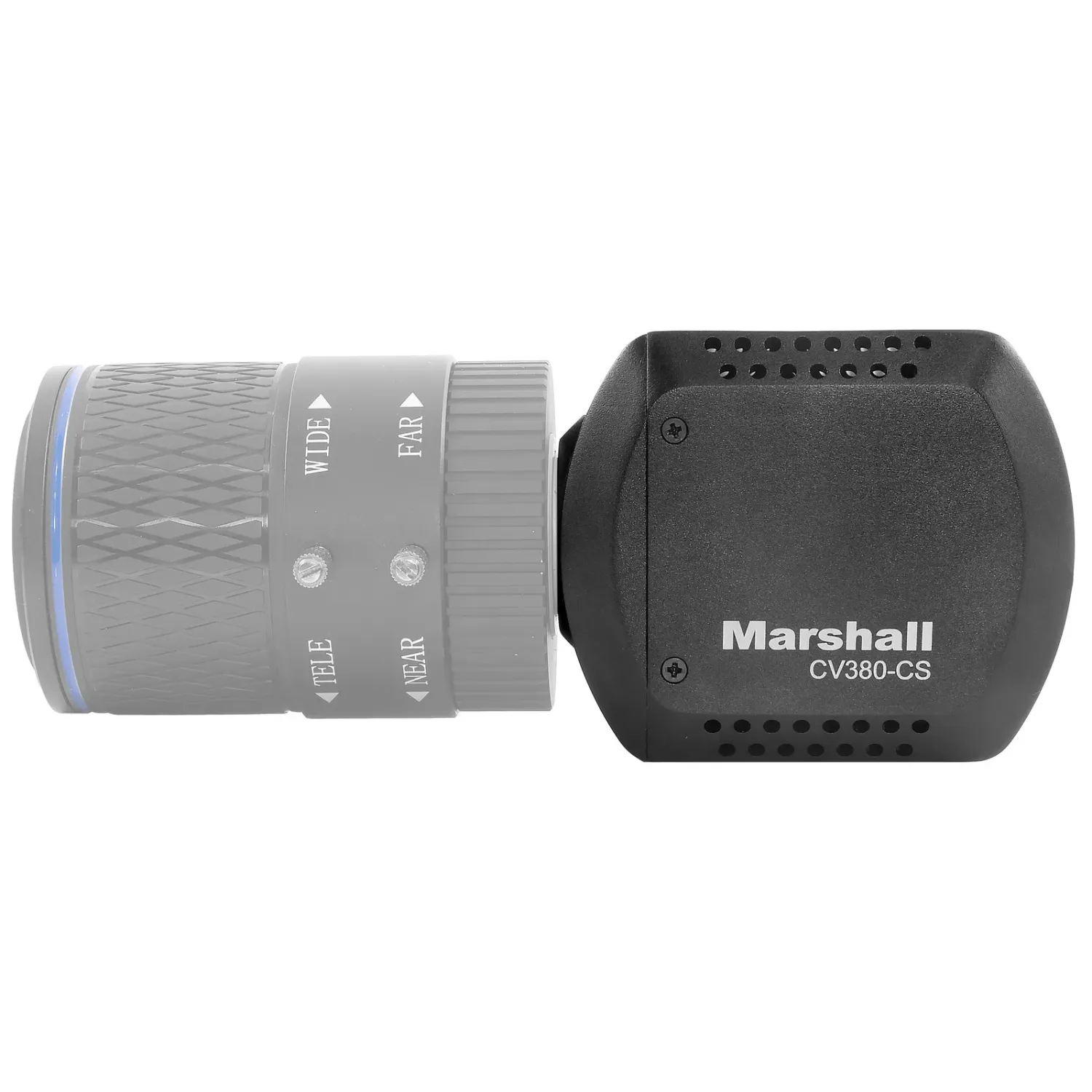

• Lens Mount Type: CS
• Control Protocol: RS-485
• Power Input: 12V DC

Included in the Package

• 1x Marshall CV380-CS Camera Body

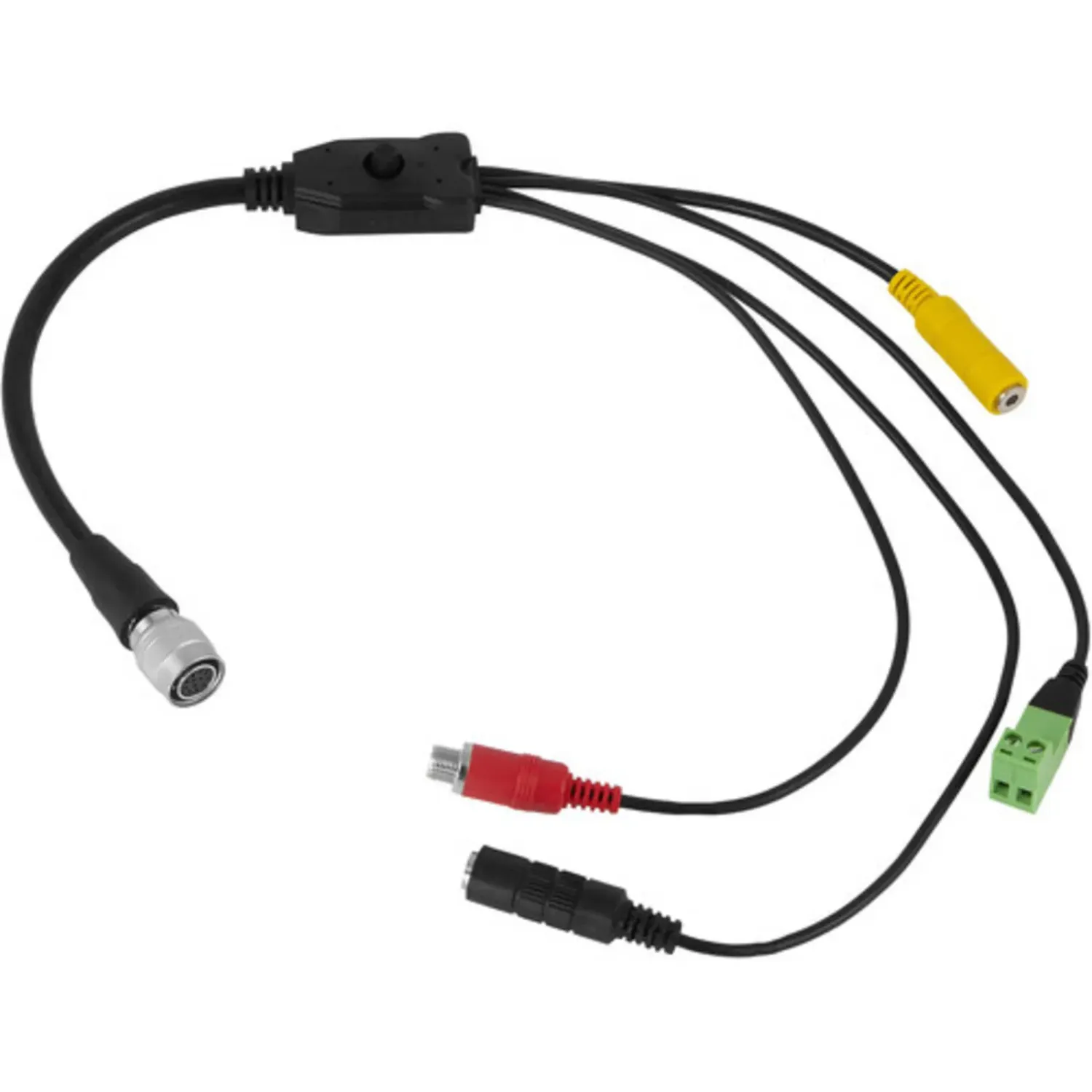

• 1x Camera Breakout Cable

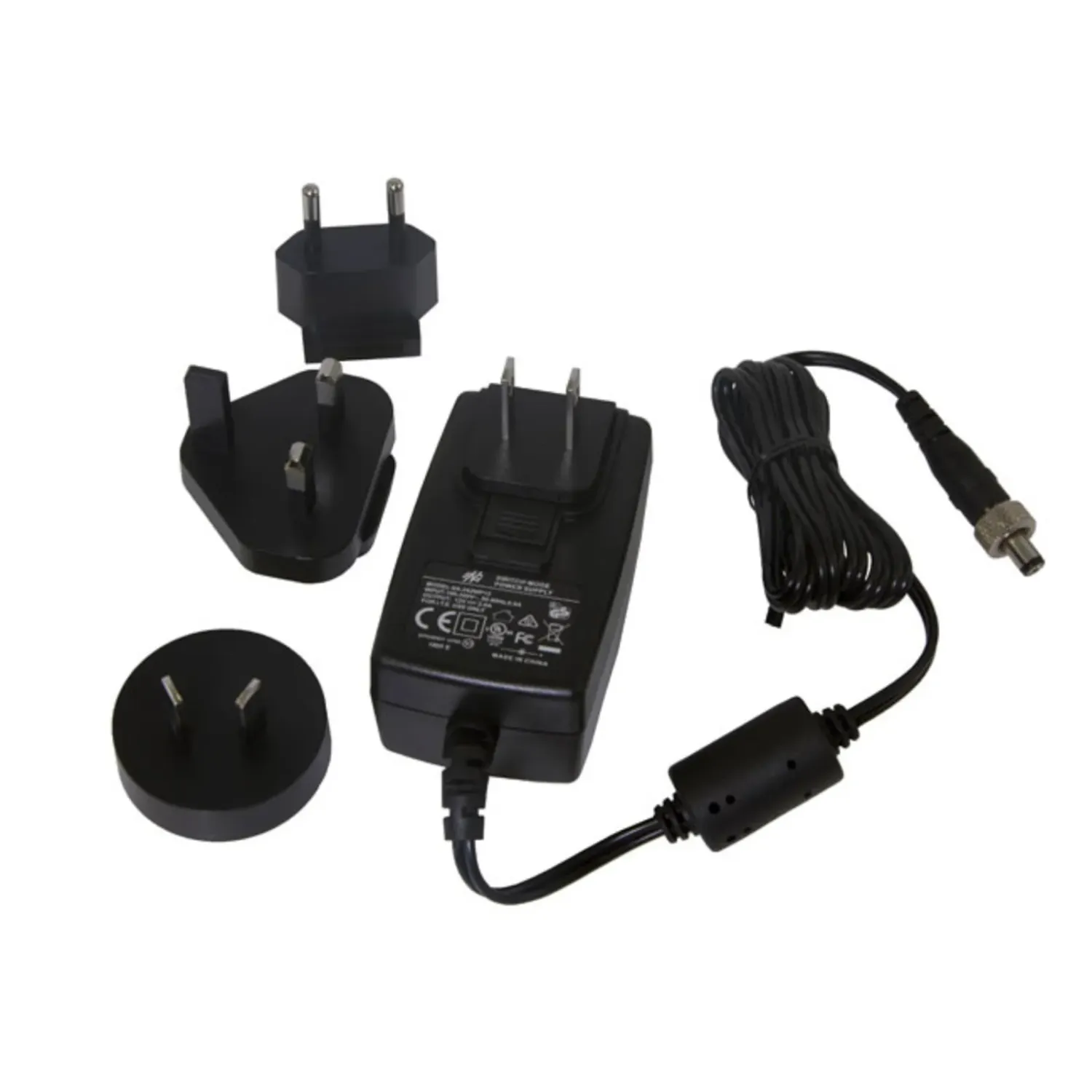

• 1x Power Supply Unit (PSU)

Frequently asked questions

What type of lens mount does the camera have?
The camera has an interchangeable CS lens mount.

What video outputs does the camera have?
The camera has a 6G-SDI and an HDMI 1.4 output.

What resolution can the camera deliver?
The camera can deliver DCI-4K with a resolution of 4096x2160p.

Does the camera have an automatic iris function?
Yes, the camera has an automatic iris function when used with compatible lenses.
