Marshall RCP-PLUS ver 3, RS485, VISCA over IP, Compatible with CV300/500 series cameras.

Marshall RCP-PLUS ver 3 – Advanced Camera Control with Touch Screen

Marshall RCP-PLUS ver 3 is an innovative camera control unit designed for professional filmmakers and video producers. With its intelligent menu design and large 5-inch touch screen, it makes it easy to control up to seven cameras remotely. Whether you are working with Marshall cameras or other popular brands, this unit offers a flexible and efficient solution for managing your cameras.

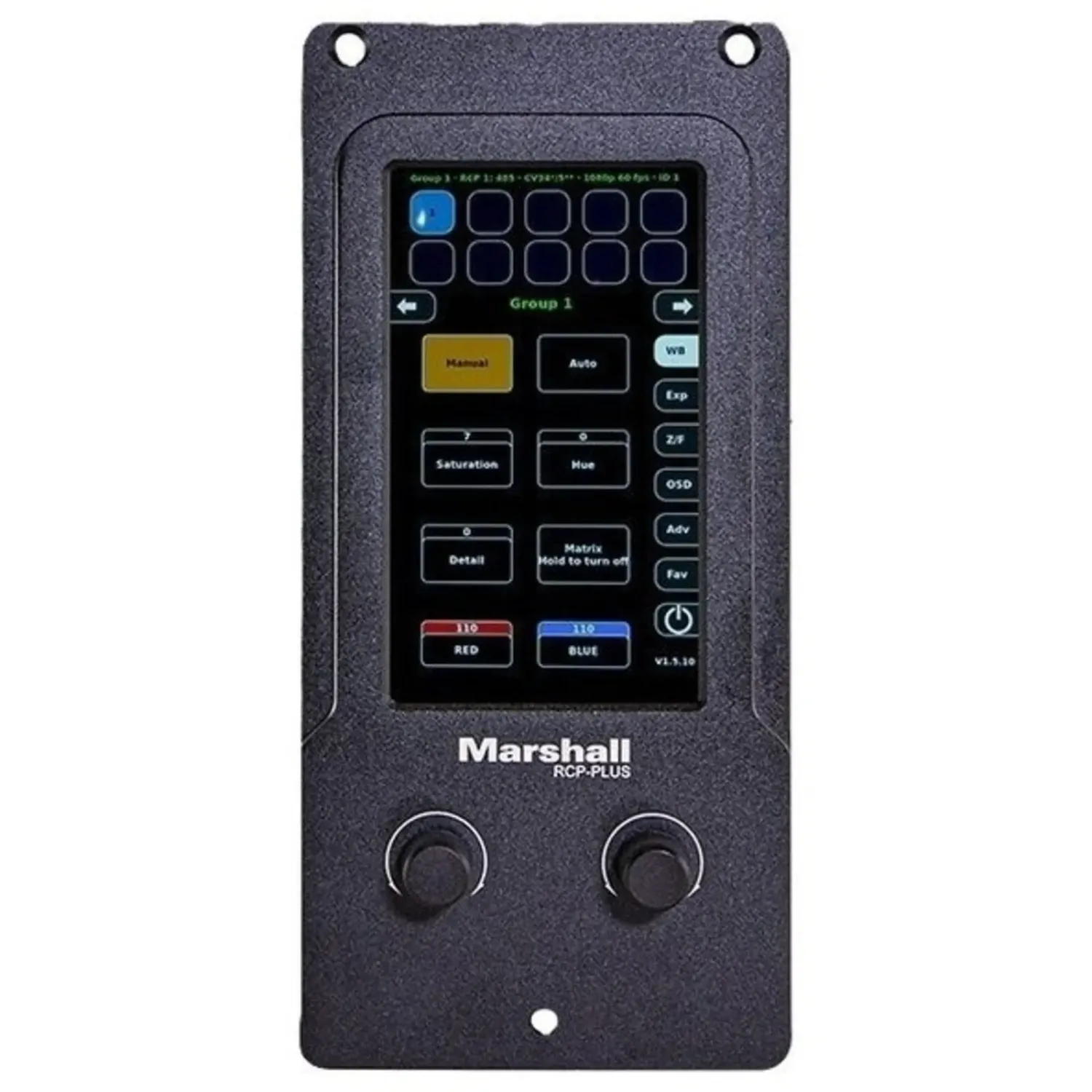

Intuitive Touch Screen and User-Friendly Controls

The 5-inch TFT LCD touch screen provides a clear and distinct display of controls and menus. With fine adjustment controls, you can easily adjust white balance, gamma, black level, brightness, and much more. You can adjust multiple cameras simultaneously or one at a time, giving you complete control over your recording.

Flexible Camera Connection and Power Supply

RCP-PLUS supports both VISCA over IP and VISCA over RS485, allowing control of a large number of cameras. The connection enables control of up to 100 cameras when both VISCA RS485 and VISCA over IP are used. Additionally, the unit can be powered via PoE or 12VDC, providing flexibility in various recording environments.

Robust and Durable Design

The rugged aluminum casing protects the unit and ensures long-lasting durability under demanding conditions. It is also easy to upgrade the firmware via the USB port, ensuring that you always have access to the latest features and improvements.

Specifications

• CONNECTIONS: 3-pin XLR connector for RS485 serial control
• USB 2.0: For product upgrade
• LAN RJ-45: VISCA-over-IP control and PoE power supply
• Control Type: IP: VISCA-over-IP, RS485: VISCA
• RS485 Serial Baud Rate: 4800, 9600 (default), 19200, 38400, 115200
• USER INTERFACE: Display: 5-inch TFT LCD touch screen
• Brightness: 400 cd/m²
• Resolution: 480 x 854
• POWER: DC 12V or PoE
• Power Consumption: Less than 3 Watts (typical 2.5 Watts)
• ENVIRONMENT: Operating Temperature: -20℃~70℃ (-4°F~158°F)
• Storage Temperature: -30℃~80℃

Frequently asked questions

How many cameras can I control with Marshall RCP-PLUS ver 3?
You can control up to 7 cameras with Marshall RCP-PLUS ver 3.

What connections does RCP-PLUS support?
RCP-PLUS supports VISCA over IP and VISCA over RS485.

How is the device powered?
The device can be powered via PoE or 12VDC.

What is the size of the touchscreen?
The touchscreen is 5 inches in size and is of the TFT LCD type.
