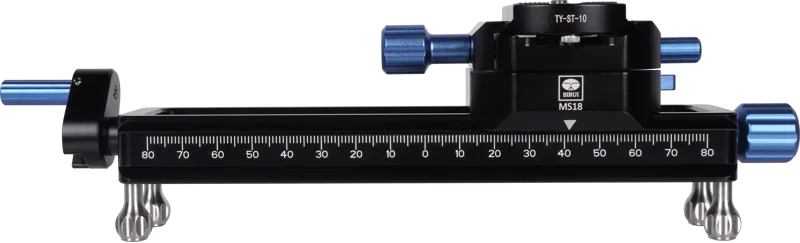

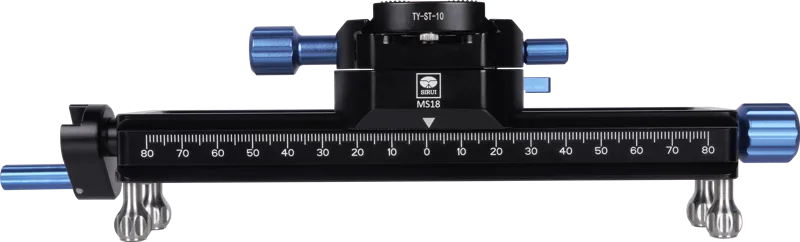

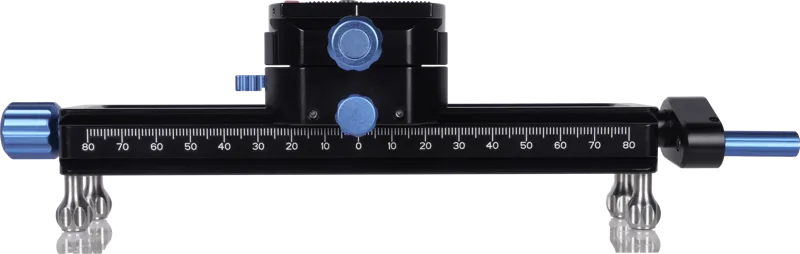

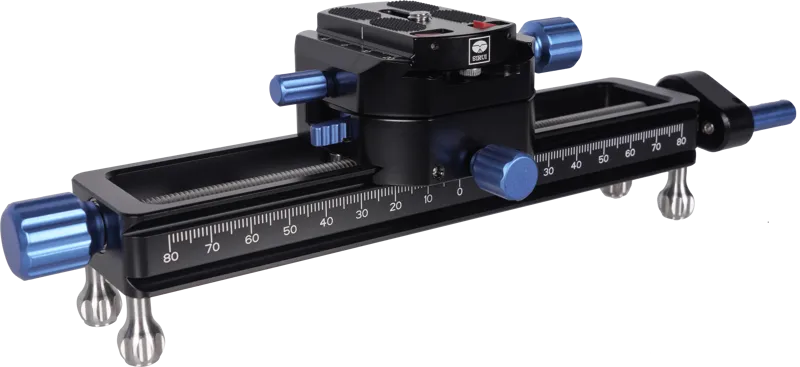

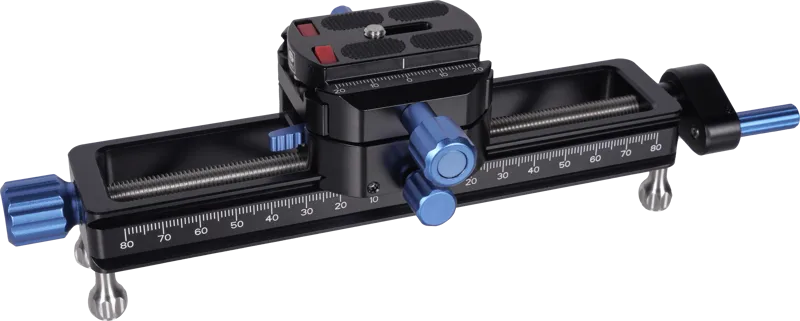

Sirui Macro Focusing Rail MS18

Sirui Macro Focusing Rail MS18 – Exact focusing for close-ups

Sirui Macro Focusing Rail MS18 is an essential piece of equipment for photographers and filmmakers who need to focus precisely on their close-up subjects. With its robust construction and numerous adjustment options, this rail allows for precision focusing to capture detailed images of small subjects. Whether you are a professional photographer or an enthusiast, this focusing rail will enhance your workflow and results.

Key Features and Benefits

This focusing rail is 180 mm long and offers an adjustable focusing distance within a range of 170 mm. With a quick adjustment knob, you can easily and quickly make larger adjustments, saving time during photography. The step movement per revolution is 1.25 mm, allowing for accurate fine-tuning using the engraved index markings on both sides of the rail.

Sirui Macro Focusing Rail MS18 is designed with Arca-style, allowing it to be mounted directly on an Arca-standard tripod head. For extra stability and versatility, the rail has 4 removable rubber feet, enabling it to be used directly on a tabletop or on a tripod. There are also mounting holes at the bottom for both 3/8" and 1/4" screws, providing additional flexibility in use.

The foldable thumb screw makes it easy to adjust the rail and provides smooth storage. The 360-degree rotating head can be locked at every 90° rotation, offering fantastic opportunities for angling and composing images. The ergonomically designed quick-release plate (Arca-standard) features stop blocks that increase friction and lock the camera in place, making it compatible with all types of lenses.

Specifications

• Length: 180 mm
• Adjustment: 170 mm
• Step movement per revolution: 1.25 mm
• Material: Arca-style
• Feet: 4 removable rubber feet
• Mounting holes: 3/8" and 1/4"
• Rotating head: 360 degrees with 90° locking

Frequently asked questions

What is the length of the Sirui Macro Focusing Rail MS18?
It is 180 mm long.

What is the adjustable focusing distance on the rail?
The adjustable focusing distance is within a range of 170 mm.

What type of mounting standard does the rail have?
The Sirui Macro Focusing Rail MS18 is designed with Arca-style.

How many detachable feet does the rail have?
The rail has 4 detachable rubber feet.
