Kupo KCP-930P 3 Ways Clamp For 25mm To 35mm Tube

Kupo KCP-930P 3 Way Clamp for 25mm to 35mm Tube – Spring locking mechanism for quick, secure mounting

What the KCP-930P does

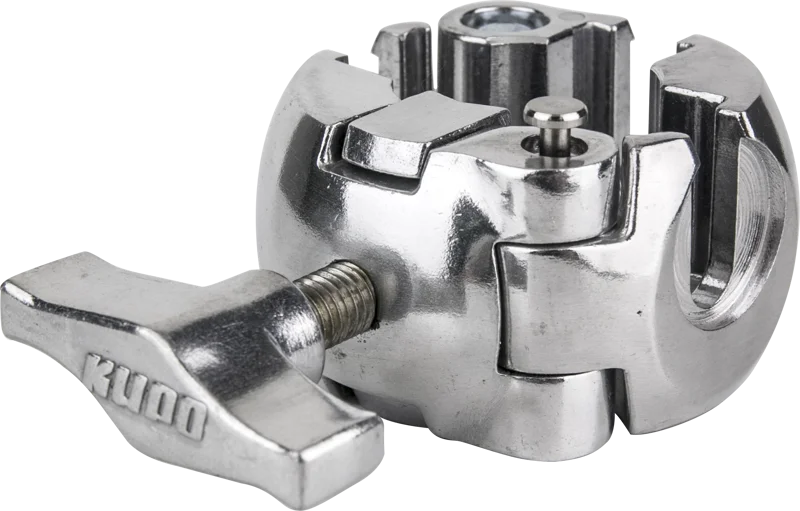

The Kupo KCP-930P is an all-metal cast aluminum clamp designed to attach lighting fixtures and accessories to round tubing. It fits tube diameters from 1” to 1-3/4” (25–35 mm). The clamp uses a spring locking mechanism that lets you latch and release the collar instantly, and a tension handle that tightens the clamp to hold gear firmly in place.

Key features

• All metal cast aluminum construction for a solid build.
• Spring locking mechanism for instant latching and releasing around tubing.
• Tension handle provides quick securing of the collar.
• Fits tubes from 1” to 1-3/4” (25–35 mm) in diameter.

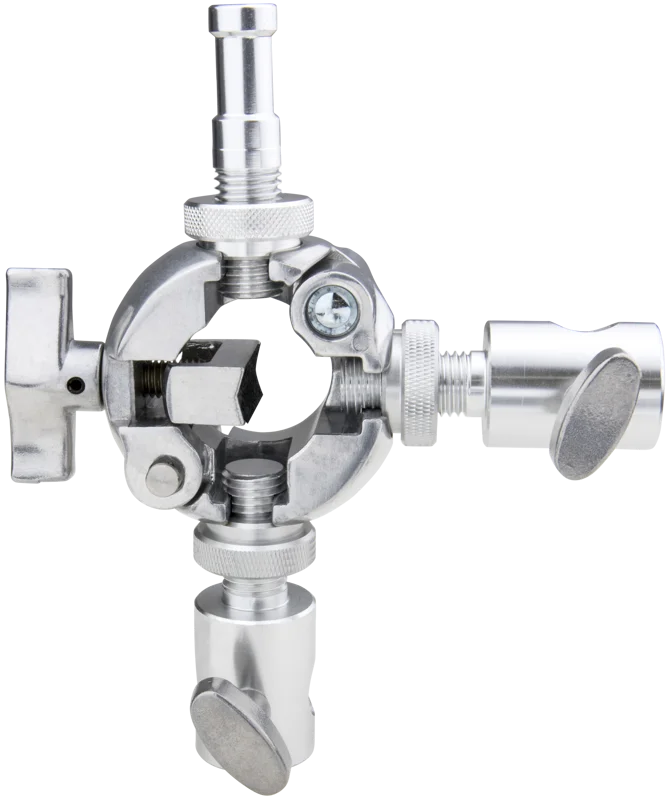

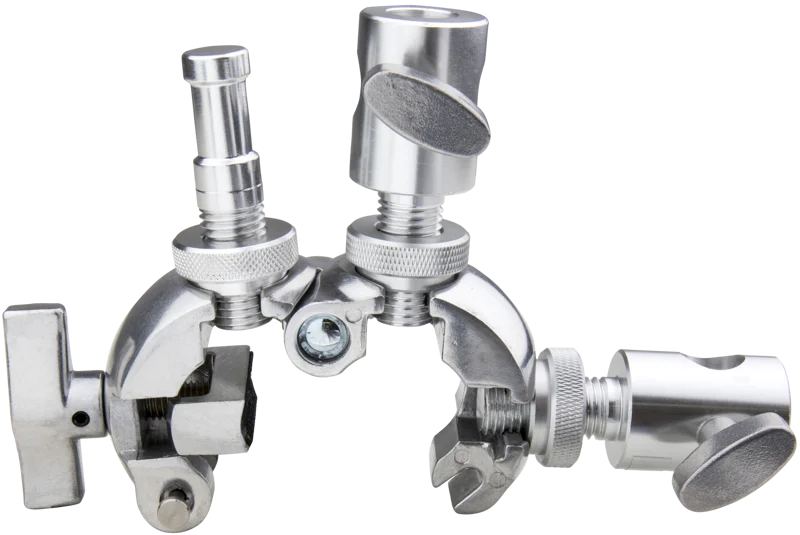

• Three recessed mounting locations spaced at 90-degree increments to accept interchangeable accessories.
• Rated to mount fixtures or accessories up to 66 lbs (30 kg).
• Lightweight: 268 g.

Design and mounting use cases

The clamp lets you mount a light fixture or other accessory to common supports such as light stands, scaffolds or Kupoles. Because the three recessed mounting points sit at 90-degree increments, you can orient accessories in multiple directions or swap in different mounting hardware. You secure the clamp by placing the collar around the tube, engaging the spring lock, then turning the tension handle to set the clamp firmly in place.

How it compares to the 4 Way Clamp

For reference, the product description notes a 4 Way Clamp variant. The 4 Way Clamp is otherwise identical, but it provides four recessed mounting locations instead of three and accepts larger tube diameters between 1-3/4” and 2” (35–50 mm).

Specifications

FAQ

Question: What tube sizes will this clamp accept?
Answer: The KCP-930P accepts tube diameters from 1” to 1-3/4” (25–35 mm).

Question: How much weight can the clamp support?
Answer: The clamp supports up to 30 kg (66 lbs), allowing you to mount a wide range of light fixtures and accessories within that limit.

Question: How do I secure the clamp to a tube?
Answer: First place the collar around the tube and engage the spring locking mechanism to latch it. Then turn the tension handle to tighten the clamp and secure your fixture or accessory.

Question: What are the differences between the 3 Way and 4 Way Clamp?
Answer: The 3 Way Clamp (KCP-930P) has three recessed mounting locations and fits tubes from 1” to 1-3/4” (25–35 mm). The 4 Way Clamp is otherwise identical but has four recessed mounting points and accepts larger tubes from 1-3/4” to 2” (35–50 mm).

Question: Where can I mount items with this clamp?
Answer: You can mount light fixtures and accessories to light stands, scaffolds or Kupoles using the KCP-930P, provided the tube diameter and weight fall within the specified ranges.
