Marshall NDI 4K UHD Mini Broadcast Camera with 4.0mm Interchangeable Lens - NDI│HX3, IP & HDMI Outputs

Marshall NDI 4K UHD Mini Broadcast Camera – Compact and Powerful

The Marshall NDI 4K UHD Mini Broadcast Camera is the perfect solution for filmmakers and broadcast professionals looking for high-quality video in a small format. With its 4K UHD resolution and advanced NDI|HX3 technology, this camera offers exceptional performance and flexibility for a variety of applications, including sporting events, reality TV, and live streaming. Whether you are working in a studio or in the field, this camera will deliver impressive results.

Features and Benefits

The camera is equipped with a 1/2.8″ 8.5MP Sony sensor that ensures sharp and detailed images. With support for multiple resolutions and frame rates, including 3840×2160 up to 60P, the CV574 guarantees that you always get the image quality you need. The included 4.0mm M12 lens provides an excellent field of view and can easily be swapped for other M12 lenses to suit specific recording scenarios.

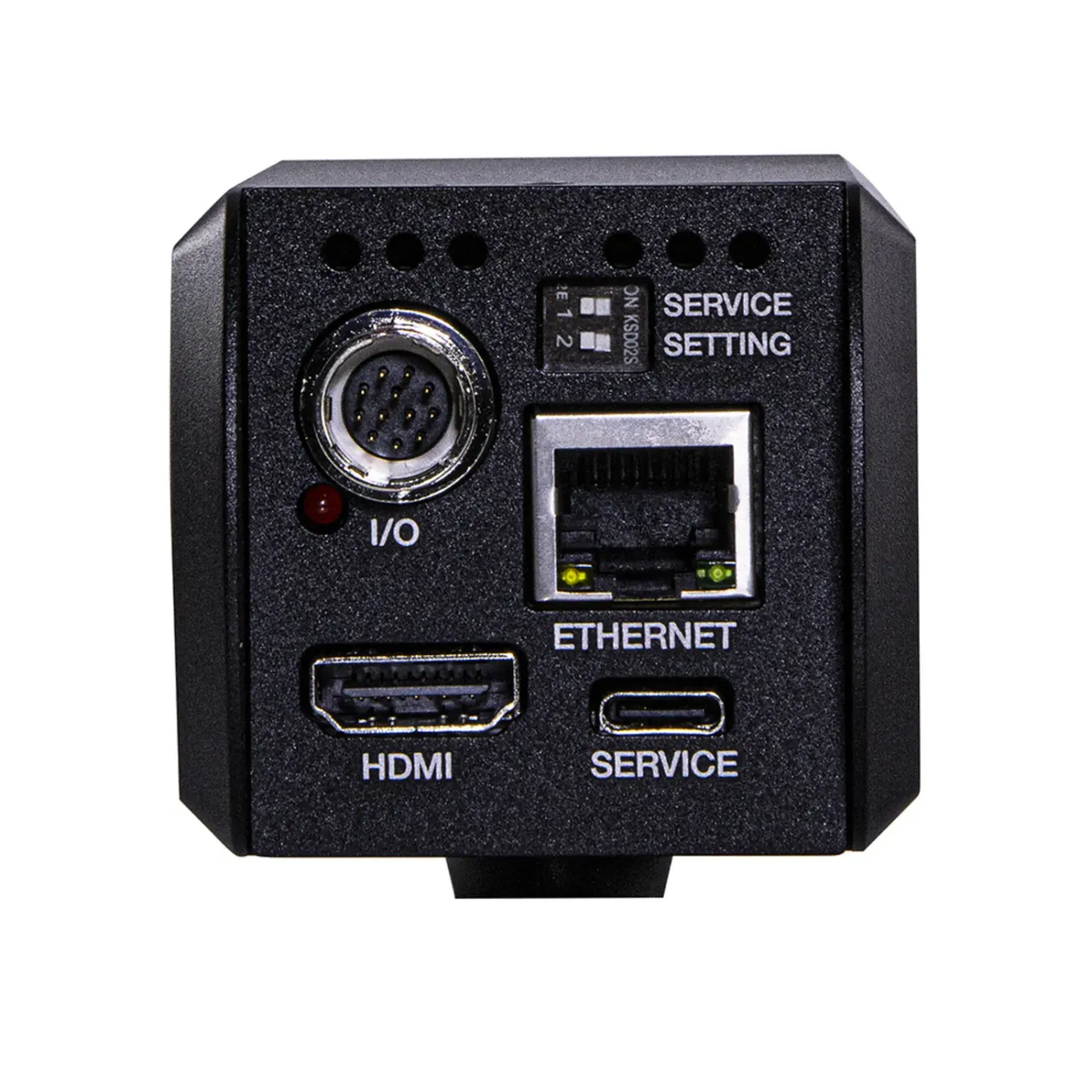

With HDMI and Ethernet connections, you can easily integrate the camera into your existing system. It also supports IP outputs such as NDI|HX2 and NDI|HX3, making it perfect for modern network-based broadcasting. The included breakout cable allows you to connect audio, power, and control via RS-485 and includes a control joystick for easy use.

Another great advantage of the CV574 is its PoE support, which allows you to receive power, control, and video over a single Ethernet cable. This simplifies installation and reduces cable clutter, which is crucial during live broadcasts.

Specifications

• Sensor Type: 1/2.8″ 8.5 Megapixel
• Pixel Size: 2.75μm x 2.75μm
• Resolution & Frame Rates: UHD 3840x2160p | 25, 29.97, 30, 50, 59.94 & 60; HD 1920x1080p | 25, 29.97, 30, 50, 59.94 & 60; HD 1920x1080i | 50, 59.94 & 60; HD 1280x720p | 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60
• Video Output: HDMI & RJ45 (IP Ethernet, NDI|HX2 & NDI|HX3)
• I/O Breakout Cable: 1x RS-485 Interface, 1x Locking Barrel 12V DC Power Input, 1x 3.5mm Audio Input
• Control Protocol: RS-485
• Lens Type: M12
• Focal Length: 4.0mm
• Max. Aperture: f/2.0
• Focus: Manual
• White Balance: Auto / Auto Ext / Preset / Manual (Red-Gain, Blue Gain)
• Power Supply: 12V DC

Included in the Package

• 1x Marshall CV574 Camera Body
• 1x Camera Breakout Cable
• 1x 4.0mm M12 Lens
• 1x Power Supply Unit (PSU)

Frequently asked questions

What type of sensor does the camera have?
The camera is equipped with a 1/2.8″ 8.5MP Sony sensor.

What video outputs does the camera support?
The camera supports HDMI and RJ45 (IP Ethernet, NDI|HX2 & NDI|HX3).

What resolutions can the camera record in?
The camera can record in UHD 3840x2160p and HD 1920x1080p, 1920x1080i as well as 1280x720p at various frame rates.

Does the camera support PoE?
Yes, the camera has PoE support, allowing power, control, and video to be delivered via a single Ethernet cable.
