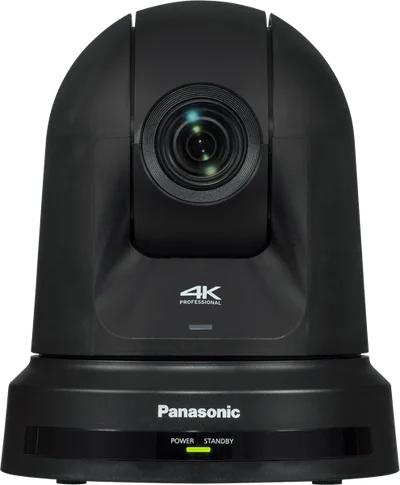

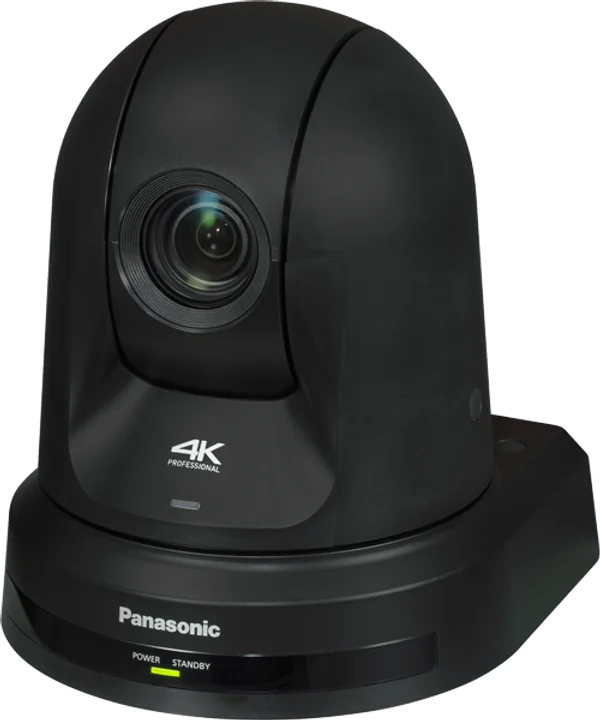

Panasonic AW-UE50KEJ 4K Integrated Camera, 1/2.5-type MOS, Black

Panasonic AW-UE50KEJ 4K Integrated Camera — Compact Design with 24x Optical Zoom for Professional Use

The Panasonic AW-UE50KEJ is an advanced and compact PTZ camera specifically designed for fixed installations and live production environments. With its 4K recording capability and remote control, this camera is perfect for both professional filmmakers and organizational needs, where high image quality and flexibility are crucial.

Compact 4K Recording and Flexible Video Outputs

The AW-UE50KEJ uses a 1/2.5-inch 4K MOS sensor that ensures outstanding image quality across a wide focal length range. It supports multiple video outputs, making it ideal for both UHD and HD workflows. The camera can deliver up to 2160/29.97p or 25p via HDMI for UHD monitoring and recording. For HD output, it offers up to 1080/59.94p or 50p via 3G-SDI, providing great flexibility for various recording needs.

To ensure the highest image quality, the HDMI output supports 4:2:2 10-bit signals, while 3G-SDI can also handle HD formats with both Level-A and Level-B.

Lens, Zoom, and Image Extension

The integrated lens has a 35 mm equivalent focal length of approximately 25–600 mm and offers an impressive 24x optical zoom. With i.Zoom, the zoom capability can be extended to 28x in UHD and 36x in FHD, allowing for detailed recording even at longer distances. For additional reach, the digital extender can be used, with options of 1.4x or 2x. The horizontal viewing angle reaches approximately 74° at the wide-angle end, making it ideal for wide scenes.

Network Streaming, Control Options, and PTZ Performance

The AW-UE50KEJ is equipped for IP streaming with support for JPEG (MJPEG), H.264, and H.265. It works with standard streaming and transport protocols, including RTSP/RTP, RTMP/RTMPS, and SRT. For those needing low-latency IP workflows, there is also the option to upgrade the camera to enable NDI HX2.

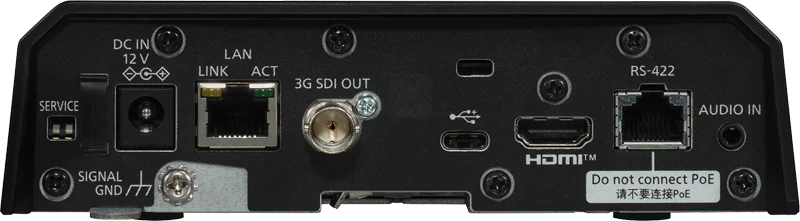

The camera offers flexible control options: it can be controlled over IP (RJ-45), RS-422, or USB, making it easy to integrate into existing systems. With PoE+, power and data can be delivered over a single Ethernet cable, simplifying installation. The direct-drive pan/tilt system provides smooth and precise movements with a pan angle of ±175° and a tilt angle ranging from −30° to +90°.

Audio and USB Connection

The AW-UE50KEJ includes a USB-C port for easy connection to computers and streaming systems, with support for UVC/UAC driving. Additionally, there is a 3.5 mm stereo mic/line input with plug-in power, allowing audio from this input to be embedded in the video outputs for subsequent recording or streaming.

Specifications

• Sensor: 1/2.5-inch 4K MOS with approximately 8.49 MP effective pixels
• UHD Output: 2160/29.97p and 25p via HDMI; HD via HDMI/SDI up to 1080/59.94p and 50p
• Zoom: 24x optical zoom; i.Zoom 28x (UHD) / 36x (FHD); digital extender 1.4x/2x
• Focal Length: 35 mm equivalent 25–600 mm; horizontal viewing angle up to approximately 74°
• Video Format: 3G-SDI (HD format, Level-A/Level-B) and HDMI 4:2:2 10-bit
• IP Streaming: JPEG (MJPEG), H.264, H.265; SRT, RTSP/RTP, RTMP/RTMPS
• NDI HX2: Optional activation
• USB-C: Device mode with UVC/UAC; 3.5 mm stereo mic/line input with plug-in power
• PTZ System: Direct-drive; pan ±175°, tilt −30° to +90°
• Power Supply: PoE+; LAN 100/1000BASE-T; RS-422 control (RJ-45)
• Dimensions: approximately 160 × 192 × 166 mm; approximately 2.05 kg including ceiling mount

Frequently asked questions

Does the Panasonic AW-UE50KEJ have optical zoom?
Yes, it has a 24x optical zoom.

What type of sensor does the camera use?
The camera uses a 1/2.5-inch 4K MOS sensor.

What video outputs does the camera support?
The camera supports HDMI and 3G-SDI for video outputs.

Can the Panasonic AW-UE50KEJ be controlled over IP?
Yes, it can be controlled over IP (RJ-45), RS-422, or USB.
