SmallRig 5341 Camera Cage Kit for Fujifilm GFX Eterna 55

SmallRig 5341 Camera Cage Kit for Fujifilm GFX Eterna 55 – Modular 15mm Rod System for Multi-Scene Filming

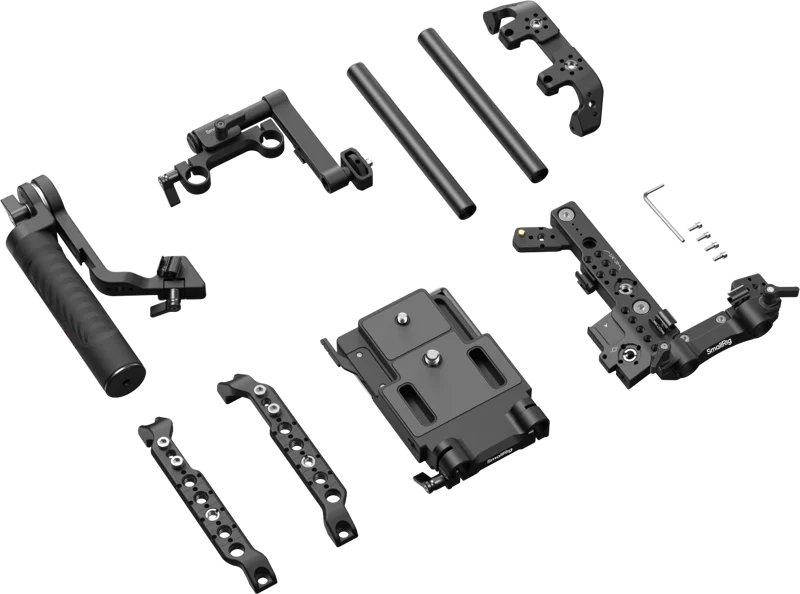

The SmallRig 5341 Camera Cage Kit is designed for filmmakers who want a flexible and modular solution. The kit is built around a 15mm rod system and includes top, side, and bottom plates, rods, a monitor mount, and a control handle. It also offers multiple expansion interfaces for attaching various accessories, making it ideal for both tripod and shoulder use.

Modular Design and Expansion Interfaces

The modular design system allows users to customize the kit for different recording situations. There is a wide range of expansion interfaces that enable easy attachment of accessories and tools:

• 1/4"-20 and 3/8"-16 threaded holes: For easy mounting of accessories.
• ARRI 3/8"-16 and 1/4"-20 positioning holes: For precise equipment placement.
• 15mm double rod clamps: For stable mounting of standard accessories.
• Measuring hook holes: For additional mounting options.
• QD sockets: Quick connection of accessories.
• NATO rails: For smooth connection of equipment.
• Cold shoe mounts: For quick mounting of various accessories.

With these interfaces, you can easily mount monitors, audio receivers, and wireless transmitters without needing to modify the camera body.

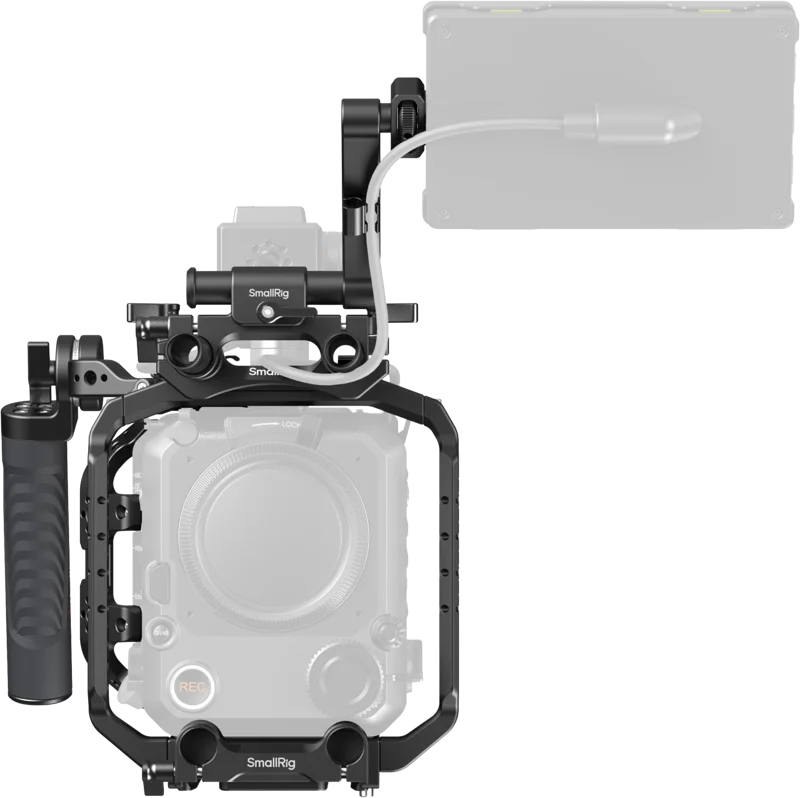

Ergonomics, Handling, and Power Options

The kit includes a control handle that enhances ergonomics and provides smoother camera movements. The adjustable ARRI rosette allows for low-angle shooting and provides flexibility in the handle's position for your preferred grip. Additionally, V-Mount battery plates can be attached to the cage to ensure reliable external power during longer recordings, which is crucial for professional shoots.

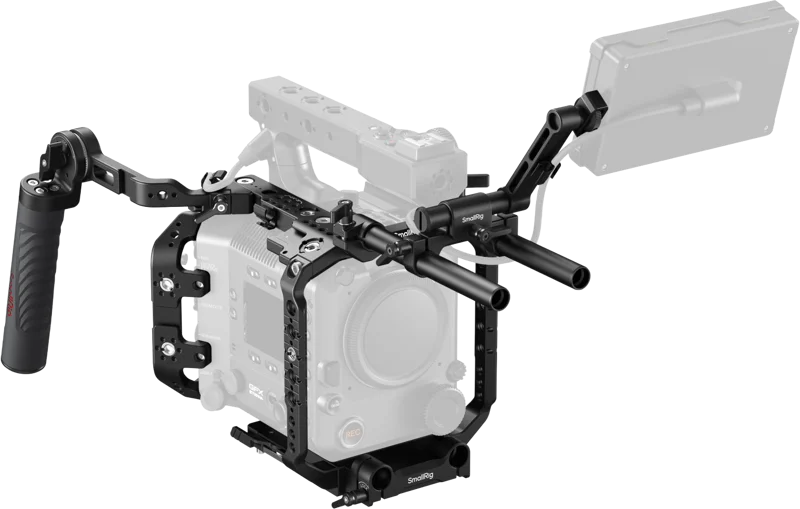

Rod System, Follow Focus, and Tripod Use

With the included 15mm double rods and rod clamps, users can easily support standard accessories within film production. By adding follow focus units to these rods, wireless and precise focusing is enabled. The bottom plate and rod configuration are also compatible with tripods, facilitating smooth transitions between landscape and portrait modes.

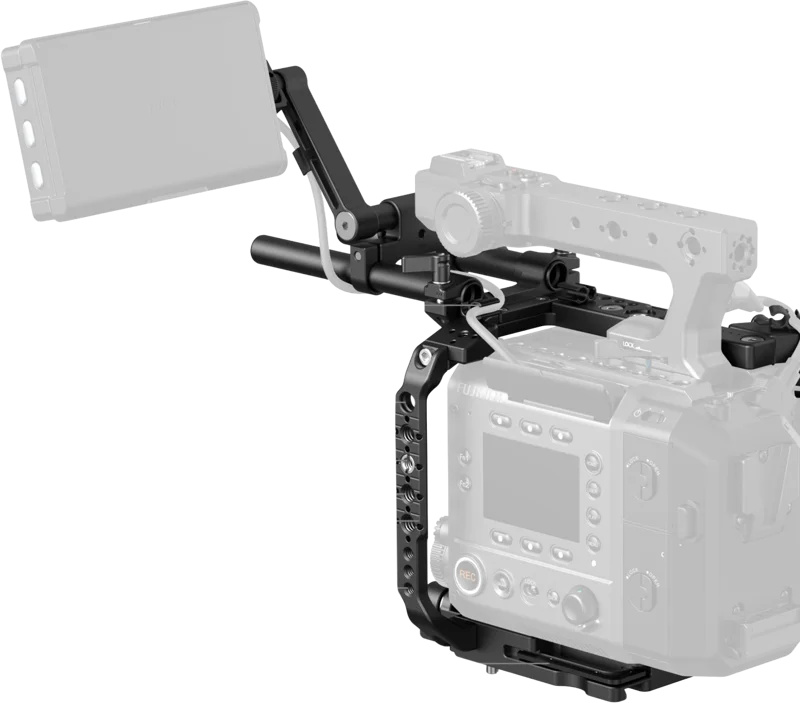

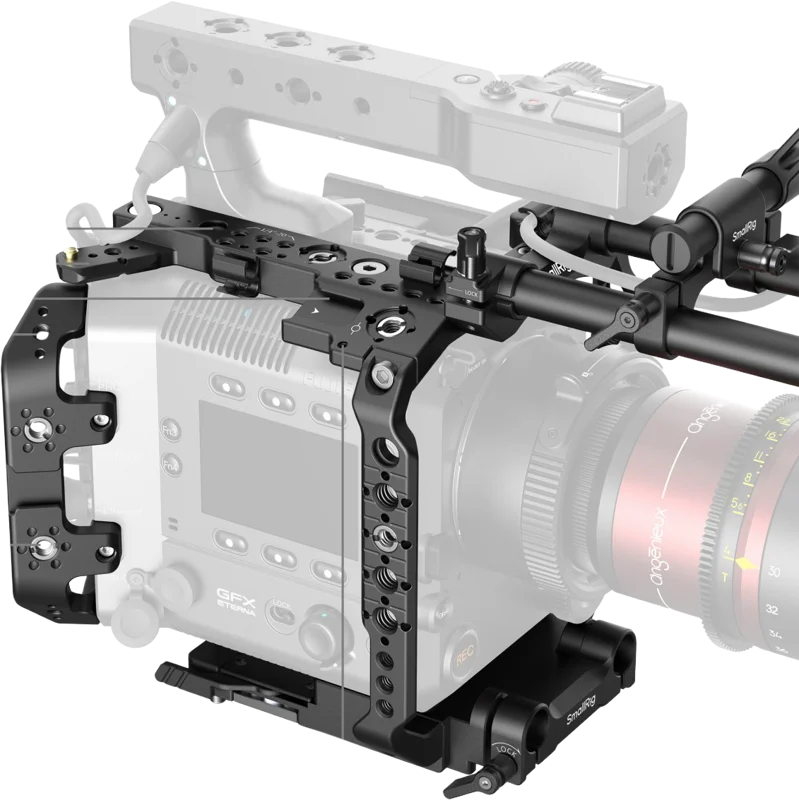

Top Plates, Monitor Mounting, and Rear Accessories

The top plates of the cage accept magic arms and 15mm single rod clamps for mounting wireless transmitters, monitors, and audio equipment. The included monitor mount ensures that original FUJIFILM monitors are securely in place with 1/4"-20 screws and positioning pins. The monitor can be adjusted at multiple angles via the 15mm rods for precise placement. Additionally, you can easily remove the camera's standard port cover with the included M3 screws and hex key, allowing for the installation of the dedicated rear side plate for mounting accessories such as wireless transmitters and D-Tap hubs.

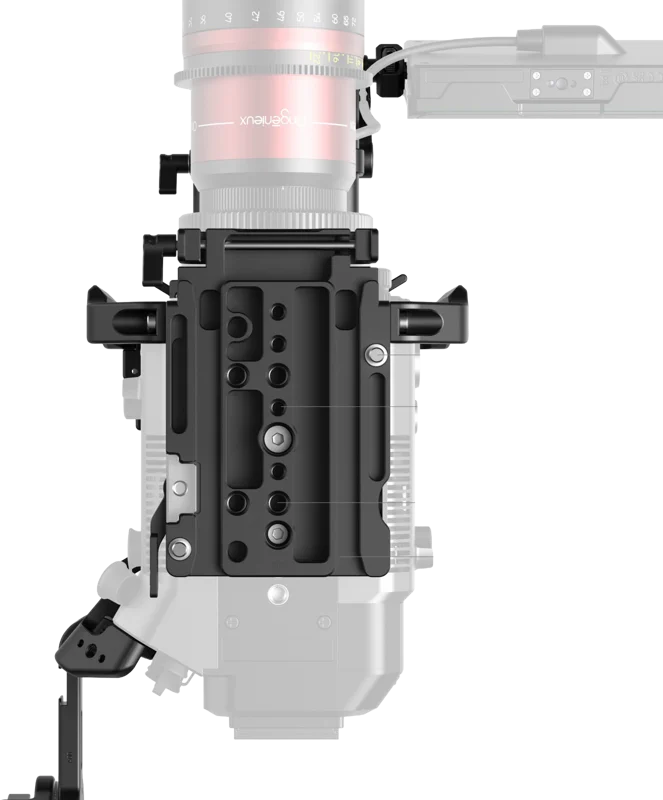

Bottom Plate Details and Quick Installation

The bottom plate in the kit follows the ARRI dovetail standard and features dual 15mm LWS rod clamps. This bottom plate supports quick and tool-free installation via a lever. The underside of the bottom plate has anti-drop pins and 1/4"-20 and 3/8"-16 threaded holes to maintain compatibility with standard ARRI dovetail plates and ARRI BP8 19mm bridge plates, making installation both easy and secure.

Frequently asked questions

Is the SmallRig 5341 Camera Cage Kit modular?
Yes, the kit has a modular design that allows users to customize it for different recording situations.

What types of mounts are available for accessories?
The kit offers several expansion interfaces including 1/4"-20 and 3/8"-16 threaded holes, ARRI 3/8"-16 and 1/4"-20 positioning holes, as well as NATO rails and cold shoe mounts.

How does the kit improve ergonomics during use?
The kit includes a control handle that enhances ergonomics and provides smoother camera movements, as well as an adjustable ARRI rosette for flexibility in the handle position.

Can V-Mount battery plates be attached to the cage?
Yes, V-Mount battery plates can be attached to the cage to ensure reliable external power during longer recordings.
