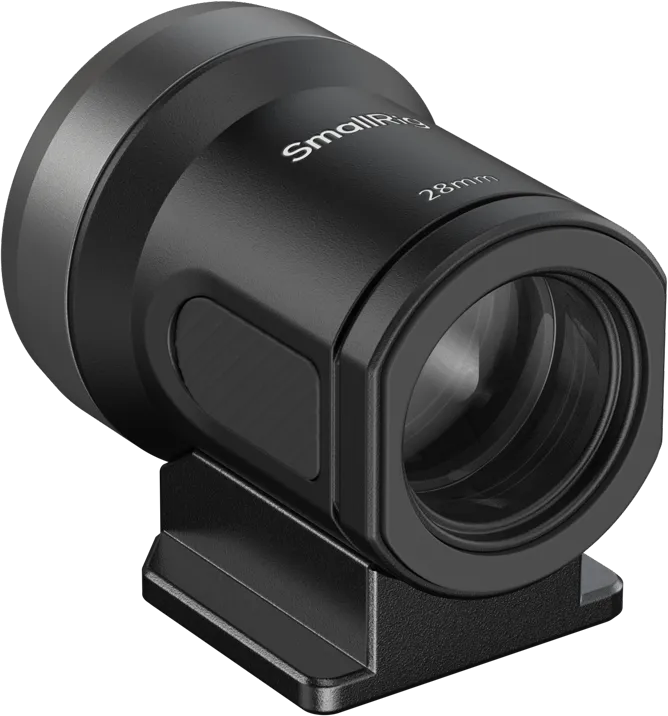

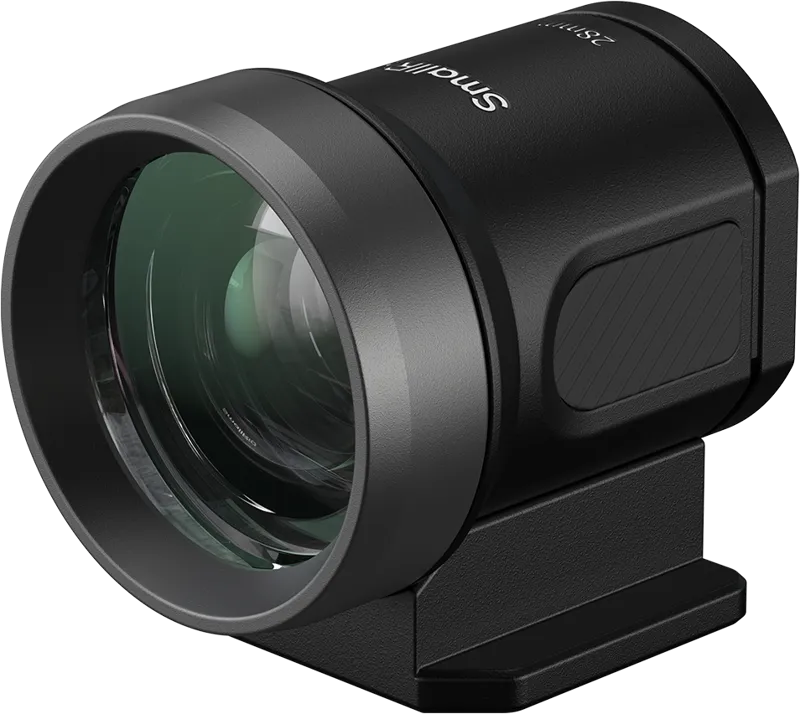

SmallRig 5873 28mm External Optical Viewfinder

SmallRig 5873 28mm External Optical Viewfinder – Clear and Bright Image for Better Composition

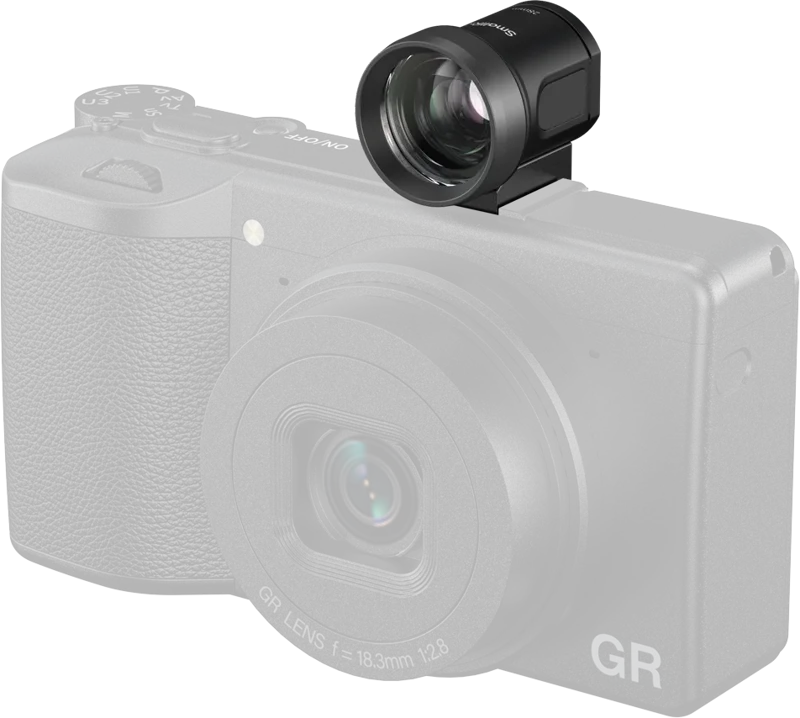

SmallRig 5873 28mm external optical viewfinder is the perfect solution for filmmakers and photographers looking to enhance their compositional skills. With a design that attaches to the camera's hot shoe, this viewfinder offers a field of view equivalent to a focal length of 28 mm for full-frame cameras. For APS-C cameras, an 18 mm lens is recommended to achieve a similar image composition. This viewfinder is particularly useful for those who want a more accurate and clear image of what is captured through the camera.

Optical Quality and Usability

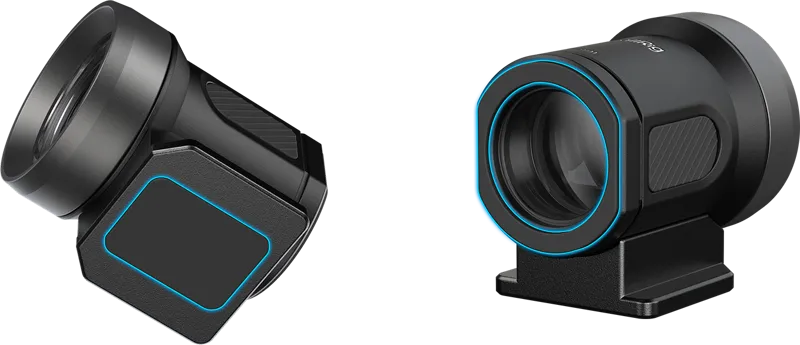

SmallRig 5873 is equipped with an optical system consisting of five groups of high-quality optical glass, providing a light transmission of up to 98%. This results in a clear and bright image with minimal distortion, which is crucial for professional photographers and filmmakers. The built-in silicone pad on the underside protects the hot shoe contacts, making it both durable and user-friendly. With built-in 3:2 frame lines, users can easily define the image crop for better composition and increased creative control.

Compatibility and Recommendations

This viewfinder features a fixed diopter optical design with a nominal value of -0.52 D, ensuring a comfortable viewing experience at an approximate viewing distance of 2.0 meters. To optimize the field of view and sharpness, it is recommended to keep the eye as close to the eyepiece as possible and look straight into the center of the field of view. SmallRig 5873 is compatible with a range of cameras from various manufacturers such as Fujifilm, Nikon, Canon, Sony, Ricoh, and Leica, making it a versatile choice for different photography and film projects.

Specifications

• Focal Length: 28 mm (full-frame), 18 mm (APS-C)
• Light Transmission: Up to 98%
• Optical Design: Five groups of high-quality optical glass
• Diopter: -0.52 D (fixed)
• Recommended Viewing Distance: 2.0 m

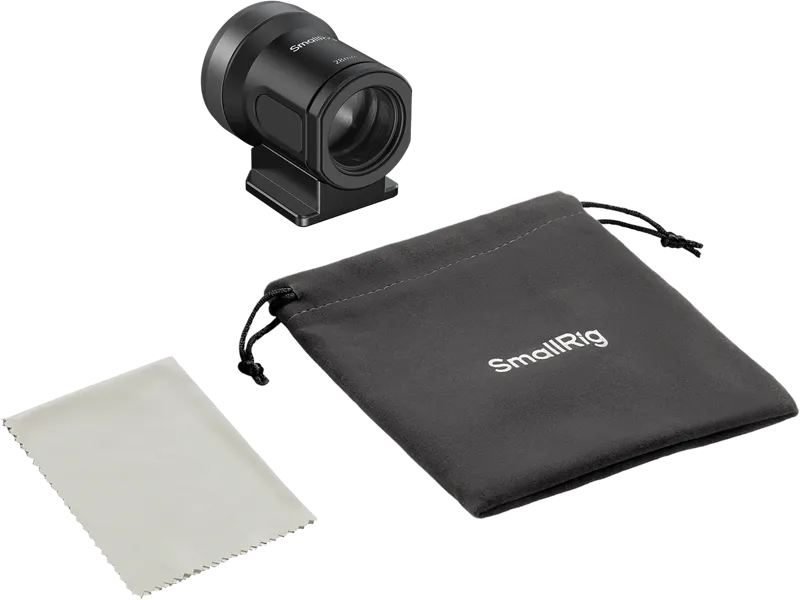

• Includes: Viewfinder, cleaning cloth

Frequently asked questions

Does the product require a hot shoe to attach the viewfinder?
Yes, the viewfinder attaches to the camera's hot shoe.

What focal length does the viewfinder correspond to for full-frame cameras?
The viewfinder has a focal length of 28 mm for full-frame cameras.

What is the light transmission for this optical viewfinder?
The light transmission is up to 98%.

What viewing distance is recommended for optimal use of the viewfinder?
It is recommended to keep the eye as close to the eyepiece as possible at a viewing distance of 2.0 meters.
