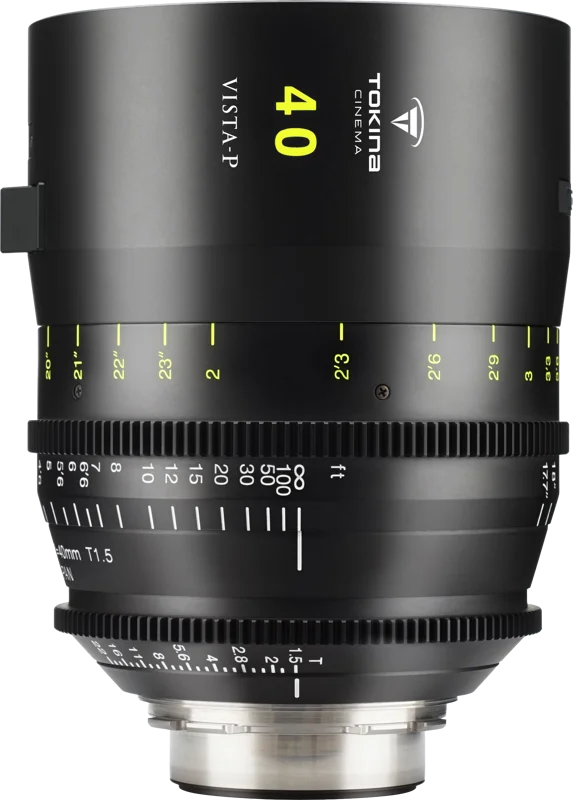

Tokina Vista-P 40mm T1.5 Cinema MFT

Tokina Vista-P 40mm T1.5 Cinema MFT – Fast T1.5 with vintage rendering and large format coverage of 46.7 mm

Tokina Vista-P 40mm T1.5 Cinema MFT is an innovative cine lens that combines classic design with modern features. With its MFT mount and an aperture of T1.5, this lens is perfect for filmmakers seeking a vintage-inspired aesthetic without compromising image quality. Whether you are working on short films, music videos, or documentaries, this lens offers a unique image character that enhances your story.

Design and image character

The Vista-P lens is carefully designed with an increased distance between the optical elements, resulting in a more expressive image. The 40mm T1.5 provides a classic and characterful rendering with reduced contrast and a stylized look at the edges of the image. At the same time, the design ensures sharp central image clarity and controlled chromatic aberration, making the images usable even on modern large format cameras.

Optical properties

The lens features a fast T1.5 maximum aperture, which provides a shallow depth of field and increases flexibility in low light. With a minimum aperture of T22, you can also have better control over exposure. The 9-blade curved iris contributes to a soft and round bokeh, enhancing the lens's vintage look. Thanks to a large image circle of 46.7 mm, the Vista-P 40mm covers full-frame, VistaVision, and digital 65 mm sensors. This extensive coverage makes the lens ideal for high-resolution recording, including workflows up to 8K. The optics are tuned for increased spherical distortion and a swirling background, while maintaining high center resolution and low chromatic aberration. Focus breathing is kept to a minimal level, allowing for subtle recompositions during focus pulls.

Mechanics and operational features

Tokina Vista-P 40mm T1.5 has a robust all-metal housing designed for cine use, and industry-standard 0.8 MOD gearing for both focus and iris. With approximately 300° focus rotation, you can make precise and repeatable focus pulls. The lens maintains a consistent front diameter of 114 mm across the series and uses a 112 mm front filter thread, facilitating the use of various accessories. Gear positions are matched across the Vista-P series, speeding up lens changes when using matte boxes and FIZ systems. The mount flexibility and matched mechanical interfaces make this lens easy to integrate into large format cine workflows.

Mounts, availability, and modification options

The Vista-P series is available in several mount options, including PL, EF, MFT, E, and LPL. The 40mm T1.5 described here is the MFT mount variant. Additionally, Vista-P optics are offered both as new lenses and as a one-way modification to existing Vista Primes, providing a creative upgrade path for productions already using the Vista ecosystem.

Recommended use cases

Tokina Vista-P 40mm T1.5 is particularly suited for narrative work, music videos, and documentaries where image quality and aesthetic style are of utmost importance. Use this lens to capture emotions and create an atmosphere that engages your audience.

Frequently asked questions

What is the maximum aperture on the Tokina Vista-P 40mm T1.5 Cinema MFT?
The maximum aperture is T1.5.

What type of mount does this lens have?
This lens has an MFT mount.

What is the image circle size of the lens?
The lens has a large image circle of 46.7 mm.

What types of recordings is the lens suitable for?
The lens is suitable for short films, music videos, and documentaries.

How much focus rotation does the lens have?
The lens has approximately 300° of focus rotation.
