CAME-TV SP01 100m Wireless HD Video Transmitter & Receiver Set

The SP01 100m Wireless HD Video Transmitter and Receiver Set from CAME-TV allows you to connect your DSLR/DV camera to a recording device without the use of cable. It supports 1080p @ 60 Hz video display with low latency and offers an effective line-of-sight transmission up to 260 ft.



Features:

Wireless HD video transmission for DSLR/DV

Supports 1080p @ 60 Hz video display with low latency

Full hardware for plug-and-play, no software needed

Up to 260' effective line-of-sight range

Supports external Li-ion battery power for mobile convenience

Supports hot shoe installation with1/4"-20 screw nut

Supports audio input from external microphone

High-quality LCD screen display signal and battery status of product

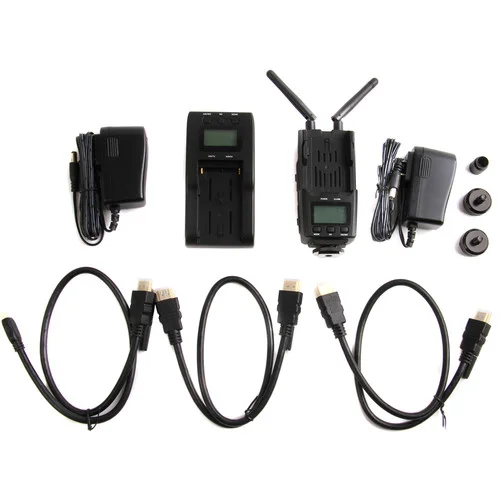

Included:
CAME-TV SP01 100m Wireless HD Video Transmitter & Receiver Set (260')




Specs:

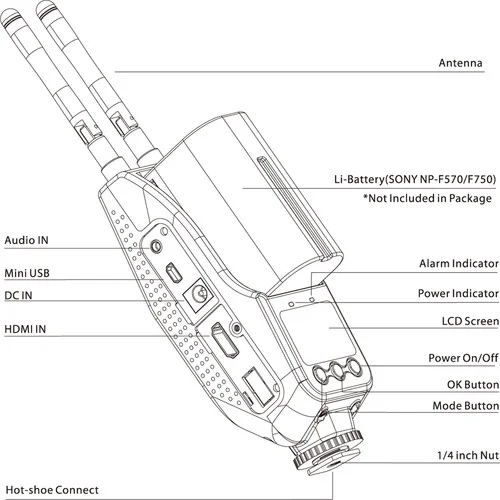

Transmitter
Transmission Frequency 5 GHz
Communication Video: MIMO
Modulation Mode OFDM
Frequency Stability ±2 OPPM
Bandwidth 40 MHz
Protocol HDMI 1.3, HDCP 1.2
Receiving Sensitivity ≤-70 dBm
System Latency ≤1 ms
Antenna 2 x External antenna
Transmission Power 14 dBm
Transmission Distance Up to 260' (80 m) line-of-sight
Power Supply 6 to 17 VDC
Li-ion battery (Canon LP-E6)
Dimensions (W x D x H) 5.7 x 2.0 x 1.8" (145 x 51 x 46 mm)

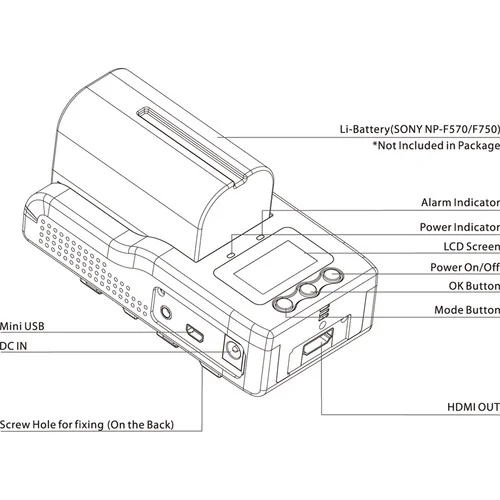

Receiver
Transmission Frequency 5 GHz
Communication Video: MIMO
Modulation Mode OFDM
Frequency Stability ±2 OPPM
Bandwidth 40 MHz
Protocol HDMI 1.3, HDCP 1.2
Receiving Sensitivity ≤-70 dBm
System Latency ≤30 ms
Antenna Built-in antenna
Transmission Power 14 dBm
Transmission Distance Up to 260' (80 m) line-of-sight
Power Supply 6 to 17 VDC
Li-ion battery (Sony NP-F570 / 750 / 950)
Dimensions (W x D x H) 4.6 x 2.4 x 1.8" (118 x 60 x 45 mm)
General
Operating Temperature Transmitter: 14 to 122°F (-10 to 50°C)
Receiver: 14 to 104°F (-10 to 40°C)
With Li-ion Battery: 32 to 104°F (0 to 40°C)
Storage Temperature -40 to 176°F (-40 to 80°C)
Operating Humidity 15 to 85% RH
Packaging Info
Package Weight 2.8 lb
Box Dimensions (LxWxH) 12.992 x 8.898 x 2.677"
