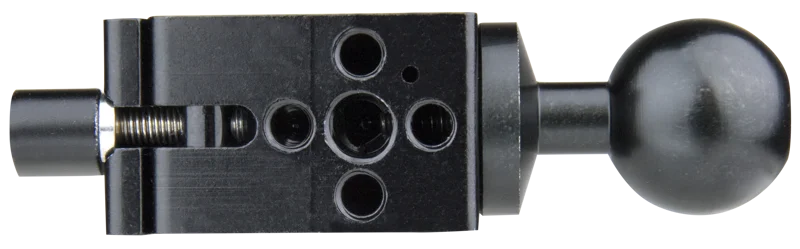

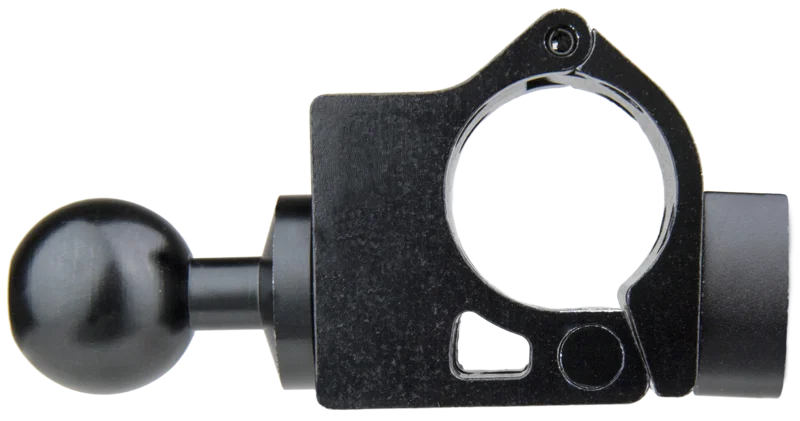

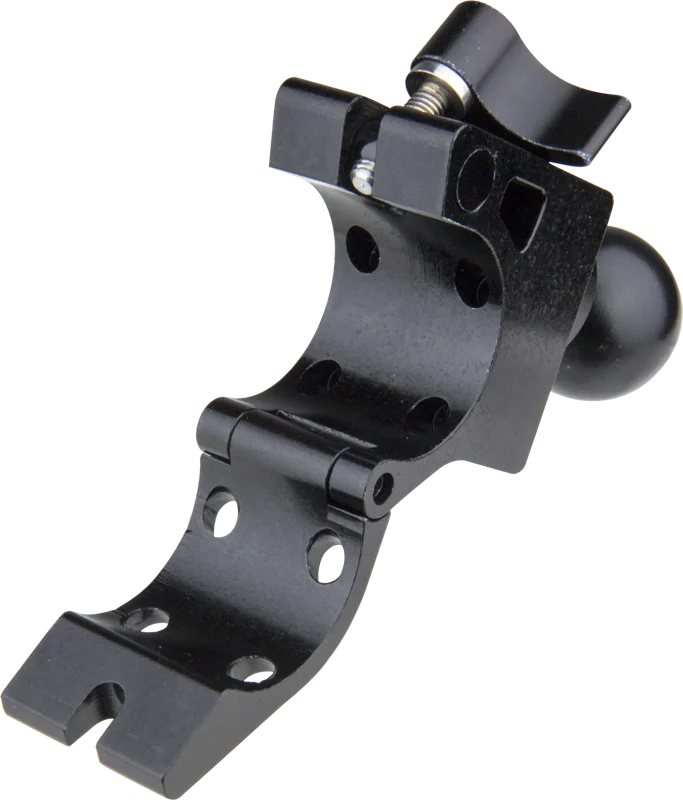

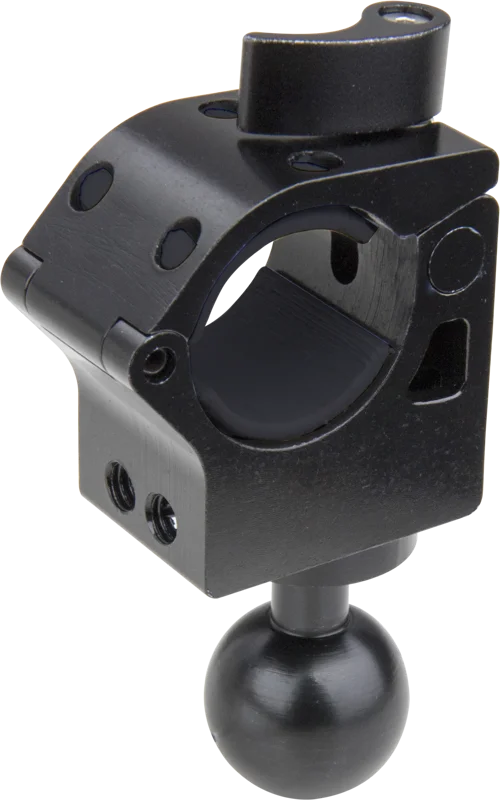

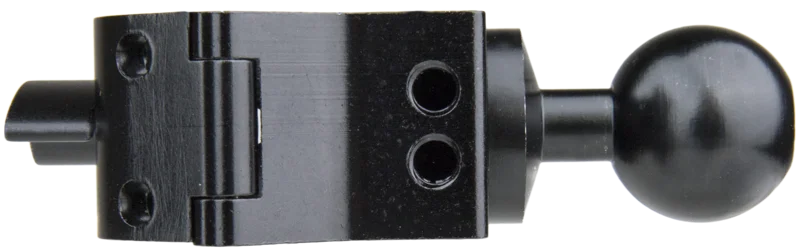

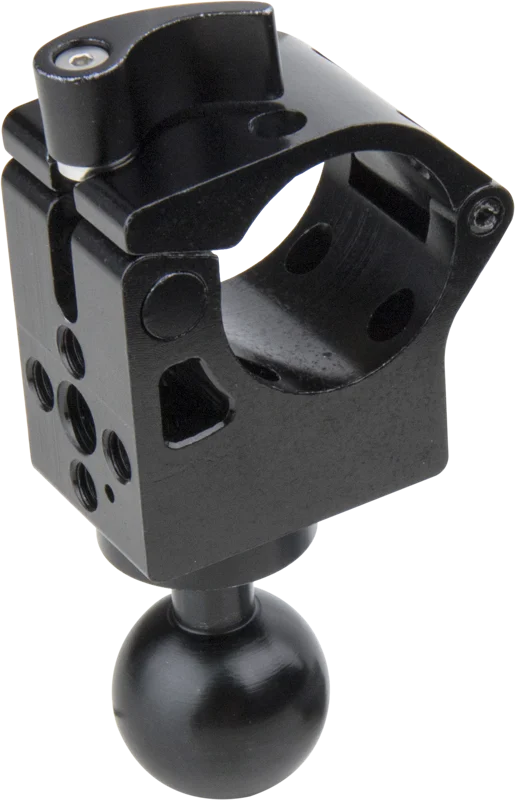

Kupo KCP-253BH Tube Mounting Coupler w/Ball Head Dia.25-30mm

Kupo KCP-253BH Tube Mounting Coupler — Lightweight coupler with removable rubber pad for 25–30mm tubes

The Kupo KCP-253BH is a lightweight tube mounting coupler designed to fit tubes and handles with diameters from 25 to 30mm. It includes a removable rubber pad for secure contact with gimbal frames and handle bars. Use it when you need a clean, temporary mounting point for video accessories on round tubing.

Key features

• Fits tube diameters: 25 to 30mm.

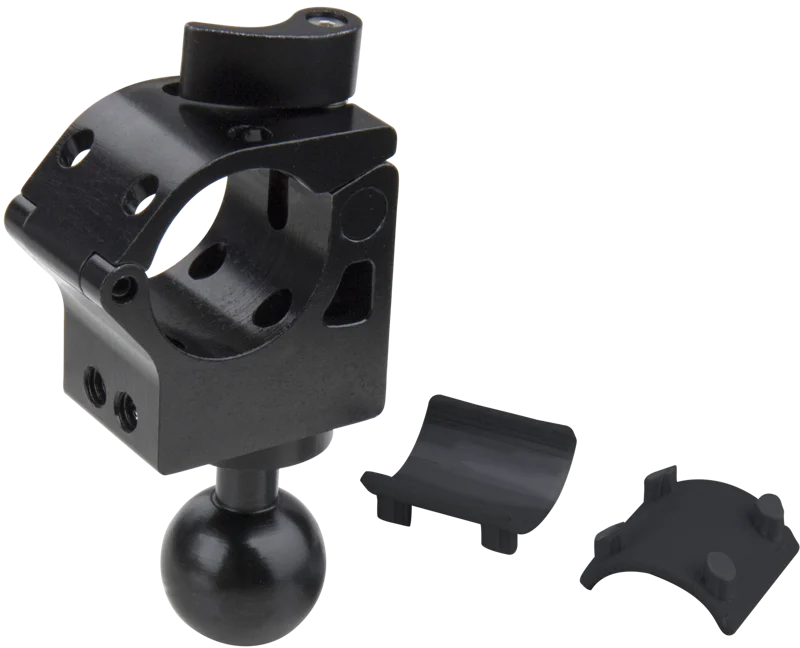

• Removable rubber pad to protect and secure gimbal frames and handle bars.
• Ball head on one end for mounting video accessories that use a Super knuckle.
• Other end features 3/8”-16 Arri anti-rotation holes for an additional mounting option.
• Lightweight: 140g.

How it mounts and where to use it

Mount the coupler around a tube or handle within the 25–30mm range. The removable rubber pad improves grip and helps prevent marring on gimbal frames and handles. On one side, the built-in ball head lets you attach accessories that work with a Super knuckle. On the opposite side, the 3/8”-16 Arri anti-rotation holes give you a standard threaded option with anti-rotation functionality.

Practical use cases

• Attach monitors, small lights, or other video accessories that require a ball head/Super knuckle interface.
• Add a threaded mounting point to a gimbal frame or handle using the 3/8”-16 Arri anti-rotation holes.
• Use the removable rubber pad when you need a secure but non-marring connection to painted or finished tubing.

Specifications

FAQ

question: Which tube diameters does the KCP-253BH fit?

Answer: It fits tubes and handle bars with diameters from 25 to 30mm.

question: Does the coupler protect my gimbal frame or handle?

Answer: Yes. The coupler includes a removable rubber pad that improves grip and helps protect finished surfaces on gimbal frames and handles.

question: What mounting options are available on this coupler?

Answer: The KCP-253BH provides a ball head on one end for accessories using a Super knuckle, and 3/8”-16 Arri anti-rotation holes on the other end for a threaded, anti-rotation mounting option.

question: Is the coupler heavy to add to my rig?

Answer: No. The product is lightweight and weighs 140g, making it suitable for use on gimbals and handles where minimizing added weight matters.
