VAXIS Storm 1000s kit V mount Wireless Video Transmission Kit

VAXIS Storm 1000s kit V mount Wireless Video Transmission Kit

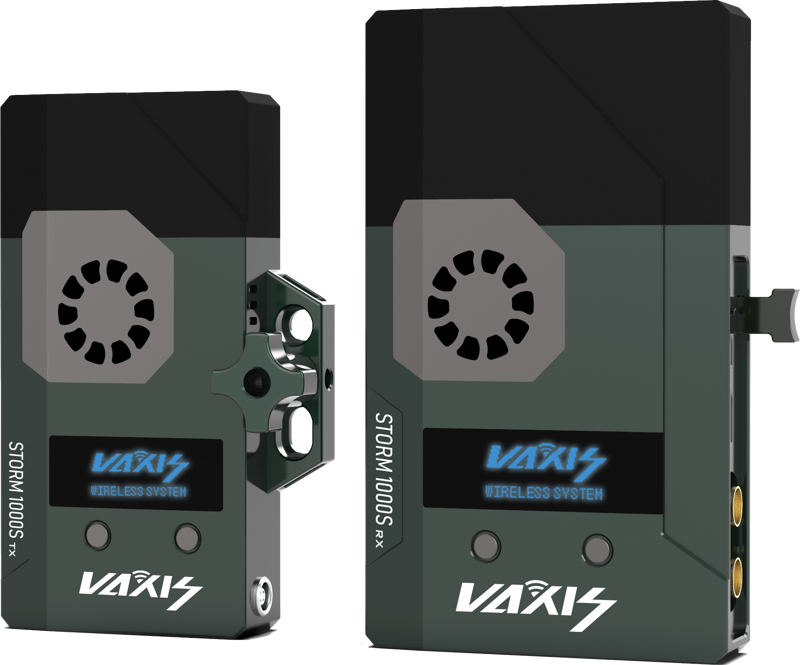

With both 3G-SDI and HDMI connections, the Storm 1000S Wireless Kit from Vaxis can transmit visually lossless video signals to the Vaxis receiver with less than 1ms latency. The transmitter transmits a powerful signal along a line of sight of up to 350 m and offers 20 channels on the 20 and 40 MHz bands, so you can find a free channel to use. In this way, you can also work with several pairs of Vaxis Storm transmitters and receivers without them interfering with each other's signals.

The transmitter has one 3G-SDI input, one 3G-SDI loop output and one HDMI input, while the receiver has two 3G-SDI and one HDMI output. The system supports 0' mode, enabling instant playback with an ALEXA Mini. The transmitter supports multicasting to multiple receivers, and the Storm 1000S is also compatible with the Storm 058, 800, 2000 and 5000 systems. Each unit has a bright, clear LCD screen and a cooling fan that vents to the side to avoid overheating the camera or monitor. They can be powered via the integrated 2-pin LEMO connector, and each unit also has a USB micro power input. In addition, the receiver has a built-in plate with a V-mount for power supply.

Both devices have internal antennas

Transmitter and receiver kit transmits 1080p wireless video up to 350m line of sight with less than 1ms latency.
The transmitter has an SDI and an HDMI input as well as an SDI loop output; the receiver has two SDI outputs and one HDMI output.
The units are powered by separately available external sources via their 2-pin LEMO-type connectors.
Supports multicast for transmitting video from one transmitter to multiple receivers.
Support for HDMI/SDI cross-conversion on the transmitter
Support for timecode and metadata
Bright LCD display on each unit for settings, status and to search for open frequencies in the 5.1 to 5.9 GHz range
Bright LCD display shows settings, status and enables scanning from 5.1 to 5.9 GHz.
Each unit can be mounted on a rig with 1/4"-20 thread
Compatible with Storm 058, 800, 2000 and 5000
Optional V-mounting plate on the transmitter
Durable metal housing

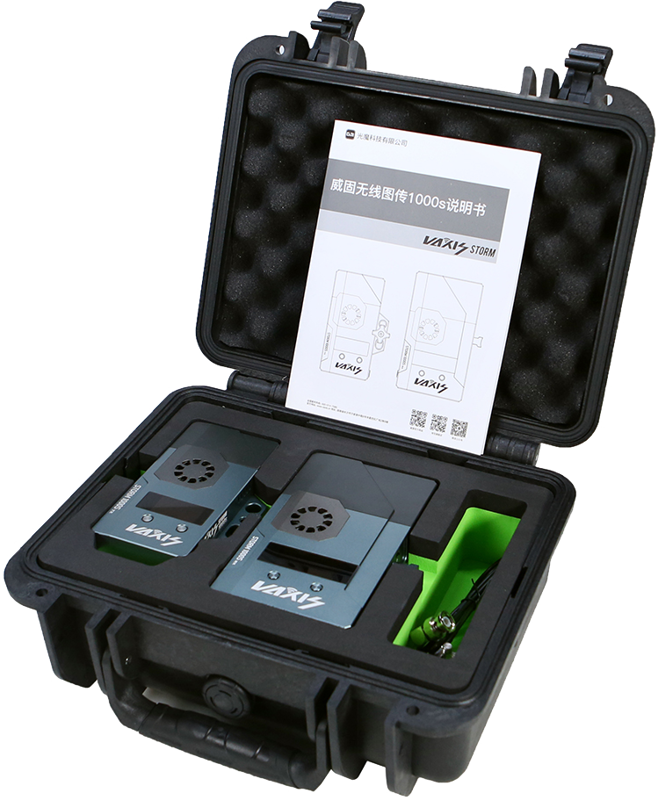

In the box

Vaxis Storm 1000S Wireless Kit (V-Mount)
ATOM 1000 Transmitter
ATOM 1000 Receiver
2 x power cables
BNC cable

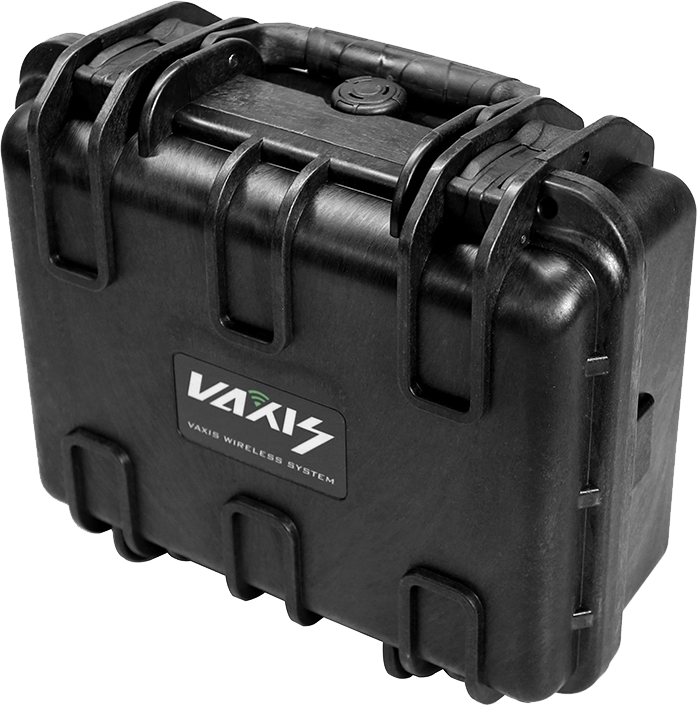

Flight case
