Hollyland Pyro Transmission Kit Pyro Video Transmission & Monitoring Kit (7-Inch)

Hollyland Pyro Transmission Kit — Pyro S + Pyro 7 with 7-inch 1200 nits wireless monitoring and 1TX/4RX support

This kit consists of the Pyro S transmitter/receiver pair together with the Pyro 7 transceiving monitor. It combines wireless video transmission and on-set monitoring in one package, and it ships with the accessories needed to deploy the system straight away.

Pyro 7 key features

1. 1TX & 4RX
   The system supports one transmitter and up to four receivers, allowing a single camera feed to be distributed to multiple monitoring points.
2. 400m (1300ft) & 0.06s Latency
   Pyro delivers a wireless range of up to 400 meters (1300 feet) with a low latency of 0.06 seconds, enabling near real-time monitoring at distance.
3. 2.4GHz & 5GHz Dual Band
   The product operates on both 2.4 GHz and 5 GHz bands to provide flexibility in different RF environments.
4. Auto Frequency Hopping
   Auto frequency hopping helps the system manage crowded wireless conditions by automatically switching frequencies as needed.
5. TX, RX, and Monitor – All in One
   The Pyro 7 functions as a transmitter, a receiver, and a monitor, offering multiple roles within a single device.
6. Dual-View Quick Monitoring Switch
   A dual-view quick monitoring switch lets you change monitoring layouts quickly on the Pyro 7 display.

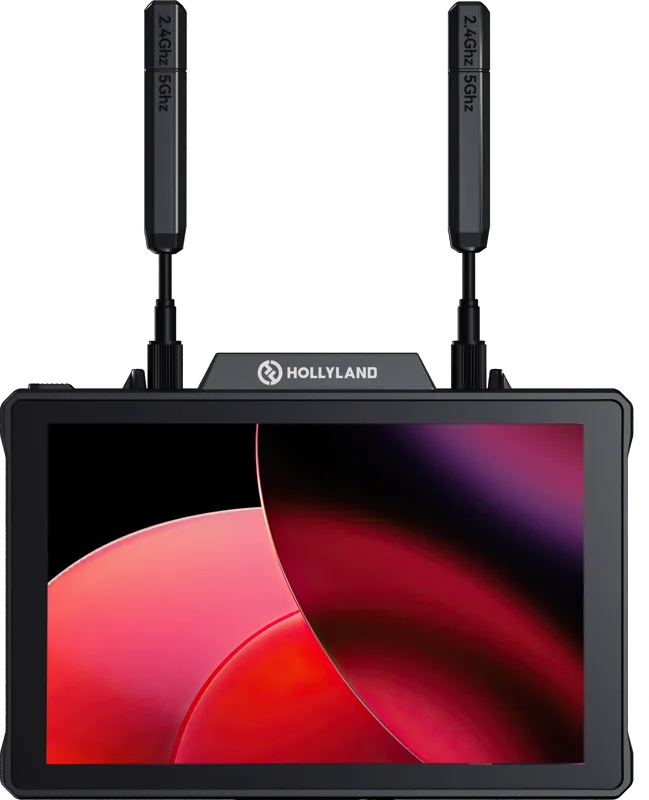

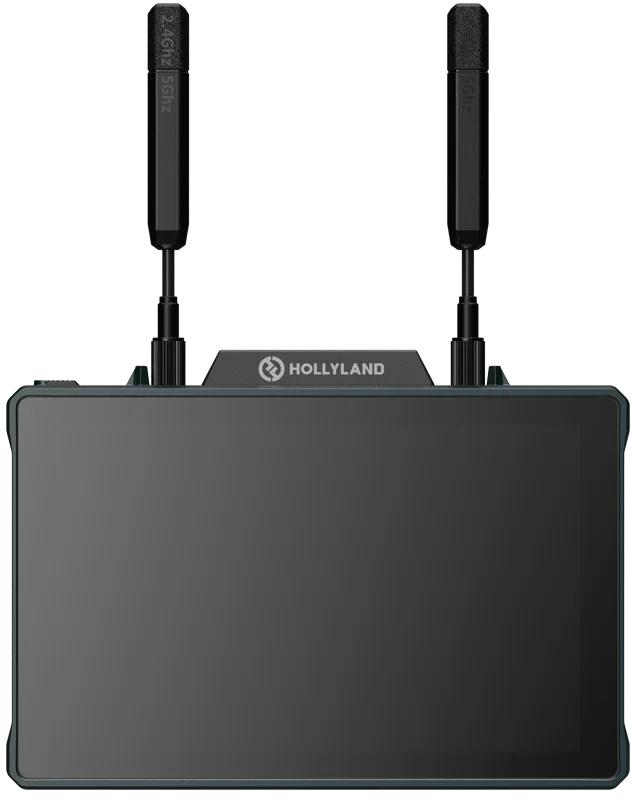

7. 7 Inch & 1200 nits
   The monitor features a 7-inch screen with 1200 nits brightness for viewing in a variety of lighting conditions.
8. Precise Image Analysis (HollyOS)
   The monitor includes precise image analysis tools provided by HollyOS for on-set image evaluation.
9. SDI & HDMI Loopout
   The unit provides both SDI and HDMI loop outputs for feeding external recorders or additional monitors.
10. RTMP Streaming
    Pyro supports RTMP streaming to enable direct online broadcast workflows from the unit.

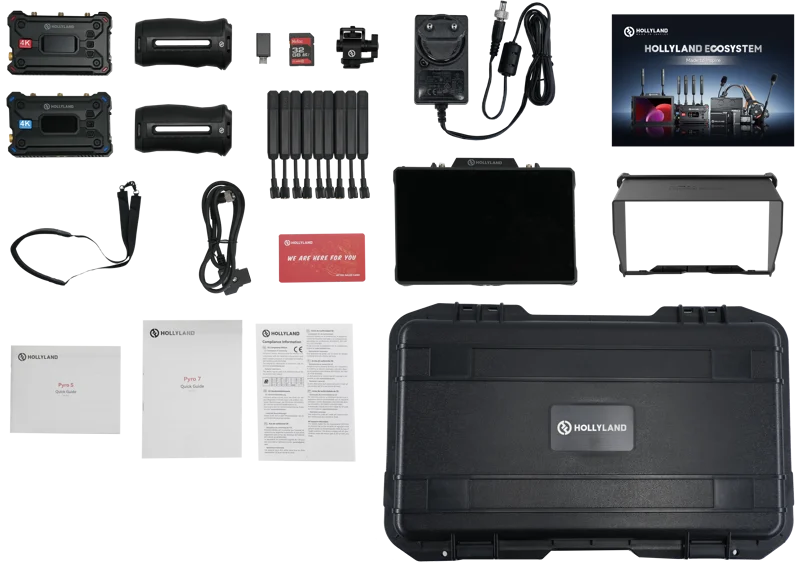

What’s included in the box

The kit ships with all listed components so you can set up the Pyro system and Pyro 7 monitor without sourcing extras. Items included are:

• Pyro S Wireless Video Transmitter*1
• Pyro S Wireless Video Receiver*1
• Pyro 7 Wireless Transceiving Monitor*1
• Paddle Antenna (2.4 GHz & 5 GHz)*9
• Side & Bottom Mounted Aluminum Handle*2
• Monitor Hood (7-Inch)*1
• Secure Digital Memory Card (32G)*1
• Shoulder Strap 01*1
• Rotatable Cold Shoe Mount *1
• USB-C OTG Adapter*1
• 12V 2A DC 2.1 Power Adapter*1
• Pyro S User Manual*1
• Pyro 7 User Manual*1
• Warranty Card*1
• Hollyland Ecosystem Leaflet*1
• D-Tap to Locking DC Power Adapter Cable*1
• Pyro Ecosystem Hard-Shell Case*1

Specifications

FAQ

Question: What does the Hollyland Pyro Transmission Kit include?
Answer: The kit includes the Pyro S Wireless Video Transmitter, Pyro S Wireless Video Receiver, Pyro 7 Wireless Transceiving Monitor, multiple paddle antennas, mounting handles, a 7-inch monitor hood, a 32GB SD card, straps and mounts, power adapters and cables, user manuals, a warranty card, a Hollyland ecosystem leaflet, and a Pyro ecosystem hard-shell case.

Question: How many receivers can I use with a single transmitter?
Answer: The system supports one transmitter and up to four receivers (1TX & 4RX), enabling the same camera feed to be sent to multiple monitoring stations.

Question: What range and latency can I expect?
Answer: Pyro provides a wireless range of up to 400 meters (1300 feet) and a latency of 0.06 seconds, which supports real-time monitoring workflows within that range.

Question: Which wireless bands and interference management does the system use?
Answer: The unit operates on both 2.4 GHz and 5 GHz bands and incorporates auto frequency hopping to manage crowded RF environments.

Question: What monitoring and connectivity options are available on the Pyro 7?
Answer: The Pyro 7 features a 7-inch, 1200-nit display, precise image analysis via HollyOS, SDI and HDMI loopout, and RTMP streaming capabilities, plus a dual-view quick monitoring switch for fast layout changes.

Question: Does the package include power and mounting accessories?
Answer: Yes. The box contains a 12V 2A DC power adapter, a D-Tap to locking DC power adapter cable, a rotatable cold shoe mount, side and bottom aluminum handles, a shoulder strap, and a monitor hood for on-set use.
