Panasonic AW-UE40WEJ 4K Integrated Camera, White

Panasonic AW-UE40WEJ 4K Integrated Camera, White — Compact design with 24x optical zoom

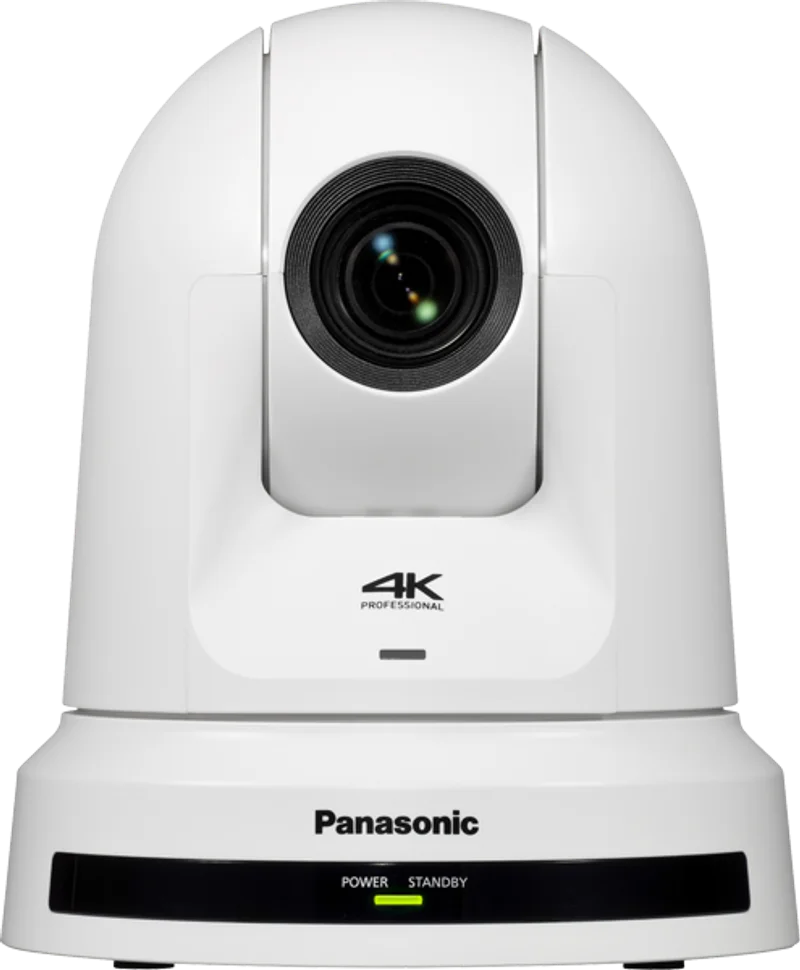

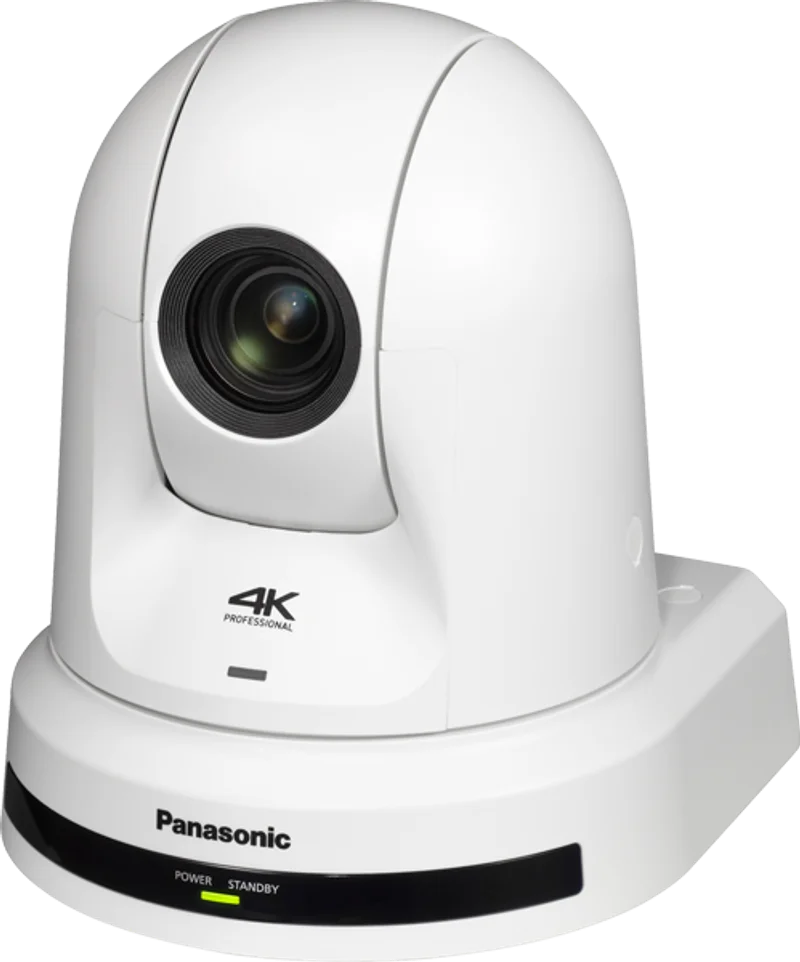

The Panasonic AW-UE40WEJ is an advanced 4K integrated PTZ camera in elegant white, designed for use in fixed installations and live production. It offers outstanding UHD recording and smooth remote-controlled PTZ operation, making it ideal for professional filmmakers and event producers. With its user-friendly plug-and-play functionality, it is perfect for both beginners and experienced users looking for high-quality video.

Why choose AW-UE40WEJ

This camera is equipped with a 1/2.5-type 4K MOS sensor that captures detailed and high-resolution video. With an impressive 24x optical zoom, the camera can easily cover large rooms and distant subjects, providing great flexibility in various recording situations. Additionally, the AW-UE40WEJ supports UHD output up to 2160/29.97p or 25p, as well as a wide range of HD formats, allowing you to customize your production without needing to change cameras.

Lens and image

The camera features an integrated lens that offers a focal length range of approximately 25–600 mm in 35 mm equivalent measurement. Furthermore, it has an i.Zoom function that provides up to 28x zoom in UHD and 36x zoom in FHD, as well as digital extender options of 1.4x and 2x. This allows you to maintain consistent image quality from wide-angle shots to detailed long-distance images, which is crucial for professional video productions.

Video outputs and formats

The AW-UE40WEJ offers UHD video via HDMI with a resolution of up to 2160/29.97p or 25p and supports HD up to 1080/59.94p or 50p. The camera also provides HDMI 4:2:2 10-bit output for higher color reproduction, which is important for professional video editing workflows. With the USB-C device port, the camera can easily integrate into USB workflows as a USB video and audio device, making it extremely versatile. Additionally, audio from a 3.5 mm mic/line input can be embedded in the video outputs, providing further flexibility during recording.

Networking, streaming, and protocols

For IP streaming, the camera supports JPEG (MJPEG), H.264, and H.265. It is compatible with common streaming and contribution protocols such as RTSP/RTP, RTMP/RTMPS, and SRT, making it perfect for transmission over unstructured networks. For those working with NDI-based systems, an optional NDI HX2 activation is available, further enhancing the camera's capabilities.

Control and PTZ performance

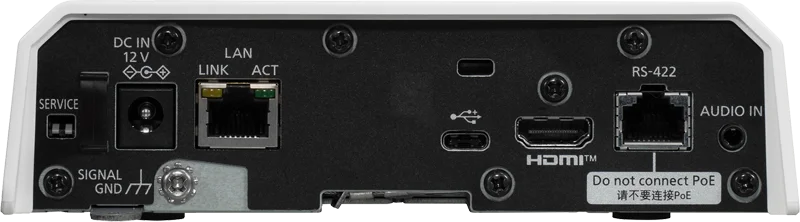

The AW-UE40WEJ offers multiple control options including IP (via RJ-45), RS-422, and USB. It supports PoE+ (Power over Ethernet), allowing both power supply and data transfer over a single cable. The camera's pan/tilt mechanism is directly driven, providing smooth and precise movements with a pan range of ±175° and a tilt range of −30° to +90°. This offers great flexibility for installation on desks, walls, or ceilings.

Key features

• Sensor: 1/2.5-type 4K MOS with approximately 8.49 MP effective
• UHD output: HDMI up to 2160/29.97p and 25p; HD up to 1080/59.94p and 50p
• Optical zoom: 24x; i.Zoom 28x (UHD) / 36x (FHD); digital extender 1.4x/2x
• Focal length: 35 mm equivalent approximately 25–600 mm; horizontal field of view up to approximately 74°
• HDMI output: 4:2:2 10-bit; USB-C with UVC/UAC
• IP streaming: JPEG (MJPEG), H.264, H.265; protocols SRT, RTSP/RTP, RTMP/RTMPS
• NDI: Optional NDI HX2 activation
• Audio input: 3.5 mm stereo mic/line with plug-in power; audio embedding on outputs
• PTZ performance: Pan ±175°, tilt −30° to +90°
• Power and control: PoE+; LAN 100/1000BASE-T; RS-422 control (RJ-45)

Frequently asked questions

Does the Panasonic AW-UE40WEJ have an optical zoom function?
Yes, it has a 24x optical zoom.

What type of video resolution does the camera support?
The camera supports UHD video up to 2160/29.97p or 25p and HD up to 1080/59.94p or 50p.

How can I control the camera?
The camera offers several control options including IP (via RJ-45), RS-422, and USB.

Does the camera support Power over Ethernet (PoE+)?
Yes, it supports PoE+ which allows for both power supply and data transmission over a single cable.
