SmallRig 5487 Turbo Charging Kit for DMW-BLK22 Camera Batteries

SmallRig 5487 Turbo Charging Kit for DMW-BLK22 – Efficient Fast Charging for Your Camera Batteries

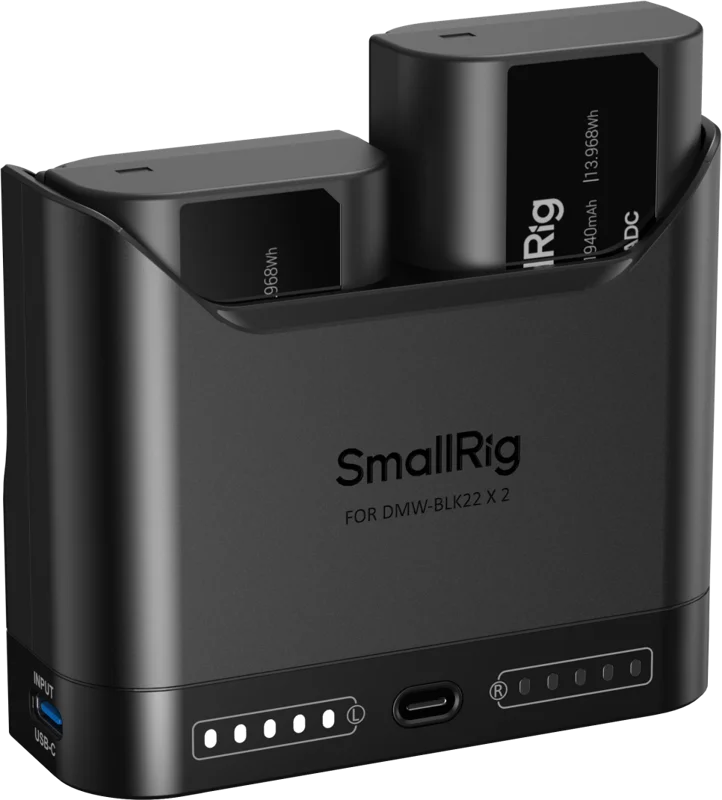

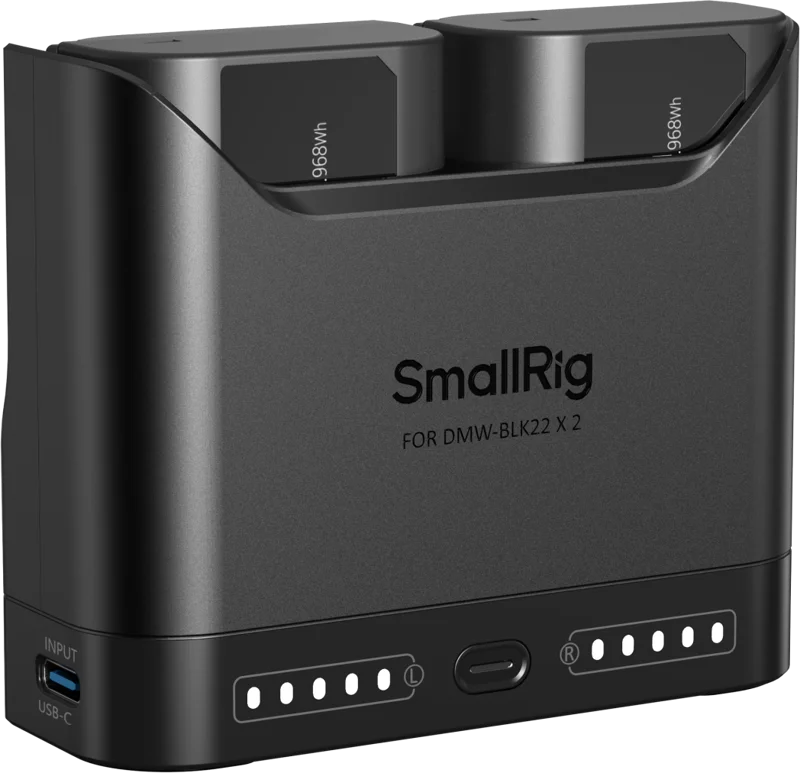

The SmallRig 5487 Turbo Charging Kit is the perfect solution for filmmakers and photographers who need reliable power during long shoots. With this kit, you not only get a powerful dual charger but also two high-performance replacement batteries of 1940mAh each. This kit is specifically designed for Panasonic DMW-BLK22 cameras and ensures that you never have to worry about the batteries running out in the middle of an important shot.

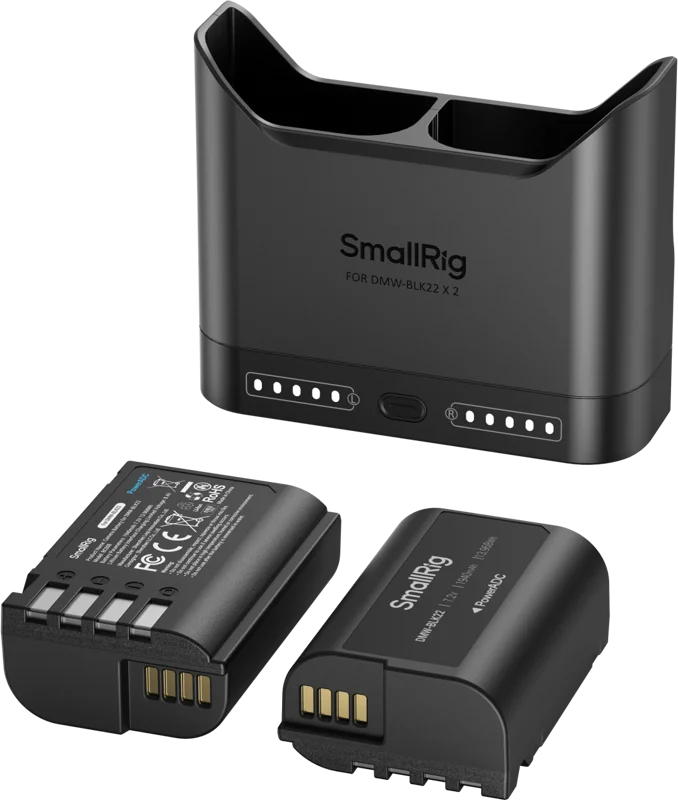

What this kit includes

• Camera battery charger for DMW-BLK22

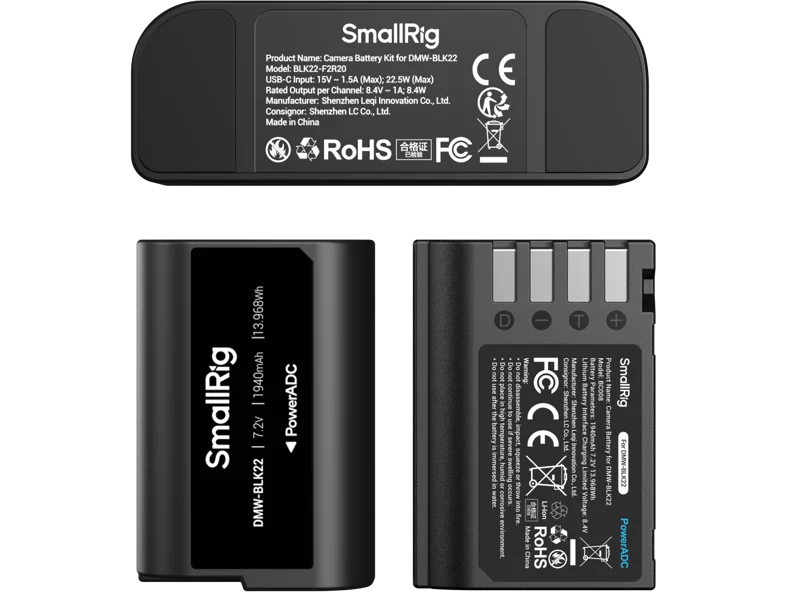

• 2 × camera batteries for DMW-BLK22 (actual capacity 1940mAh each)
• 2 × battery covers

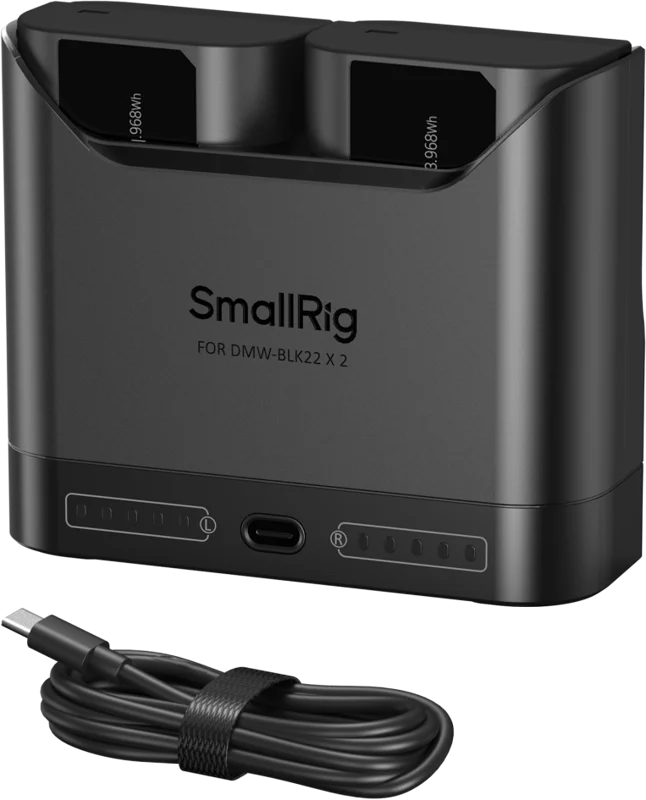

• 60W USB-C to USB-C cable (1 m)

Fast Charging and Charging Behavior

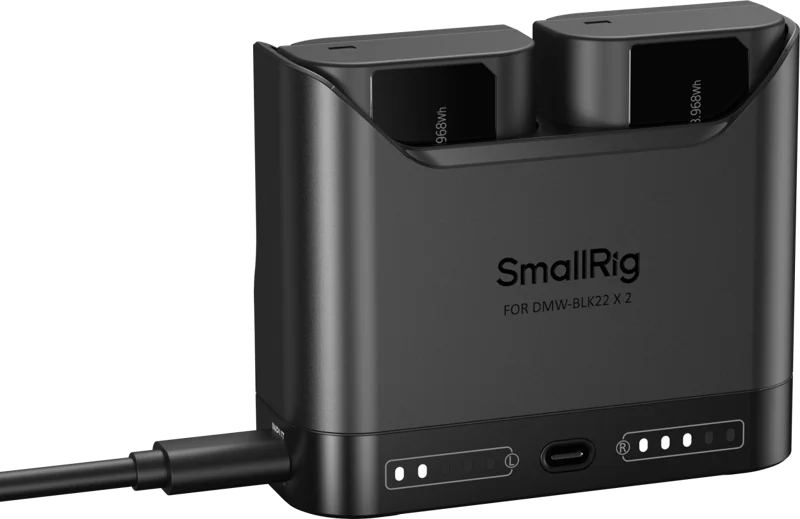

The dual-slot charger in this kit is designed to charge two batteries simultaneously, which is a significant advantage for those who need energy quickly between shots. Under optimal conditions, it can fully charge two batteries in about 2 hours, making it incredibly efficient. If you connect a lower power adapter, such as a 5V / 2.4A adapter, the charger automatically switches to a slower charging mode where Channel 1 takes priority. Channel 2 starts charging as soon as Channel 1 is fully charged, ensuring that you always have a fully charged battery available when needed.

Intelligent Safety and Battery Care

SmallRig has designed the charger with an intelligent circuit that protects both the batteries and your equipment. It continuously monitors temperature and voltage and can automatically adjust the charging:

• It slows down charging if the battery overheats to prevent damage.
• Power is cut off in over-voltage conditions to ensure safety.
• The charger switches to trickle charging when the battery approaches full capacity, helping to preserve battery health over time.

Indicators and Warnings

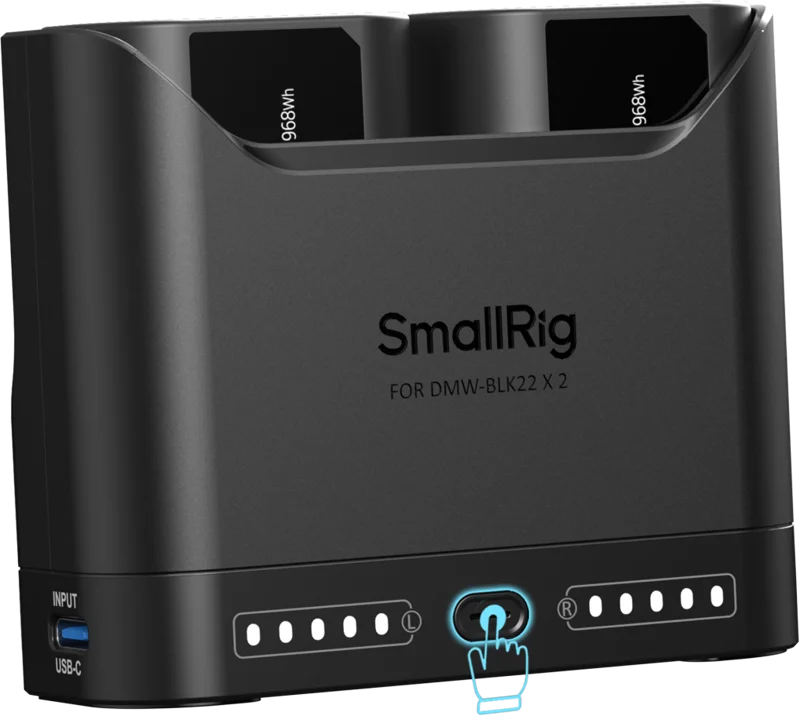

Each charging channel has five LED indicators that show power levels in 20% increments. These LED lights also function without external power, allowing you to quickly check battery levels. A red warning light activates when the battery level is critically low, providing you with extra security to avoid unexpected interruptions.

Flexible Power Options

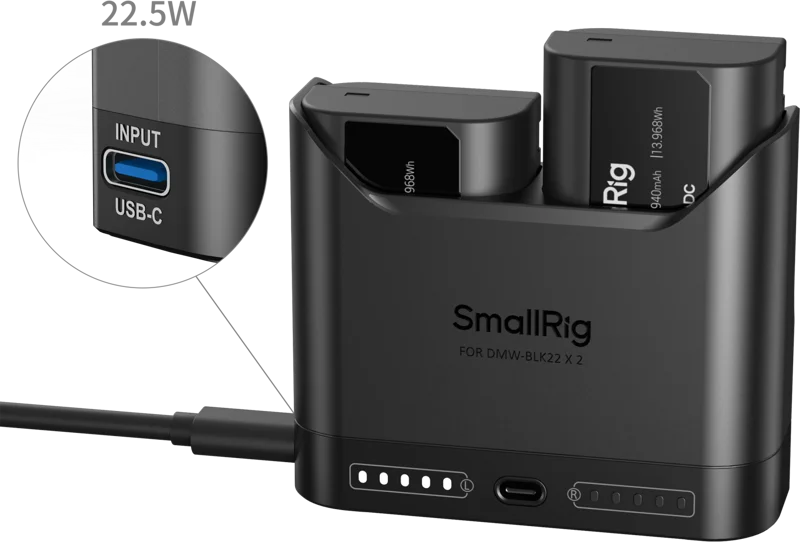

The charger is equipped with a universal USB-C input and comes with a fast-charging USB-C to USB-C cable. This allows you to power the charger from various sources such as wall adapters, car chargers, and power banks. For best performance, SmallRig recommends using a wall adapter with at least 22.5W power.

Certifications

The product meets several important standards and certifications, including FCC, CE, RoHS, and ISED, ensuring that it is safe to use.

Compatibility

• Panasonic LUMIX GH7
• Panasonic LUMIX GH6
• Panasonic LUMIX GH5 II
• Panasonic LUMIX S9
• Panasonic LUMIX G9 II
• Panasonic LUMIX S5 IIX
• Panasonic LUMIX S5 II
• Panasonic LUMIX S5

Technical Specifications

Frequently asked questions

How fast can the SmallRig 5487 Turbo Charging Kit charge two DMW-BLK22 batteries?
Under optimal conditions, it can fully charge two batteries in about 2 hours.

What safety features does the charger have to protect the batteries?
The charger continuously monitors temperature and voltage, slows down charging if the battery overheats, cuts off power under overvoltage conditions, and switches to trickle charging when the battery approaches full capacity.

Which cameras is the SmallRig 5487 Turbo Charging Kit compatible with?
The kit is specifically designed for Panasonic DMW-BLK22 cameras, including models such as Panasonic LUMIX GH7, GH6, GH5 II, S9, G9 II, and S5 IIX.

How many batteries are included in the kit and what is their capacity?
The kit includes two high-performance replacement batteries with a real capacity of 1940mAh each.
