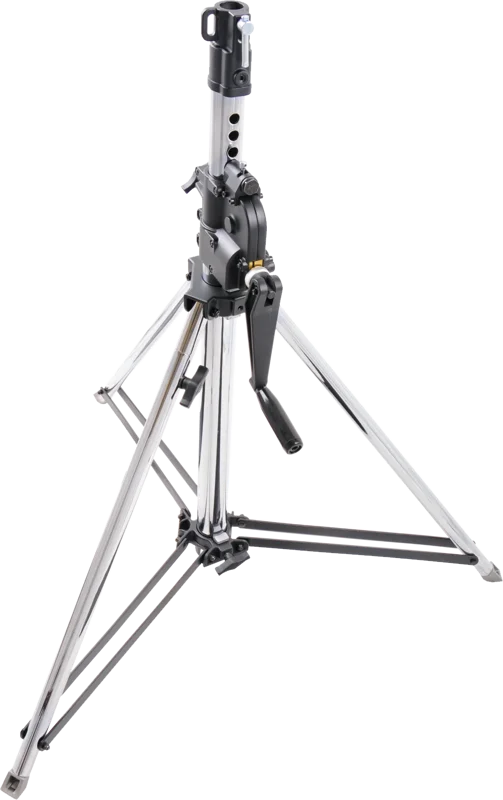

Kupo 482T 2 Section Wind Up Stand

Kupo 482T 2 Section Wind Up Stand – Safe single-operator wind-up for heavy lights and scrims

The Kupo 482T wind-up stand lets a single operator raise and lower heavy lights or scrims safely by turning a handle. Its geared column and automatic self-locking mechanism give controlled, steady elevation and help prevent unexpected drops. As a result, an operator can manage heavier fixtures without additional crew for lifting.

Key benefits and operation

The stand extends and retracts through a handle-driven mechanism. Each full turn of the handle elevates the riser by 2.2cm, allowing precise height adjustment by increments. Moreover, the unique automatic self-locking device engages during operation to reduce the risk of the stand dropping unexpectedly, protecting both operator and equipment.

Construction and design

The 482T is built from chrome plated steel and features a geared column for reliable mechanical operation. Its construction supports repeated use with heavier loads while maintaining secure handling. Because of the geared wind-up and self-locking design, a single operator can safely handle heavy lights and scrims without manual lifting.

Features at a glance

• 1 riser, 2 sections
• Maximum load: 45kg
• Product weight: 18.1kg
• Diameter: 55mm, 45mm
• Leg diameter: 30mm
• Maximum operating height: 245cm
• Minimum operating height: 145cm
• 1 levelling leg, footprint diameter is 128cm
• Auto self-locking device
• Chrome plated steel with geared column

Specifications

How it supports your work

Use the 482T when you need steady, controlled elevation of heavy lights or scrims and you prefer single-operator handling. The geared column and handle mechanism provide fine control over height changes. Additionally, the automatic self-locking device adds a layer of safety during adjustments, which helps protect both talent and gear on set.

FAQ

Question: What load can the Kupo 482T support?
Answer: The stand supports a maximum load of 45kg, as specified.

Question: What height range does the stand offer?
Answer: The 482T operates between a minimum height of 145cm and a maximum operating height of 245cm.

Question: How is the stand raised and lowered?
Answer: You raise and lower the riser by turning a handle; each full handle turn elevates the riser by 2.2cm, giving controlled, stepwise adjustment.

Question: Does the stand have safety features to prevent dropping?
Answer: Yes. The stand includes an automatic self-locking device designed to prevent the column from dropping unexpectedly, reducing risk to the operator and equipment.

Question: What materials and dimensions are relevant for setup and transport?
Answer: The 482T is constructed from chrome plated steel with a geared column. Key dimensions include column diameters of 55mm and 45mm, a leg diameter of 30mm, and a footprint diameter of 128cm; the product weight is 18.1kg.
