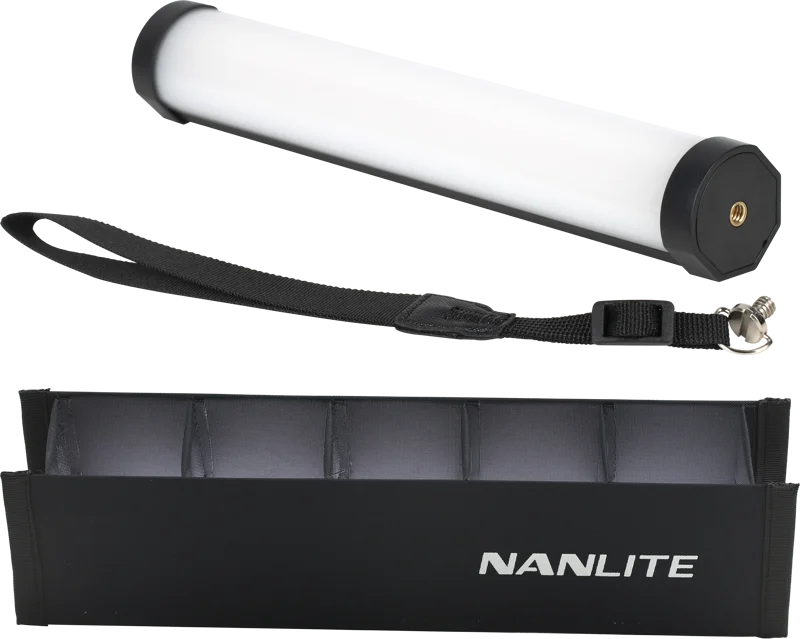

Nanlite Kit Nanlite Pavotube II 6C with Eggcrate

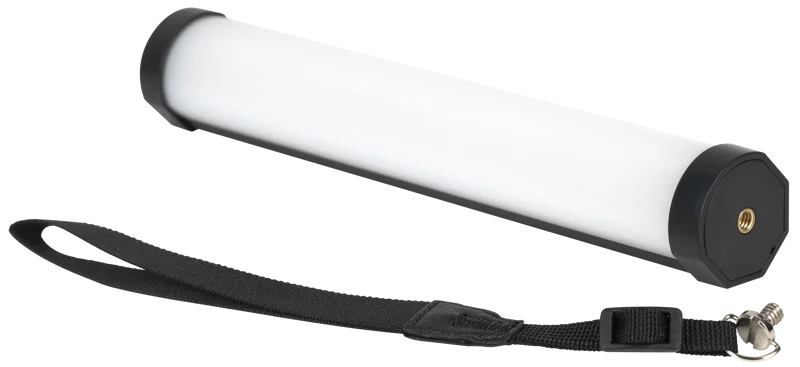

Nanlite Pavotube II 6C – Small RGBWW LED Tube with Built-in Battery and High Color Fidelity

The Nanlite Pavotube II 6C is a compact RGBWW LED tube that delivers accurate color and flexible control. It combines high CRI/TLCI ratings with a wide color temperature range, built-in battery power, and multiple mounting and control options. Use it for location work, product shoots, or as a fill/edge light where space and portability matter.

Color Performance and Light Quality

The Pavotube II 6C provides strong color fidelity with a CRI of 95 and a TLCI of 97. It covers a broad color temperature range from 2700K to 7500K and includes advanced green and magenta adjustments in CCT mode. In HSI mode you can select from over 36,000 static colors to match creative needs or ambient light.

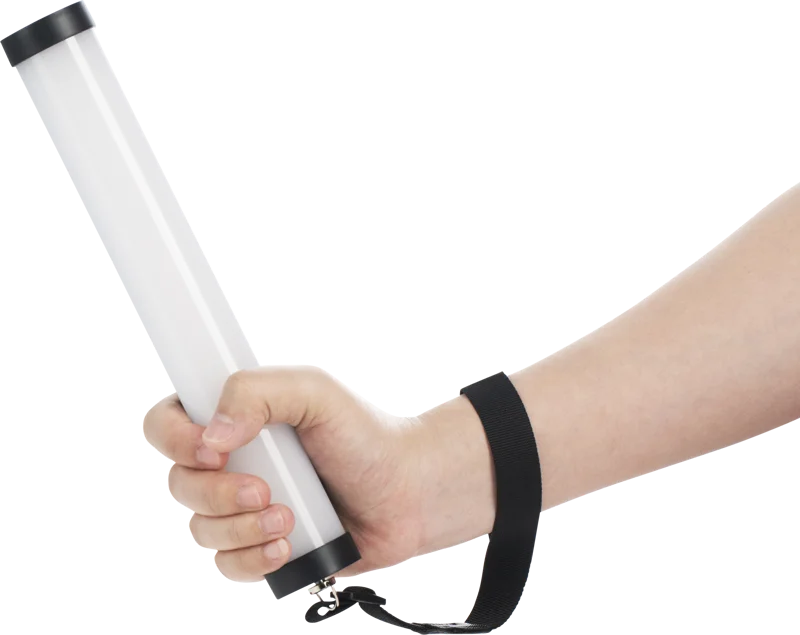

Compact, Easy-to-Mount Design

The tube’s compact size and magnets on both ends let you mount the Pavotube II 6C in a variety of positions quickly and securely. Additionally, it features an industry-standard 1/4"-20 mount at both ends so you can attach it to common photo and video fixtures. Thanks to its design, you can place the light at many angles and still achieve an even, soft output.

Built-in Battery and Fast Charging

The Pavotube II 6C includes a built-in rechargeable battery (3.7V/2200mA Li‑Ion). It runs for more than one hour at full power and can last up to 10 hours at 1% brightness. You charge the unit via USB Type-C, which also supports future firmware updates to keep the light up to date.

Wireless and Remote Control Options

The tube contains a built-in 2.4GHz receiver and is designed to work with the RC-1 remote control. You can also control it through NANLink WiFi via compatible iOS or Android devices, allowing wireless group control and adjustments from a phone or tablet.

Quick Specs

• RGB+WW LED Tube
• Weight: 280 grams
• Length: 25cm
• Color Temp: 2700K–7500K with green/magenta adjustment
• CRI: 95
• TLCI: 97
• Dimming: 0–100%
• Battery: Built-in rechargeable 3.7V/2200mA Li-Ion
• Battery Run Time: 65 mins at 100% brightness (more than 1 hour at full power, up to 10 hours at 1%)
• Charger: USB-C
• Wireless Control: 2.4GHz
• Built-in magnets

Illumination Measurements

• 2700K: 0.5m – 572 lux; 1m – 149 lux; 2m – 39 lux
• 3200K: 0.5m – 644 lux; 1m – 168 lux; 2m – 44 lux
• 5600K: 0.5m – 702 lux; 1m – 183 lux; 2m – 48 lux
• 6500K: 0.5m – 711 lux; 1m – 186 lux; 2m – 48 lux
• 7500K: 0.5m – 688 lux; 1m – 174 lux; 2m – 45 lux

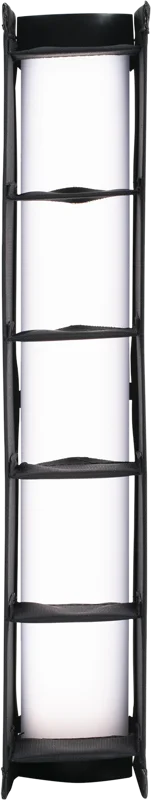

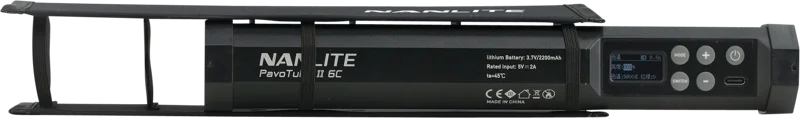

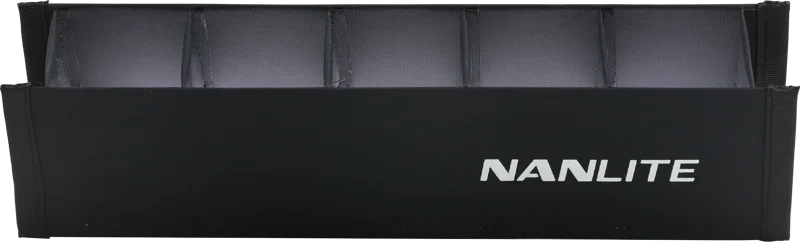

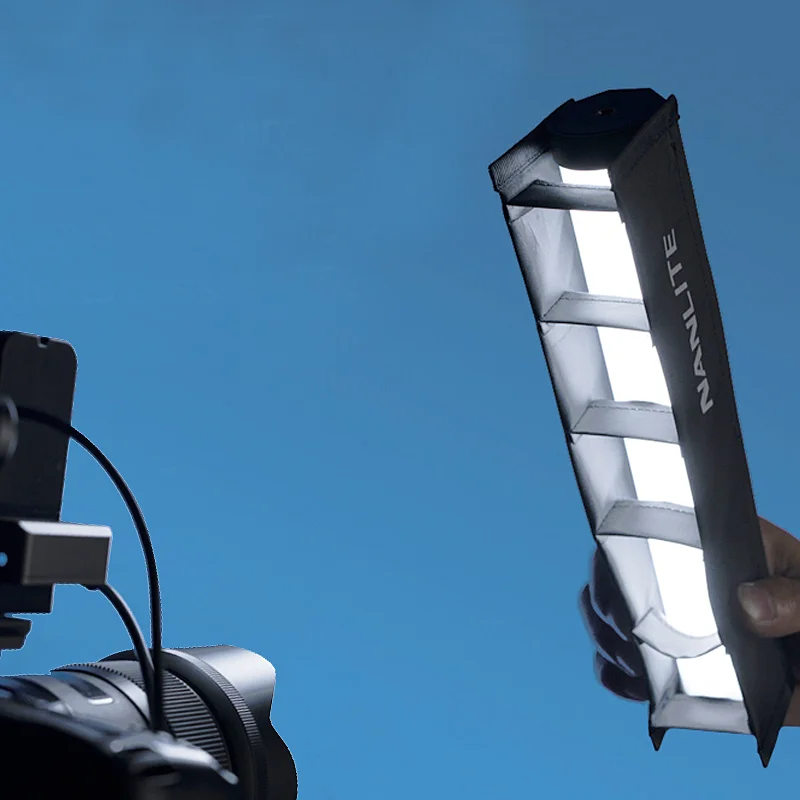

Nanlite Eggcrate for Pavotube II 6C

The NANLITE EC-PTII6C eggcrate is a bespoke lighting modifier made specifically for the Pavotube II 6C. It lets you control the beam angle more effectively, giving you additional shaping options and more creative lighting possibilities when you need focused or directional light.

Technical Specifications

FAQ

Question: How long does the built-in battery last and how do I charge it?
Answer: The Pavotube II 6C runs for more than one hour at full power and can last up to 10 hours at 1% brightness. It uses a built-in 3.7V/2200mA Li‑Ion battery that you charge via the USB‑C port, which also supports firmware updates.

Question: Can I control multiple tubes wirelessly and from my phone?
Answer: Yes. The tube has a built‑in 2.4GHz receiver for use with the RC‑1 remote, and it is compatible with NANLink WiFi for control from iOS and Android devices, enabling group control and remote adjustments.

Question: How can I mount the Pavotube II 6C in different locations?
Answer: The tube has magnets on both ends for quick mounting to metal surfaces. It also includes an industry‑standard 1/4"-20 mount at each end so you can attach it to common photo and video fixtures for more permanent setups.

Question: What does the Eggcrate do and is it specific to this tube?
Answer: The NANLITE EC‑PTII6C eggcrate is a custom modifier made specifically for the Pavotube II 6C. It narrows the beam angle and helps you direct light more precisely, expanding your lighting possibilities when you need controlled, directional output.
