SHAPE ARRI DOVETAIL SHOULDER MOUNT WITH HAND15 HANDLES

<p><font style="color: rgb(0, 0, 0);">Lightweight ARRI-style Dovetail shoulder mount.</font><br><font style="color: rgb(0, 0, 0);"> ARRI Rosettes for handle attachment</font><br><font style="color: rgb(0, 0, 0);"> Adjustable non-slip shoulder pad</font><br><font style="color: rgb(0, 0, 0);">Spring loaded stoppers at the front and back</font><br><font style="color: rgb(0, 0, 0);">Compatible with standard ARRI style bridge plates (15mm LWS, 15mm Studio and 19mm Studio).</font><br><font style="color: rgb(0, 0, 0);">12.5” long with 10.5” of top bridge plate travel</font><br><font style="color: rgb(0, 0, 0);">Includes a pair of Compact Quick Handle ARRI Rosette with Black Push Buttons, Patented Push Button Technology</font><br><font style="color: rgb(0, 0, 0);">Push, adjust, release, and then it’s locked</font><br><font style="color: rgb(0, 0, 0);">CNC machined aluminum</font></p>

SHAPE ARRI DOVETAIL SHOULDER MOUNT WITH HAND15 HANDLES

Obserwuj ten produkt, a powiadomimy Cię, gdy będzie ponownie dostępny.

Produkt jest teraz obserwowany
Powiadomimy Cię, gdy produkt będzie ponownie dostępny w magazynie.

SHAPE ARRI DOVETAIL SHOULDER MOUNT WITH HAND15 HANDLES

<p><font style="color: rgb(0, 0, 0);">Lightweight ARRI-style Dovetail shoulder mount.</font><br><font style="color: rgb(0, 0, 0);"> ARRI Rosettes for handle attachment</font><br><font style="color: rgb(0, 0, 0);"> Adjustable non-slip shoulder pad</font><br><font style="color: rgb(0, 0, 0);">Spring loaded stoppers at the front and back</font><br><font style="color: rgb(0, 0, 0);">Compatible with standard ARRI style bridge plates (15mm LWS, 15mm Studio and 19mm Studio).</font><br><font style="color: rgb(0, 0, 0);">12.5” long with 10.5” of top bridge plate travel</font><br><font style="color: rgb(0, 0, 0);">Includes a pair of Compact Quick Handle ARRI Rosette with Black Push Buttons, Patented Push Button Technology</font><br><font style="color: rgb(0, 0, 0);">Push, adjust, release, and then it’s locked</font><br><font style="color: rgb(0, 0, 0);">CNC machined aluminum</font></p>

SHAPE ARRI DOVETAIL SHOULDER MOUNT WITH HAND15 HANDLES

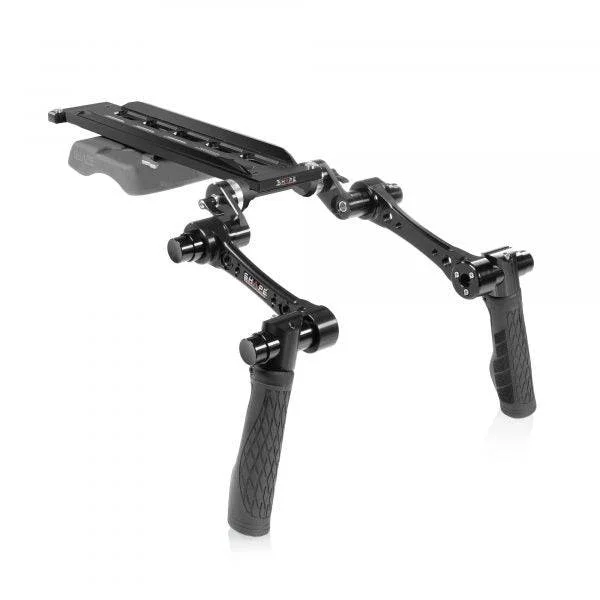

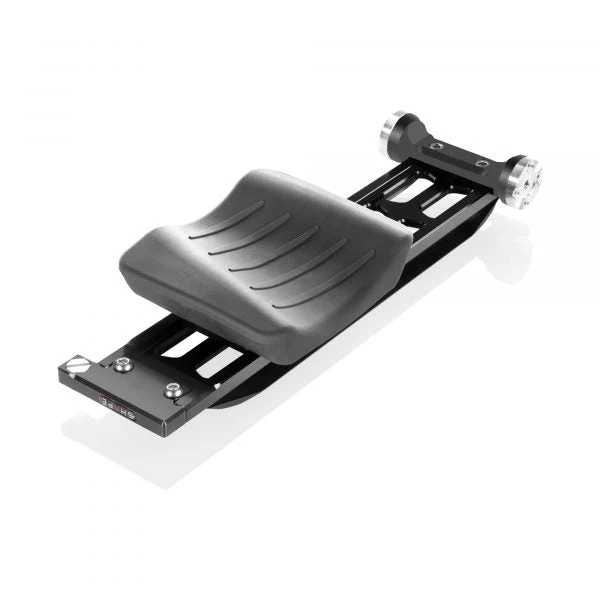

SHAPE ARRI Dovetail Shoulder Mount

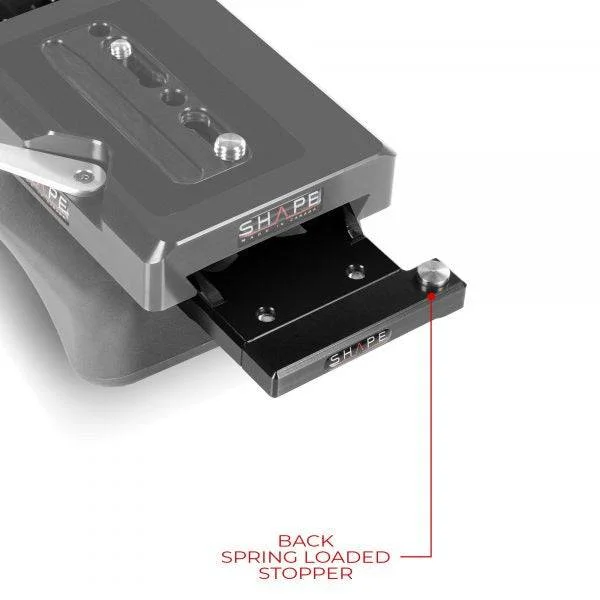

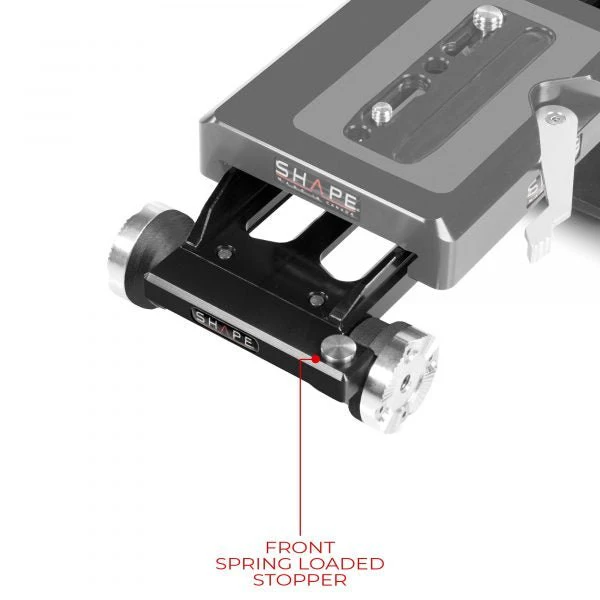

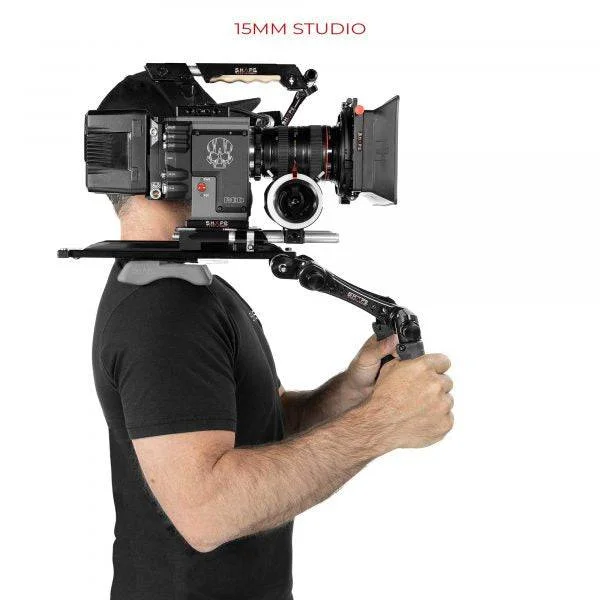

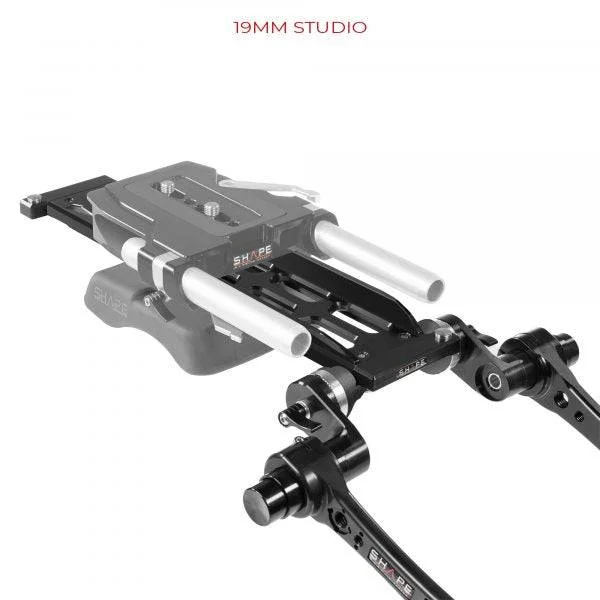

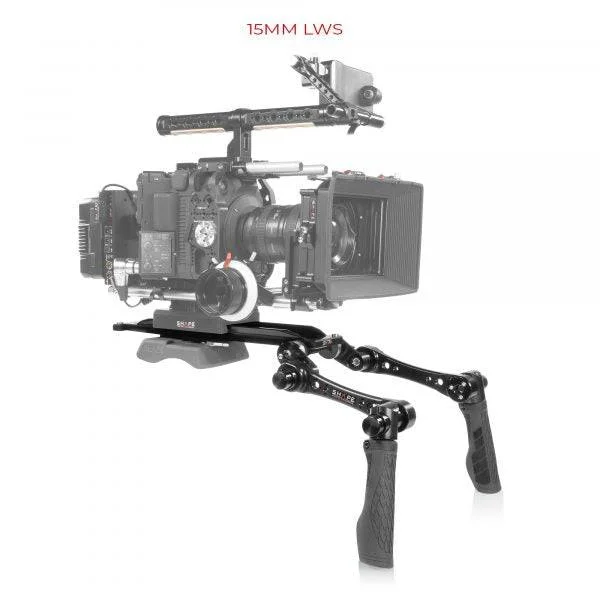

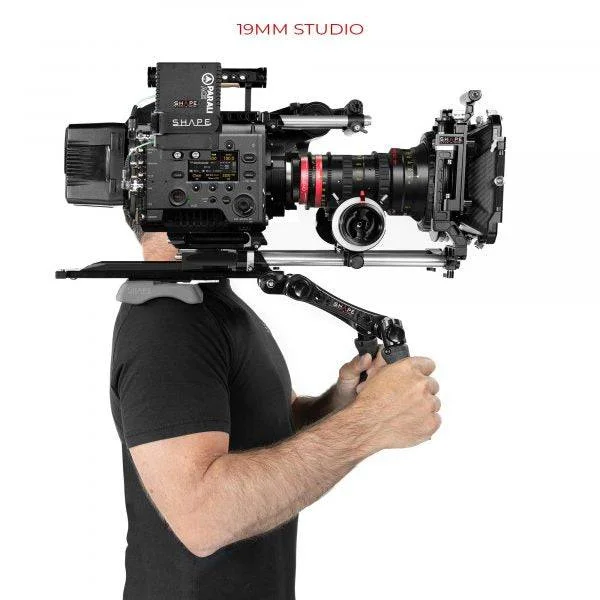

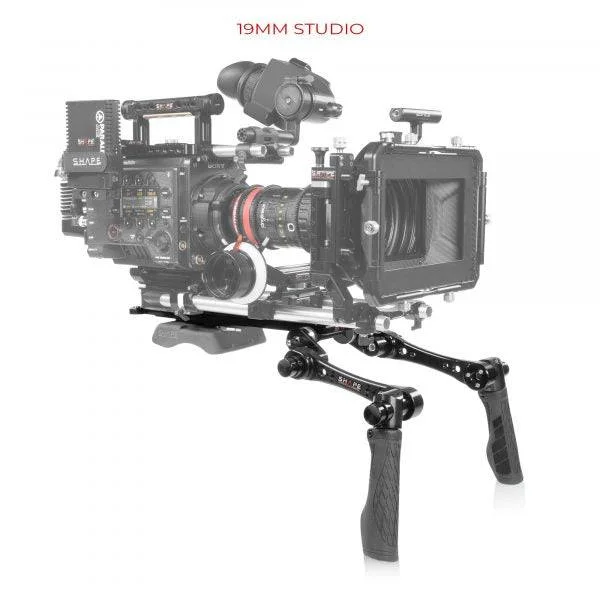

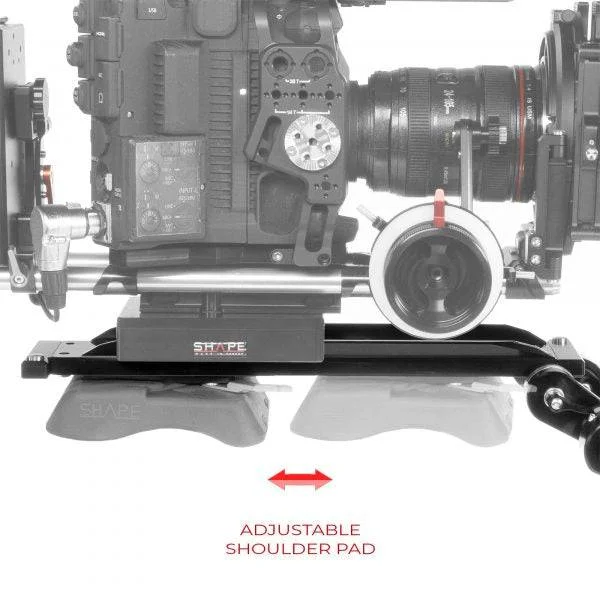

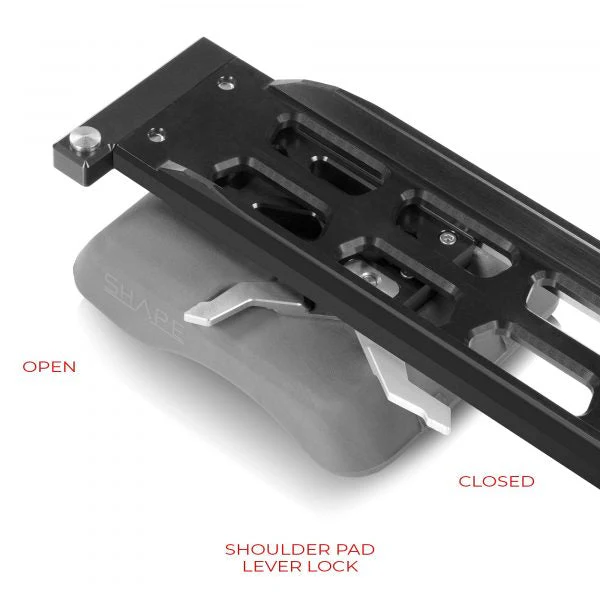

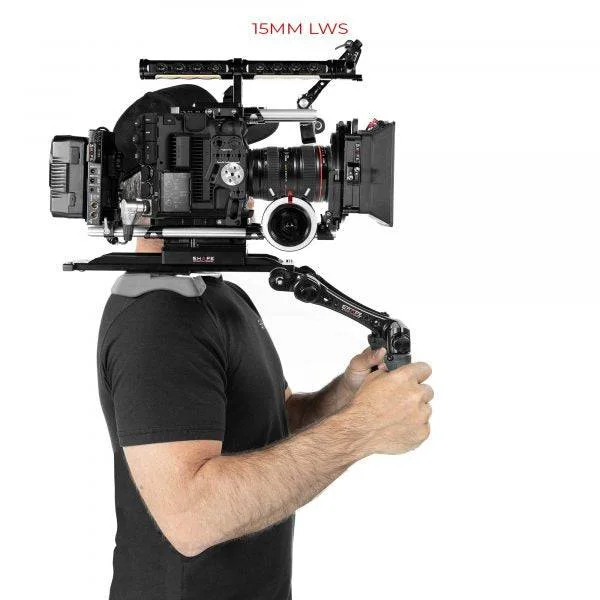

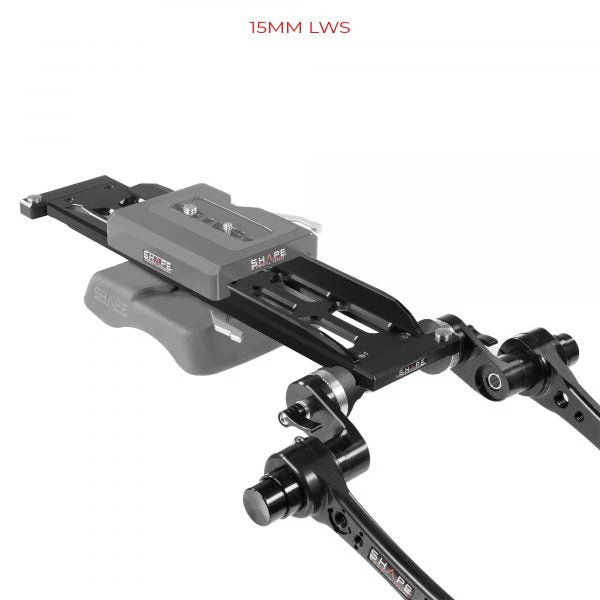

The SHAPE ARRI Dovetail shoulder mount is our newly designed unit meant to be combined with ARRI style bridge plates in all 3 industry standards, (15mm LWS, 15mm Studio & 19mm Studio). The bridge plate can be adjusted front to back, depending on the weight distribution of the camera, and can be locked in the desired position with the side lever. The same can be done with the padding itself, underneath the dovetail section. You can position the padding and lock it in place with its side lever. Spring loaded stoppers are included at the front and back of the shoulder mount to prevent the top bridge plate from sliding out. To release entirely the bridge plate, simply push down on the button and the bridge plate is free. Made of sturdy CNC aluminum, the dovetail section is 12 ½ inch long and allows a 10 ½ inches of travel for the bridge plate. It provides stability and can be combined with a variety of our handles given the two ARRI rosettes at the front part of the shoulder mount.



Compact quick handle Arri rosette black

One pair of ARRI Rosette-compatible handgrips that can be attached to cameras or camera support hardware. Each arm features three points of articulation (2 Push-button, 1 ratchet knob) allowing for nearly endless configurations. The arms mate with ARRI Rosettes using spring-loaded locking levers. Each arm has two 1/4-20 and two 3/8-16 threaded holes with locking attachment stoppers for additional mounting options. SHAPE’s Push-button handle has been adopted by many professionals in the industry for its ease of use and strong, positive lock. We developed this patented technology to give users quick and easy adjustment of the rig. By simply pressing the button, the hub unlocks to allow 360-degree free rotation. Release, and the hub locks together; push, adjust, release. The Push-button system on the handle joint provides quick articulation near the rosette, while a second push-button joint allows you to rotate and precisely position the rubber handgrips.



Technical Info

Weight: 4.00 lbs

Dimensions: 18,30x15,50x7,50 in

Included

1x Lightweight ARRI-style Dovetail shoulder mount.
1x ARRI Rosettes for handle attachment
1x Adjustable non-slip shoulder pad
