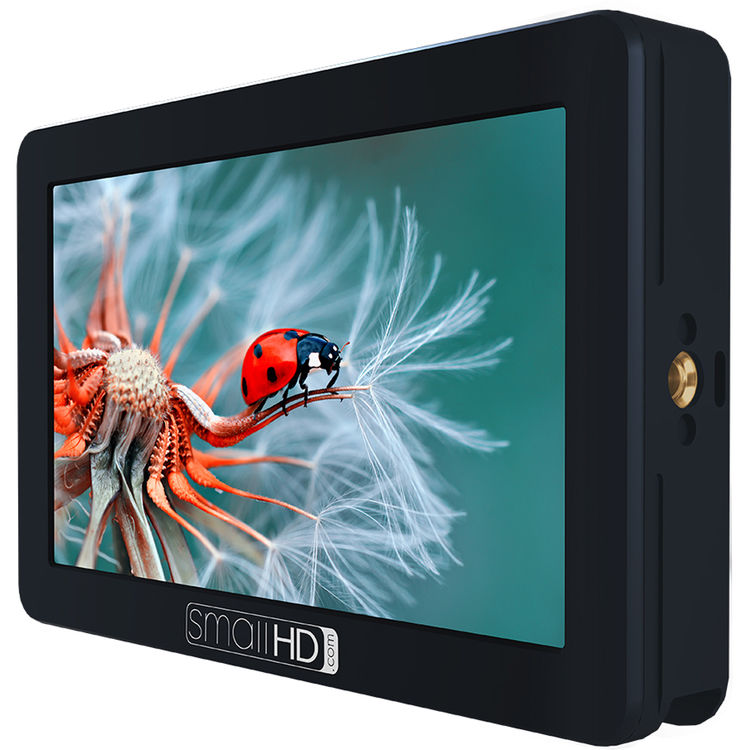

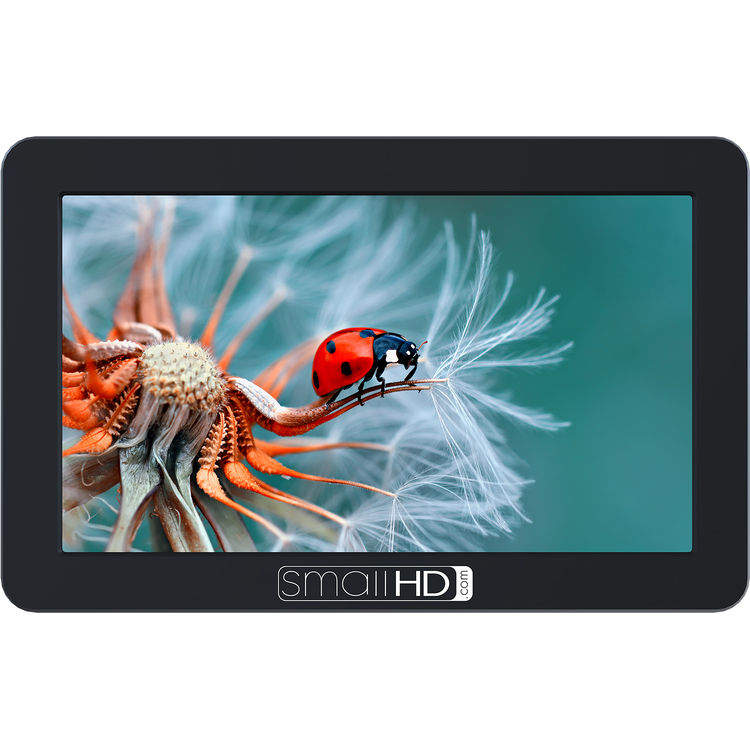

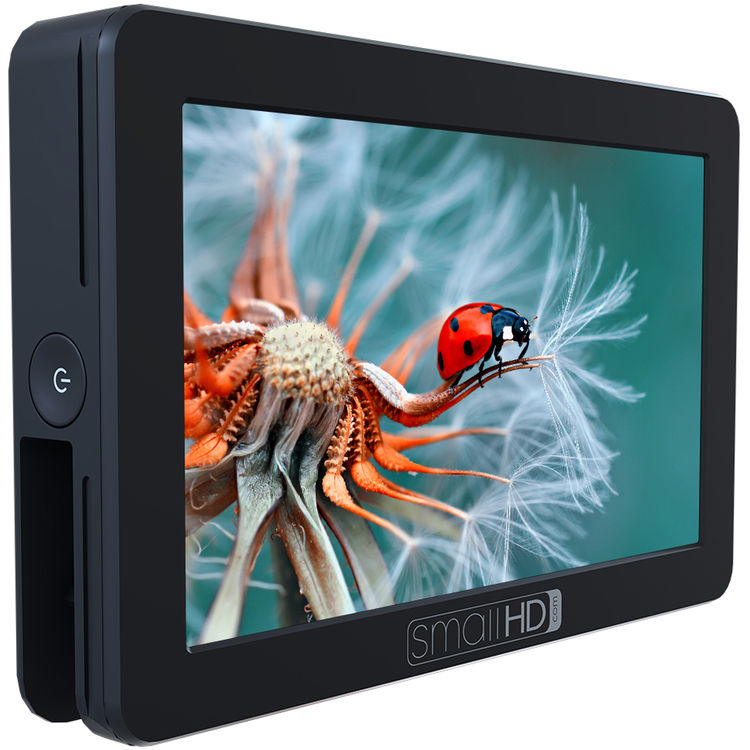

SmallHD Focus LCD-monitor 5"

SmallHD Focus 5" Monitor

Smallhd focus 5" is bright and compact monitor suitable to work with both dslr and video cameras. The smallhd focus can easily be mounted wiht the smart tilt arm has hdmi input and is powered by NP-F L-serie.

Bright Monitor

The Smallhd focus is a ery bright monitor with 800 cd/m² making it very suitable to work outdoors and other bright conditions. This can be very critical when you need to determine the focus when during a bright environment

Screen Resolution

The Resolution on the smallhd focus is 1280x720 and has high pixel density of 295 giving it a higher density than that of a ipad with retina display.

Smallhd Mounting

Instead of the usua shoe-mount or magic arm there is a static tilt arm making it more stable while mounted but still allowing for 180º adjustment in tilting forward.

Functions

Smallhd focus has like its predecessors professionell functions like Focus Assist, 3D LUTs and Pixel Zoom to mentions a few. There is also a sd-slot so that you can load your lut-profiles.

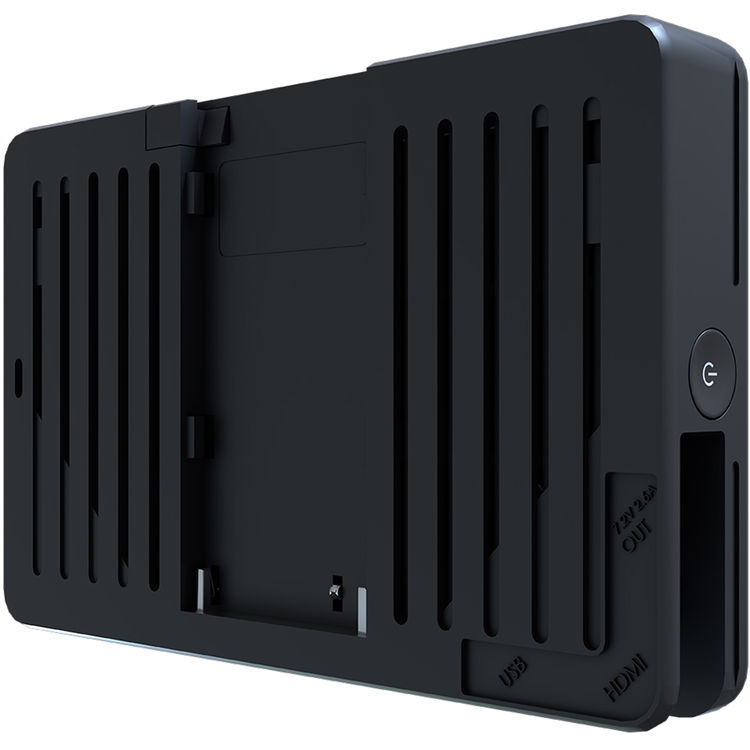

Power & Battery

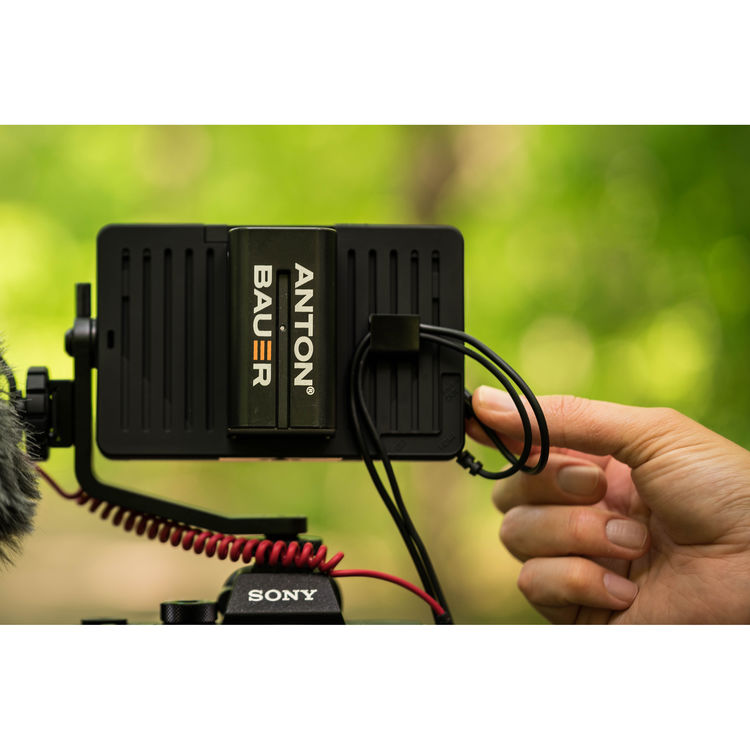

The monitor is power by Np-f L-series batteries and there is also power out so that you can power the camera from the monitor battery.

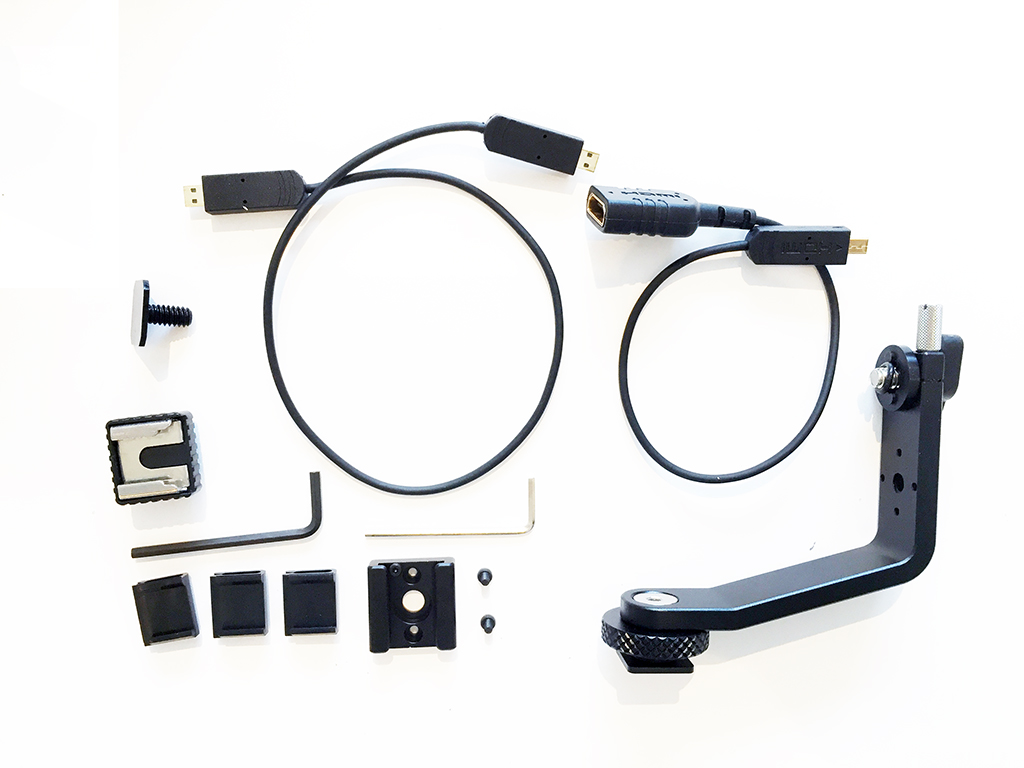

Included:

SmallHD Focus
Tilt arm
12"/30cm Micro-HDMI to Micro-HDMI cable
3st FOCUS Cable Clips

Specs:

Display 5" / 12.7 cm IPS LCD
Resolution 1280 x 720
Pixel Density 294 PPI
Aspect Ratio 16:9 and 4:3, 1.85, 2.39:1, Custom Choice
Brightness 800 cd/m²
Bit Depth 10-bit
Viewing Angle 160°
Backlight White LED
Temperature Adaptive Color No

Technical

Inputs 1 x HDMI Type D (micro-HDMI)
Outputs 1 x 3.5 mm stereo headphone
Other I/O 1 x Micro-USB
Input Signal HDMI: 8/10/12-bit color
1080p 23.98/24/25/30/50/59.94/60
1080i 50/59.94/60 (high-speed: 1080i 100/119.88/120)
720p 50/59.94/60 (high-speed: 720p 100/119.88/120)
576p 50 (high-speed: 576p 100/200)
480p 59.94/60 (high-speed: 480p 100/119.88/120/239.76/240)
NTSC (high-speed: 480i 119.88/120/239.76/240)
PAL (high-speed: 576i 100/200)
Audio: HDMI embedded

General

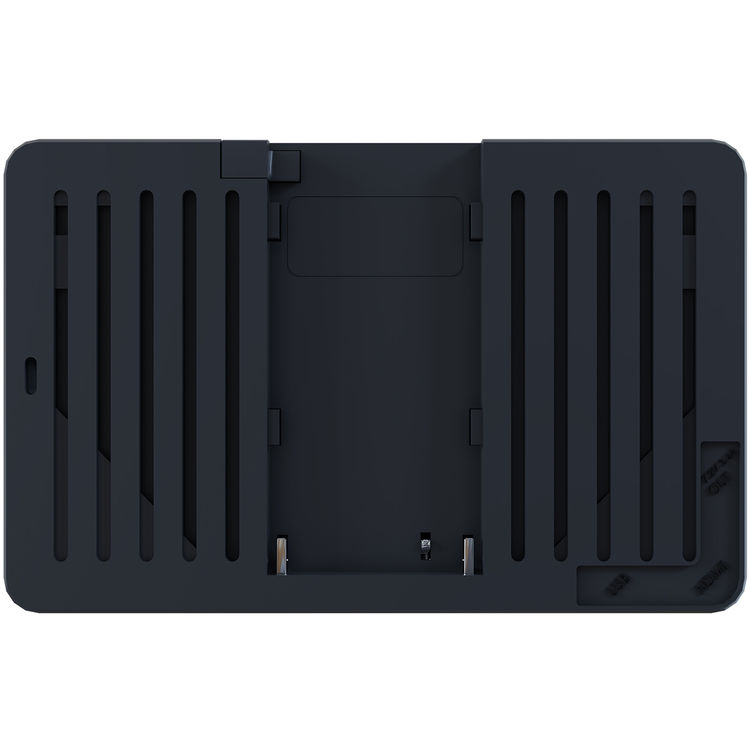

Battery Support 1 x NP-F (Sony L) battery bay
Voltage 6-8.4 VDC
Storage SD card slot
Dimensions 3.3 x 0.75 x 5.25" / 8.4 x 1.9 x 13.3 cm
Weight 3.75 oz / 106 g (without battery)
