Kupo KCP-730B Super Claw

Kupo KCP-730B Super Claw – Compact 130 g Pincer Clamp with 1/4" and 3/8" Threads

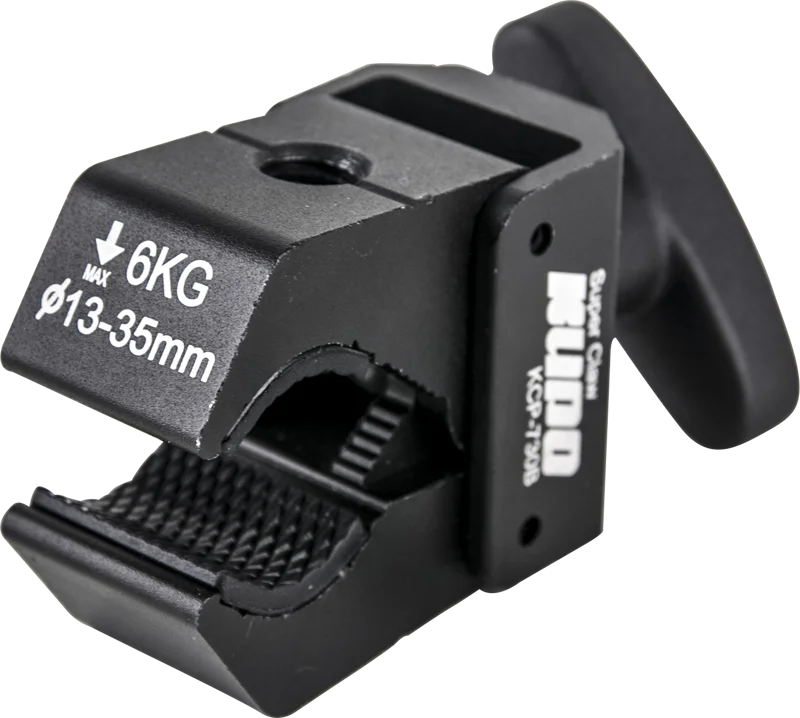

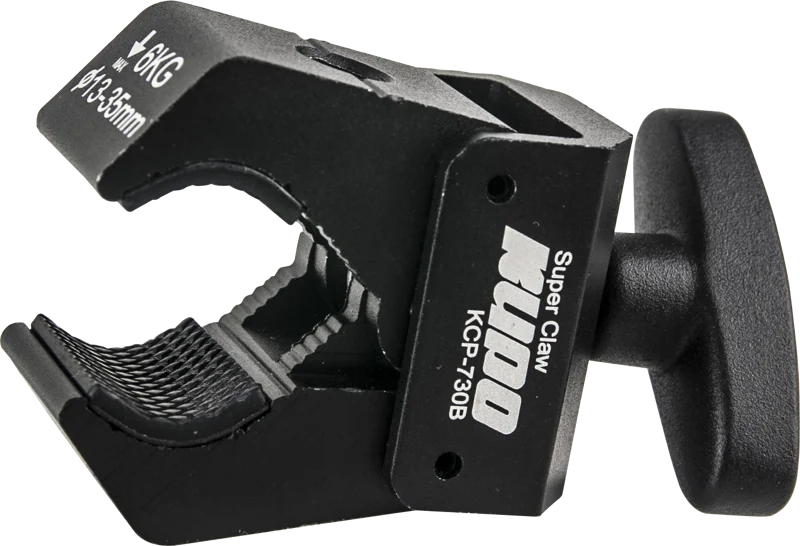

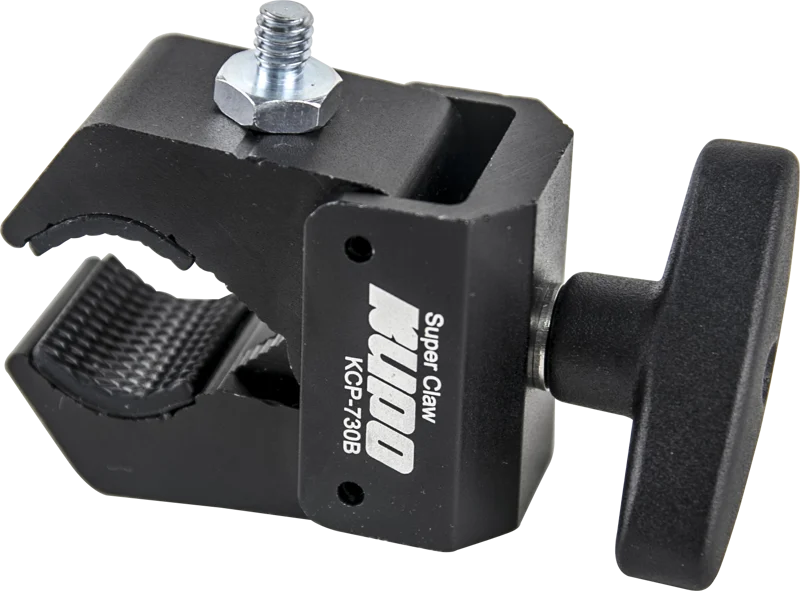

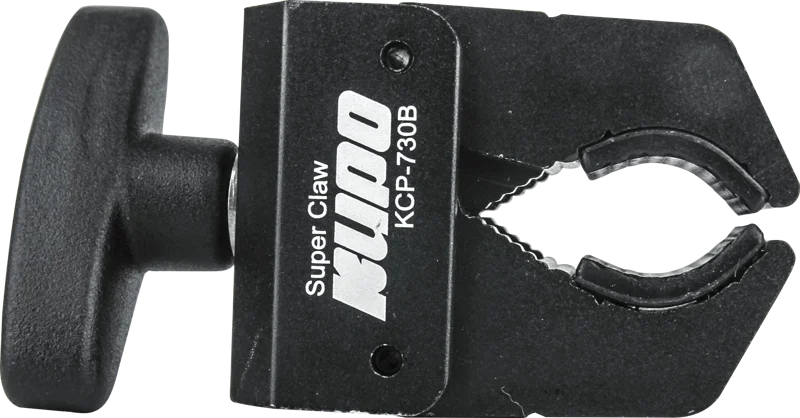

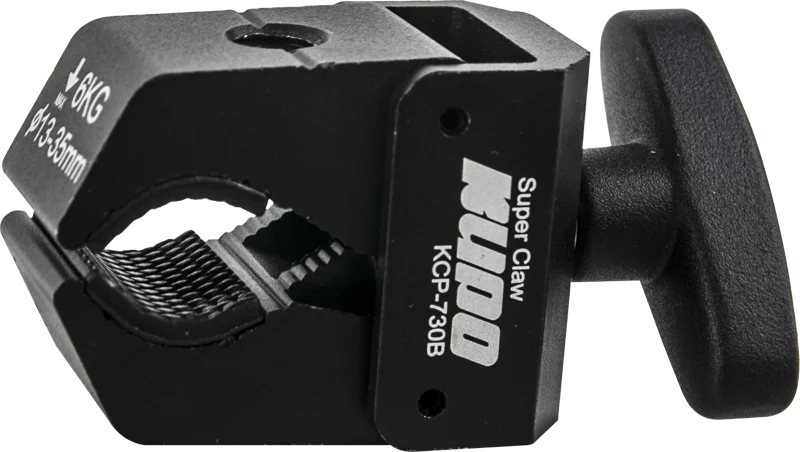

The Kupo KCP-730B Super Claw is a mini version of the Convi Clamp. It offers a very lightweight, compact design and weighs only 130 g. The clamp uses specially formulated pads that line the jaws to provide a strong grip on both round and rectangular shapes.

Key Uses and Compatibility

Use the Super Claw to mount cameras, lights, monitors and accessories. It accepts both 1/4" and 3/8" threaded fittings and supports gear weighing up to 5 kg. Because of its size and thread options, it works well in tight spaces and on a variety of fixtures.

Main Features

• Miniature, lightweight construction — only 130 g.
• Tapped with both 1/4" and 3/8" threads for flexible mounting options.
• Rated for mounting cameras, lights, monitors and accessories up to 5 kg.
• Specially formulated rubber pads line the jaws to grip round and rectangular shapes securely.
• Also known as a Pincer Clamp, useful where a small, strong clamp is needed.

Design Details

• Two jaws are made from aluminum, providing sturdy and durable contact points.
• Mechanical interlocking rubber pads are adhered to the jaws to increase grip and reduce slipping.
• The casting knob offers a better grip for tightening and releasing the clamp.
• 1/4" and 3/8" female sockets can be used simultaneously in small spaces for added versatility.
• An inside steel spring keeps the jaws moving smoothly while you twist the knob.

Specifications

FAQ

Question: Can I use both the 1/4" and 3/8" female sockets at the same time?
Answer: Yes. The Super Claw allows the 1/4" and 3/8" female sockets to be used simultaneously, which is useful in confined spaces or when you need to attach multiple accessories at once.

Question: What shapes will the jaws grip reliably?
Answer: The clamp features specially formulated mechanical interlocking rubber pads adhered to the jaws. These pads provide a strong grip on both round and rectangular shapes, reducing slip and protecting surfaces.

Question: Is the clamp suitable for heavier camera rigs?
Answer: The Super Claw is rated for accessories up to 5 kg. It is ideal for compact cameras, lights, monitors and similar gear. For heavier rigs, choose a clamp with a higher load rating.
