Beskrivelse
Artnr: 25328

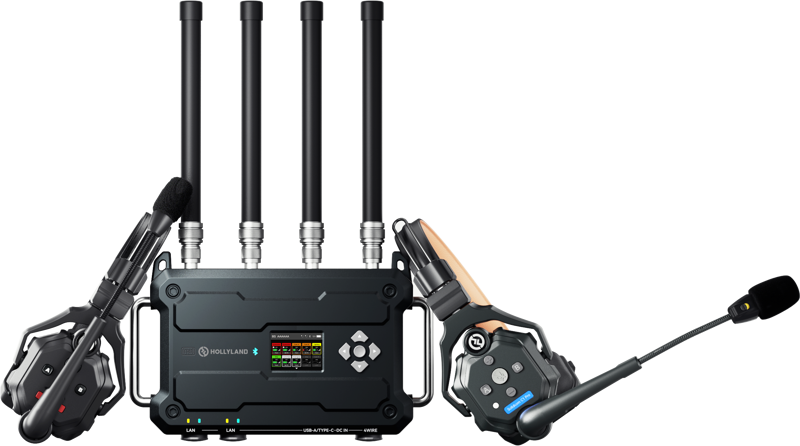

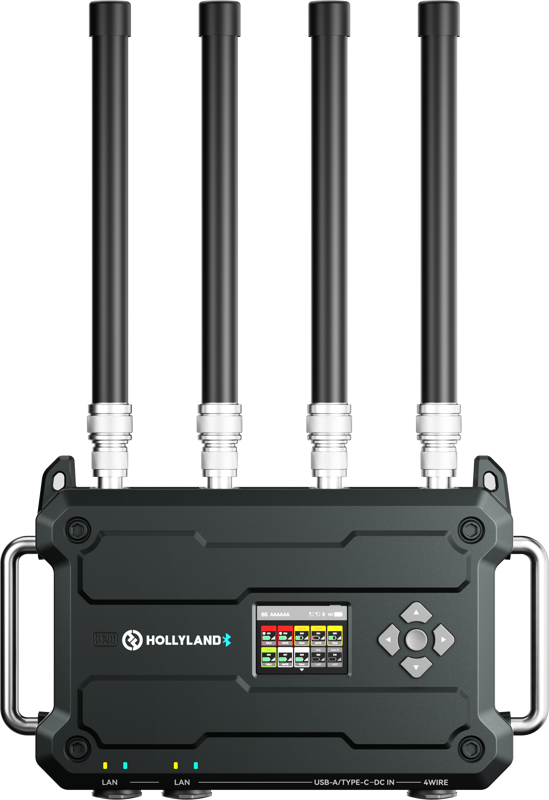

Hollyland Solidcom C1 Pro Roaming Hub (V‑Mount) leverer fulddupleks trådløs intercomkommunikation ved hjælp af DECT 6.0‑teknologi i 1,9 GHz‑båndet. Den understøtter op til 20 brugere og tilbyder lang rækkevidde i fri linje, app‑kontrol samt fleksibiliteten ved en V‑mount‑batteriopløsning til bevægelige miljøer. Dette hub er velegnet til film‑ og tv‑produktion, koncerter, live‑events og andre mobile produktionsscenarier, hvor pålidelig teamkommunikation er vigtig.
Roaming Hub fungerer som en bærbar basestation, der understøtter fulddupleks kommunikation for flere holdmedlemmer. Den forenkler opsætningen ved at fjerne behovet for et udpeget master‑headset og tilføjer fleksibilitet med en V‑mount batteriforbindelse. Derudover understøtter hubben flere gruppekanaler, så forskellige teams kan kommunikere uden at forstyrre hinanden.

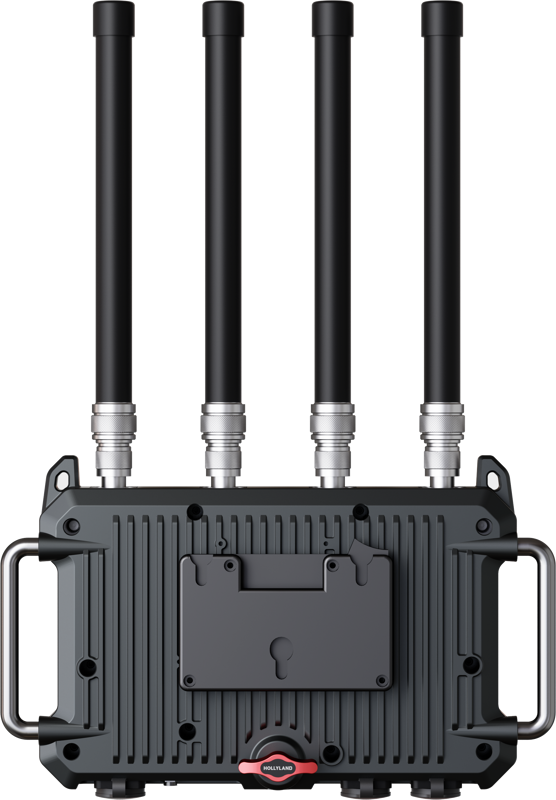

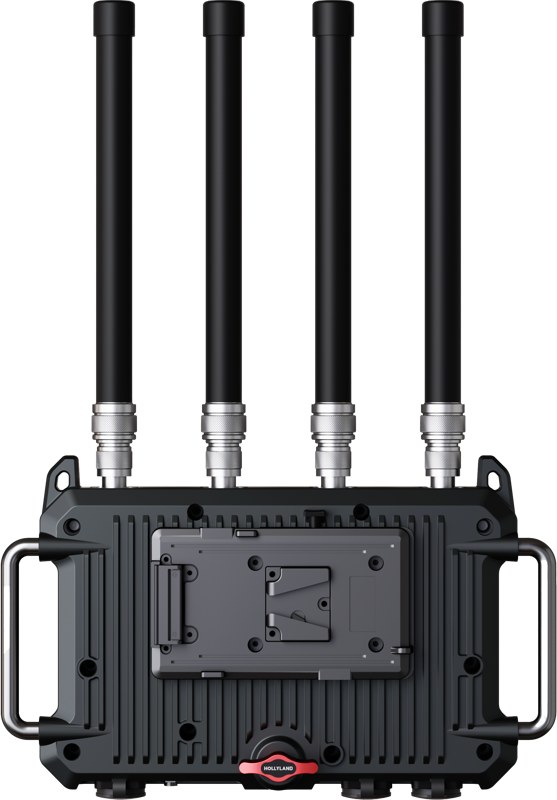

Denne version inkluderer en V‑mount til ekstern batteristrøm, så du kan placere hubben hvor som helst under optagelser og events. Derudover understøtter hubben op til 6 grupper, hvilket hjælper med at adskille teams eller afdelinger og reducerer risikoen for overlap i kommunikationen.
Hubben har USB Audio Class (UAC)‑funktionalitet til at forbinde til cloud‑mødeplatforme som Zoom og Skype. Ved at tilslutte en laptop eller pc til hubben via USB kan du binde onsite‑lyd sammen med fjern‑deltagere og inkludere offsite‑teammedlemmer i realtid.
Solidcom C1 Pro Roaming Hub er bagudkompatibel med Solidcom C1‑serien. Du kan kæde hubbe sammen og mixe systemer på stedet for at skalere antallet af brugere og opfylde mere komplekse driftsbehov.
| Specification | Details |
|---|---|
| Users per System | 20 |
| Wireless Technology | Digital DECT (1.9 GHz) |
| DECT Standard | 6.0 |
| Operating Range | 487.7 m |
| RF Bandwidth | 1.73 MHz |
| Max Transceivers per Band | 20 |
| Wireless Modulation | Analog: GFSK |
| Duplex Mode | Full‑Duplex (FDX) |
| Approximate RF Sensitivity | -90 dBm |
| Frequency | 1920 to 1930 MHz |
| Encryption | Proprietary |
| Mobile App Compatible | Yes (Android & iOS) |
| Number of Channels | 20 |

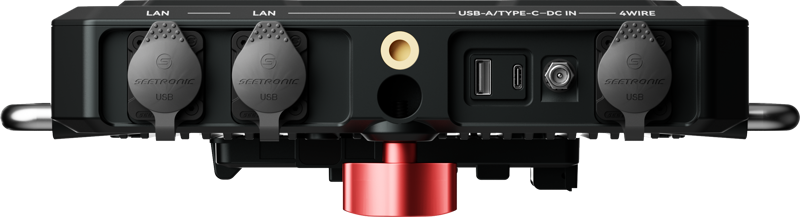

| Inputs/Outputs | 2x RJ45, 1x USB‑A, 1x USB‑C |

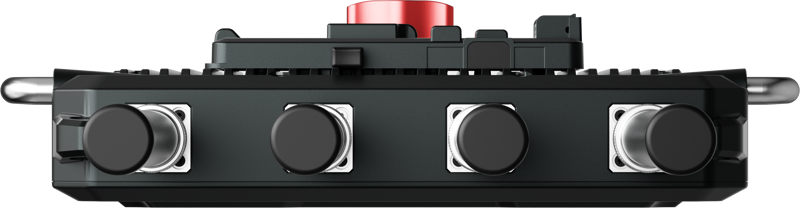

| Antenna | 4x External, Detachable |
| AC/DC Power Adapter | 12 VDC (Included) |
| Battery Type | 1 x V‑Mount |
| Environmental Resistance | No |
| Dimensions | 11.9 x 7.1 x 2.5" / 302 x 181.5 x 63.6 mm |
| Weight | 63.4 oz / 1797 g |
| Package Weight | 13.37 lb |
| Box Dimensions (LxWxH) | 19.3 x 17.1 x 8.5" |
Question: Is the Roaming Hub compatible with existing Solidcom C1 headsets?
Answer: Yes. The C1 Pro Roaming Hub is backward‑compatible with the Solidcom C1 system, allowing you to integrate it with existing headsets and daisy‑chain units on site.
Question: How many users can the hub support at once?
Answer: The hub supports up to 20 users per system, providing simultaneous full‑duplex communication for a medium‑sized crew.
Question: Can I use the hub for remote participants on cloud meeting platforms?
Answer: Yes. The hub includes USB Audio Class (UAC) functionality, so you can connect a computer via USB and route hub audio into Zoom, Skype, or other meeting software to include remote contributors.
Question: What power options does the V‑mount provide and why is it useful?
Answer: The V‑mount accepts compatible external batteries, allowing you to operate the hub away from fixed AC power. This mobility helps when you need to place the hub near the action or move it around a live event or shoot.
Question: Do I need a master headset to operate the system?
Answer: No. The Roaming Hub simplifies operations by eliminating the need for a specific master headset, which makes setup and roaming use more convenient for mobile production teams.
