Sachtler FSB 6 MKII Tripod System -Fluid, Smooth, Balanced: Capture the moment precisely
Redesigned with features from the revolutionary Sachtler aktiv fluid head range, FSB delivers precision movement with finely calibrated levels of drag and counterbalance for the perfect shot. The streamlined profile is built to withstand the toughest conditions to deliver repeatable, reliable camera support shot after shot.

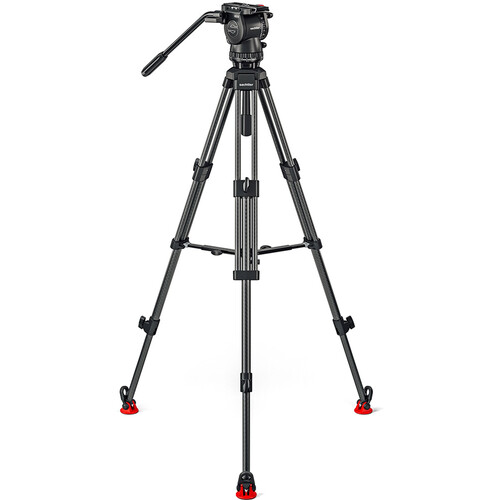

Sachtler System FSB 6 Mk II 75/2 AL MS can handle equipment between 0–8 kg and is up to 171 cm high. The aluminum frame gives you good stability in combination with low weight and the liquid-cushioned frame head provides precision movements where you can choose several levels of resistance and counterbalance for the perfect balance and feeling. The stand is for you who want to deliver stable results with full control of your movements. Choose between two different variants of the stand midspreader or groundspreader.
Features:
- Can handle loads up to 8 kg
- Working height between 81–171 cm
- 15 different counterweight levels and eight resistance levels
- Film with high precision and smooth movements
- Withstands temperatures between -40 up to 60 ° C
- Illuminated spirit level
- 75 mm bowl
- Choose between stand with midspreader or groundspreader
Sachtler System FSB 6 Mk II 75/2 AL can be purchased with two different configurations either with a midspreader (stabilizes the stand in the middle part) or a groundspreader (stabilizes the stand at the base).
Product Highlights
- Smooth operation.
- Create precision pans with smooth starts and soft stops.
- Finely balanced.
- Delivering smooth pan-tilt fluid actions to match any camera payload from 0kg.
- Always on the level.

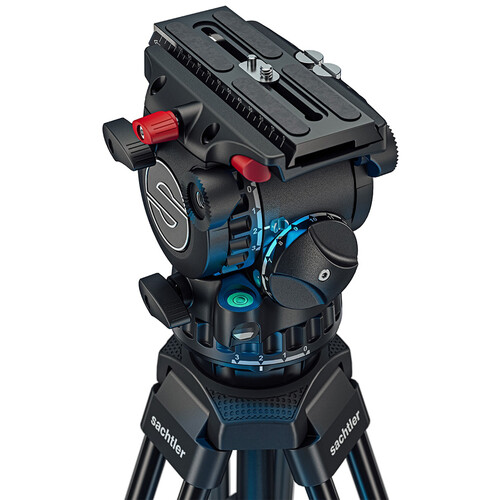

- Innovative illuminated PrismBubble visible from any height – day or night.
- Built for endurance.
- Engineered to the highest standards with tough materials and precision components, FSB is built for endurance.

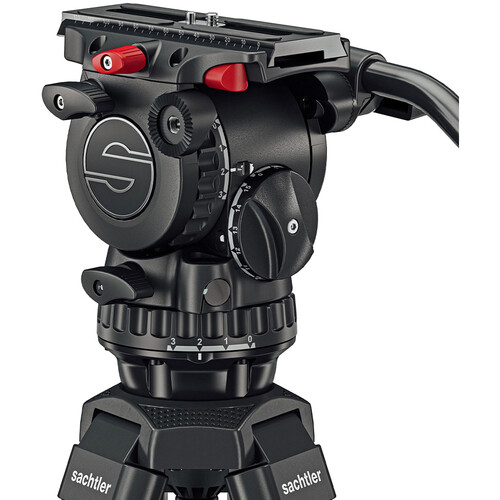

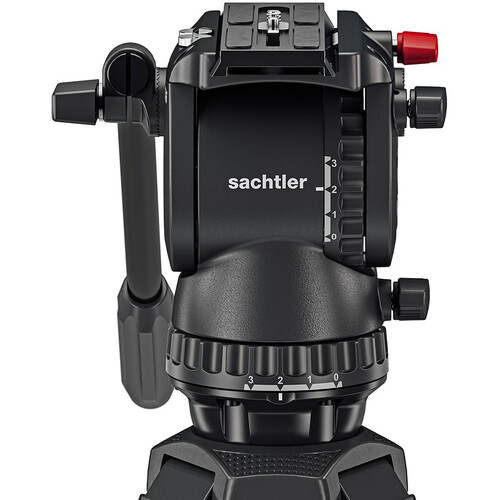

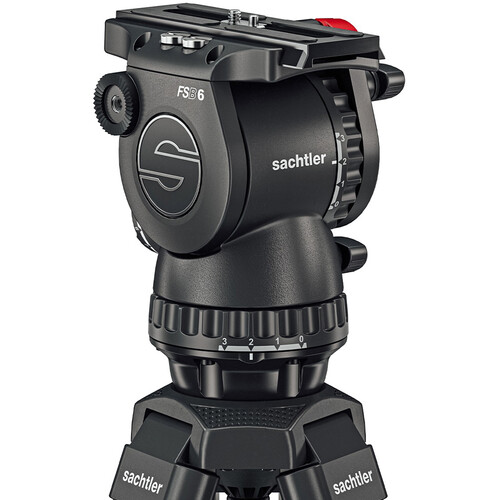

Sachtler FSB 6 MK II Fluid Head With Sideload Mechanism Specs

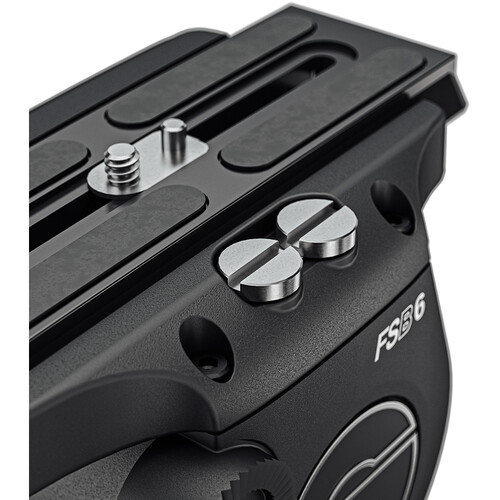

Camera Plate
| Camera Plate Features | Quick Release, Sliding Balance Plate |
| Camera Plate Type | Sideload Plate S |
| Balance Plate Sliding Range | 4.68" / 118.87 mm |
| Safety Lock | Yes |
Tripod Platform
| Base Mount | 75 mm Half Ball |
Pan & Tilt
| Drag Control | Tilt: 3-Step Plus 0 |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -70° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
Physical
| Load Capacity | 0 to 17.6 lb / 0 to 8 kg |
| Counter Balance | Incremental 15-Step |
| Pan Handle Fittings | 2 x Rosette |
| Bubble Level | 1 x Illuminated |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Weight | 5.5 lb / 2.5 kg |
Packaging Info
| Package Weight | 7.81 lb |
| Box Dimensions (LxWxH) | 18.2 x 9.7 x 8.2" |

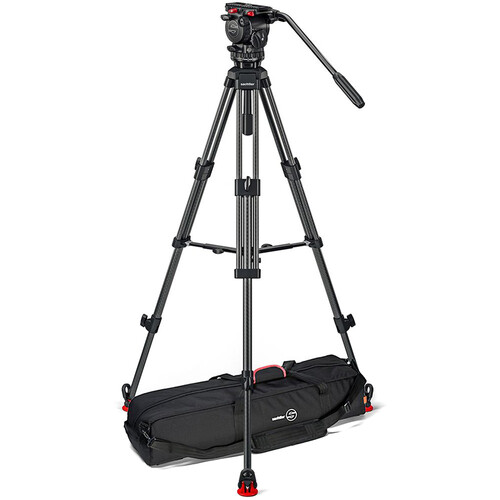

Sachtler DV 75 S Padded Bag Specs
| Carrying/Transport Options | Connecting Handles, Shoulder Strap |
| Type of Closure | Zipper |
| Exterior Material | Cordura |
| Padded | Yes |
| Exterior Dimensions | H: 8.3 x W: 7.1 x L: 36.2" / H: 21.1 x W: 18.0 x L: 91.9 cm |
| Interior Dimensions | L: 33.5" / L: 85.0 cm |
| Weight | 2.2 lb / 1 kg |
Packaging Info
| Package Weight | 4 lb |
| Box Dimensions (LxWxH) | 38 x 9 x 5" |
