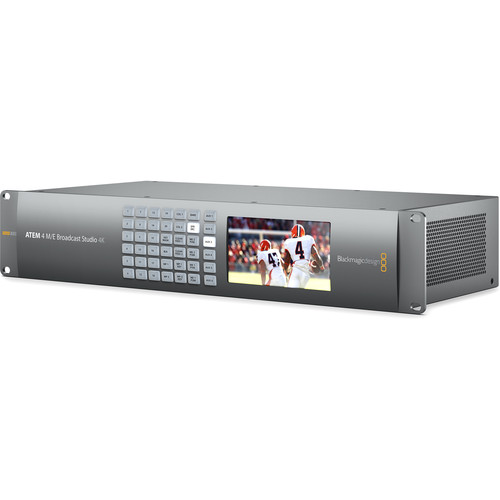

Blackmagic Design ATEM 4M/E Broadcast Studio 4K

Blackmagic Design ATEM 4M/E Broadcast Studio 4K

Get one of the world’s most compact and advanced switchers with the new ATEM 4 M/E Broadcast Studio 4K. You get an incredibly high performance live production switcher designed to work with the latest formats and high frame rates, all the way up to Ultra HD 2160p59.94! You get 16 next generation ATEM Advanced Chroma Keyers with 4 per M/E, perfect for advanced work and virtual sets. As the most advanced ATEM switcher, this model also includes the latest technology and features such as 2 Ultra HD multi viewers, full 2D DVE, built in SuperSource compositing engine with 4 picture in picture DVE's, full re-synchronization on each 12G-SDI input and much more! The multi rate 12G-SDI connections automatically switch between all HD and Ultra HD formats up to 2160p59.94 with a single BNC cable! Even if you're not working in Ultra HD now, the ATEM 4 M/E Broadcast Studio 4K has all the power and features for the highest end live production work, while being Ultra HD ready the instant you need it!
Upstream keys with chroma key

Each program bus has access to four different upstream keys, which means that the image mixer can handle a total of 16 different upstream keys with chroma key. The function for chroma key is also improved compared to previous models to give even better results. The mixer also has two downstream keys.

Multiview

ATEM 4 M / E Broadcast Studio 4K can display two separate multiviews in Ultra HD. Each multiview can display 10 different sources, which means that a total of 20 different image signals can be displayed on the two screens. You can choose whether the screens display HD or Ultra HD.

AUX outputs

The image mixer has six AUX outputs that can be used to send separate signals to, among other things, external monitors or preview monitors.

Media player

ATEM 4 M / E Broadcast Studio 4K has four media players that can handle up to 64 still images and 360 frames of moving material in Ultra HD.

Video formats

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p50, 2160p59.94
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94, 1080i50, 1080i59.94
720p50, 720p59.94
Color space

REC 601
REC 709
REC 2020

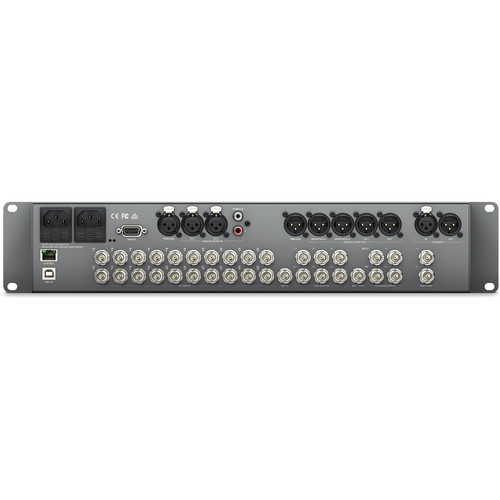

Connections

20 st 12G-SDI
2 XLR audio inputs, 2 RCA audio inputs
3 pcs 12G-SDI program output
1 pc 1.5G-SDI program output
2 st 12G-SDI multiview
6 AUX outputs
1 preview output
4 XLR audio outputs
Intercom in and out via XLR connector
Ethernet
1 time code in, 1 time code out
Genlock
RS-422
USB 2.0
2 pcs 230 volt power
