SEETEC 23.8" 4K Ultra-HD Carry-on Broadcast Monitor
£1,260
- VAT free purchase available at checkout.
- BrandSeetec
Description
Article no.: 3889
SEETEC 23.8" 4K Ultra-HD Carry-on Broadcast Monitor
SEETEC Professional Broadcast LCD Monitor has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly.The full metal case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full metal case improves the anti-interference capability! More Stablity and Reliability.

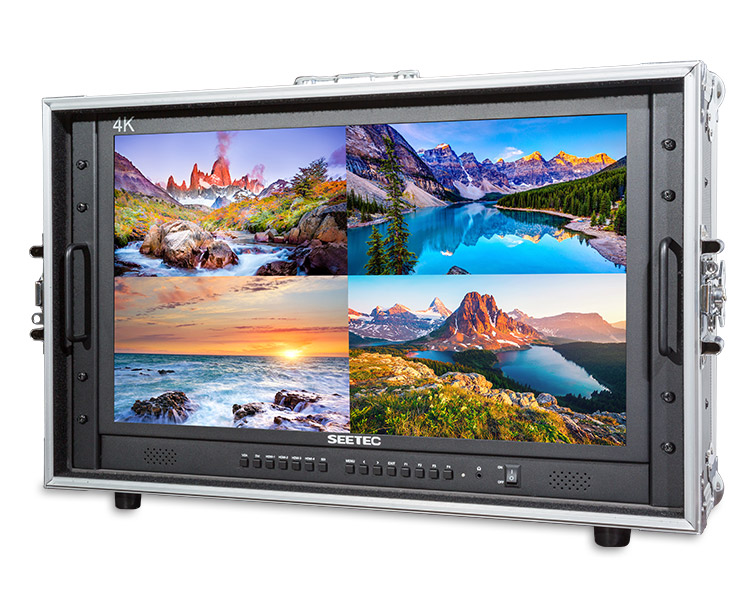

Quad Split LCD Display

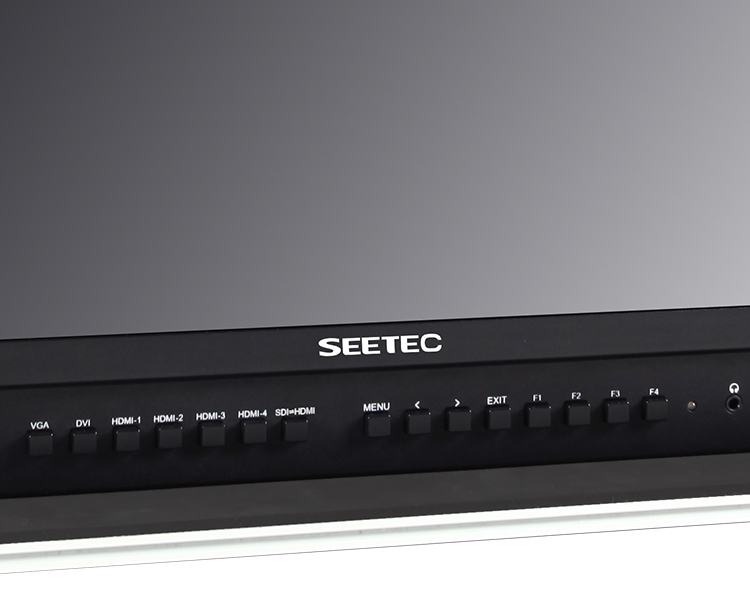

SEETEC new 4K238-9HSD-CO is the professional cost-effective Quad-split LCD Monitors with 4 x HDMI inputs, provides a new display solution for a wide range of applications that require ultrahigh resolution contents.High Efficiency OSD Operation Design
You can fast and direct switching signal, and F1-F4 user-definable buttons, witch can be customized as shortcut function, such as peaking, check field, display rotate, center marker, safe marker etc.Rich Interfaces

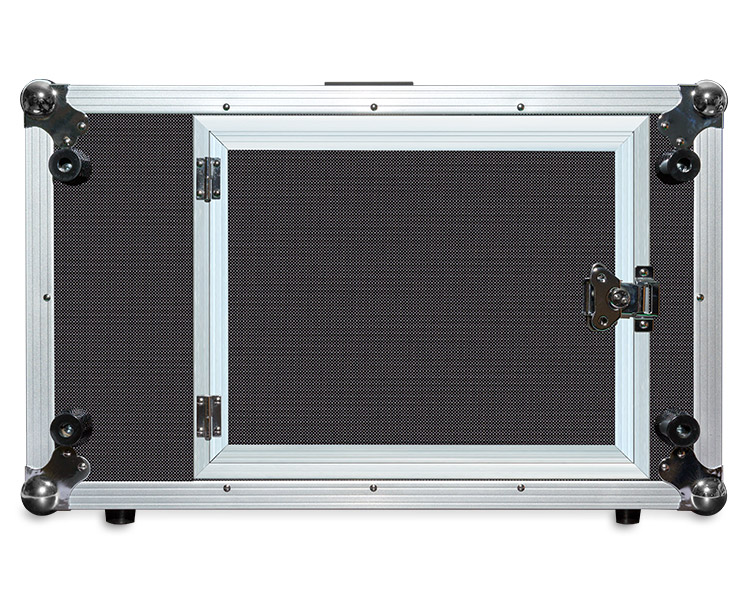

Multiple inputs meet the best need of various professional display solutions.Innovative Design Portable Aviation Aluminum Case
Specifically Design for Field ProductionUnique Design for High Efficency
Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during production. The 4K238-9HSD-CO is based on how monitors are being used by film crews. Whether packing down or setting up a simplified design makes this monitor ready for use quickly. There are no complex setup processes to go through.Collapsable Sunshade
Design for easier viewing in bright environments.Features:
1. Wide view angle, 4K resolution (3840 x 2160), bright, colorful display2. HDMIX4, 3G-SDI, DVI, VGA, Audio(L/R) inputs and 3G-SDI loop-through output
3. Special Features:
* Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P)
* Peaking Focus Assist
* False Color
* Anamorphic (x1.33, x1.5, x1.8, x2.0)
* Image Flip (0°, 90°, 180°, 270°)
* Check Field (Red, Green, Blue, Mono)
* Image Freeze
* Zoom
* pixel to Pixel
* Center Marker
* Grid Marker (3X3, 6X6, 9X9)
* Saftey Marker (80%, 85%, 90%, 93%, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1)
* Line Color (Red, Green, Blue, White)
4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
5. Built-in LED tally indicators (Red, Green, Yellow)
Included:
1x Seetec 4K238-9HSD-CO monitor1× Mini HDMI Cable
1× V Battery Plate
1× 5A Power Adapter
1× Tally Kit
1× Suitcase
1× Sunshade
1× Operation Manual
Specs:
Display Spec.
| Model | 4K238-9HSD-CO |
| Screen Size | 23.8" IPS |
| Color Depth | 1.07 Billion colors |
| Resolution | 3840×2160 pixels |
| Pixel Pitch | 0.13725×0.13725 mm |
| Aspect Ratio | 16:9 |
| Brightness | 310cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 178°(H) / 178°(V) |
Input
| 4 X HDMI | HDMI (HDMI2.0x1 support 4K 60HZ; HDMI1.4x3 support 4K 30HZ) |
| 1 X BNC | SDI |
| 1 X DVI | DVI |
| 1 X VGA | VGA |
| 2 X RCA | Audio(L/R) |
| 1 X DB-9 | Tally |
Output
| 1 X BNC | SDI |
Audio
| Audio Out | Headphone, Speaker |
SDI Support Format
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
HDMI Support Format
| HDMI 2.0: 4K UHD 2160p (23.98/24/25/29.97/30/50/59.94/60) |
| HDMI 1.4: 4K UHD 2160p (23.98/24/25/29.97/30) |
| 480p/576p |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
General
| Input Voltage | DC12～24V (XLR) |
| Power Consumption | ≤42W |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Unit Size (mm) | 627L×372H×39D (mm) (W/O Suitcase) / 680L×430H×250D (mm) (W/ Suitcase) |
| Unit Weight | 18.5kg (with Suitcase) |
| Outer Carton Qty | 1 |
| Outer Carton Size | 745*300*475 (mm) |
| Gross Weight | 20.2kgs |
Advanced Features
| * Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P) |
| * Peaking Focus Assist |
| * False Color |
| * Anamorphic (x1.33, x1.5, x1.8, x2.0) |
| * Display Rotate (0°, 90°, 180°, 270°) |
| * Check Field (Red, Green, Blue, Mono) |
| * Image Freeze |
| * Zoom |
| * Pixel to Pixel |
| * Grid Marker (3X3, 6X6, 9X9) |
| * Center Marker |
| * Safety Marker (80%, 85%, 90%, 93%, 96%, 4:3, 2.39:1, 2.35:1, 1.85:1) |
| * Line Color (Red, Green, Blue, White） |
| * Color Temperature Adjustment |
| * Built-in LED tally indicators (Red, Green, Yellow) |
