Tentacle Sync E Timecode Generator MKII- Single Set

Tentacle Sync E Timecode Generator – Single Set

The Tentacle SYNC E Single Set is a complete hardware/software solution offering timecode synchronization over Bluetooth. The SYNC E is a user-friendly timecode generator housed in a super small enclosure. The Tentacle SYNC E Single Set also includes the renowned Tentacle Sync Studio Software for macOS. For fast and easy syncing of your audio and video material. The Tentacle SYNC E is the perfect workflow solution for any video shooting from YouTube and Wedding applications to Multicam setups as well as post production syncing tasks.

The Tentacle SYNC E is based on the original Tentacle Sync device. It now offers syncing over Bluetooth Low Energy (Bluetooth LE), which makes setting up and monitoring all your Tentacle units even easier – you only need an iOS or Android device. Check with frame accuracy how well your units are syncing. Connect your Tentacles to nearly ans kind of camera or audio recorder – from a DSLR to high-profile cameras such as the ARRI Alexa. Since the timecode is transmitted via 3.5mm mini jack, no bulky jacks or adapters are needed for connecting your equipment.

FEATURES

Syncing over Bluetooth 4.2 (Low Energy) for monitoring and setup via phone or tablet
Super Small and Lightweight
Frame rate and TC output level adjustable via Tentacle Setup App (iOs/ Android/ maOS/ Windows)
One Tentacle Sync Studio Software License included
Tentacle Clamp locks a right-angle mini jack connector
Accurate built-in reference microphone
Generates All SMPTE timecode rates or jam-sync to any external timecode source
High precision TCXO: accuracy less than 1 frame drift in 24 hours (-30°C to +85°C)
Designed and made with love in Cologne, Germany

SPECS

LTC Timecode: According to SMPTE-12M Standard
Drift: High Precision TCXO: Accuracy Less than 1 Frame Drift in 24 Hours (-30°C to +85°C)
Frame rates: 23.98, 24, 25, 29.97, 29.97DF, 30
Timecode I/O: Mini Jack Socket
Audio: Built-In Reference Mic
Power: Built-In Lithium Polymer Battery, up to 35 hrs Operating Time, Fast Charging via USB-C (max. 1.5 hrs)
Mounting: Integrated Hook Surface on the Back for Easy Mounting
Weight: 30 g / 1 oz
Dimensions: 38 x 50 x 15 mm / 1.49 x 1.97 x 0.59 inches

Included:

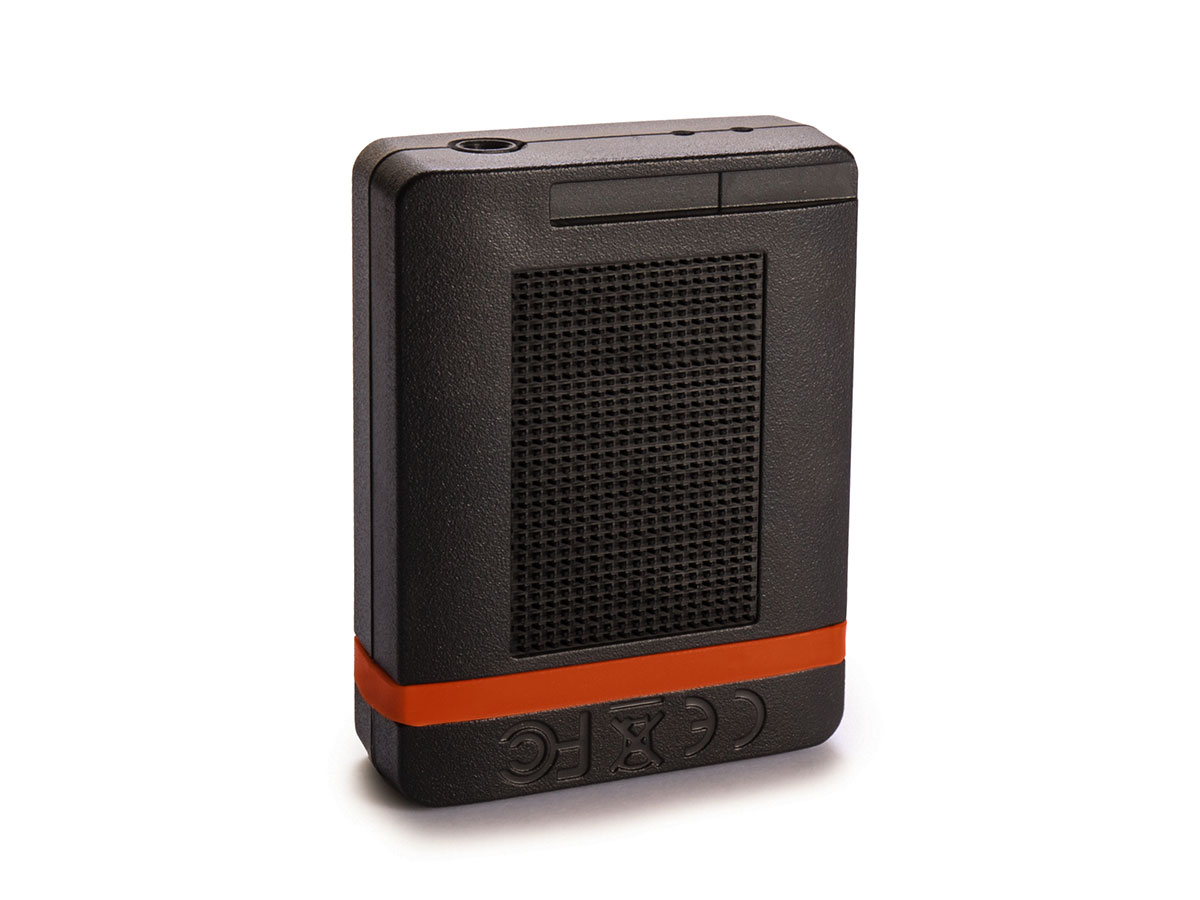

1x Tentacle Sync E – Timecode Generator with Bluetooth™ Functionality
1x Mini-Jack-Cable (90° angled) for Syncing Cameras with TRS input ( 5D, BMPCC, GH4 …)
1x USB-C Cable for Charging and Setup (Win/Mac)

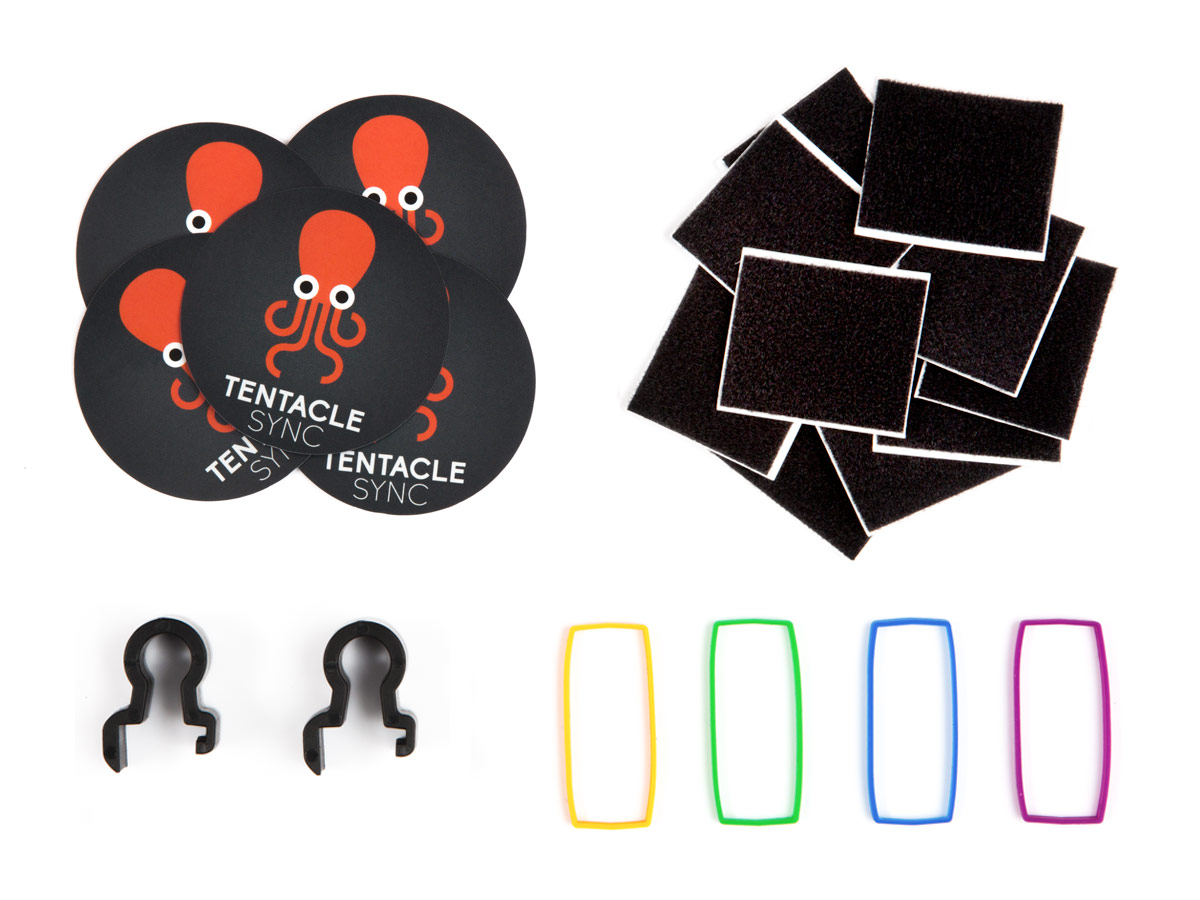

2x Tentacle Clamps for Locking your Right-Angle Cables to the Tentacle SYNC E
10x Velcro Loop Pads for Mounting the Tentacle to any Device
4x Coloured Rubber Bands
1x Quickstart Guide
1x. Software Activation Details and Manual included
