Deity TC-1 Timecode device

Deity TC-1 Timecode device

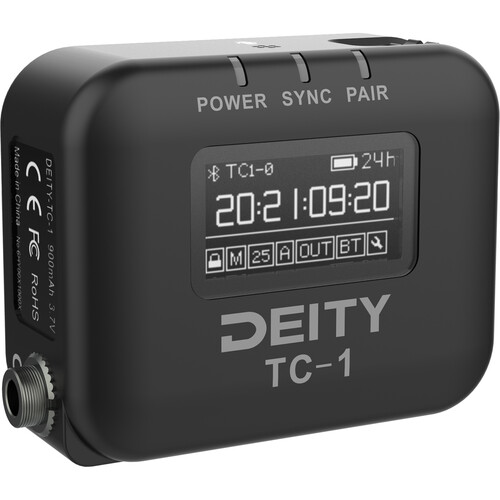

The Deity TC-1 is a wireless timecode box designed to feel familiar. The on-board menu and display
allow you to operate the unit and wireless sync multiple TC-1 units at the same time. With the free
Bluetooth®app, users are able to control every aspect of the TC-1 as well as other products from
Deity from the Sidus Audio family of products. The locking 3.5mm timecode port means you don’t
have to worry about your cables becoming unplugged after a unit has been mounted on a camera.
The TC-1 takes the best features people love about other timecode boxes and combines all of it into
a unified piece of gear. The TC-1 was designed to adapt to different workflows.

Features:

Up to 28hrs of Battery Life
• Wireless Bluetooth®Phone App Syncing;
250ft Range

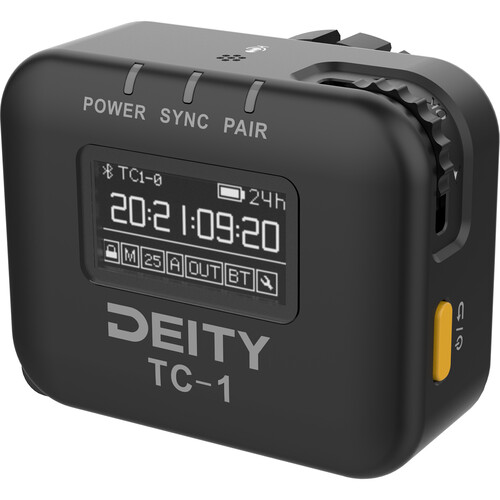

• 150 DPI OLED Display
• Locking 3.5mm TC I/O Port
• On-Board Microphone For Reference
Audio
• Built-In Menu; On-board Navigation

LONG RANGE WIRELESS CONTROL

Using our exclusive Bit Connectify™️ technology you can control up to 20x TC-1 wireless timecode generator boxes from 250ft away. The TC-1 has 600% more control range than Bluetooth® timecode boxes from leading competitors.

The TC-1 also features a secondary RF chip for syncing TC-1 to TC-1 devices from a range of 30ft. When syncing the timecode from the phone, you can transmit up to 250ft to the master TC-1 and then 30ft to each other TC-1 timecode box around the master node.

FRAME ACCURATE TIMECODE

Each TC-1 timecode generator box features a TCXO with an accuracy of ±0.5ppm. And through firmware optimization, your footage will sync perfectly when you go to edit with less than 1 frame of drift in a 72-hour period.

LOCKING 3.5MM TC CONNECTION

You won't have to worry about your TC cables getting unplugged with the TC-1. The port is also compatible with other brands' non-locking 3.5mm TC cables.

TIMECODE MAKES POST EASIER

With more devices than ever now supporting SMPTE timecode, syncing footage and audio in post has never been so easy or quick. With the TC-1 and other items (like the BP-TRX and the TC-SL1) you can use the workflow methods used by studio feature films.

BUILT-IN SCRATCH MIC

The TC-1 timecode box features an on-board scratch microphone for when you're using a Mirrorless or Action Camera that only feature a stereo mic input.

SIDUS AUDIO™️ APP

Connect all your devices to your phone or laptop via Sidus Audio™️. With our app, you can control your device's settings, monitor their status, and sync all your units at once

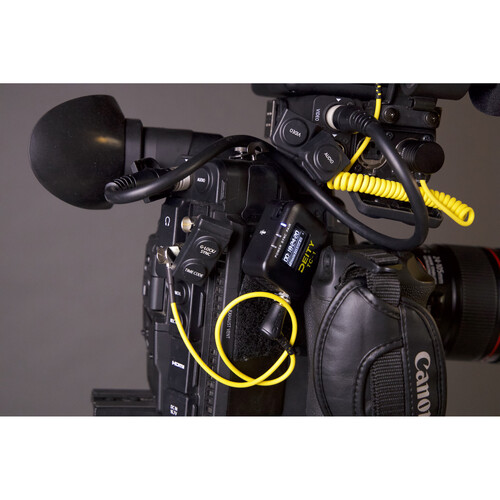

LOCKING TIMECODE PORT

We talked to members of the sound mixing community and made sure we answered your concerns. The TC-1's timecode port is a locking 3.5mm TRS connector. Never worry about your timecode cables becoming unplugged during a shoot.

Supported Deity Timecode Cables:
• Deity C13 - Locking 3.5mm to 5-Pin Right Angle Camera Timecode Cable
• Deity C14 - Locking 3.5mm to 5-Pin LEMO® Timecode Cable
• Deity C15 - Locking 3.5mm to BNC Timecode Cable

VERSATILE MOUNTING OPTIONS

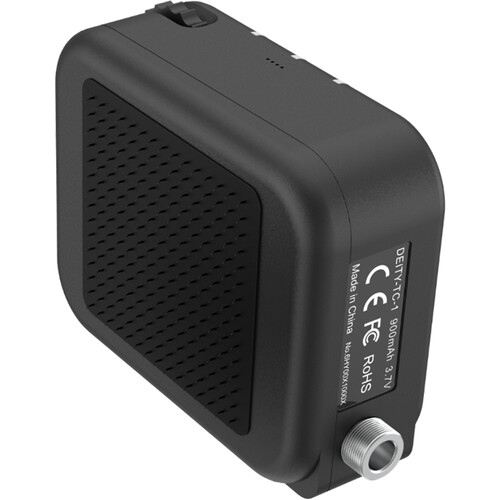

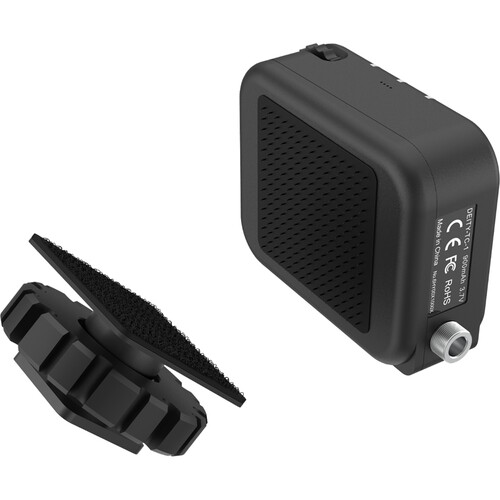

Professionals will enjoy the integrated hook-n-loop pad on the back of the TC-1. Indie filmmakers will appreciate the included cold shoe soft-loop mount. And everyone will love coming up with convenient new ways to mount the TC-1 timecode box using the 1/4" or 3/8" threaded mount under the cold shoe mount.

Included:

Deity TC-1 Wireless Timecode Box
Deity Timecode Cold Shoe Mount
Locking 3.5mm TRS to TRS Cable
USB-C to TRRS Cable
USB-C to Type A Firmware Adapter
1/4” to 3/8” Thread Adapter

SPECIFICATIONS

Timecode	SMPTE   High Frame Rates
Frame Rates	23.98/24/25/29.97/29.97DF/30/50/60 fps
Timecode Accuracy	±0.5ppm
Timecode Ports	Locking 3.5mm
Output Types	2.5Volt TC Line Level   Mic Level (+Scratch Mic)
Audio	Built-In Scratch Mic
Wireless Type	2.4G RF   Bluetooth® 5
RF Channels	8
Display Type	1" OLED Display
Battery Type	Lithium-ion Rechargable Battery
Battery Charger	USB-C
Battery Capacity	950mAh
Battery Life	Upto 28Hrs
Built-In Microphone	Omni-Directional
TC-1 Net Weight	41g
TC-1 Dimensions	53.4 * 40 * 21.8mm
Temperature Range	-20°C to +45°C
