Camera Jib Crane PROAIM 32ft /10m Grand Kit 21 kg / 46.3 lbs

Camera Jib Crane PROAIM 32ft /10m Grand Kit 21 kg / 46.3 lbs

After understanding the shooting needs of amateur and pro as well, Proaim brings its versatile Grand Movie Making Kit, a full fledge production kit for your filming projects and adventures. It is designed to extend your reach and to explore every unexplored angle. There is lot more in the package, a rugged tripod stand that acts as a supporter for your steady shots, durable pan-tilt head to capture every creative angle, tripod dolly for dynamic moving shots.

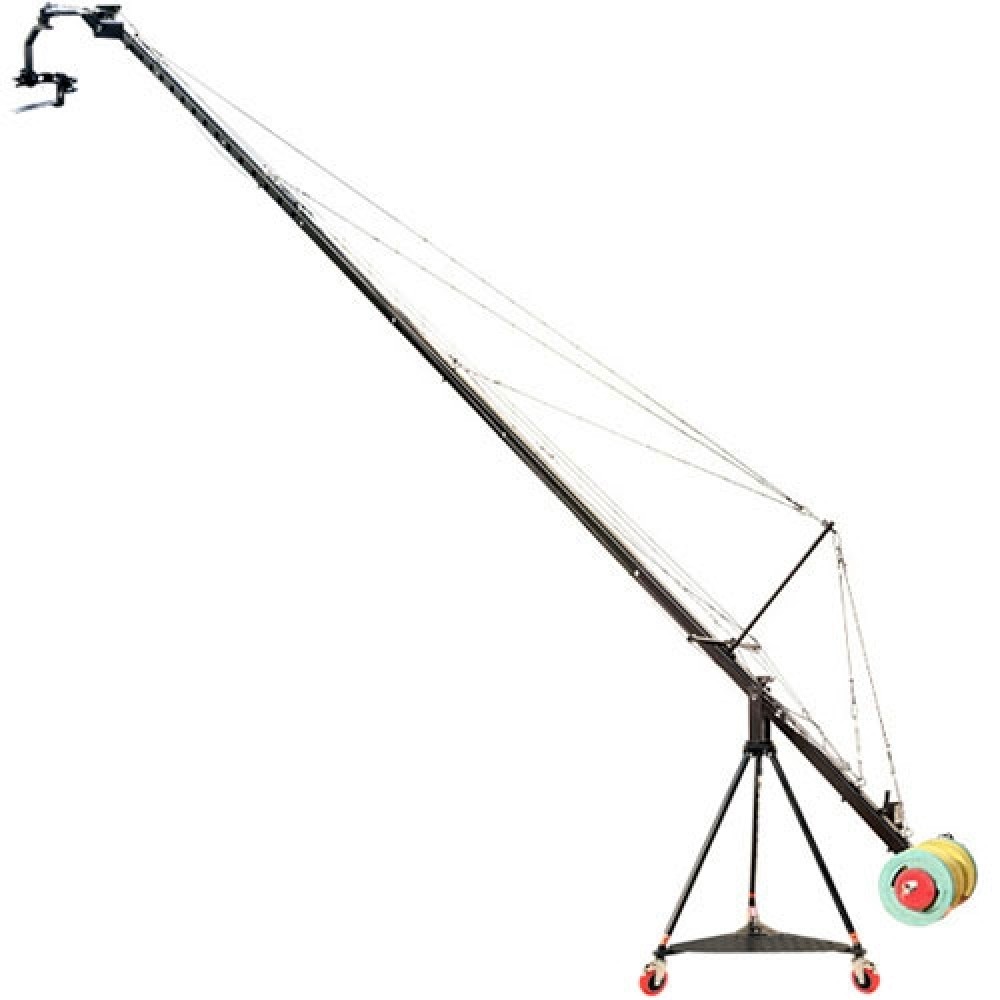

PROAIM 24FT WAVE 5 JIB CRANE:

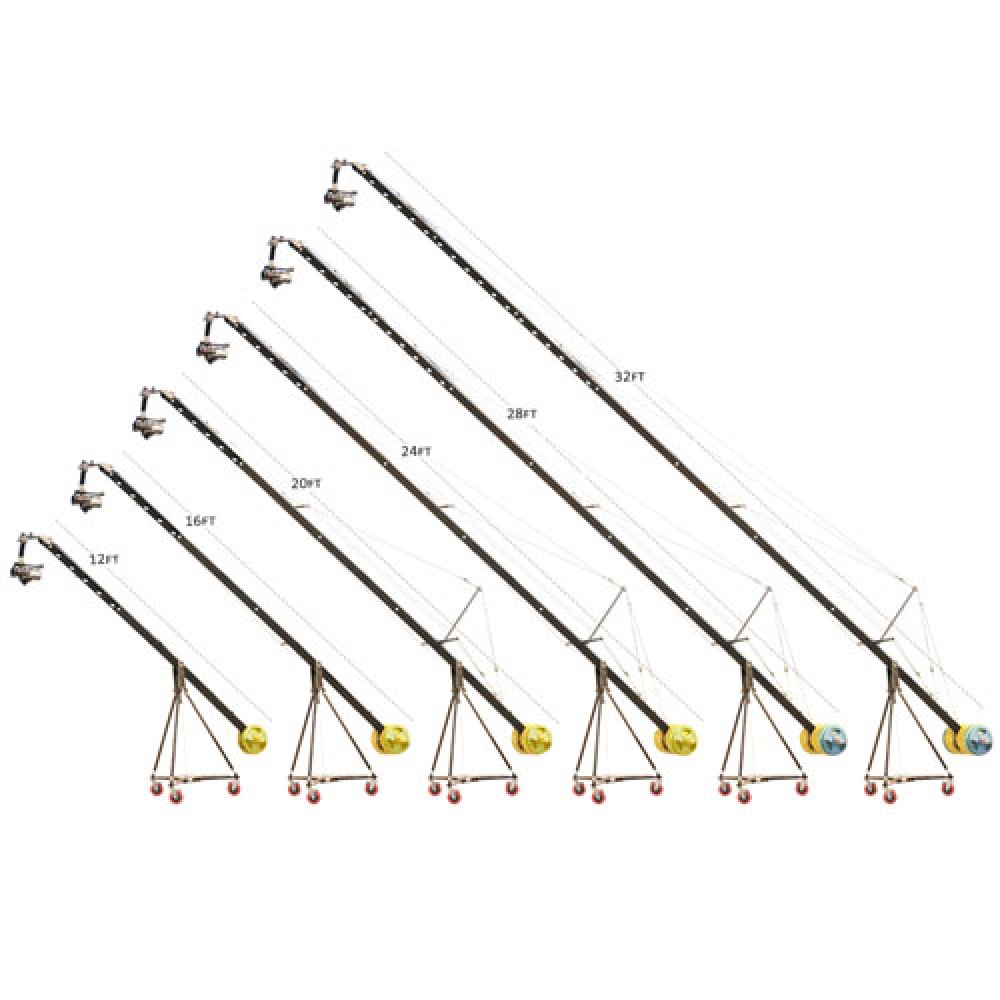

This High Grade Aluminum constructed camera crane jib arm is expandable from 4ft (one section) to 24ft (six sections) in 4ft increments. As a quality constructed reinforced movie camera crane, it should last a lifetime.
- The Rear Control Center has provisions for mounting the Joystick Control box & Zoom Controller.
- Jib Arm connecting bars securely fits into another one with top screw that guarantees its double security, strength and reliability.

FLExIBLE HEAD MOUNTING

The Sr. pan tilt head provided in the package, gets easily attached to the head mounting in no time that saves your production time. This high strength Head mounting is designed in such a way that it is also compatible with most of the motorized heads.

ARM CONNECTING BARS

Each section fits smoothly and securely into another one. For better protection, it is fastened by a screw at the top which ensures better safety of your movie camera crane. Double security features guarantees its strength and reliability.

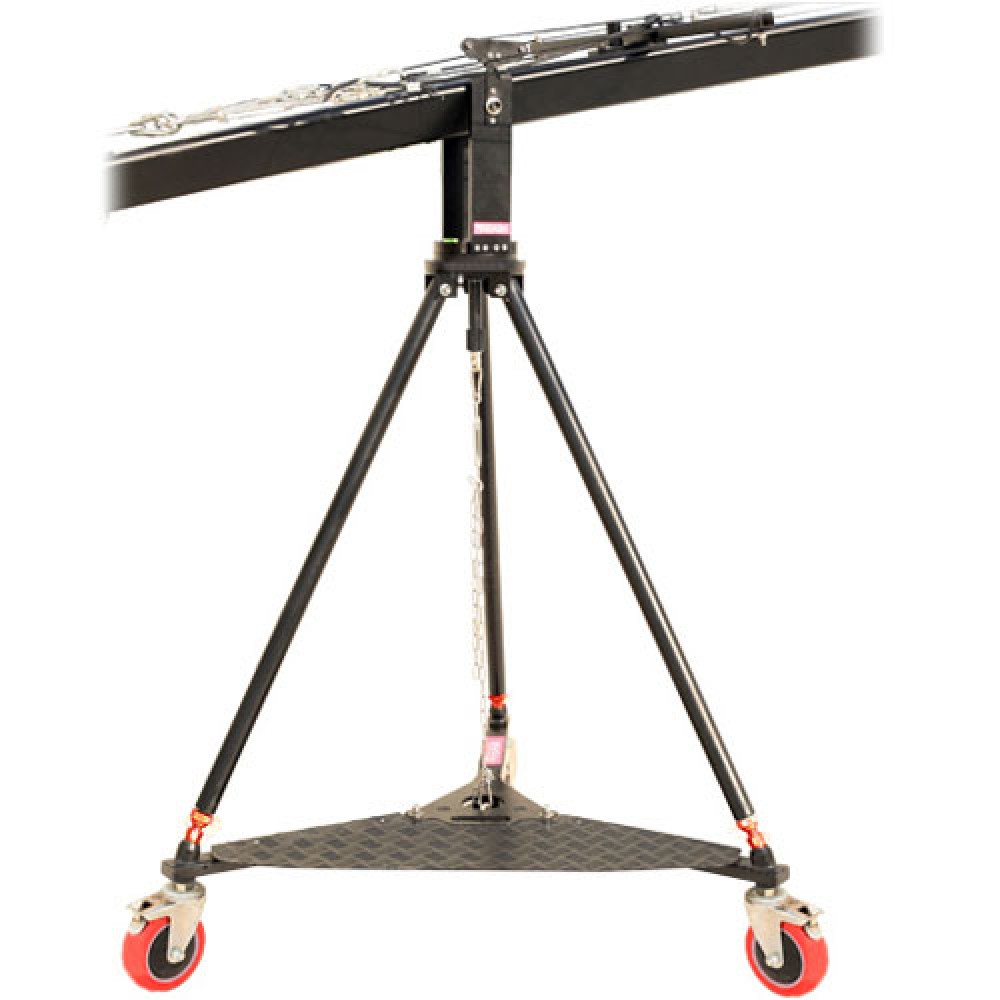

TRIPOD STAND (W5-STD)

The Heavy Duty Tripod Stand (W5-STD) is a rock solid, robust and long lasting camera crane stand made of mild steel, with an incredible height range of 42". It has a strong hub assembly. The feet are solid with double locking knobs.

D-37 FLOOR DOLLY

D-37 Pro Dolly is the most portable camera dolly in the market. It's a compact, lightweight and versatile pro dolly best suited for supporting all heavy duty stands.

FEATURES

- Rubber wheels with bearings allow for smooth movement
- It folds to a compact size for easy transport
- Build-in wheel lock provides stability to the system even in rougher terrains
- Pro Dolly setup supports heavy weight
- Quality designed and engineered

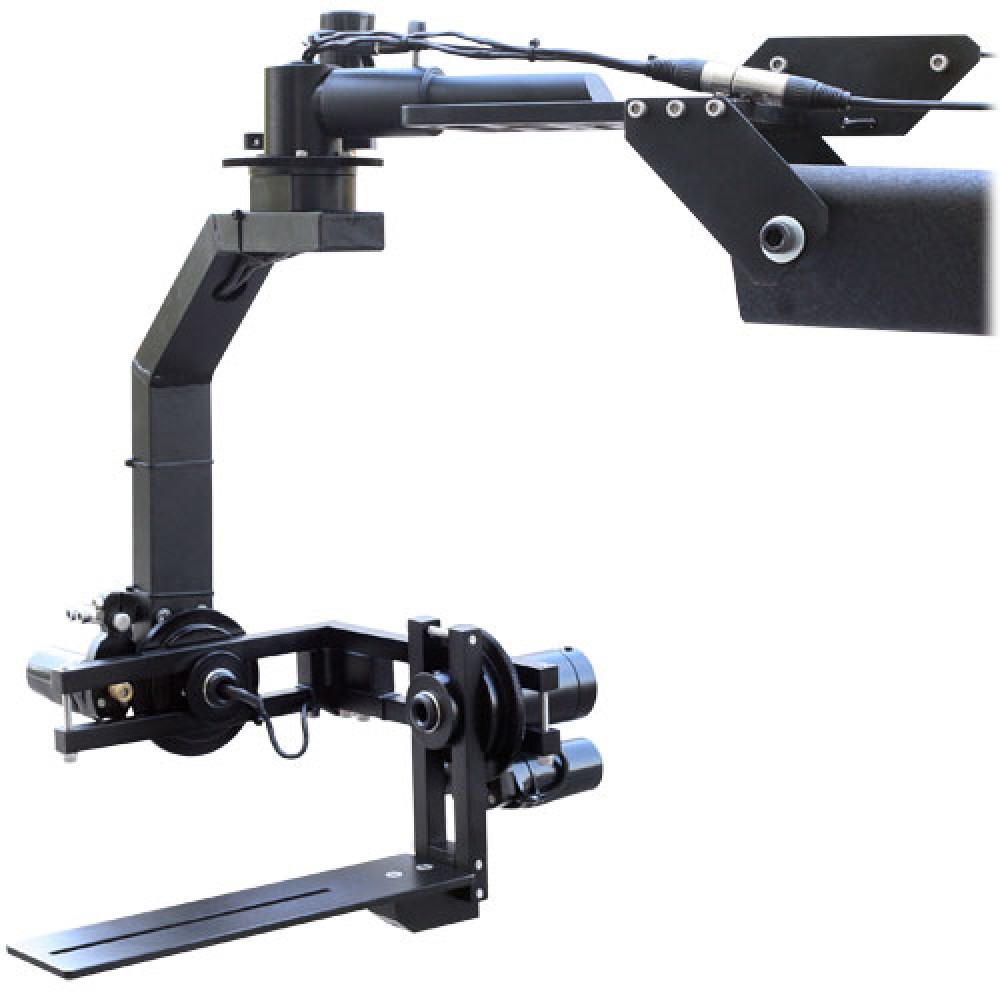

PROAIM SPIN-3 (3-AXIS) MOTORIZED DUTCH ROLL PAN TILT HEAD

Controlled by a joystick remote, the pan, tilt & rolling movement of the head works on 12 volt power and easily accepts external 12VDC battery power through the included 3 meter long 4pin XLR cable. This 3-Axis spin Roll motorized camera head is a solid built unit with precision and long life capability designed in. The frame is made of a durable high grade metal. In Pan Tilt mechanism, XLR cables are built into the motor, gears on the head are solid quality and the pan tilt head is sheathed in plastic to protect the finish.

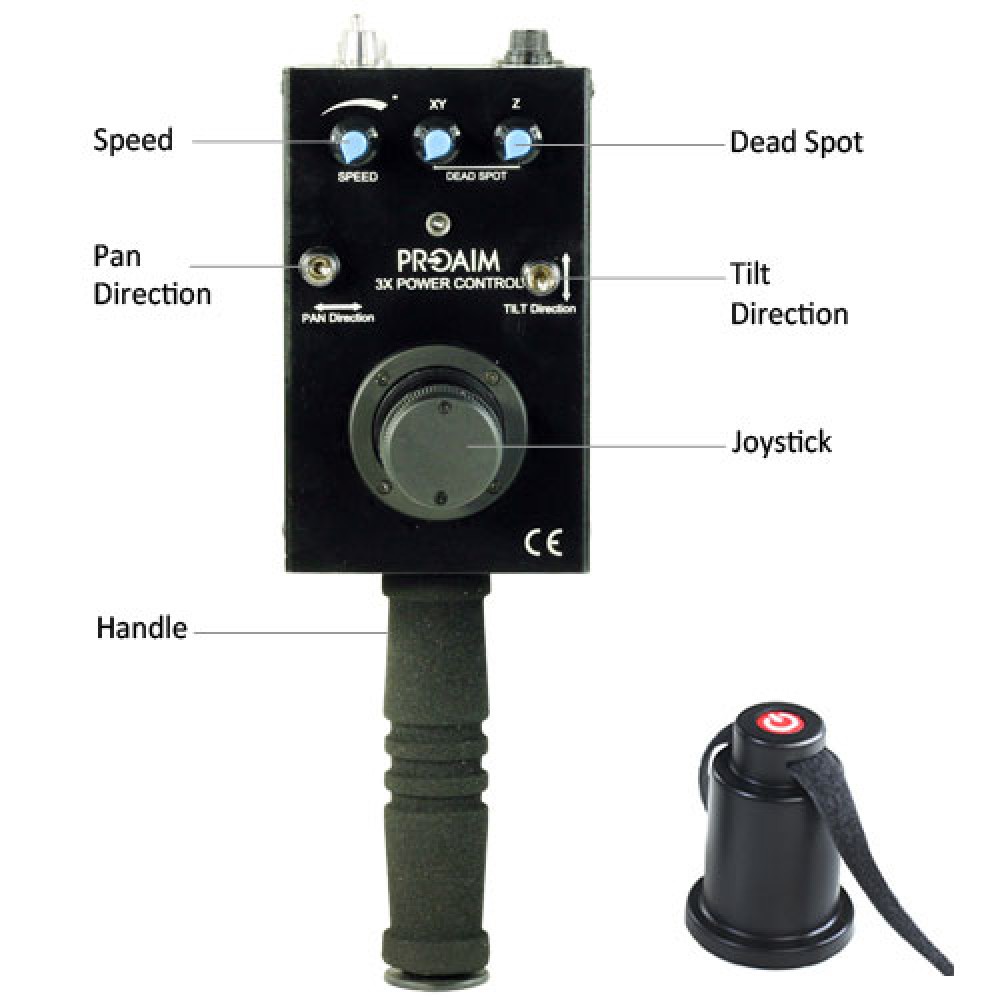

PAN TILT JOYSTICK CONTROL SYSTEM

- The Proaim™ Pan-Tilt Head comes with a remote Joystick controller system, 10 mtr. Long Cable and AC Adapter.
- You may run the Joystick from a flat surface like tabletop or attach to the boom arm of Jib crane.

SUPERB PROPORTIONAL CONTROL

- Joystick has proportional linear movement i.e. farther you move the joystick, the faster the head moves.
- Joystick is touch sensitive
- Small movement – less speed.
- More movement – more speed.

Included:

- 32ft/10mtr Wave 5 Jib crane (Revised on 12-Aug-2017)
- Spin-3 (3-Axis) Motorized Dutch Roll Pan Tilt Head (PT-SPIN-3)
- Tripod Stand (W5-STD)
- D-37 Floor Dolly

Specs:

JIB
Weighing Capacity of Jib 25kg
Jib Arm Material Aircraft aluminium construction
Crane Pan Lock No
Crane Tilt Lock No
Jib Arm wall Thickness 3mm

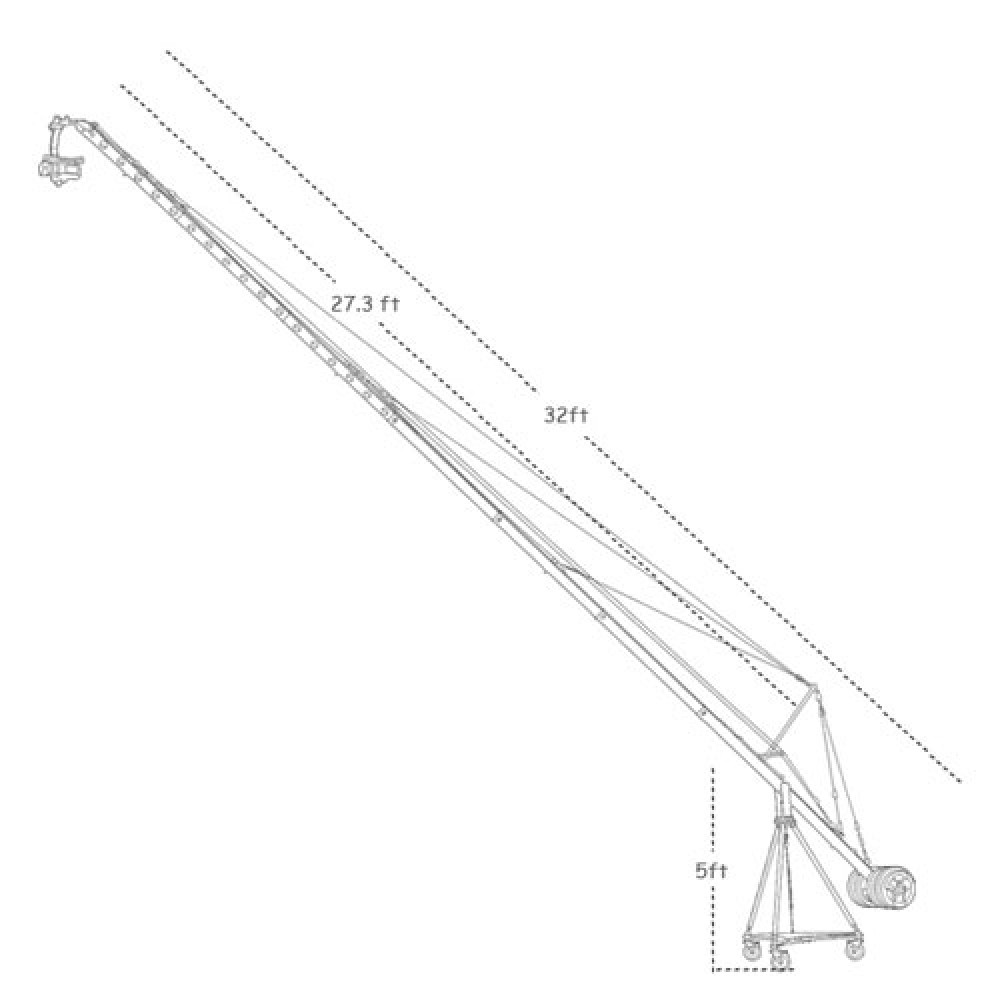

Camera Crane Length 32ft/10mtr
Jib each Arm length 4ft
Finish Black Powder Coated
Jib Arm Breaks down to 8 Sections of 4ft each
TRIPOD STAND (W5-STD)
Weight of tripod stand 11.5kg
Length of Tripod 42"
Made from Mild Steel
Dia of tripod leg 40mm
SPIN-3 AXIS PAN TILT HEAD
Pan Tilt Head Material High Grade Aluminium
Maximum Camera Package Load Capacity 15kg/33lbs
Pan, Tilt, Roll Movement 360 degrees
Speed
Panning/Rotation Tilting/Rotation
Minimum 20 sec 1 min 33 sec
Maximum 5 sec 8 sec
Motors Three high torque DC motors 12V that rotates (pans), tilts & roll the head 360 degrees
Gears 3- Silver Big Gears (Dia- 100mm)
2- Brass Small Gears (Dia- 14mm),
1- Brass Small Pan Gear (Dia-22mm)
Minimum height of head 23.5 inches
Maximum height of head 25 inches
AC Adapter input AC 100 - 240V ; output - DC 12V -2A
Cable Length 10 meter
Cable Connector 6-Pin XLR
Battery Cable 3 Meter long
Camera Plate Size 12x3 inches, camera mount slot – 8”
Weight of 3-Axis head 5.7kg
Weight of Joystick box 815grm
Box Dimensions 73 X 49 X 21 cm
JOYSTICK CONTROLLER
Joystick Controller 3-Axis
Connectors 1x 4-Pin XLR male connectors
6 Pin XLR
Pan Direction Yes
Tilt Direction Yes
