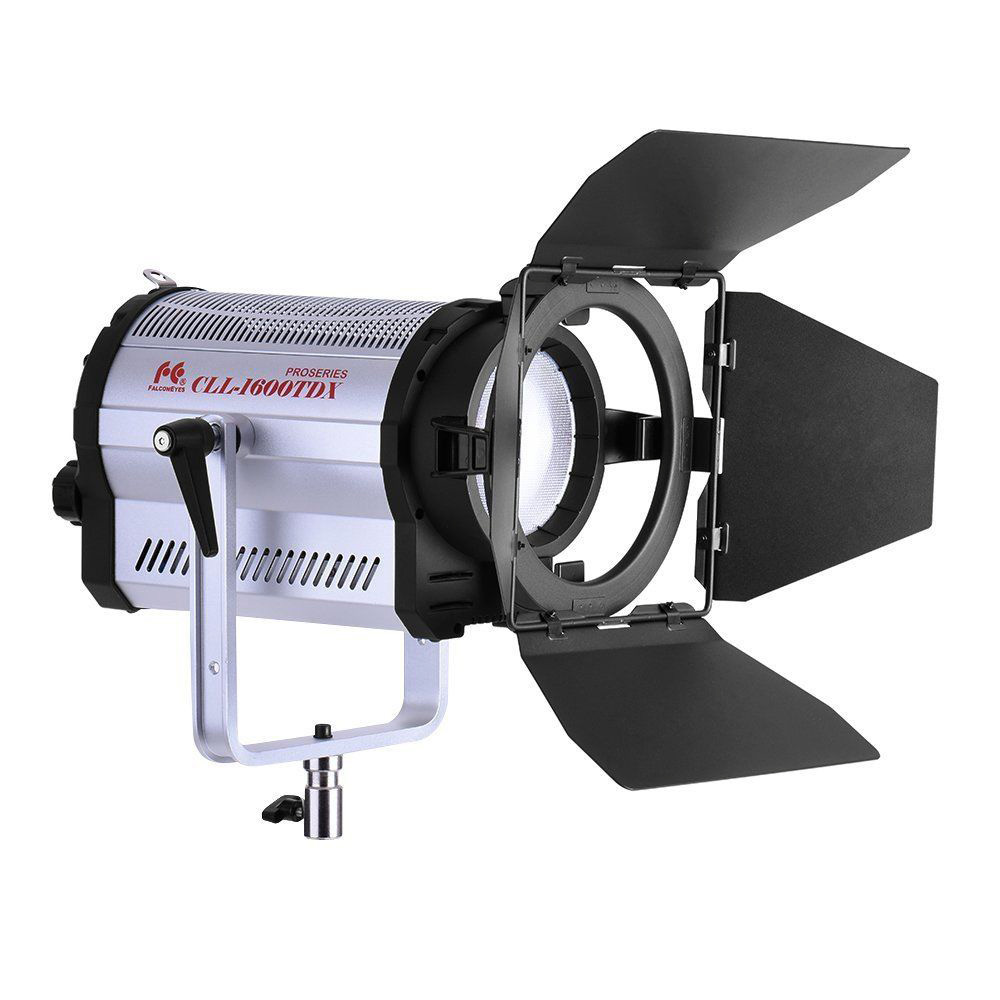

LED Fresnel CLL-1600TDX Dmx Falcon Eyes Bi-Color

Fresnel Led Videolight

The Falcon Eyes CLL & DLL series LED Fresnel are designed for professional film and broadcasting use. These LEd fresnels are equipped with high CRI LED chips reaching CRI 95+ that satisfy the standard requirement of filming and broadcasting. The CLL & DLL series are divided into different models with output from 160W to 750W while DLL series has 160W & 300W.

Spotlight And Flood

This fresnel led is equipped with a fresnel lens causing the causing the edges of the light beam to gradually darken. The beam angle is adjustable between 20 and 60 degrees

Bicolor

The led fresnel light CLL-1600TDX is bi-color which means that you can switch the color temperature from daylight 5600k to tungsten 3200k.

Dmx Control

To enhance the usage of the CLL & DLL series in different environment, Falcon Eyes has divided the CLL & DLL series into Wifi control and DMX control. The CLL-1600TDX fresnel videolight has dmx512 which is a standard for dmx control. This means that you can control the light externally from a dmx control board. There are 10 different channels on the videolight to choose from. This i a great option for stage type lighting where fast light control is needed.

Fan

There is a cooling fan in each light. This fan can b eswitched off and perfom upp to 50% of the ligth output A temperature display will show the light temperature and if the temperature reach 75°C, the heat protection system will be activated. This will ensure the product life and the users’ safety.

Lcd Panel

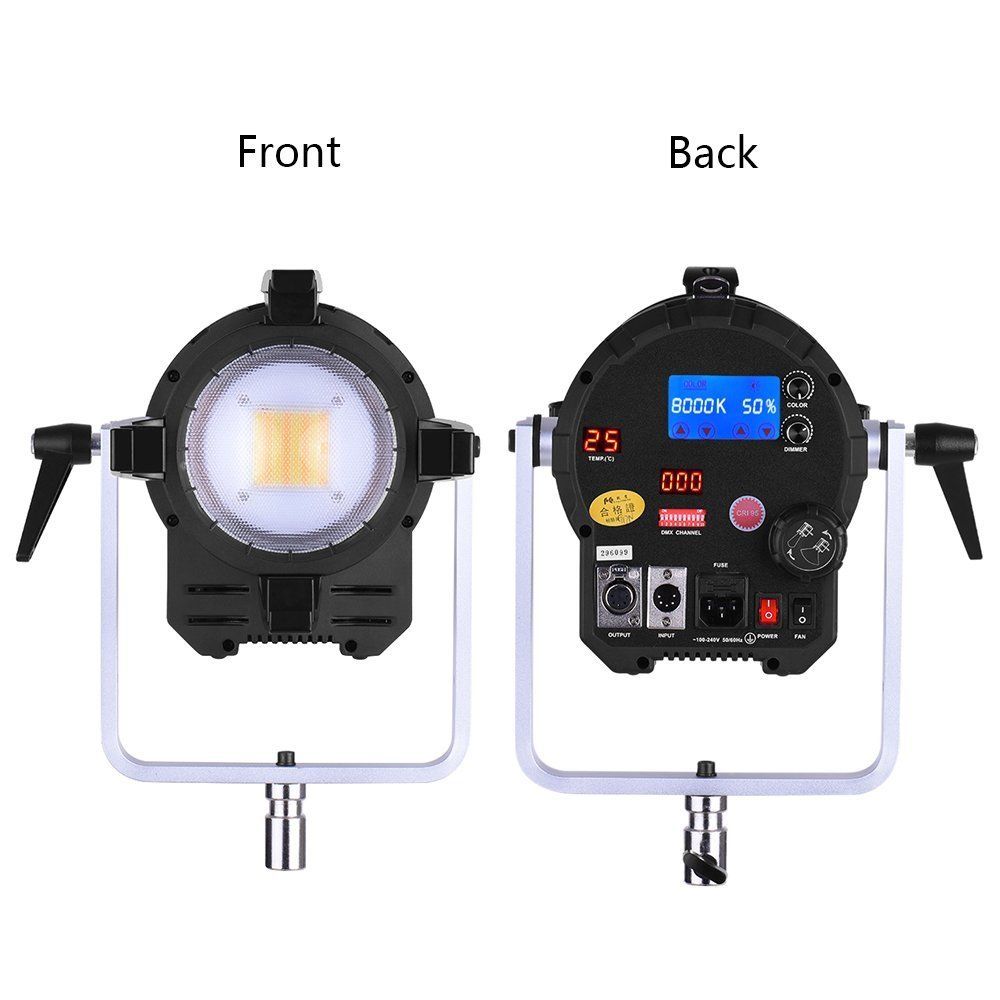

On the back off th led fresnel is a lcd display panel that shows the power and color temperature while making these adjustments.

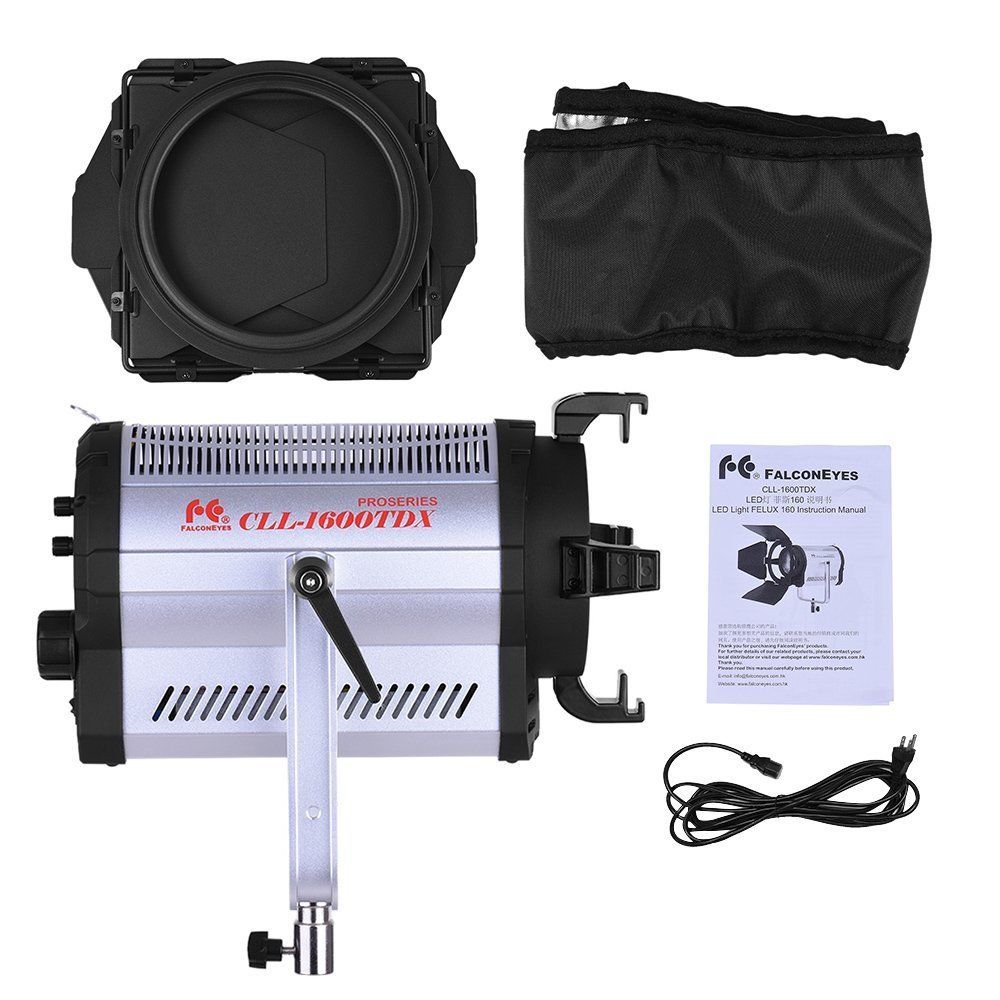

Included

CLL-1600TDX LED Fresnel videolight
Power Cable
Barn Door
Black-out Cloth
Instruction Manual

Spec:

Model: CLL-1600TDX
Power: 160W
Color Temperature: 3000K-8000K(Stepless adjustable)
Dimming/Focus: Stepless
∠20°LUX: 3M(7800)/5M(4500)/7M(1600)
∠70°LUX: 3M(3200)/5M(1800)/7M(690)
Color Render Index(CRI): ≥95
Voltage: AC100-240V 50/60Hz
Control System: DMX 512 system
LCD Display: Yes
Control Mode: Manual + Touch
Temperature Monitoring Function: When up to 70℃ (Auto power off)
Range of Application: An essential auxiliary for video recording, movie making, portrait photography, etc
Item Size: Approx. 39 * 32 * 37cm / 15.4 * 12.6 * 14.6in
Item Weight: Approx. 5Kg / 11Lbs
Package Size: 53.5 * 33.5 * 34cm / 21.1 * 13.2 * 13.4in
Package Weight: 7.22Kg / 15.9Lbs
