Rokoko Smartsuit Pro II Body Tracking

Smartsuit Pro II Body Tracking

Breathe life into your characters with elevation tracking, improved locomotion, and even more robustness.

Accuracy over time
Advancements in our inertial technology result in a reduction in drift, for reliable and long streaming times

Improved quality of cables, sensors and textile will ensure long-term durability

Better locomotion
200 FPS streaming means that you can expect significantly less cleanup

Studio-quality stagecraft, indie-friendly pricing

Behind the magic
16g G-force range
Accelerometers allowing for high impact motions

High accuracy
Advancements in inertial technology cater for a significant reduction in drift

Finger tracking ready
Simple integration for optional Smartgloves

19x 9DOF sensors
A total of 19, "9 degrees of freedom" IMU motion sensors connected to a hub, 3D orientation accuracy: ± 1 deg

Washable fabric
Electronic parts can be removed from the Smartsuit, so you can wash the textile

200 fps
High sensor frame rate, for real-time streaming without lag or latency

Elevation tracking
Multi-level locomotion (snap spacing) for your Smartsuit Pro II

Clean raw mocap data ready for use
Like the data quality in this video? Test the uncleaned mocap data from the Smartsuit Pro II for yourself, exactly as it was captured in real-time during the shoot and exported from Rokoko Studio.

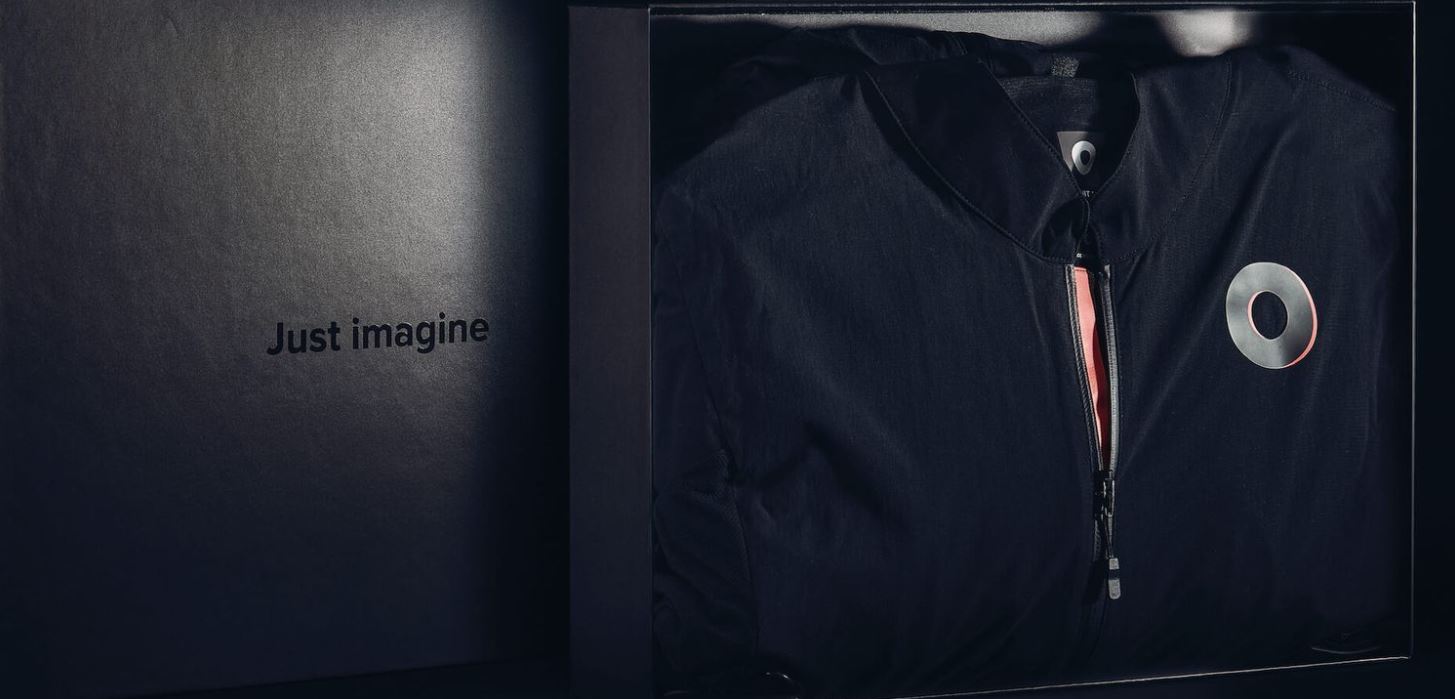

The textiles are a unisex design and they come in four sizes: S, M, L and XL.
‍
They are made of a high performance and very durable nylon based fabric. Adjustable tightening straps to make it fit all body types. Seamlessly integrated tunnels to protect all electronics parts. With YKK zippers. Empower movements, yet very comfortable.

Sensors

9-DoF IMU motion sensors connected to a hub, pre-installed in a textile suit
3D orientation accuracy: ± 1 deg

Hub

The hub is placed on the back of the suit and its main job is to collect all the tracking data from the sensors, fusion it and live stream it to Rokoko Studio over WiFi.

Battery & Power

The suit is powered by an external power bank, see our recommendations here, you connect the suit via the USB power cables included in the box.

Connectivity


WiFi

2,4 & 5 Ghz - 802.11ac Wi‑Fi wireless networking
Frame rate: 200fps
Latency: approx. 15 ms latency on a standard WiFi router
Range: Up to 100 m

Software & plugins

Rokoko Studio: an easy-to-use live motion capture recording software.
Plugin integrations for real-time data streaming are available:
‍
- Unreal
- Unity
- Blender
- Maya
- MoBu
- Houdini
- Cinema4D
- iClone
- Cartoon Animator 4
- Siemens Jack

Maintenance

The electronic parts can easily be removed from the Smartsuit Pro II, so you can wash the textile in a machine.

Satisfaction Guarantee & Warranty

30 days satisfaction guarantee and one year warranty are provided on all Rokoko purchases.

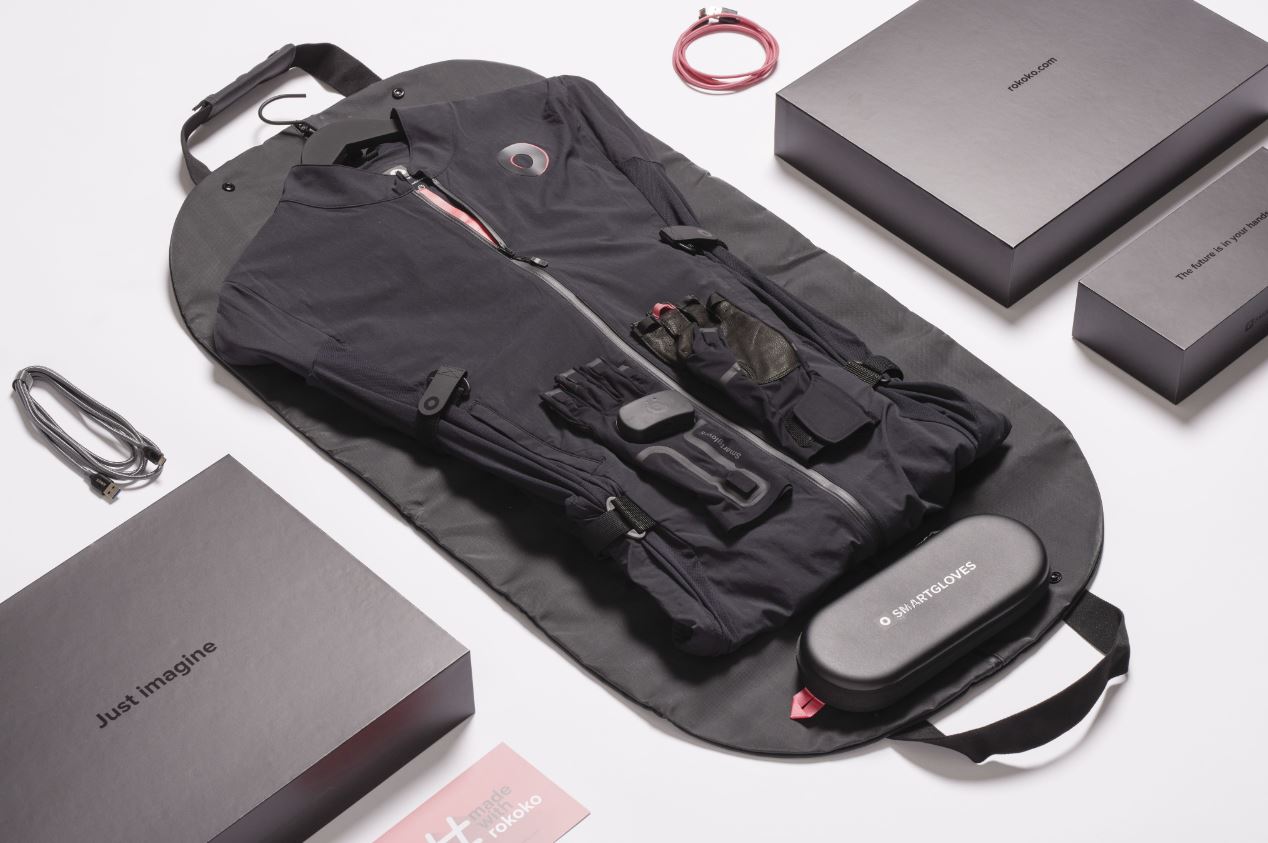

Included

Hardware
Smartsuit Pro II (Glove Ready)
1x Breathable & washable textile suit
Pre-installed sensors and hub
1x Protective carry-on travel bag

Rokos Studio
