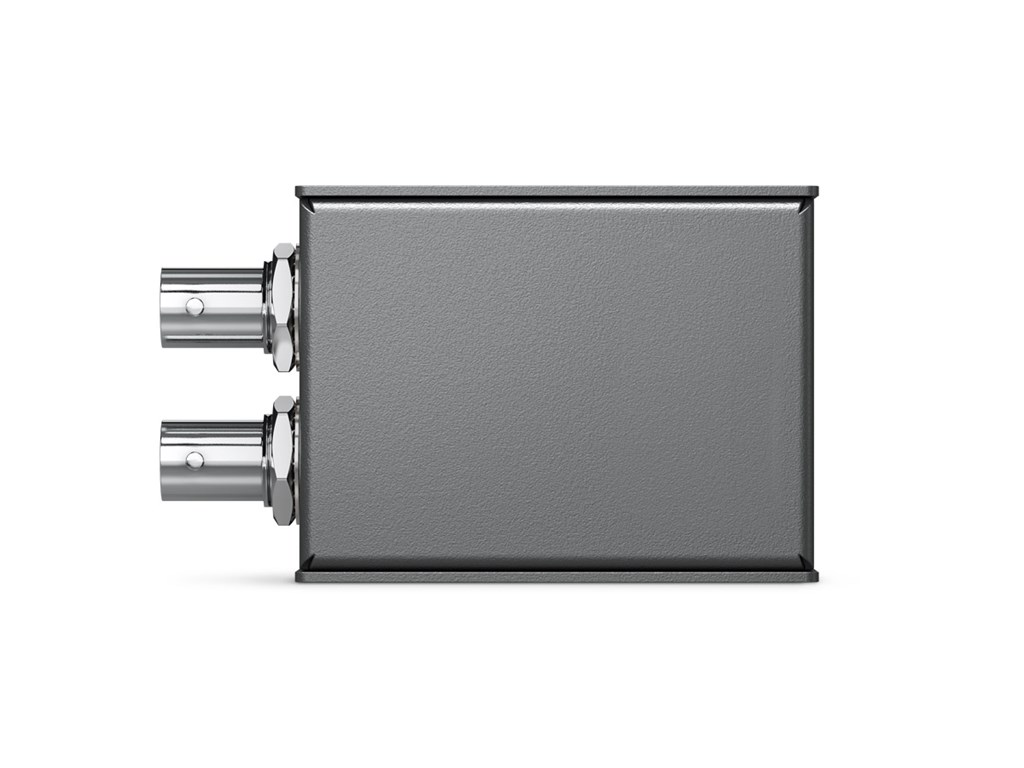

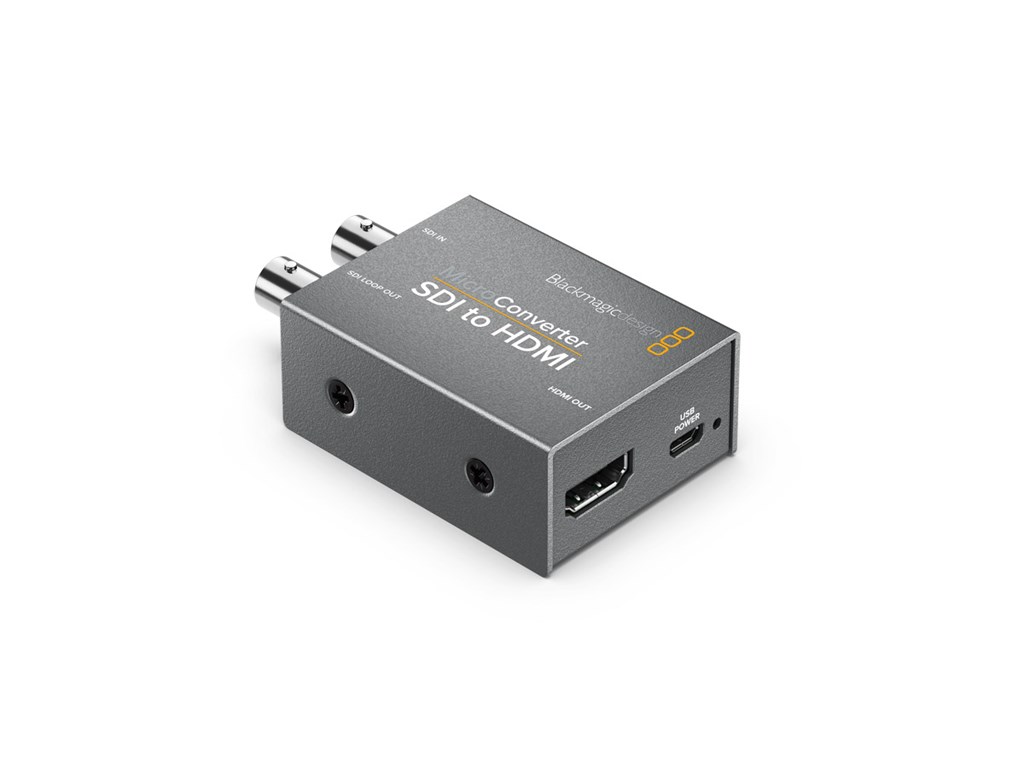

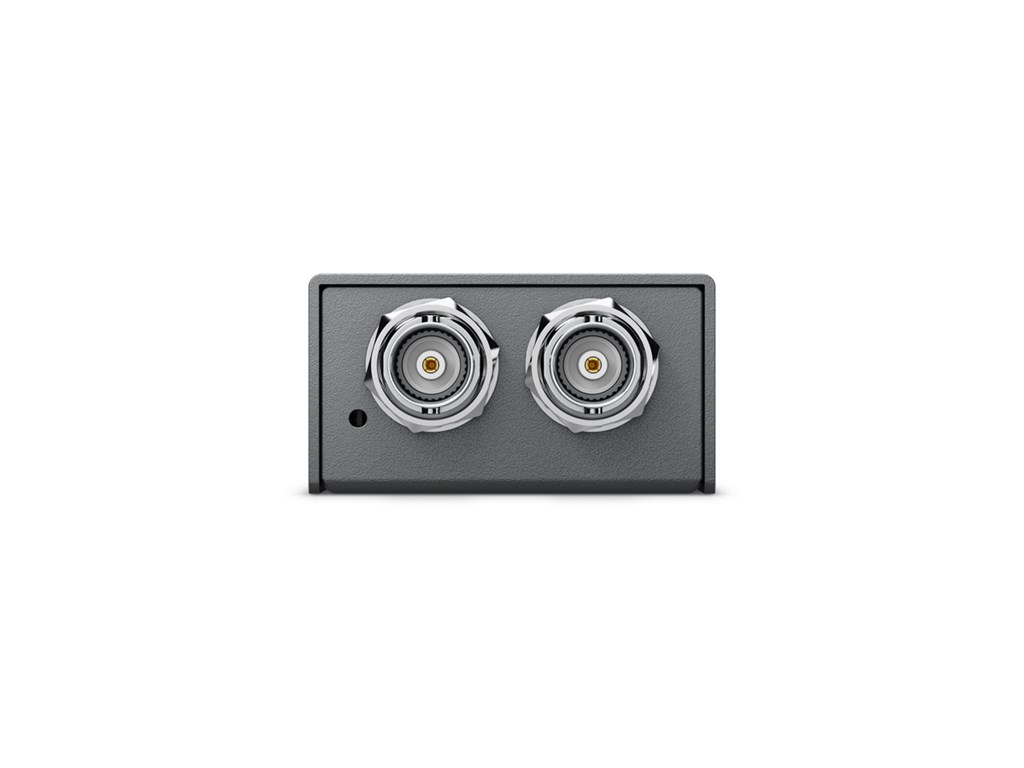

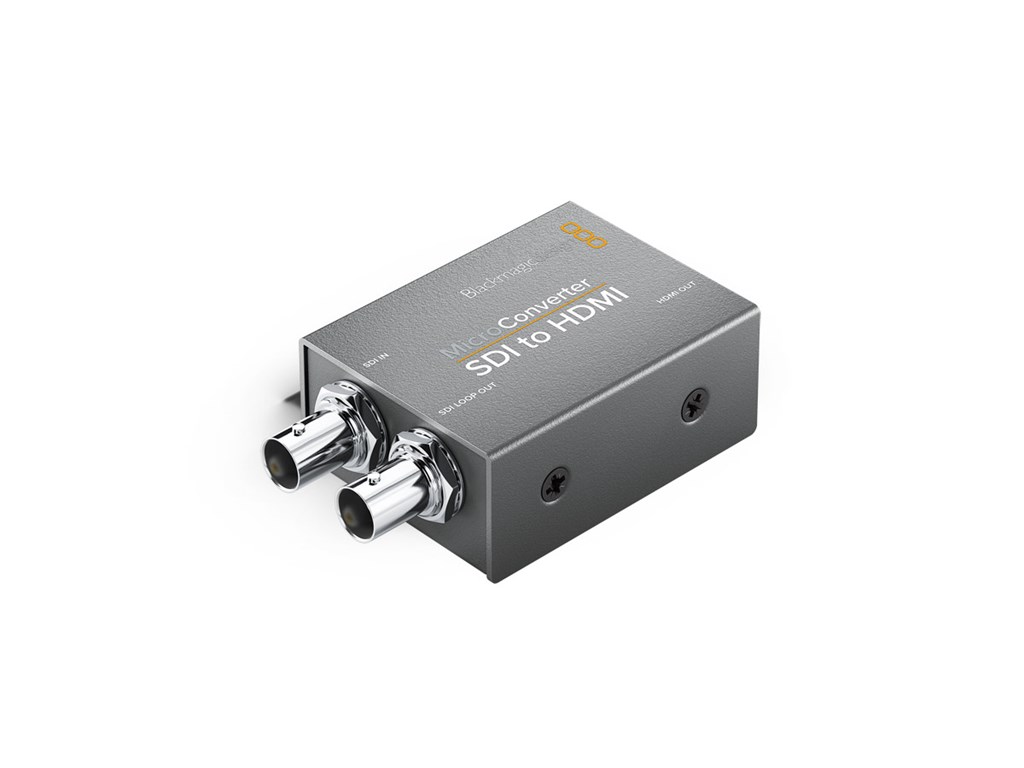

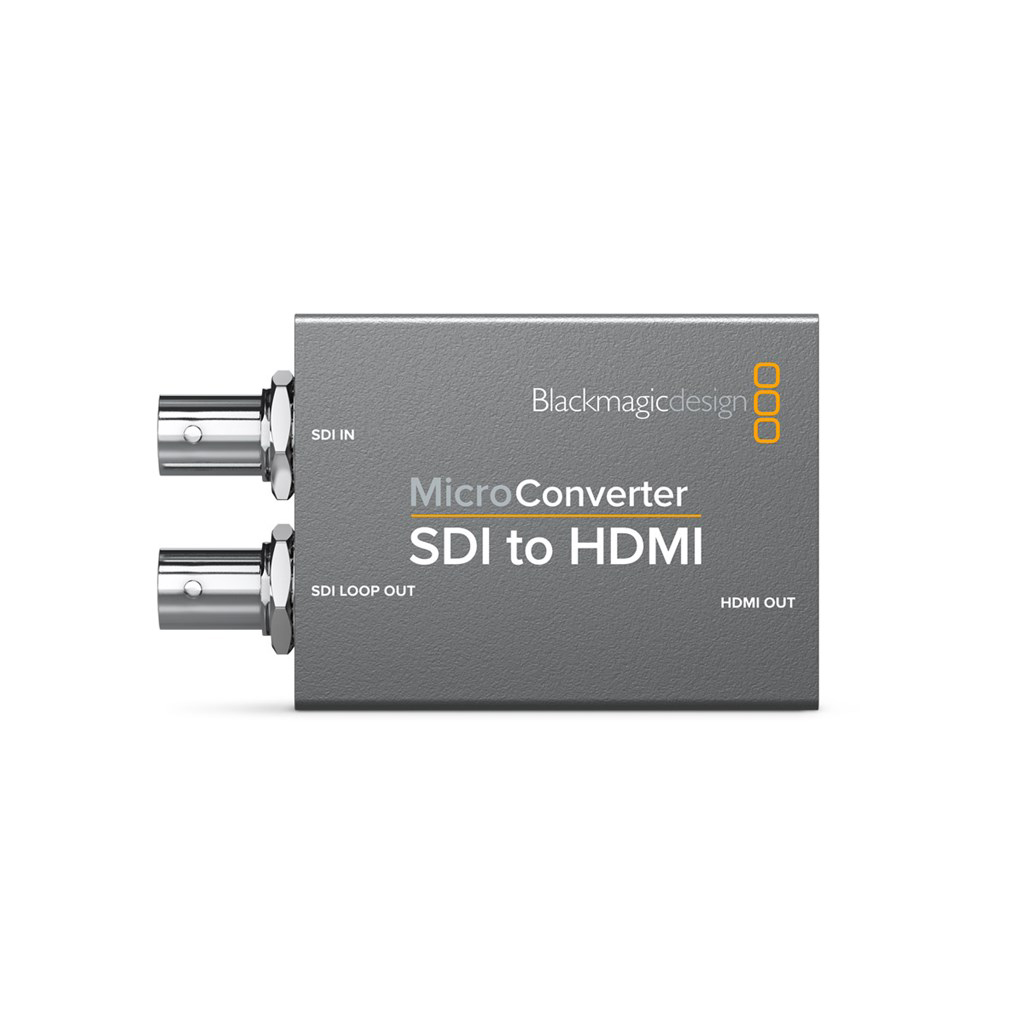

Blackmagic Design Micro Converter - SDI To HDMI 3G

Blackmagic Design Micro Converter - SDI To HDMI  3G

Connect your professional video equipment to any HDMI monitor or consumer television with the Blackmagic Design SDI to HDMI Micro Converter. This miniscule Micro Converter accepts an SD, HD, or 3G-SDI signal and converts it to an HDMI signal while retaining the original image quality and resolution. An SDI loop output sends out a re-clocked SDI signal for connecting to other down-stream equipment. The converter's small size allows it to be placed nearly anywhere, and it can be powered via any standard USB power source, including separately available USB battery packs.

Included:
1x Micro Converter SDI to HDMI
Specs:
I/O 1 x SD/HD/3G-SDI BNC input
1 x SD/HD/3G-SDI BNC loop output
1 x HDMI type A output
1 x micro-USB
Format Support 1080p24/25/29.97/30/50/59.94
1080PsF25/29.97/30
1080i50/59.94/60
720p50/59.94/60
NTSC
PAL
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
Color Precision 4:2:2
Color Space YUV and RGB
OS Support Mac OS X 10.10, 10.11 or later
Windows 8.1, 10
Power Power supply: 5 VDC universal power supply
Power consumption: 2.0 W
Operational voltage range: 4.4 to 5.25 VDC
Environmental Operating temperature: 32 to 104°F / 0 to 40°C
Storage temperature: -4 to 140°F / -20 to 60°C
Relative humidity: 0 to 90% non-condensing
Dimensions 3 x 1.8 x 1" / 76 x 46 x 25 mm
Weight 5.3 oz / 150 g
Packaging Info
Package Weight 0.8 lb
Box Dimensions (LxWxH) 5.7 x 4.3 x 3.0"
