Cod. art.: 3356
Tilta Nano Motor Kit M1

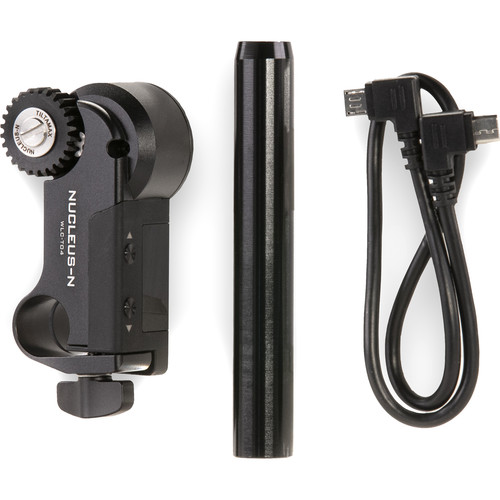

The Tilta Nucleus-Nano Motor Kit M1 includes the rod-mounted Nucleus-Nano Wireless Lens Control Motor, a 4 "15mm rod and a micro-USB to micro-USB power cable for the motor. All you need to add is an optional Nano Hand Wheel Controller, which can control the engine up to 90m away, or the Nucleus-M FIZ unit.The engine has the cine standard 0.8 MOD gear.The Nucleus-Nano system is specially designed for use with hand-held Velcro straps that have 15 mm rod support. The included micro-USB cable can be used for power when working with gimbals that have a micro-USB power port, such as the Tilta Gravity G2X. Otherwise, Tilta offers various other Nucleus-Nano cables, such as a Ronin-S to 5V micro-USB cable, micro-USB to D-Tap cable and micro-USB to 2.5 mm DC cable.
Note:
Use only drive / stop cables specially designed for Nucleus-Nano; Tilta wooden handle drive / stop cables are not compatible or safe to use with this unit. All cables are available separately.Tilta Nucleus-Nano Wireless Lens Control Motor
Pair this Nucleus-Nano Lens Control Motor from Tilta with the separately available Nucleus-Nano Focus Hand Wheel or Nucleus-M FIZ device to wirelessly focus focus on most DSLR, mirrorless or cine still lenses.The engine comes with a standard lens gear of 0.8 MOD, works with up to 1 Nm of torque and can be connected wirelessly to the Nucleus-Nano Focus Hand Wheel from up to 90m away. The motor is automatically calibrated to your lens, but you can choose to calibrate manually. You can also perform drive / stop functions and set hard A and B limits with the buttons on the handwheel for more control over your camera and lens. The engine is also compatible with the Nucleus-M FIZ handset and handle.
The motor draws power via a 5-18V micro-USB port from a gimbal or D-Tap battery with a separately available cable. The engine is designed with aluminum, plastic and stainless steel for durability. It can be mounted on a stand, rig or cardan shaft with its built-in 15mm rod clamp.
- Wireless focus motor for DSLR, mirrorless or cine-style lenses
- The low noise level 5-18V motor operates at 0.65 to 1 Nm of torque
- Includes a 0.8 MOD, 32-piece, 26-tooth cine standard equipment
- 90m wireless interval for connection to lens controllers
- Powered via micro-USB from D-Tap battery or gimbal with a separately available 5V cable
- Use the start / stop function and set A / B limits with the buttons on the handwheel
- Connects to rigs, Velcro and rods with a built-in 15 mm rod clamp
- Compatible with Nucleus-Nano Focus Hand Wheel Controller, Nucleus-M FIZ handset and Nucleus-M handle
