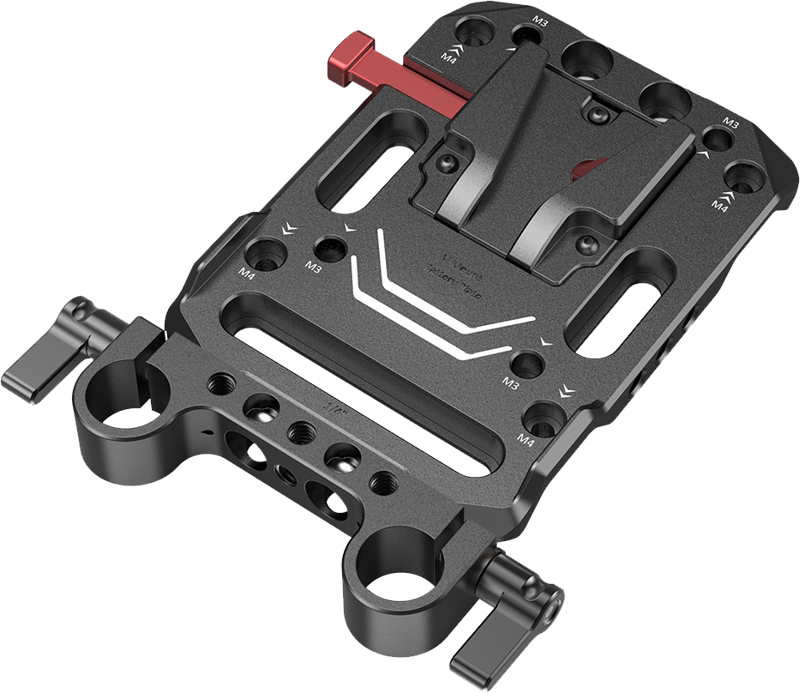

SMALLRIG 3016 Battery Plate V-Mount w Rod Clamp

SmallRig V Mount Battery Plate with Dual 15mm Rod Clamp 3016

SmallRig V Mount Battery Plate with Dual 15mm Rod Clamp 3016 utilizing a standard V mount fits most V mount batteries to provide greater battery life for your camera rig with your battery's power port(s). It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system in a variety of different installation ways. The plate itself features multiple 1/4-20" countersinks, M3 countersinks, M4 countersinks, 1/4-20" thread holes, M4 thread holes, and an ARRI 3/8" -16 thread hole to attach a dual rod clamp, a magic arm, or other accessories. Two stoppers will prevent the battery from twisting when attached. The plate is also compatible with the Blackmagic URSA mini.

Note:

1. No V-Lock part (male) provided with the plate.
2. This is purely a mounting solution for a V-mount battery — no power ports on the plate.
*Please note the import tax may occur.
Key Features

1. The plate utilizing a standard V mount fits most V mount batteries to provide greater battery life for your camera rig with your battery's power port(s).
2. Two stoppers prevent the battery from twisting when attached.
3. It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system in a variety of different installation ways.

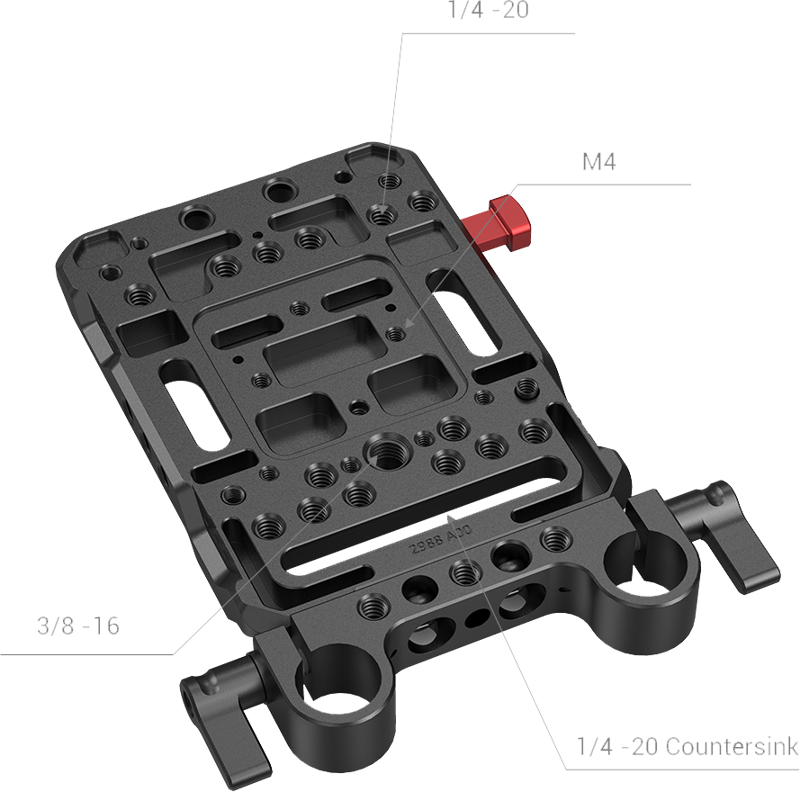

4. The Plate itself features multiple 1/4-20" countersinks, M3 countersinks, M4 countersinks, 1/4-20" thread holes, M4 thread holes, and an ARRI 3/8" -16 thread hole to attach a dual rod clamp, a magic arm, or other accessories.
5. It's compatible with the Blackmagic URSA mini.

Work With

The plate fits most V mount batteries butnot the  PAGlink series V mount batteries and Patona Premium Battery for BP-190WS.
Packing List

Specs:

1 x V Mount Battery Plate
1 x Dual 15mm Rod Clamp
3 x Allen Wrench
4 x 1/4-20" Screw (short)
2 x 1/4-20" Screw (long)
4 x M4 Screw
4 x M3 Screw
Technical Data

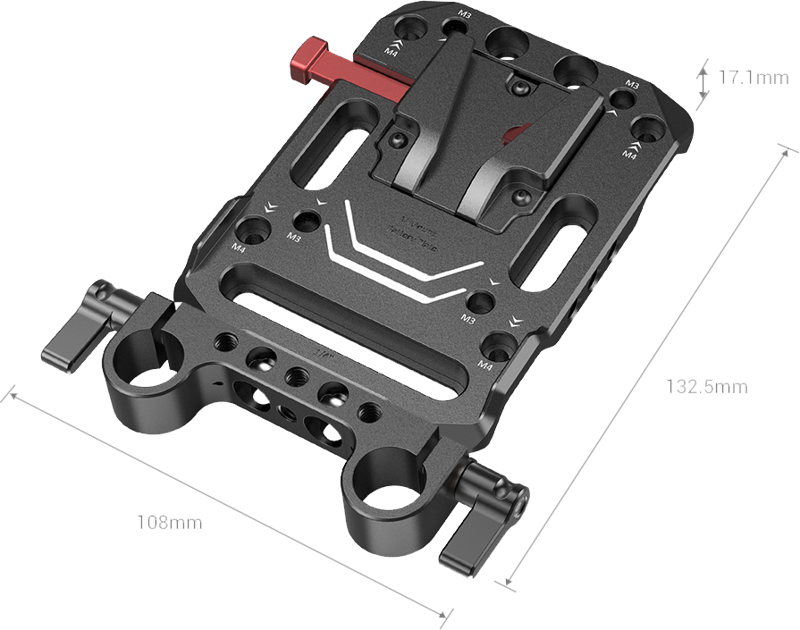

Product Dimensions: 132.5 x 108 x 17mm
Package Dimensions: 135 x 100 x 55mm
Net Weight: 190g±5g
Package Weight: 242g±5g
Material(s): Aluminum Alloy
