EVF Electronical Viewfinder Evf S350 SDi/Hdmi

FEELWORLD 3.5" EVF 3G-SDI HDMI Electronic View Finder S350

OVERVIEW

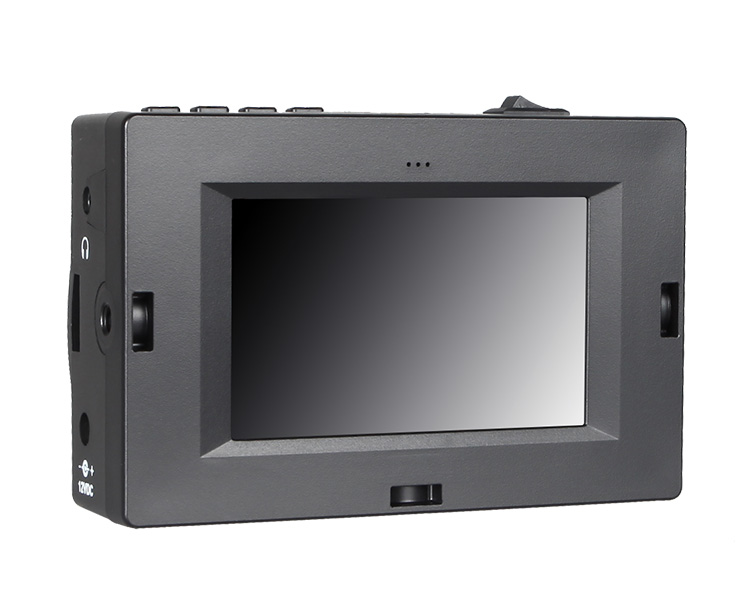

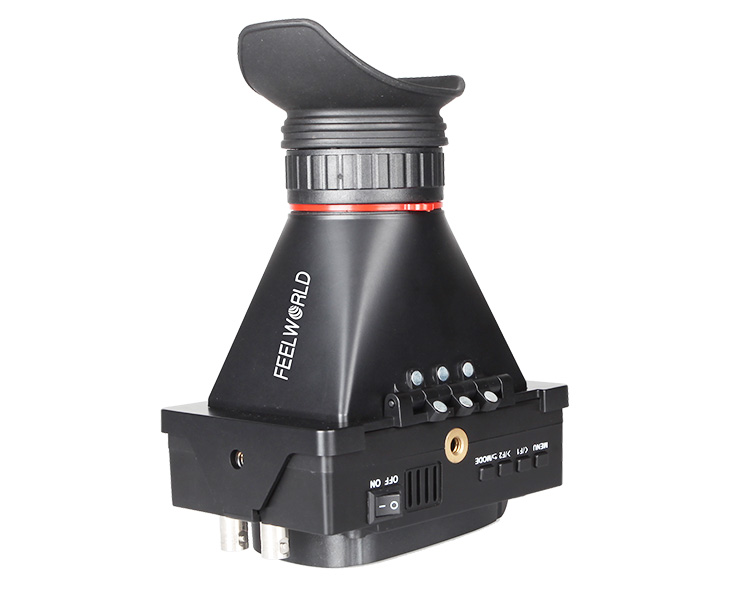

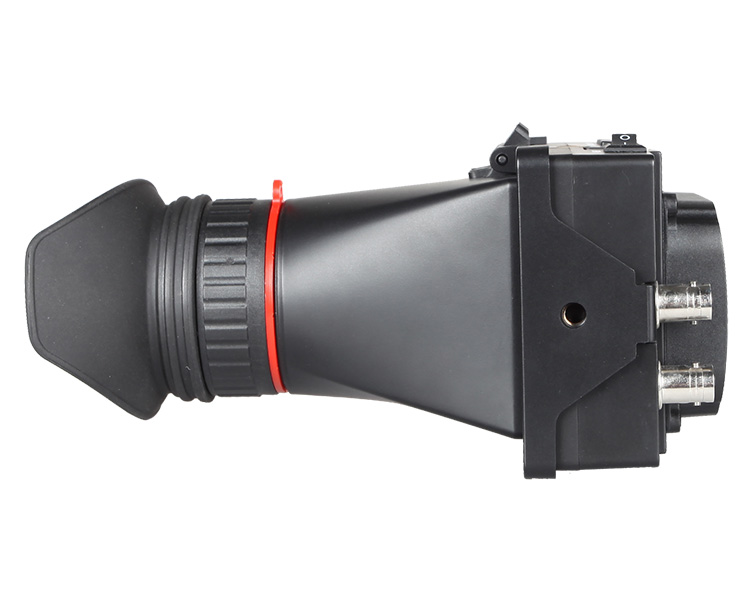

S350 FEELWORLD New 3G HD/SD-SDI Electronic View Finder. This EVF Electronic View Finder is transforming the form factor of DSLR cameras for video with our electronic viewfinder. The EVF is a 3.5" TFT-LCD Max resolution up to1920x1440. This electronic viewfinder allows you to operate the DSLR camera or any camcorder with SDI and HDMI output, with the correct form factor for video with the camera "in-line" to your rod system (the most stable way) and your eye in the EVF offset. In addition, brightness, contrast, hue and saturation can be adjusted. Ideal for indoor and outdoor filming.



Included:

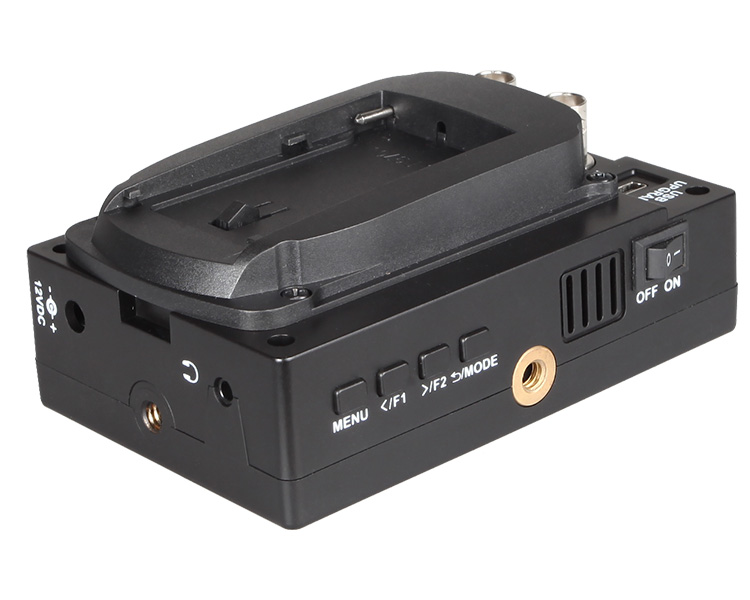

1x Sony F970 battery plate

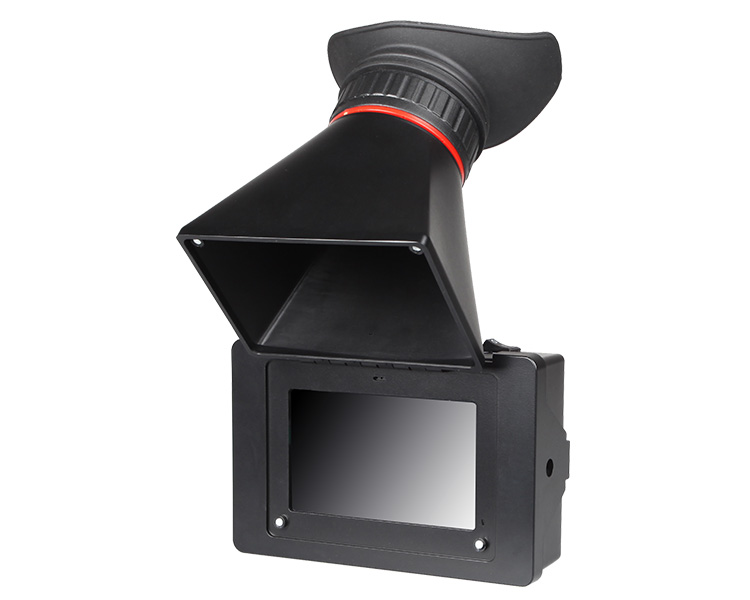

1x Openable & Detachable Optical Loupe
1x Mini HDMI Cable
1x Instruction Manual



Specs
Model: S350
Screen size:3.5"
Resolution:800x480 pixels
Dot pitch
0.0315(W) x 0.0945(H)
Aspect ratio:15:9
Brightness: 315cd/m²
Contrast: 800:1
Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
Backlight: LED
Support Formats:
SDI Support Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50) 1080p(60/59.94/50)
1080p(30/29.97/25/24/24fps/23.98/23.98fps)
HDMI Support Format
480i/576i/480p/576p
720p(60/59.94/50/30/29/25/24/23.98）
1080i(60/59.94/50）
1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps）

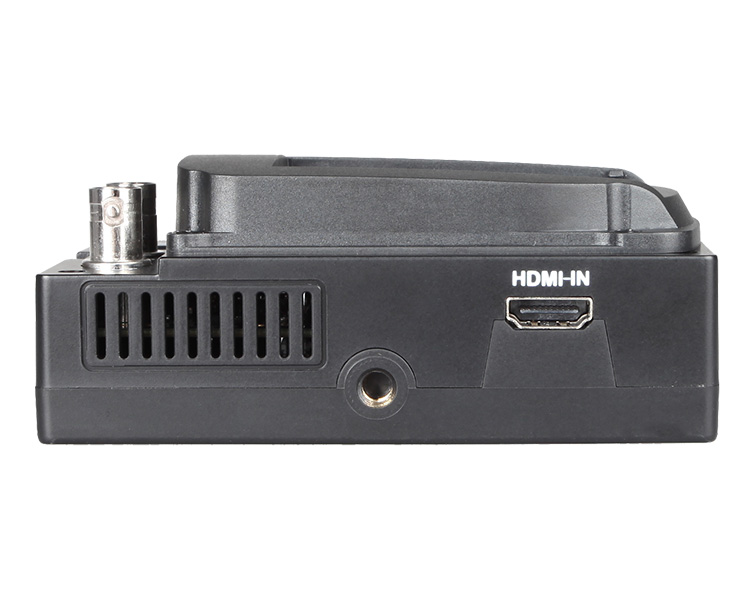

Input; SDI x 1 , HDMI x 1
Output:SDI x 1
Audio
Ear phone Slot x 1
Power
Power Consumption::≤6W
Input Voltage: DC6V-18V
Environment
Working Temperature: -20℃～50℃
Storage Temperature: -30℃～65℃
Install Way
1/4"-20 Thread Socket
Dimension
Unit Size: 124.3L×87.5H×178.5D (mm)
Unit Weight: 344g
