SmallHD 7" Cine 7 Monitor Kit Bolt 4K RX Receiver V-Mount

SmallHD 7" Cine 7  Monitor Kit Bolt 4K RX Receiver V-Mount

Small HD Cine 7 + Teradek Bolt 4K RX Monitor Module Integrated Hardware Bundle

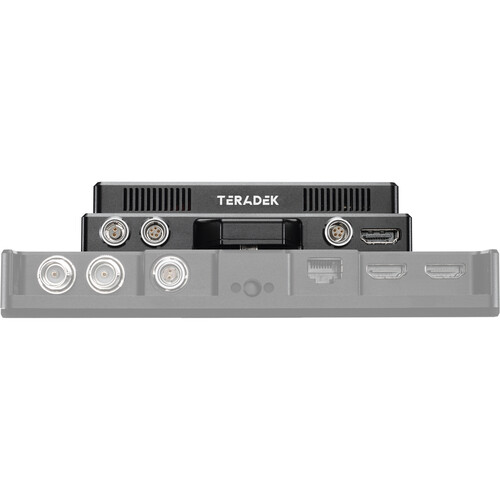

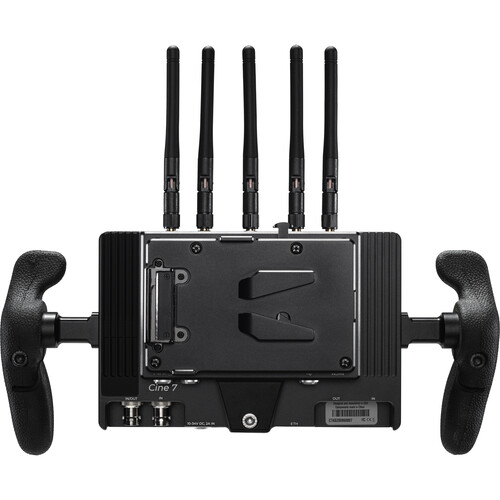

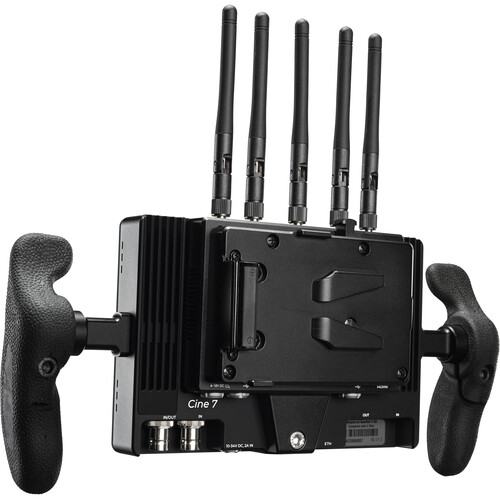

This monitor/receiver combination is the perfect pairing for meticulous eyes. RX Module easily attaches to the back of Cine 7. Receive real-time 4K HDR wireless video directly to a 1800nit display with 100%DCI-P3 color gamut. Gain the added benefits of PageOS 4, SmallHD’s powerful internal software toolset; 1:1 Pixel zoom allows operators to utilize added resolution to punch-in and achieve tack-sharp critical focus. Includes Monitor Handles for handheld conversion and a V-Mount Battery Plate capable of battery power pass-through to both RX Module and monitor.

The Industry Standard 7”

Cine 7 is the ultimate 7” on-camera monitor for cinematographers, offering a color accurate wide-gamut display, cinema camera control, as well as Teradek RT and Bolt integration.

Receive images up to 4Kp30 at a line-of-sight distance of up to 750ft (228m) with no image latency (>0.001sec).

True HDR

Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut. Receive Log-enabled camera signals with wide dynamic range in order to monitor and achieve balanced highlight and lowlight regions with accurate color reproduction.

Improved Wireless Performance

Reliable signal reception over 13x 40MHz frequencies, with upgraded hardware and less image break-up than previous Bolt generations. Faster reconnection times, automatic signal quality switching, and a more robust frequency hopping algorithm. An additional 5GHz radio frequency link is available for high-traffic locations with excessive interference from other wireless devices.

RX Universal Cross-Compatibility between all Bolt 4K Devices

Receive signal from any Bolt 4K series TX device for expanding workflow requirements.

Small HD PageOS 4 Software Toolset

User page presets, Focus Assist, frame guides, 4K HDR (PQ) waveforms, improved false color, Color Pipe log conversion, etc. Monitor camera metadata, timecode, and start/stop flags.
Learn more about PagesOS 4

Bolt App for Android and Apple iOS

Remotely pair any TX/RX devices, manually designate specific 5GHz channels, and monitor interference with the 5GHz Spectrum Analyzer and Wireless Health analysis tools.

Product Highlights

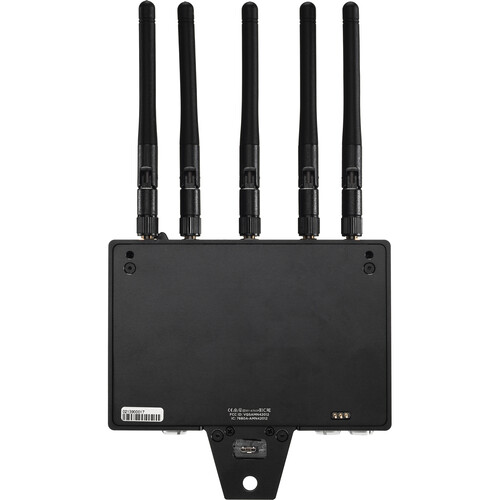

Bolt 4K RX Monitor Module
Video: Up to 4Kp30 / 1080p60
Range: 750 ft.
Inputs: N/A
Outputs: HDMI 2.0
Multicast: N/A
Compatibility: All Bolt 4K Series TX Devices

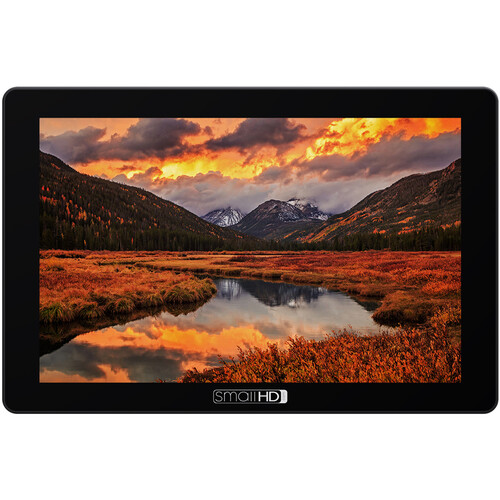

Small HD Cine 7
Display: 7-inch, 1920X1200
Brightness: 1800 nits

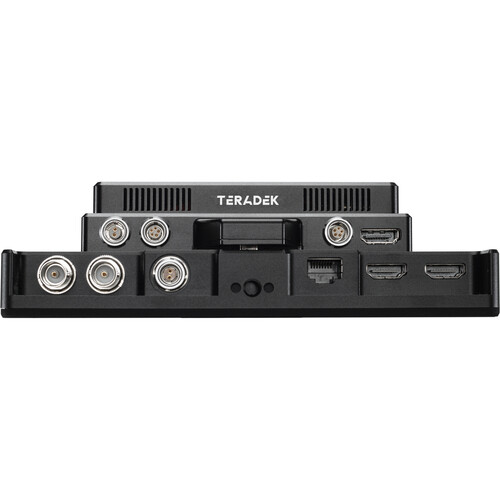

HDMI: 1x HDMI In, 1x HDMI Out
SDI: 1x 3G SDI In, 1x 3G SDI In/Out
Audio: ⅛” Headphone Jack
Power: Barrel Power Input (10V-34V, 2A DC)

Included:

SmallHD 7" Cine 7 On-Camera Monitor Kit with Bolt 4K Receiver (V-Mount)
Teradek Bolt 4K RX Monitor Module for Cine 7 and 702 Touch (V-Mount)
Dual Side Handle Kit
