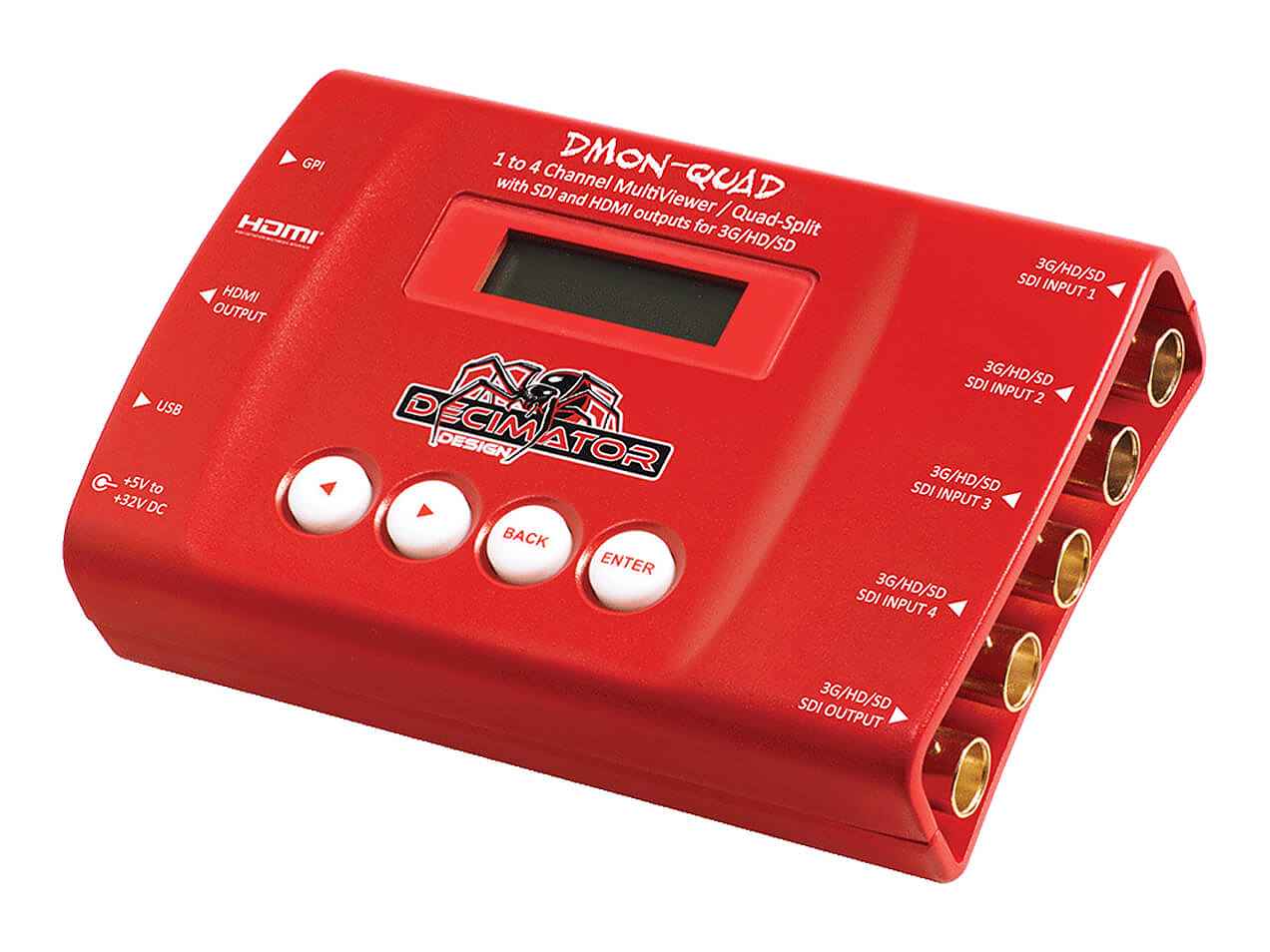

DECIMATOR DMON-QUAD 4-Channel 3G-SDI Multiviewer

DECIMATOR DMON-QUAD 4-Channel 3G-SDI Multiviewer

DECIMATOR DMON-QUAD  is a 4-Channel 3G-SDI Multiviewer with custom layouts and 8 Channel audio meters

The DMON-QUAD is a truly portable converter, that incorporates
our easy to use LCD and button control system. This
gives you easy access to most of the amazing features without
using complicated LED/button control, dip switches or having
to carry around a computer to change a simple setting

Features:

•     Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
•     Low cost (3G/HD/SD)-SDI 1 to 4 Multi-Viewer or 4 to 1 input multiplexer
•     Custom Layouts with various standard layouts
•     16 Character UMD overlay per window with individual enables, custom positioning and size
•     8 Channel Audio Metering overlay per window with individual enables, custom positioning and   size
•     Horizontal and/or Vertical image flipping per window
•     Audio ID overlay
•     Tallies can be applied to either Tally Boxes (Default) or Border
•     Tally boxes allows for up to 4 Tallies per window
•     Fast switching between inputs using Full-Screen scaling
•     Selectable output format in both Full-Screen Multi-Viewer mode
•     Low latency buffering for each input allowing non-synchronous inputs
•     Linked (3G/HD/SD)-SDI and HDMI outputs
•     4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
•     Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
•     Variable aspect ratios per window
•     In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs

Includes:

GPI on RJ-45 connector for Tallies and Remote Switching
- RS422/485 on RJ-45 connector for Dynamic UMD and Tallies
- USB port for control and firmware updates
- Robust Aluminium box
- Metal Thread Locking DC Power Socket
- Power Supply, HDMI Cable and USB Cable
