SmallRig Baseplate for Canon C200 and C200B 2076

SmallRig Baseplate for Canon C200 and C200B 2076

SmallRig Baseplate 2076 is exclusively designed for Canon C200 and C200B. It includes an Arca QR plate on the top and a baseplate(with ARRI dovetail groove) at the bottom. It could offer lots of additional attachment options and enables the camera to release its potential to the utmost as per the needs of cameraman during shooting.

Features:

1.It is exclusively designed for Canon C200 and C200B.
2.Arca QR plate could be mounted on the baseplate in drop-in style.
3.It comes with dual rod clamps for 15mm rods whereby lens support, follow focus, matte box etc. could be attached. 85mm rod height is ensured.
4.The baseplate that comes with Arri dovetail groove at the bottom fits Arri QR plate for tripod; it is also equipped with 1/4’’-20 and 3/8’’-16 threaded holes for QR plates of other standards.
5.The pressing part will not drop accidentally even the wingnut looses.

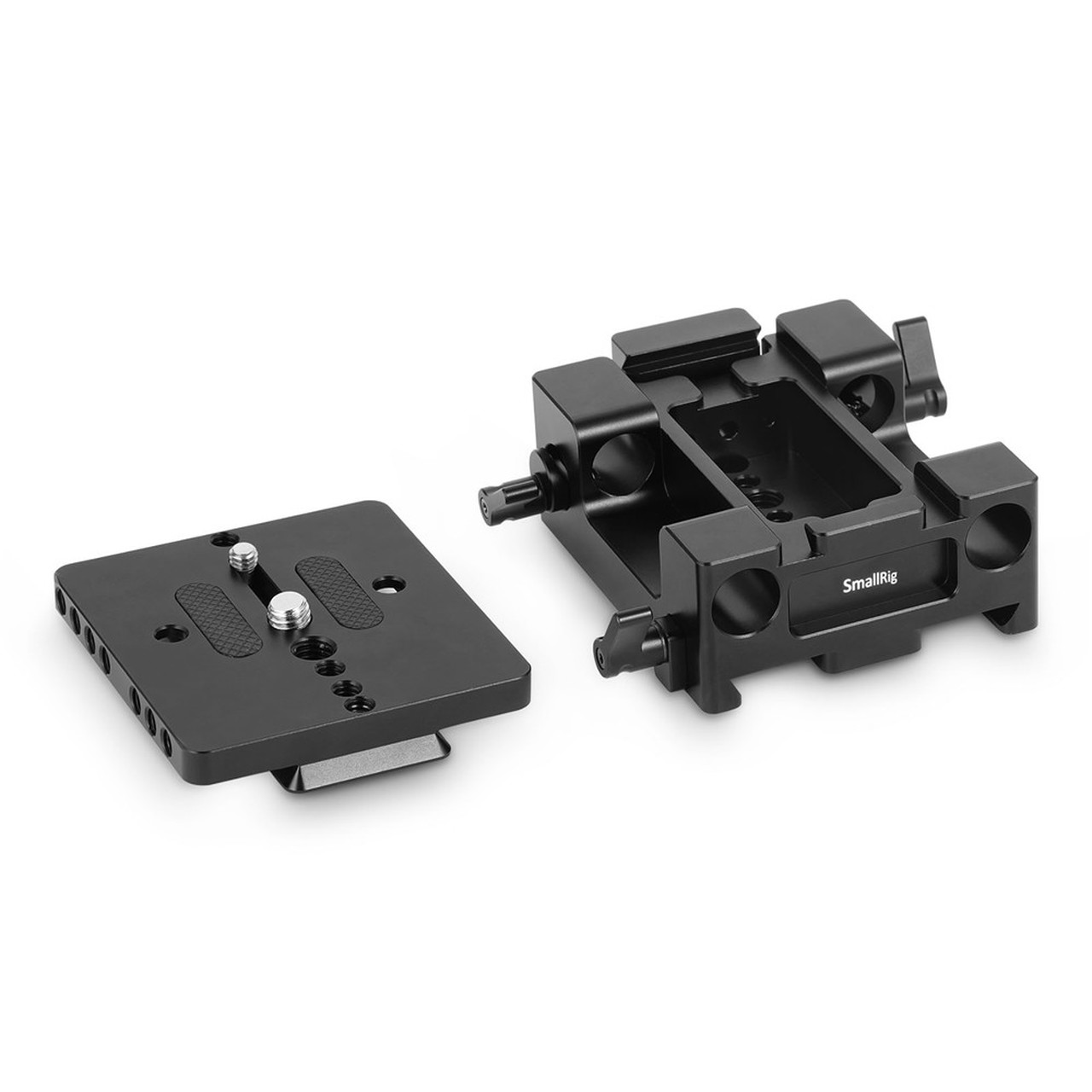

Arca QR plate on the top attaches the bottom of camera via 4 screws for firm attachment. It is equipped with 1/4’’-20 and 3/8’’-16 threaded holes for QR plates at the bottom. It could be detached from the baseplate for QR plates of other standards, thus it could be switched to other modes, such as in dollies and cranes.
The baseplate is anti-off designed, thus it prevents the camera from accidental removal. It comes with dual rod clamps for 15mm rods whereby lens support, follow focus, matte box etc. could be attached. Arri dovetail groove at the bottom could attach Arri QR plate and then sit on the tripod. It is also equipped with 1/4’’-20 and 3/8’’-16 threaded holes at the bottom for DIY operations.

Compatibility:

Canon C200 and C200B

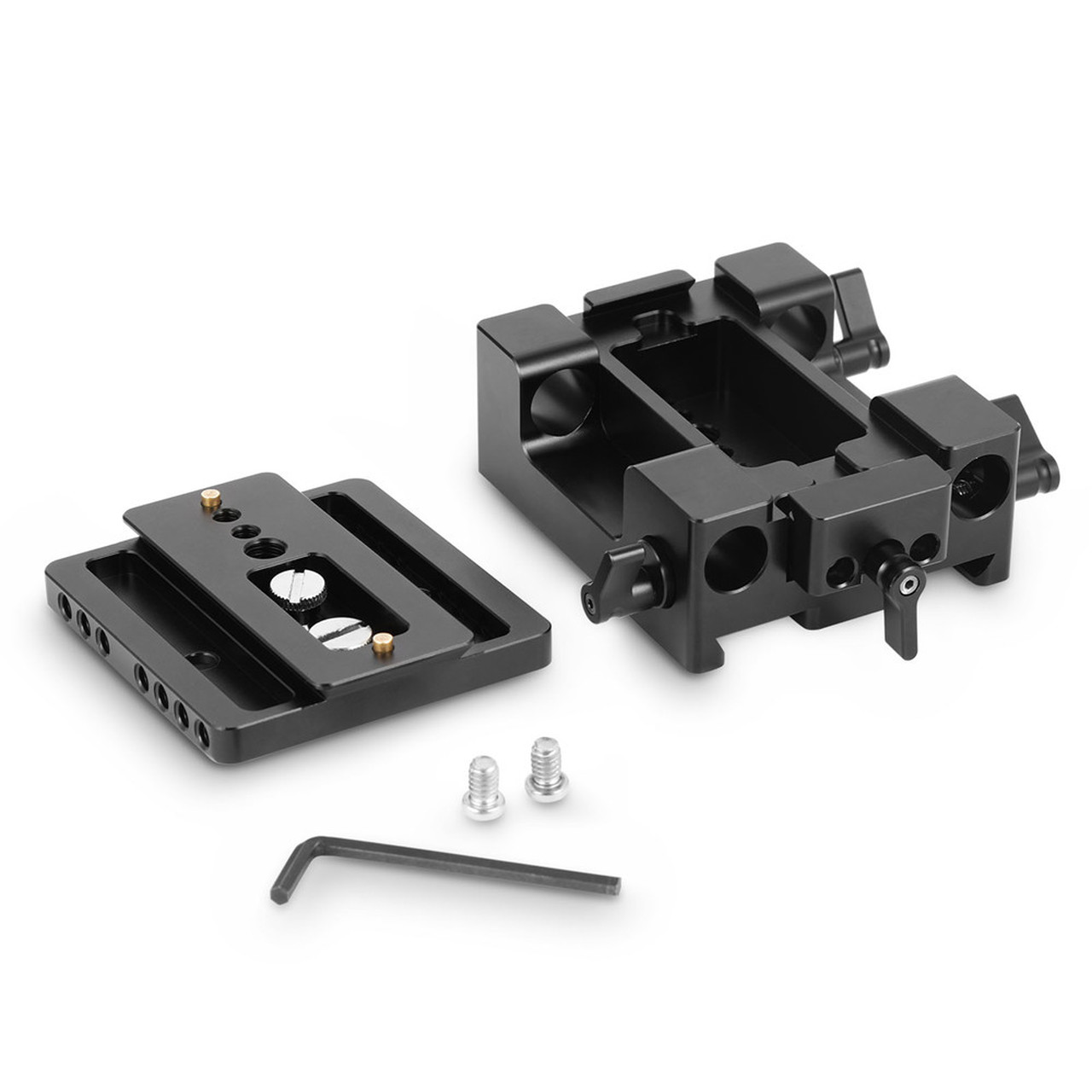

Includes:

1 x Baseplate 2076
3 x 1/4’’ Screw
1 x 3/8’’ Screw
1x Hex Spanner

Specs:

Product Dimensions: 104x81x47 mm
Net Weight: 478g
Package Size: 160x120x68 mm
Material(s): Aluminum Alloy
