CAME-TV Trådlös Video HDMI & SDI Video System 800M

CAME-TV Trådlös HDMI & SDI Video System 800M

Professionell trådlös videoöverföring för hdmi eller sdi på 5ghz. Låg latency under 30ms och full hd 1080P 60Hz 4:2:2

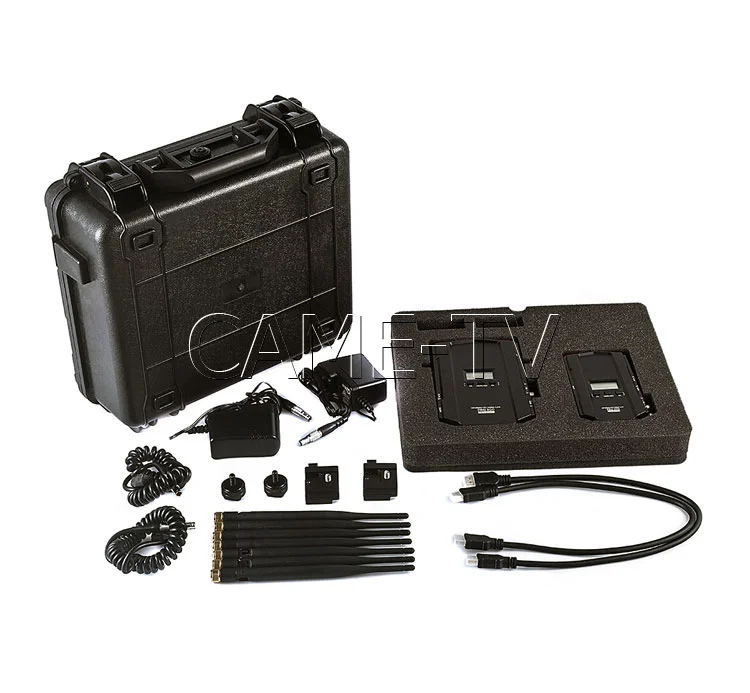

Ingår:
Mottagare
Sändare

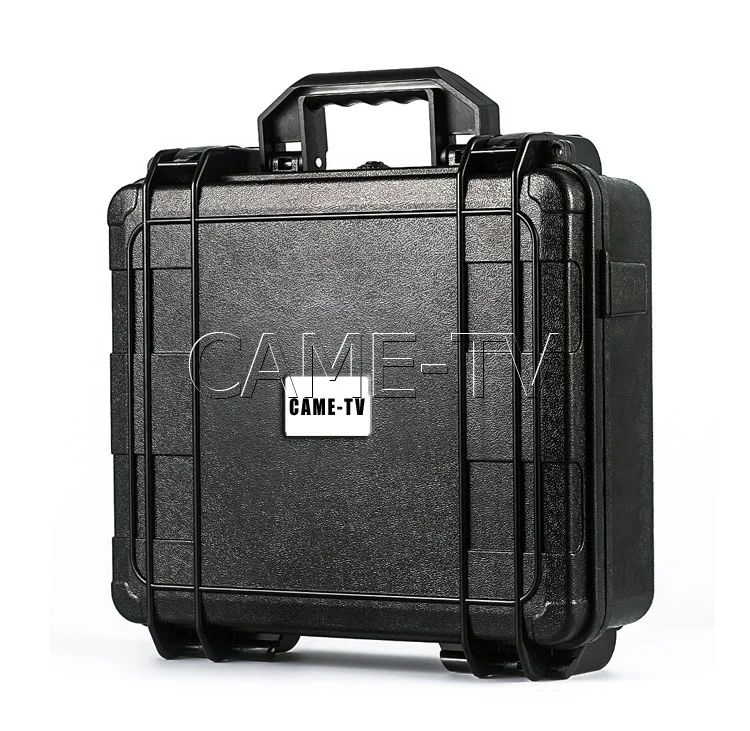

Case

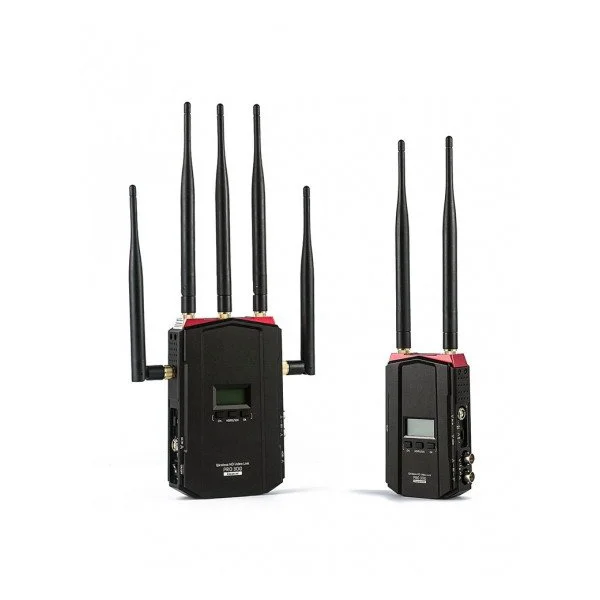

Antenner
Strömadaptrar.




Specs:
Frequency 5.1~5.9 (GHz)
Bandwidth 40MHz
Video Formats Supported 1080p 23.98/24/25/30/50/60
1080psf 23.98/24/25 1080i 50/59.94/60
720p 50/59.94/60 576p 576i 480p 480i
Audio Formats Supported PCM, DTS-HD, Dolby True HD
Time Code SMPTE-12M
Transmission Range >800m - 26,246 feet (Line of sight, depending on conditions)

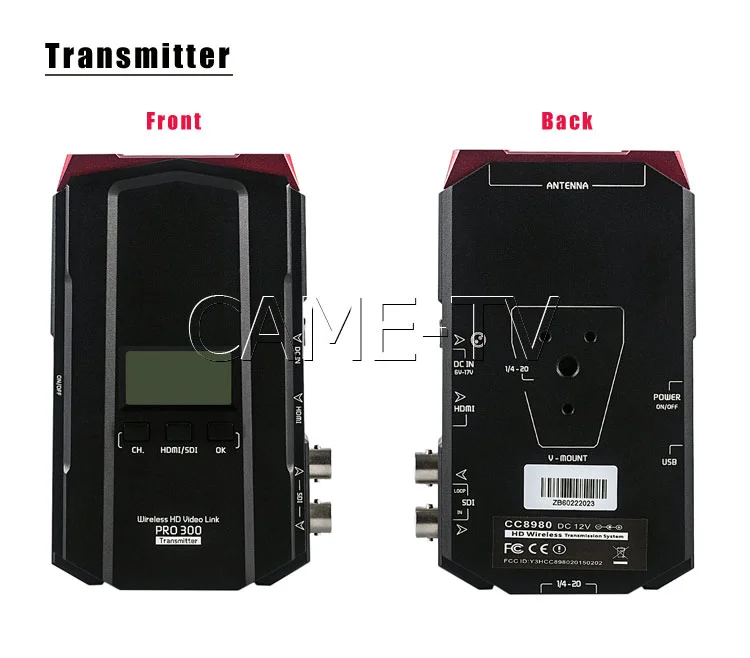

TX
Antenna External Antenna x 2 pcs
Transmission Power 20dBm

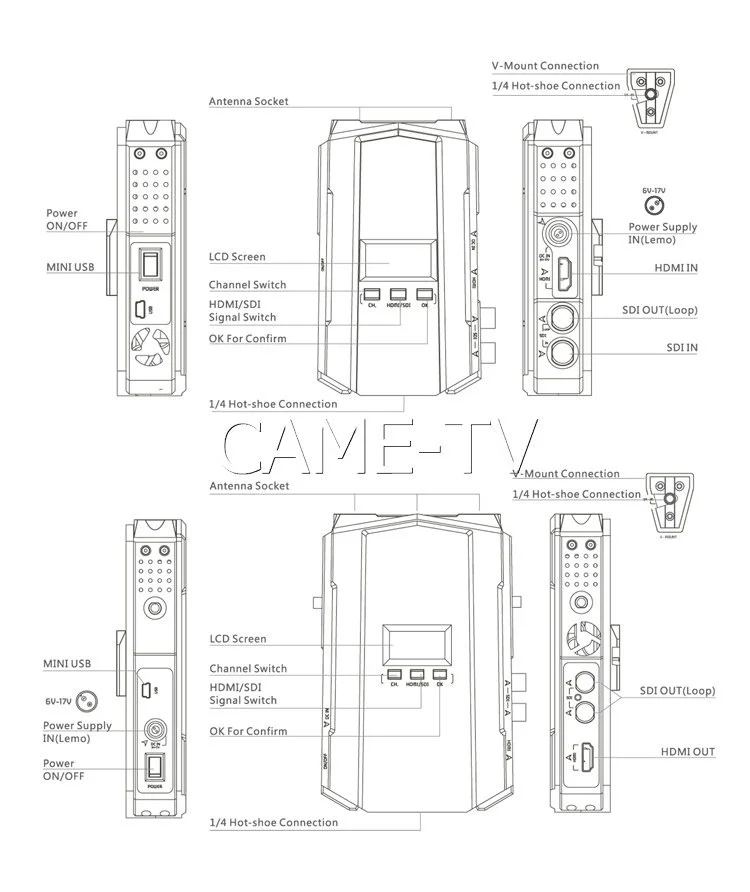

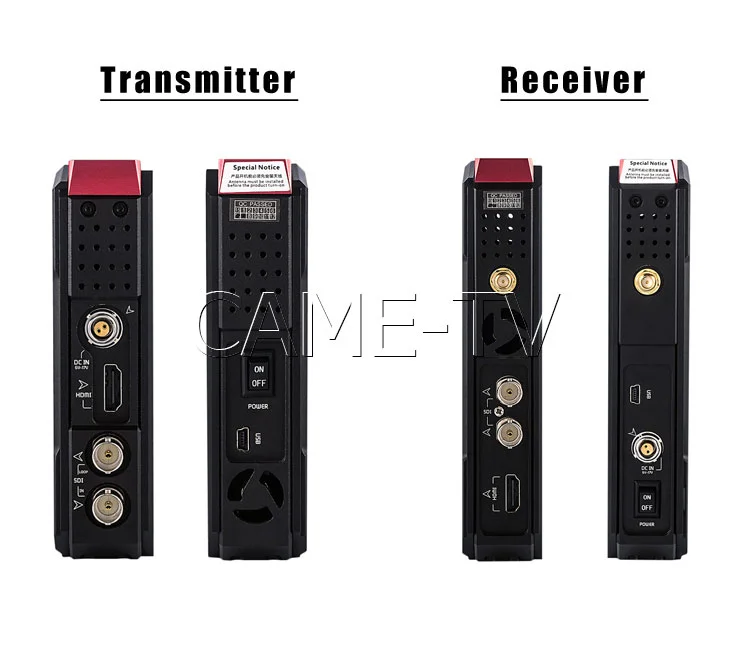

Functional Interface HDMI Input; SDI Input; SDI Loop Output; Mini USB; LEMO Power IN; Antenna RPSMA Socket, Power ON/OFF
Mounting Structure 1/4" Hot-shoe connection; V-Mount * Optional
LCD Display Wireless Channel Info; SDI/HDMI Input Info; Signal status; Power Info
Working Voltage 6V-17V
Power Consumption 7-8W
Dimensions 119x79x32mm - 4.7x3.1x1.3in
Temperature -10 - 60°C ( Operating ) ; -40 - 80°C ( Storage)

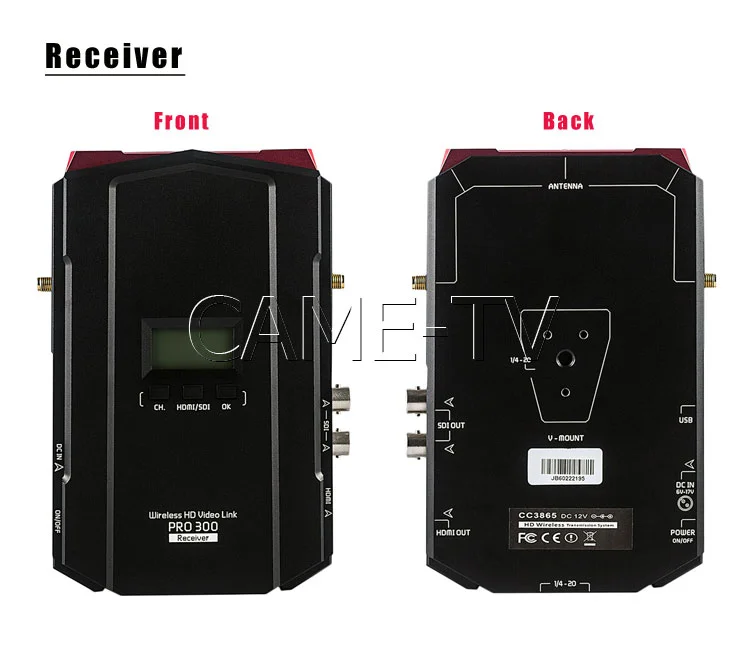

RX
Antenna External Antenna x 5 pcs
Receiving Sensitivity -70dBm
Functional Interface SDI Dual Output; HDMI Output; Mini USB; LEMO Power IN; Antenna RPSMA Socket, Power ON/OFF
Mounting Structure 1/4" Hot-shoe connection; V-Mount * Optional
LCD Display Wireless Channel Info; SDI/HDMI Input Info; Signal status; Power Info
Working Voltage 6V-17V
Power Consumption 7-8W
Dimensions 155x111x32mm - 6.1x4.4x1.3in
Temperature -10 - 60°C ( Operating ) ; -40 - 80°C ( Storage)
