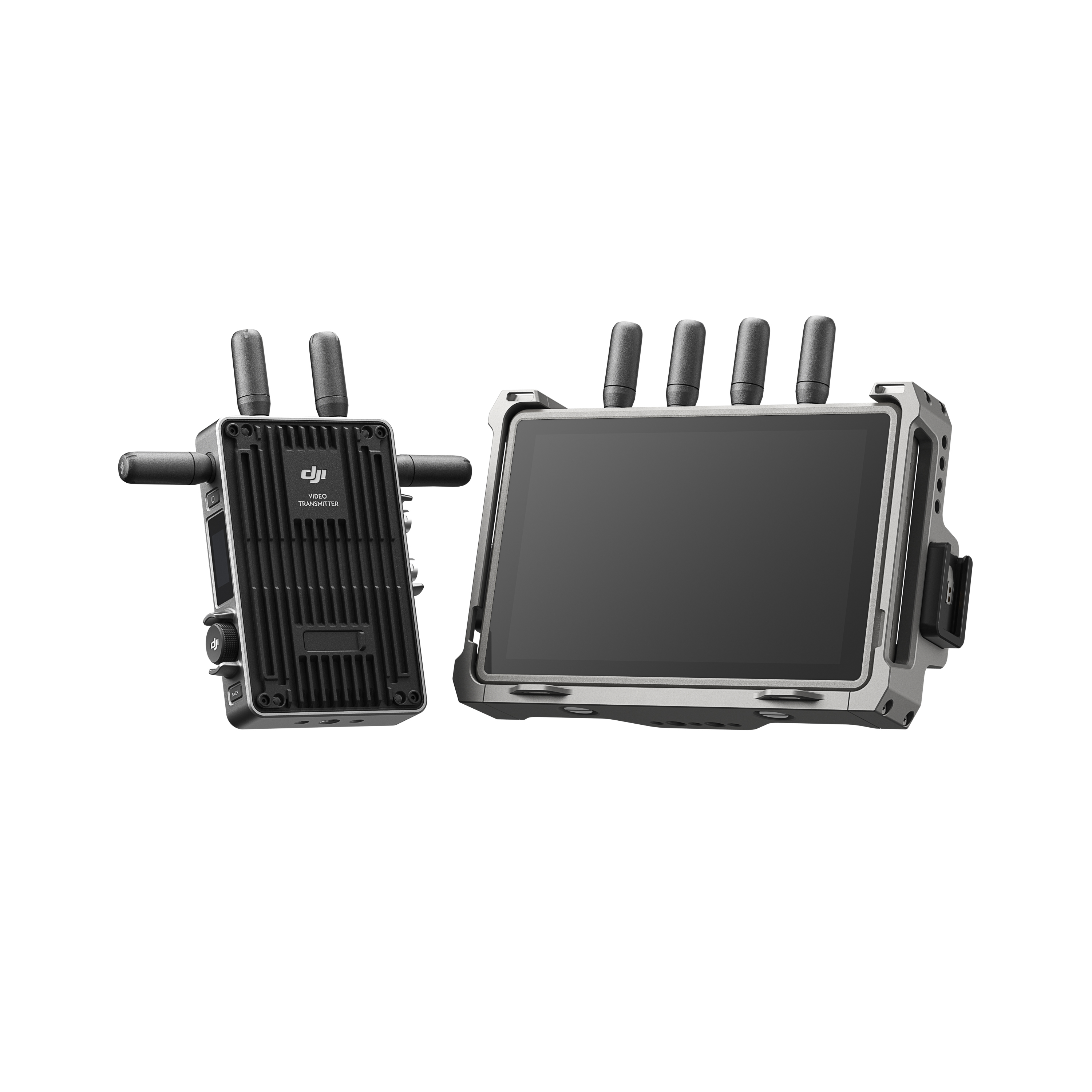

DJI Transmission High-Bright Monitor Combo

DJI Transmission High-Bright Monitor Combo Kit

DJI Transmission evolves from the established DJI aerial video transmission technology, delivering an integrated solution that combines a video receiver, monitor, controller, and recorder. It is designed for native integration with Ronin-series products and DJI Master Wheels, transforming the industry with a groundbreaking transmission experience that provides vision beyond boundaries.

Features:

20,000ft 1080p/60fps Transmission
Seamless Auto Frequency Hopping
End-to-End Ultra-Low Latency
Integrated Wireless Receiver
Gimbal/Focus/Camera Control
Independent Recording and Playback

Long-Distance HD Live Feed

DJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible 6km/20,000ft [1] on-ground transmission distance. It also supports transmission at 1080p/60fps with a max bitrate of 40Mbps as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets with an excellent remote visual and audio monitoring experience.

End-to-End Ultra-Low Latency

The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like ALEXA Mini LF.

Seamless Auto Frequency Hopping

O3 Pro adds DFS bands* on top of the traditional 2.4 GHz and 5.8 GHz frequency bands, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels. In addition, DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.

One Transmitter with Multiple Receivers

The High-Bright Remote Monitor supports one transmitter with multiple receivers for video and audio feeds in two transmission modes. In Control mode, DJI Transmission delivers optimal transmission performance. Monitoring can be done from two receivers at the same time, while Ronin 2, RS 3 Pro, and camera focus can all be controlled remotely.

Encrypted Transmission

DJI Transmission supports secure pairing and AES 256-bit encryption to protect against unauthorized access to your information. Together with DJI's self-developed chip and transmission protocol, DJI Transmission is able to ensure the highest level of security for your footage.

Independent Recording and Playback

The remote monitor features a microSD card slot and allows for independent recording and storage of up to 1080p/60fps H.264 live feed. The remote monitor can automatically start and stop recording in synchronization with the camera, as well as simultaneously access video timecodes, [3] making it easy to edit proxies right on set. When several remote monitors are used in conjunction, each monitor can even record or playback footage independently without interfering with other monitors.

Built-In Motion Controller

The High-Bright Remote Monitor has a built-in gyroscopic sensor that enables it to act as a standalone motion controller for Ronin 2 or RS 3 Pro without the need for additional accessories. This allows users to achieve more complex camera movements from a moving vehicle or with a jib.

Compatible with Ronin 4D Hand Grips

The High-Bright Remote Monitor comes with an expansion-protective frame. When using with Ronin 4D Hand Grips, [2] the joystick can control the Ronin 2 or RS 3 Pro gimbal, and the focus wheel can control focusing and the adjustment of camera parameters like aperture, shutter, and ISO, while the record button controls start/stop of recording, [4] making the RS 3 Pro user experience similar to that of Ronin 4D.

Compatible with DJI Master Wheels and DJI Force Pro

When used with the DJI Master Wheels or DJI Force Pro, [5] the remote monitor allows users to achieve more advanced gimbal control when using Ronin 2 or RS 3 Pro. In this scenario, the original equipment will transmit control signals directly through DJI Transmission, no longer utilizing the wireless signals from DJI Master Wheels or DJI Force Pro. This boosts the transmission performance by three times and enhances signal range, stability, and anti-interference capabilities.

Mirror Control Mode

When RS 3 Pro is mounted to jibs, cable cams, and vehicles, with Mirror Control mode, [6] you can remotely control the menu of Sony mirrorless cameras from anywhere on set.

Direct Power Supply by Gimbal

DJI Transmission can pair with Ronin 2 or RS 3 Pro for a customized shooting solution. The Video Transmitter can be mounted directly to the cold shoe on the bottom of the gimbal and powered by it directly without additional batteries.

Included:

DJI Transmission Combo
DJI Wireless Video Transmitter
High-Bright Remote RX Monitor
Remote Monitor Hood
WB37 Battery Adapter (TX)
WB37 Intelligent Battery
WB37 Battery Charging Hub (USB Type-C)
L-Series Battery Adapter (TX)
L-Series Battery Adapter (RX)
USB Type-C to LEMO Power Cable
RS Gimbal Mounting Plate
USB Type-C Cable
SDI Cable
DC Power Cable
DC to D-Tap Power Cable
Installation Toolkit
Protector Case
