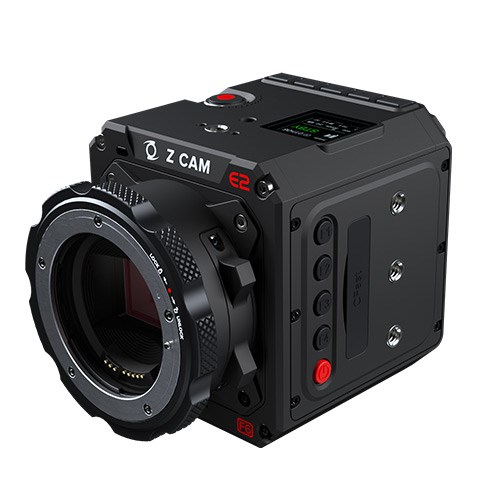

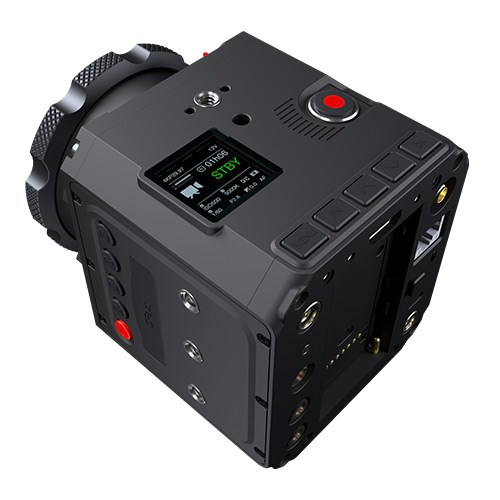

Z CAM E2-F6 Full Frame 6K Cinema Camera

Z CAM E2-F6 6K Full Format Cinema Camera

Film professionals with high definition film with Z CAM E2-F6 full format 6K Cinema Camera. The camera has a full-frame sensor with 10-bit 4: 2: 2 color support and nominal 15 stops of dynamic range, supports time code, films up to 6K at up to 60 fps and records data up to 300 Mb / s on CFast 2.0 media.

Supported recording formats include ZRAW format, MOV and MP4 with H.265 for 10-bit recording, while H.264 supports 8-bit recording, and firmware 0.88 allows the camera to record in ZRAW format. Its HDMI 2.0 port supports 4K60, 10-bit 4: 2: 2 video output. Audio is recorded in 24-bit 48 kHz with AAC or PCM (PCM for MOV format only) through its 3.5 mm stereo jack or via a separately available XLR connector with its 5-pin LEMO port.

The E2-F6 can be controlled via serial ports, a 2.5 mm LANC connection, a USB Type-C port, Ethernet port or with the Z Camera iOS app to control the camera via Wi-Fi and to see a preview of a live image and to configure settings. The camera can record time delay, slow motion and can even stream live via its Gigabit Ethernet port. You can also control it locally with the buttons along the side of the camera.

The E2-F6 can be powered by a separately accessible battery using the built-in L-series battery mount, or you can power the camera with a separately accessible power adapter with its 2-pin LEMO port. The camera also has a 12 VDC 2-pin LEMO output to power separately available accessories.

Firmware 0.88

Firmware 0.88 enables ZRAW recording to the camera.

6K recording

Unlimited of a recording time limit, you can record 6K at up to 60 fps for up to the limit of your recording media capacity
CMOS sensor with 14 stops of dynamic range
The camera supports ZRAW, REC. 709, Z-Log2, FLAT and HLG
H.265 (10-bit color) internal recording on CFast 2.0 card
4K60, 10-bit 4: 2: 2 video output via HDMI 2.0 is supported
All-metal housing for efficient heat dissipation

Interface and expandability

USB 3.0 Type-C for camera control and data transformation only
Two serial ports for camera control
Ethernet port for live view, control and file transfer to a browser or a computer running Z CAM software
LANC port for remote control including power on / off

iOS app

Z Camera is a mobile application for previewing and controlling live cameras via 5G or 802.11n Wi-Fi. It allows you to start / stop recording and adjust camera settings remotely, and also has advanced features in the camera's live preview.

Camera settings

White balance: Auto, preset, manual (2300 to 7500K)
Focus modes: MF, AF, CAF
Image: Brightness, contrast, saturation, sharpness
LUT: REC. 709, Z-Log2, FLAT, HLG
Time code: Current time, manual entry

Camera housing

Made of aluminum for strength and heat dissipation
2-pin LEMO 12 VDC output
Power from the included 2-pin LEMO 12 VDC adapter or optional L-series batteries
