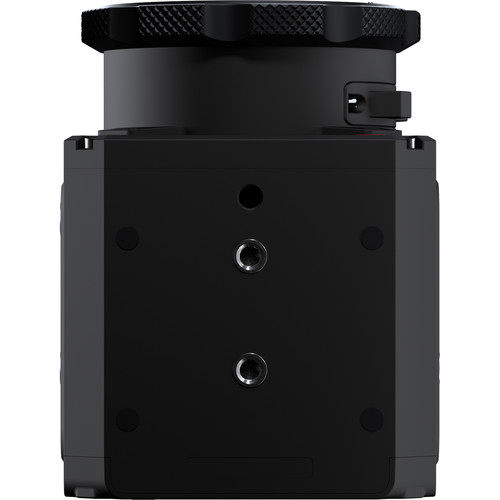

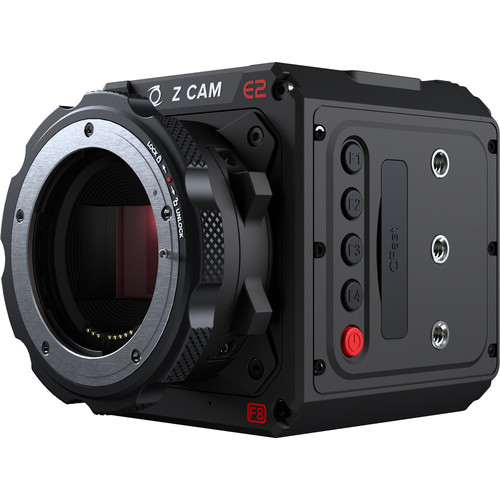

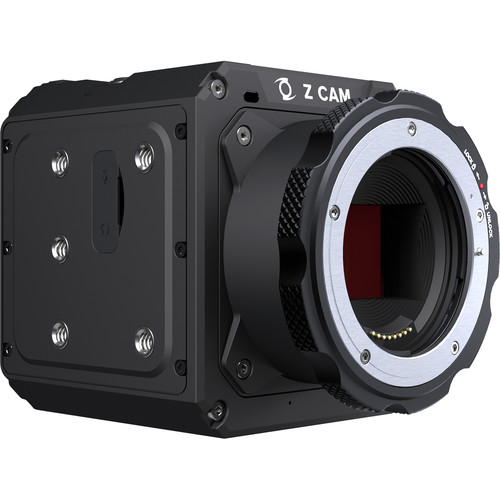

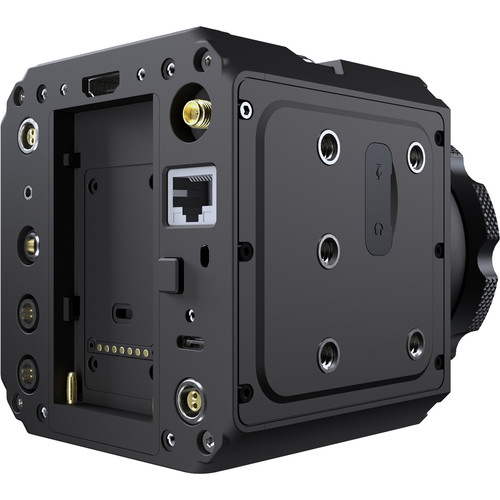

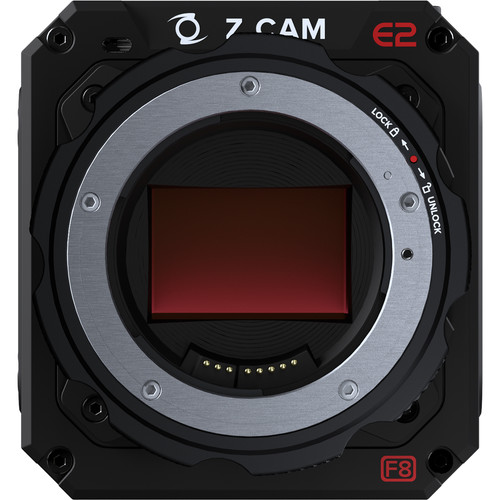

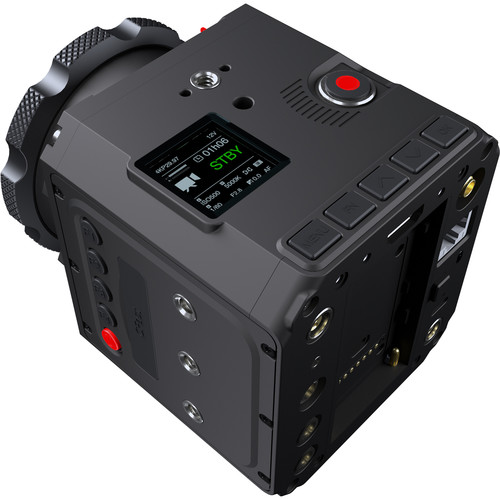

Z CAM E2-F8 Full-Frame 8K Cinema Camera EF Mount
€6 468,84
- VAT free purchase available at checkout.
Descrição
Artigo n.: 2205_2
Z CAM E2-F8 Full-Frame 8K Cinema Camera EF Mount
THe Z Cam E2-F8 is a full-frame 8k sensor cinema camera in a compact camera body. It shoots in 10 bit 4:2:2 and has 14 stops of dynamic range. You can shoot 30fps in 8k and the media is cfast 2.0 with upp to 300b/sec.
Features:
8K resolutionFull Frame CMOS sensor
Dual native ISO
ZRAW supported
EF / PL lens mount*
Gigabit Ethernet for data, control & live preview
Included:
Z CAM E2-F8 Full-Frame 8K Cinema Camera (EF Mount)LEMO Power Cable
AC/DC Power Adapter
Lens Mount Cap
1 Year Warranty
Technical Specifications
Disclaimer: All product features and technical specifications stated are subjected to Z CAM’s sole interpretation and explanation. Specifications are subject to change without notice.Camera
- Sensor Type
- Full Frame CMOS Sensor
- Sensor Size
- 35.97 x 23.98 mm
- Effective Pixels
- 61M
- Dynamic Range
- 14 Stops
- Lens Mount
- EF / PL (different hardware variants)
- Microphone
- Built-in Stereo Microphone
- Resolution & Max Frame Rate
- 8192x3456 @30fps (8K 2.4:1)
7680x4320 @30fps (8K UHD)
6144x3240 @30fps max (6K DCI)*
5760x3240 @30fps max (6K UHD)*
3840x2160 @60fps max (4K UHD)*
* supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as 6K DCI resolution mode - Video Encoder
- ZRAW* / H.265 main 10 profile / H.264 high profile**
* up to 4K @30fps
** ProRes will be supported at a later stage once certification is obtained - Bit Rate
- 500 Mbps max for H.265 & H.264 / 1.2 Gbps for ZRAW
- Color Bit-depth
- 12-bit (ZRAW) / 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)
- Audio Format
- 24-bit 48 kHz
- Audio Encoder
- AAC / PCM (for MOV only)
- File Format
- MOV / MP4
- Record Mode
- Video / Time Lapse Video
- ISO
- Auto, Manual (400 ~ 125000), Dual Native ISO: 400 / 1250
- Shutter
- Shutter Speed: Auto, Manual (up to 1/8000”) or
Shutter Angle: Auto, Manual (1° ~ 360°) - White Balance
- Auto, Preset, Manual (2300K ~ 7500K)
- Focus Mode
- MF / AF / CAF
- Image
- Brightness / Contrast / Saturation / Sharpness
- Image Config
- Rec.709 / Z-Log2 / FLAT / HLG
- Audio
- Audio In / Out Level
- Time Code
- Current Time / Manual Input
Storage
- Media
- CFAST 2.0
- File System
- exFAT
- HDMI
- HDMI 2.0 Type A (video output up to C4K @ 60fps, 10-bit 4:2:2)
- USB
- USB 3.0 Type C for camera control & data transfer only
- COM
- 2 x Serial Port
- Remote Control
- 2.5 mm jack socket (Sony LANC compatible)
- Audio-in
- 3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)
- Audio-out
- 3.5 mm stereo jack socket
- Wi-Fi
- 2.4G / 5G, 802.11n with external antenna port
- Ethernet
- Gigabit Ethernet port for control, setting & live streaming
- Battery
- Sony NP-F series compatible, 6.8V ~ 8.4V (Battery not included)
- Power Input
- DC 6.8V ~ 16.8V (2-pin LEMO socket), with LEMO connector
- Power Output (AUX)
- DC 12V (2-pin LEMO socket)
- Material
- Aluminum Alloy
- Weight
- 1090g (EF mount) / 1160g (PL mount)
- Dimensions (W x H x D)
- 91.20mm x 99.25mm x 122.25mm (EF mount)
91.20mm x 99.25mm x 133.35mm (PL mount)
- Storage Temperature
- -20 °C ~ 60 °C
- Operation Temperature
- 0 °C ~ 40 °C
