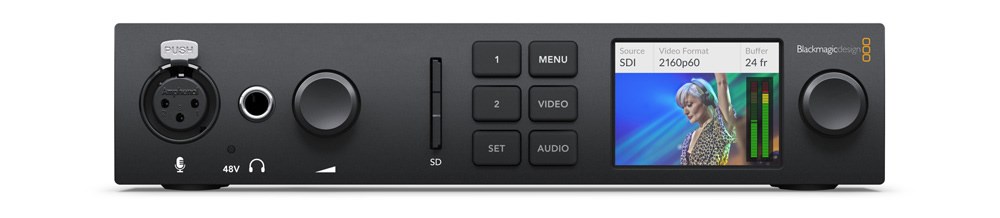

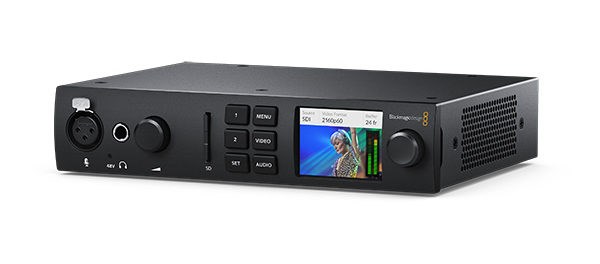

Blackmagic Design UltraStudio 4K Mini

Blackmagic Design UltraStudio 4K Mini

UltraStudio 4K Mini can be connected directly to your computer via Thunderbolt 3 for recording, playback, archiving and streaming with graphics support. Inputs such as 12G-SDI, HDMI 2.0 or analog inputs give you compatibility with a large amount of video equipment. A smooth and compact solution for those who work with broadcast, film or streaming in a smaller environment, but do not want to sacrifice choice or compatibility with both new and old equipment.

Features:

Connect with Thunderbolt 3 to your computer to work with a wide variety of video and audio equipment
Supports image in 1080i, 1080p, 2160p and 4K DCI
Up to 60p
Broadcast quality in 8- & 10-bit with high dynamic range
Inputs for both digital and analog input and output
SD card reader (UHS-I & UHS-II) for direct access to the image and video from your camera
XLR input with 48V phantom power supply
Designed to work with Adobe Premiere Pro, DaVinci Resolve, Final Cut Pro, Avid and more.
Support for Mac OS, Windows and Linux

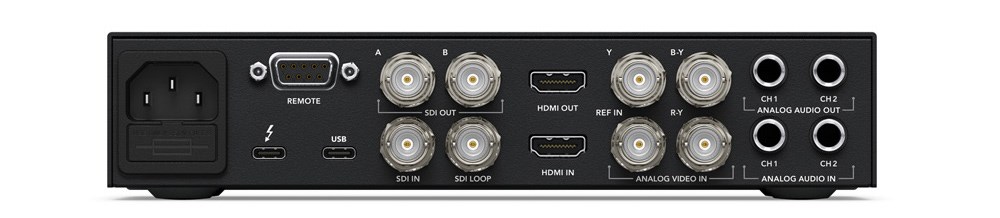

Inputs

1 x Thunderbolt 3 with 45W power supply
1 x USB-C 3.1 (Up to 5Gb / s)
1 x HDMI 2.0b, support for 8 channels of digital audio
1 x 12G SDI video
1 x Component in
1 x REF in
1 x XLR with 48V phantom power via software control
1 x Analog audio in 2 channels
1 x SD card reader: UHS-I and UHS-II compatible

Outputs

1 x HDMI 2.0b, support for 8 channels of digital audio
1 x SDI
1 x SDI runs out

Included:

Ultra studio 4K mini
