Blackmagic Design HyperDeck Studio HD Mini

Blackmagic Design HyperDeck Studio HD Mini

HyperDeck Studio is a rack-mountable video recorder that records broadcast-quality material directly to SD cards and SSD storage devices. It has a modern design with more codecs and quiet cooling. All these powerful features make HyperDeck Studio perfect for broadcast, live production or multiview for digital signage.

Benefits

• 3G SDI in and out
• 2 SD card slots with support for UHS II
• Record and play back material on the same device
• Record to a hard disk using USB-C
• Connect a computer via USB-C and use as a webcam
• Connect multiple devices in series for more video outputs and playback on larger monitors

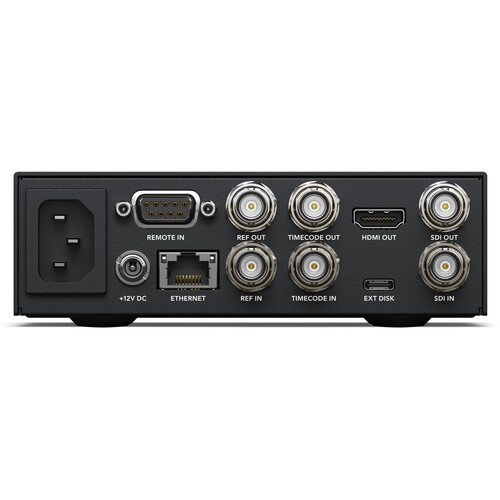

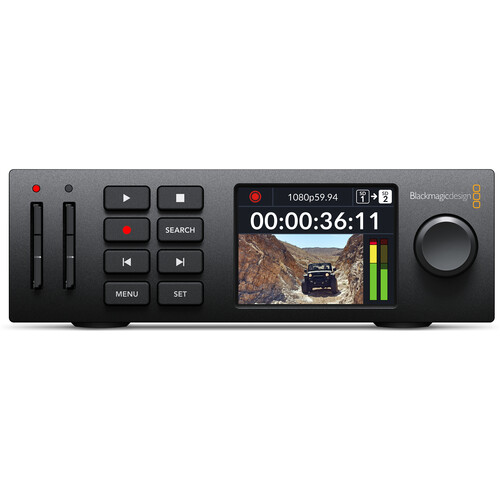

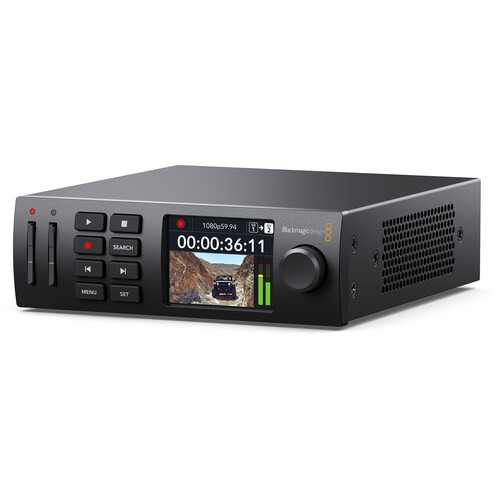

The most compact model of HyperDeck Studio is based on the Teranex Mini form factor. It is small and compact but still has powerful connections such as 3G-SDI in and out, HDMI output, dual SD card media slots, built-in sync and timecode generators, controls on the front panel and both AC and DC inputs. HyperDeck Studio Mini records H.264, ProRes or DNxHD files on SD / UHS-II cards or external USB devices in SD / HD format to 1080p60. You also connect it via USB to a computer as the HyperDeck Studio HD Mini acts as a webcam and allows you to use any video software.

Connect several Hyperdeck Studio HD mini in series

Connect several devices in series with time code and reference and thus get more video outputs or more recording devices.
The built-in sync generator ensures that all material is played or recorded synced and ready.
This provides the ability to either get multiple backup recordings or use Hyperdeck for larger video walls.
Hyperdeck is prepared with FTP protocol to remotely control this.
